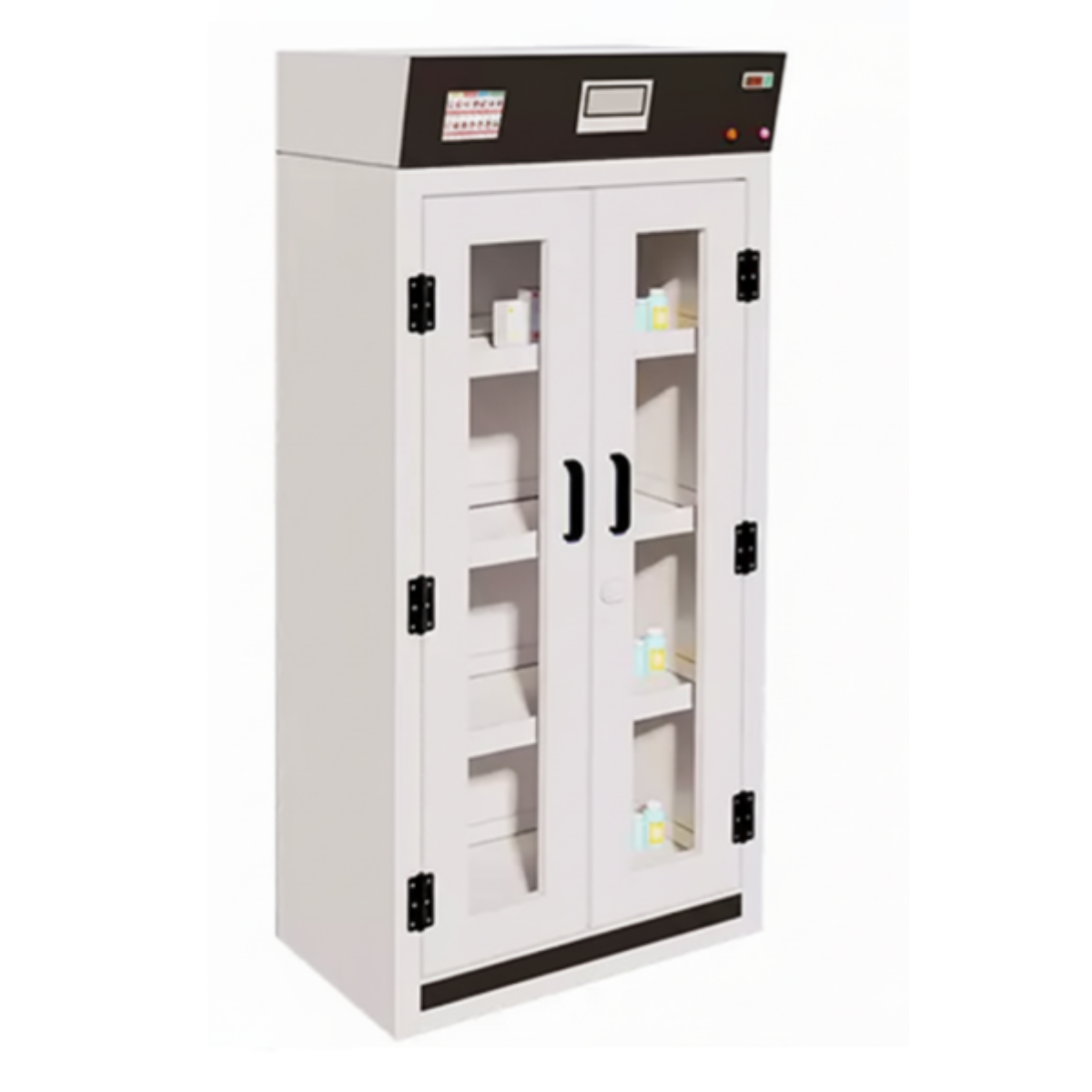

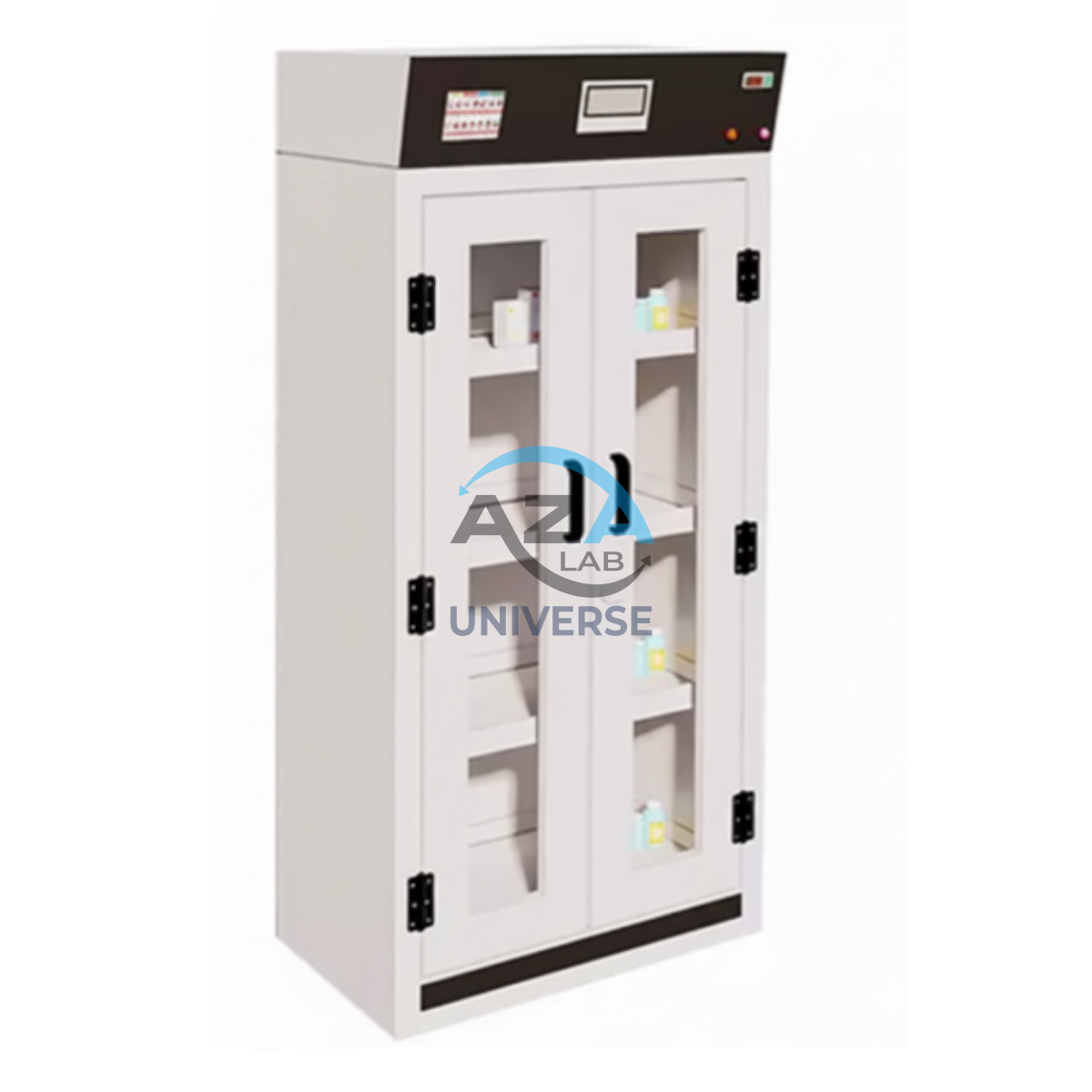

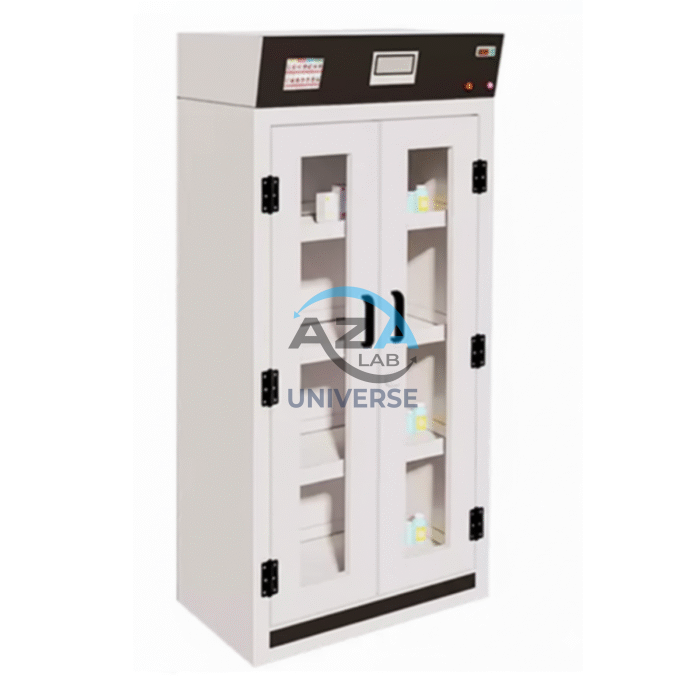

PP Gas-Purifying Chemical Safety Cabinet AZA -1305
Layer Board: 3
Load Bearing: > 70kg/㎡
Air Handling Capacity: 220m³/h
External Size (W x D x H): 800×460×1830 mm
The AZA Model 1305 PP Gas-Purifying Chemical Safety Cabinet is specifically designed for the safe storage of toxic, harmful, and highly corrosive chemicals. Its pipeline-free gas purification system ensures continuous protection for laboratory personnel, making it ideal for research facilities, universities, and industrial laboratories.
Working Principle
- Top-Mounted Fan: Generates negative pressure by drawing laboratory air into the cabinet.
- Gas Filtration: Harmful gases from stored chemicals pass through the molecular filtration module, where toxic molecules are trapped. Clean, purified air is then returned to the room.
- 24/7 Air Purification: Continuous operation improves indoor air quality and maintains a safe environment for personnel.
Description
Key Advantages
-
Plug & Play Installation: No complex piping or external exhaust system required.
-
Eco-Friendly Design: Eliminates waste gas discharge, helping meet environmental standards.
-
Customizable Filtration Modules: Choose filters based on stored chemical categories (organic, inorganic, acid/base, formaldehyde, etc.).
-
Energy Efficient: No air conditioning loss or excessive energy consumption.
-
Portable & Flexible: Easy to relocate and ideal for on-site chemical storage.
| Model | AZA 1305 |
|---|---|
| External Size (WxDxH) | 800×460×1830 mm |
| Internal Size (WxDxH) | 760×420×1540 mm |
| Molecular Filter Size | 370×395×50 mm |
| Primary Filter Size | 370×396×21 mm |
| Display | 7-inch LCD touch screen |
| Layer Board | 3 |
| Load Bearing | > 70kg/㎡ |
| Air Handling Capacity | 220 m³/h |
| Cabinet Volume | 0.5 m³ |
| Storage Capacity | 120 bottles (500ml) |
| Noise Level | 40 dBA |
| Power Supply | 220V / 50Hz |
| Power Consumption | 42W |
| Gross Weight | 98 kg |
-
Material: Constructed from 8mm white PP (polypropylene) sheet with seamless welding for maximum corrosion resistance and sealing.
-
Door & Window: PP doors with transparent 5mm PVC windows for clear visibility.
-
Adjustable Layer Boards: 8mm PP trays with anti-spill edge design, height adjustable.
-
Monitoring Systems:
-
Real-time temperature & humidity monitoring (Swiss probe).
-
Adjustable alarm parameters for climate safety.
-
Dual VOC probe saturation alarm for filter status and room air quality.
-
-
PSC Fan: Imported 24V ultra-quiet fan from the USA, with adjustable speed and zero spark/static risk.
-
High-Efficiency Filtration: Meets ASTM standards with 99.995% efficiency for >0.3μm particles (HEPA H14 compatible).
-
7-inch IoT Touchscreen (1024×600): Intuitive HMI interface.
-
4G Communication: Nationally certified module for remote monitoring.
-
Chemical Inventory Management: Manage up to 100+ chemical types with cloud synchronization.
-
Remote Access:
-
View VOC, temperature, humidity trends.
-
Access alarm history.
-
Remotely control fan and alarms via WeChat.
-
-
API Support: Seamless integration with third-party systems.
-
2× Molecular filters
-
1× Primary filter
-
3× PP Layer boards
-
1× PSC fan
-
2× VOC alarm systems
-
1× Temperature & humidity alarm
-
1× Control system
-
1× Remote monitoring system
-
1× Power cord
-
Double lock system
-
OG: Organic filter
-
AG: Inorganic filter
-
AM: Ammonia filter
-
FO: Formaldehyde filter
-
HEPA H14: High-efficiency filter
