SAND CONTENT KIT AZA0812
The AZA0812 Sand Content Kit is a precision testing system designed to determine the percentage by volume of sand-sized solids (≥74 microns / 200 mesh) in drilling fluids. Excess sand in drilling mud leads to abrasive wear of pump components, drill strings, and bits, as well as potential formation damage. Ensuring correct sand content is essential for efficient drilling operations and maintaining fluid quality.
This kit fully complies with ASTM D4381 and API Recommended Practices, making it suitable for oilfield operations, geotechnical projects, piling works, diaphragm wall construction, and laboratory quality control.
The set includes all standard components: a graduated sand content measuring tube, wide-mouth funnel, 200-mesh stainless steel sieve in a cylindrical holder, and a wash bottle for flushing the drilling fluid. For durability and convenience, all components are housed in a compact hard carrying case, making the kit highly portable for field testing.
- ASTM D4381 compliant for sand content testing in drilling fluids
- Determines % volume of sand-sized particles ≥74 µm (200 mesh)
- Suitable for low-solid and weighted mud systems
- Includes 200-mesh sieve, funnel, graduated glass tube
- Comes with wash bottle and rugged carrying case
- Compact, durable, ideal for field and laboratory use
Description
Applications
-
Sand content analysis in drilling muds and bentonite slurries
-
Piling, diaphragm wall, and borehole drilling operations
-
Civil, geotechnical, and oilfield quality control
-
Laboratory and field testing of bentonite, polymer, and cementitious fluids
-
Compliance with ASTM and API test standards
Specifications
| Feature | Specification |
|---|---|
| Model | AZA0812 |
| Standard Compliance | ASTM D4381 / API RP 13B-1 |
| Sand Definition | Particles ≥74 µm (200 mesh) |
| Measuring Tube | Graduated glass tube marked in % volume |
| Sieve | Stainless steel 200 mesh, cylindrical holder |
| Funnel | Wide-mouth, fits securely on sieve holder |
| Wash Bottle | 500 mL capacity, squeeze type |
| Carrying Case | Hard protective case, field-ready |
| Testing Mode | Manual, suitable for lab and field use |

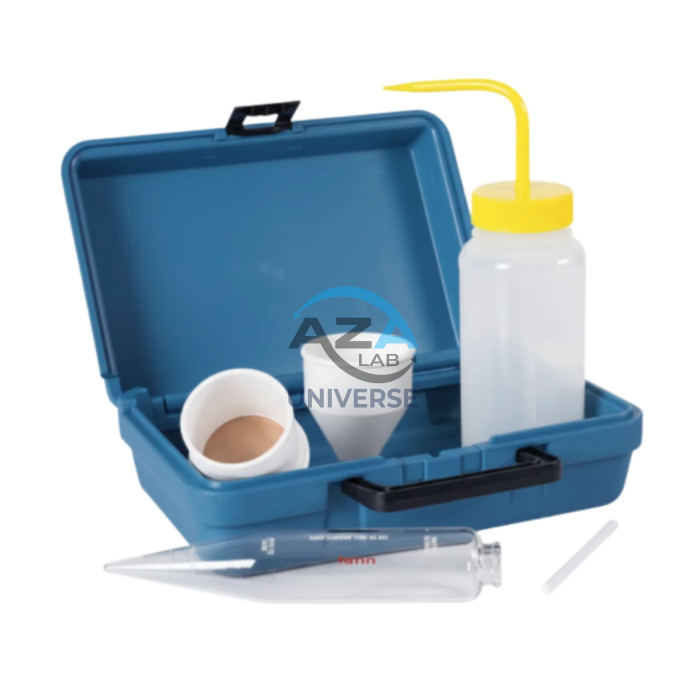

What’s Included
-
1× Graduated Glass Sand Content Tube
-
1× Wide-Mouth Funnel
-
1× 200-Mesh Stainless Steel Sieve with Holder
-
1× Wash Bottle (500 mL)
-
1× Portable Hard Carrying Case
-
Instruction Manual (on request)
Frequently Asked Questions (FAQ)
Q1: What does the AZA0812 Sand Content Kit measure?
It measures the volume percent of sand-sized solids (>74 µm) in drilling fluids.
Q2: Is it compliant with ASTM and API standards?
Yes. It is fully compliant with ASTM D4381 and API RP 13B-1.
Q3: Can it be used for bentonite slurry?
Absolutely. It works for bentonite, polymer, and cement-based slurries.
Q4: Is the 200-mesh sieve replaceable?
Yes. The stainless-steel sieve can be cleaned or replaced easily.
Q5: Is the kit suitable for field use?
Yes. It includes a hard protective case, making it ideal for field and lab environments.
