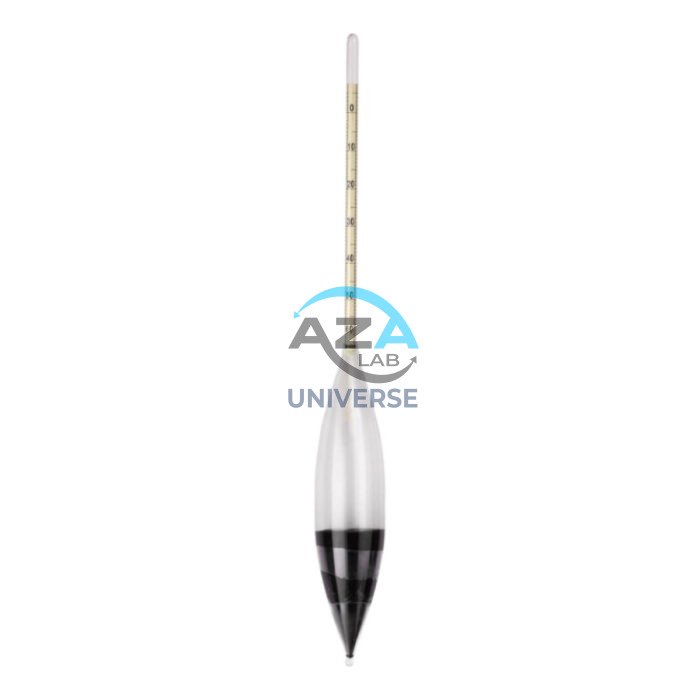

SOIL HYDROMETER AZA0858

AZA0858 – Reliable Soil Hydrometer for Fine Particle Analysis

The AZA0858 Soil Hydrometer from AZA Lab is a precision glass instrument designed for grain size analysis of fine-grained soils using the sedimentation (hydrometer) method. It is specifically intended for soils in which more than 10% of the material passes through the 75-micron sieve, ensuring accurate assessment of clay and silt fractions in accordance with internationally recognized standards.

Manufactured from high-clarity transparent borosilicate glass, the AZA0858 features a permanently engraved density scale for direct, reliable readings of suspension density over time. The instrument is factory calibrated and optimized for use at 27°C, delivering high precision in both laboratory and controlled field testing environments.

View Specification PDF
Enquiry on WhatsApp
SKU: AZA 0858 Category:
Description

Description

Applications

  • Grain size distribution of fine particles (clays and silts)
  • Soil classification in geotechnical engineering
  • Hydrometer analysis as per IS and BS test methods
  • Quality control for roadworks, embankments, and foundation projects
  • Research and academic soil mechanics laboratories

Standards Compliance

  • IS 2720 (Part VI) – Determination of Particle Size Distribution by Hydrometer Method
  • BS 1377-2 – Methods of Test for Soils for Civil Engineering Purposes

Technical Specifications

Feature Specification
Model AZA0858
Application Sedimentation analysis for particles < 75 µm
Material Transparent borosilicate glass
Density Range 0.995 – 1.030 g/cm³ at 27°C
Scale Division 0.0005 g/cm³
Calibration Factory calibrated, etched density scale
Operating Temperature Calibrated at 27°C
Dimensions Approx. 300 mm (standard hydrometer length)
Optional Types Versions for other liquids available on request

What’s Included

  • 1 × Calibrated Soil Hydrometer (AZA0858)
  • Instruction / calibration guideline sheet
  • Protective storage tube or case (on request)
  • Optional: 1000 ml sedimentation cylinder (on request)

Frequently Asked Questions (FAQ)

Q1: What does the AZA0858 Soil Hydrometer measure?
It measures the density of a soil–water suspension during sedimentation testing to determine the grain size distribution of fine soil particles.

Q2: Can this hydrometer be used for coarse soils?
No. It is intended only for fine particles passing the 75 µm sieve. Coarse soils should be analyzed using sieve methods.

Q3: Is the hydrometer supplied calibrated and ready for use?
Yes. Each unit is factory calibrated and supplied with a permanently engraved density scale.

Q4: Can it be used with liquids other than water?
Yes. Custom-calibrated versions for oils or other liquids can be supplied upon request.

Q5: Is the AZA0858 suitable for field laboratories?
While primarily designed for laboratory use, it can be used in field labs provided proper handling and temperature control are maintained.
