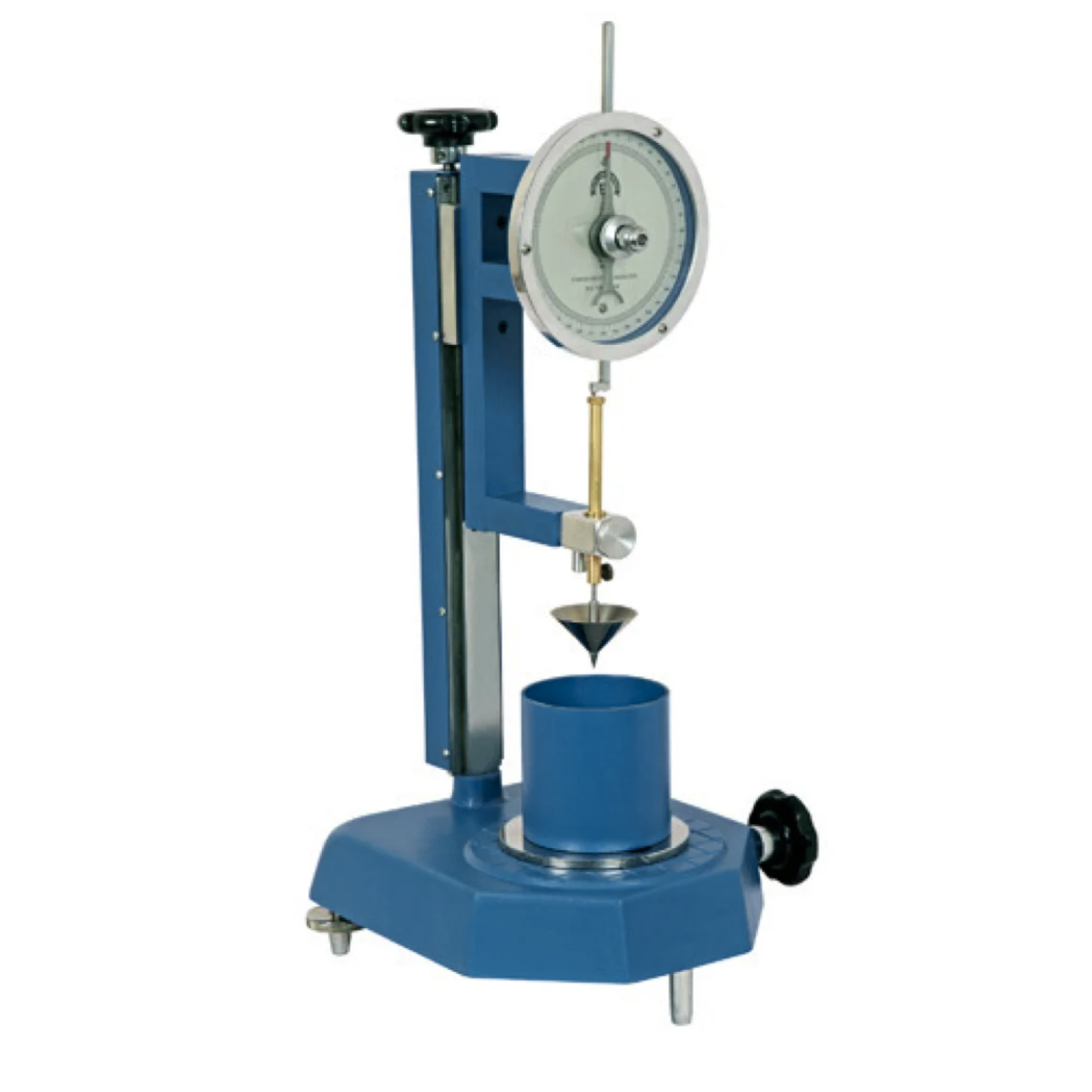

SEMI AUTOMATIC CONE PENETROMETER AZA0852

The AZA0852 Semi Automatic Cone Penetrometer from AZALAB is a precision-engineered laboratory instrument used for determining the liquid limit and consistency characteristics of fine-grained soils. Designed to eliminate operator-dependent errors, this semi-automatic model ensures uniform cone release and repeatable penetration results, making it an ideal choice for geotechnical, civil engineering, and construction material testing laboratories.

The apparatus conforms to IS 2720 (Part 5) and BS 1377 standards and is widely used for soil classification, foundation assessment, and settlement analysis. Its semi-automatic clutch-based drop mechanism allows the cone to penetrate the soil sample under controlled conditions for a fixed duration of 5 seconds, ensuring consistent and reliable test outcomes.

Principle of Operation

A soil paste prepared at known moisture content is placed in the sample cup. The standardized cone, attached to a calibrated weight, is released using the semi-automatic clutch mechanism, allowing free fall penetration into the soil. After the specified time (typically 5 seconds), the penetration depth is measured using a high-precision dial gauge.

The moisture content corresponding to a penetration of 20 mm is considered the liquid limit of the soil, as defined in IS and BS standards.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Key Features and Advantages

  • Semi-Automatic Operation: Eliminates manual release errors and improves repeatability

  • Uniform Cone Drop: Controlled clutch mechanism ensures consistent penetration

  • High Accuracy Measurement: Precision dial gauge with fine resolution

  • Robust Construction: Heavy-duty cast iron base for stability

  • No Power Requirement: Fully mechanical operation

  • Laboratory & Field Ready: Compact, durable, and easy to operate

Standards Compliance

  • IS 2720 (Part 5) – Liquid Limit determination of soils

  • BS 1377 – Methods of test for soils for civil engineering purposes

Applications

  • Liquid limit determination of cohesive soils

  • Soil consistency and strength evaluation

  • Geotechnical site investigations

  • Foundation and pavement design studies

  • Settlement and bearing capacity analysis

  • Academic and research laboratories

Technical Specifications

Feature Specification
Model AZA0852
Operation Semi-automatic cone release with clutch
Penetration Range 0 – 25 mm
Least Count 0.01 mm
Cone Angle 30° (as per IS 2720 Part 5)
Cone Weight 148 g
Additional Weights 50 g & 100 g (included)
Drop Time 5 seconds (preset)
Dial Gauge Precision mechanical, 0.01 mm resolution
Base Cast iron with anti-slip feet
Power Supply Not required
Application Liquid limit & soil consistency testing
Brand AZALAB

Supplied With

  • Semi automatic cone penetrometer frame

  • Standard stainless steel penetration cone

  • 50 g and 100 g additional weights

  • Preset counter / timer mechanism

  • Measuring cup

  • Operating manual (on request)

Frequently Asked Questions (FAQ)

Q1: What is the main use of the AZA0852 cone penetrometer?
It is used to determine the liquid limit and consistency of fine-grained soils.

Q2: How does the semi-automatic mechanism improve accuracy?
It ensures uniform cone release and penetration time, reducing operator variability.

Q3: Does this equipment require electricity?
No. It operates using a mechanical clutch and does not require power.

Q4: Is it suitable for field testing?
Yes. Its compact and rugged design makes it suitable for both laboratory and site use.

Q5: Which soils can be tested using this device?
It is ideal for cohesive soils such as clay, silt, and fine-grained materials.

Additional information

Additional information

Penetration Scale

0–25 mm with 0.01 mm least count
Base Material

Cast iron base with anti-slip feet
Power Supply

Not required (manual mechanism)

You may also like…

BLAINE’S AIR PERMEABILITY APPARATUS AZA0787

  • Determines cement fineness via air permeability
  • Conforms to IS 4031 and ASTM C204 standards
  • Ideal for labs, QC departments, and cement plants
  • Precision glass manometer and permeability cell
  • Supplied with timer, filter paper, and plunger
Read more
Quick view
Cement Sampler, Cement Sampling Tool, Lab Cement Sampler

CEMENT SAMPLER AZA0786

  • Accurate dry sampling from cement bags or containers
  • Ideal for lab use in quality control and material testing
  • Made of corrosion-resistant steel for long-term use
  • Easy-to-handle, portable, and highly durable
  • Complies with IS 3535 and related standards
Read more
Quick view

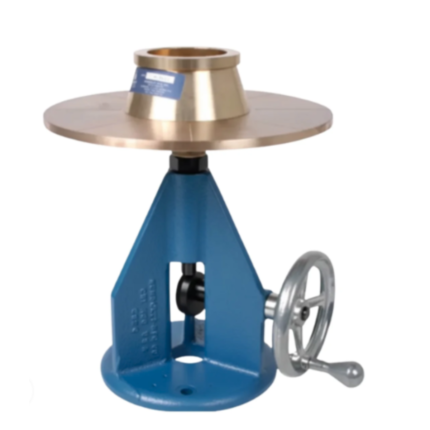

FLOW TABLE AZA0791B

  • Measures mortar and concrete flow and workability
  • Manual drop mechanism for reliable consistency testing
  • Built as per IS 1199 and ASTM C230 specifications
  • Includes mould, table, handle, and drop cam
  • Used in site QC, R&D, and cement lab applications
Read more
Quick view

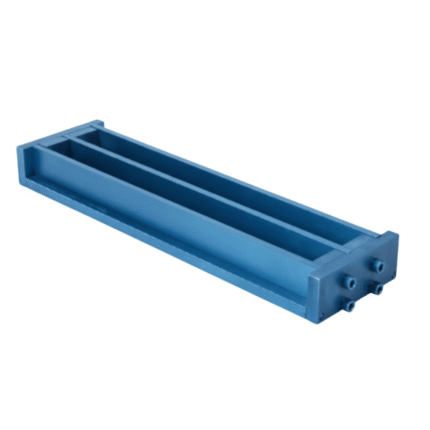

SHRINKAGE BAR MOULD AZA0794
