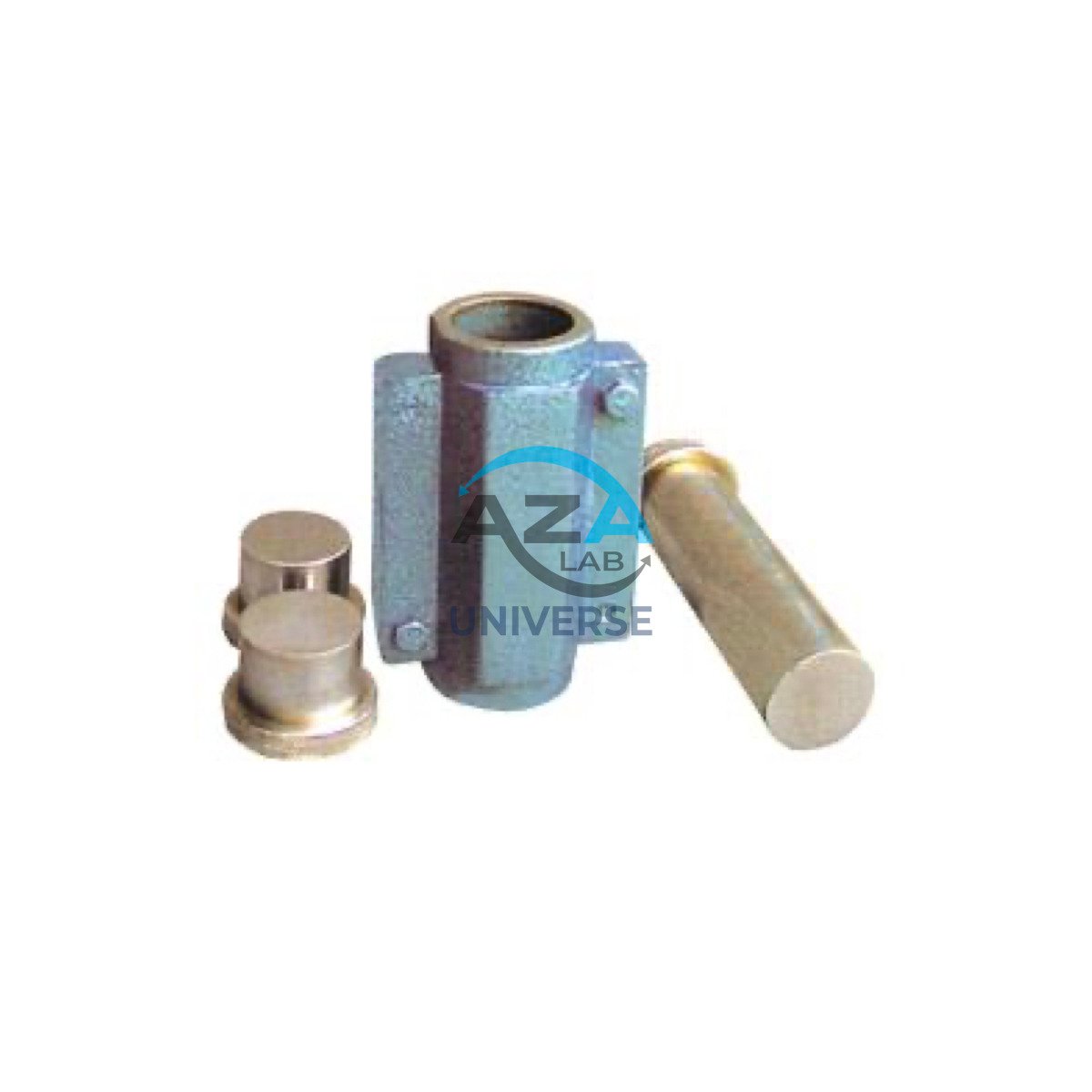

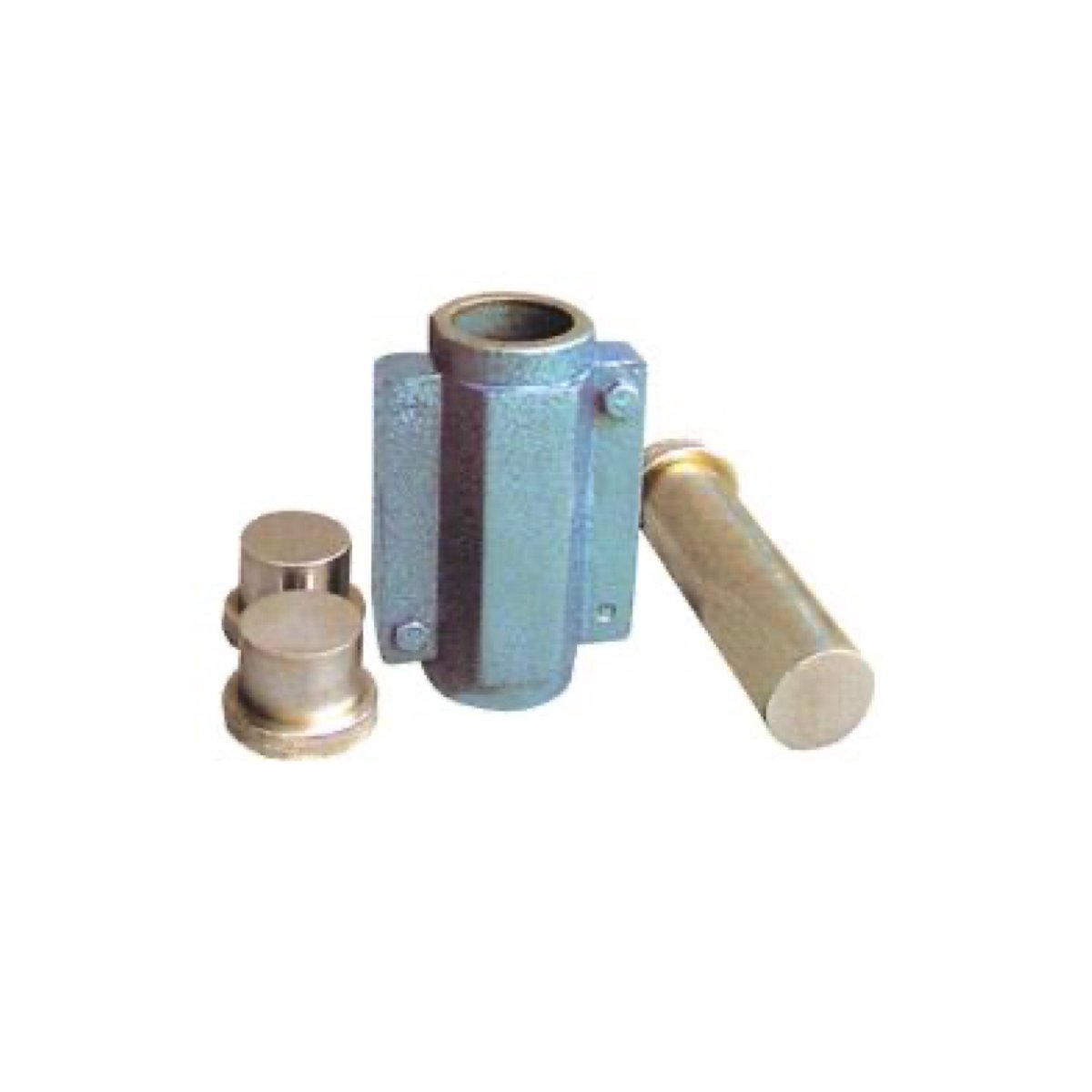

CONSTANT VOLUME MOULD AZA0894

The AZA0894 Constant Volume Mould is designed for the preparation of remoulded soil specimens used in triaxial compression and unconfined compression tests. In geotechnical and civil engineering laboratories, maintaining a constant specimen volume during compaction is essential for achieving accurate, repeatable, and comparable test results. The AZA0894 ensures precise specimen geometry while supporting both dynamic and static compaction methods.

Manufactured with precision-machined components, this mould system enables quick specimen preparation with minimal deformation. It is widely used in geotechnical testing laboratories, academic institutions, construction quality control, and research facilities

View Specification PDF
Enquiry on WhatsApp
SKU: AZA 0894 Category:
Description

Description

Key Features

  • Designed for preparation of remoulded soil specimens

  • Maintains constant internal volume during compaction

  • Suitable for both dynamic and static compaction techniques

  • Precision-machined components for repeatability and accuracy

  • Quick ejection system for safe and easy specimen removal

  • Interchangeable components for flexibility across specimen sizes

  • Robust, corrosion-resistant construction for long-term lab use

Applications

  • Triaxial shear testing specimen preparation

  • Unconfined compression testing

  • Soil strength and deformation studies

  • Academic and research-based soil mechanics testing

  • Construction and geotechnical quality control

Available Models

AZA0894A

Designed for 38 mm × 76 mm specimens

  • Split mould: 38 mm diameter × 126 mm length

  • End plugs (pair): 38 mm diameter × 25 mm length

  • Ejecting plunger: 38 mm diameter × 126 mm length

  • Split collar: Interchangeable

AZA0894B

Designed for 50 mm × 100 mm specimens

  • Split mould: 50 mm diameter × 178 mm length

  • End plugs (pair): 50 mm diameter × 39 mm length

  • Ejecting plunger: Not included

Optional Accessories

  • Split mould: 38 mm diameter × 76 mm length

  • Split mould: 38 mm diameter × 86 mm length

  • Additional collars and end plugs for custom configurations

All components are manufactured from high-grade steel or aluminum, offering excellent resistance to corrosion, wear, and repeated laboratory use.

Why Choose Azalab’s AZA0894 Constant Volume Mould

  • Precision Engineering: Ensures uniform specimen preparation and consistent results

  • Interchangeable Design: Flexible configuration for different specimen dimensions

  • Efficient Operation: Reduces preparation time while maintaining accuracy

  • Durable Construction: Built for rigorous, long-term laboratory use

  • Wide Compatibility: Works seamlessly with standard compaction and testing equipment

Technical Specifications

Model Specimen Size Split Mould Dimensions End Plug Dimensions Ejecting Plunger
AZA0894A 38 mm dia × 76 mm long 38 mm dia × 126 mm long 38 mm dia × 25 mm (pair) 38 mm dia × 126 mm long
AZA0894B 50 mm dia × 100 mm long 50 mm dia × 178 mm long 50 mm dia × 39 mm (pair) Not included
Accessories Various sizes 38 mm dia × 76 / 86 mm — —

Frequently Asked Questions (FAQ)

Q1: What is the AZA0894 Constant Volume Mould used for?
It is used to prepare remoulded soil specimens for triaxial and unconfined compression tests while maintaining constant specimen volume.

Q2: What specimen sizes are available?
Standard models support 38 mm × 76 mm and 50 mm × 100 mm specimens. Optional accessories are available for additional sizes.

Q3: Can this mould be used for dynamic compaction?
Yes. The AZA0894 is suitable for both dynamic and static compaction methods.

Q4: Are all components included with the mould?
Each model includes the split mould and end plugs. The ejecting plunger is included with AZA0894A and optional for other configurations.

Q5: Is the mould compatible with standard lab equipment?
Yes. It is designed to be compatible with standard geotechnical compaction and testing systems.

AZA0894 – Reliable, Precise, and Efficient Soil Specimen Preparation

A trusted Azalab solution for professional geotechnical, academic, and quality testing laboratories.
