GRAIN SIZE ANALYSIS (PIPETTE METHOD) AZA0856
The AZA0856 Grain Size Analysis (Pipette Method) Apparatus from AZA Lab is a precision testing setup used for determining the distribution of fine soil particles such as silt and clay. It is widely used in geotechnical engineering, civil construction quality control, soil mechanics research, and academic laboratories, particularly where conventional sieve analysis is ineffective for particles finer than 75 microns.
This apparatus is designed for the mechanical analysis of sub-sieve soil particles, expressing quantitatively the proportion by weight of various particle sizes present in a soil sample. The pipette method, based on sedimentation principles and Stokes’ Law, provides accurate and repeatable results for fine-grained soils.

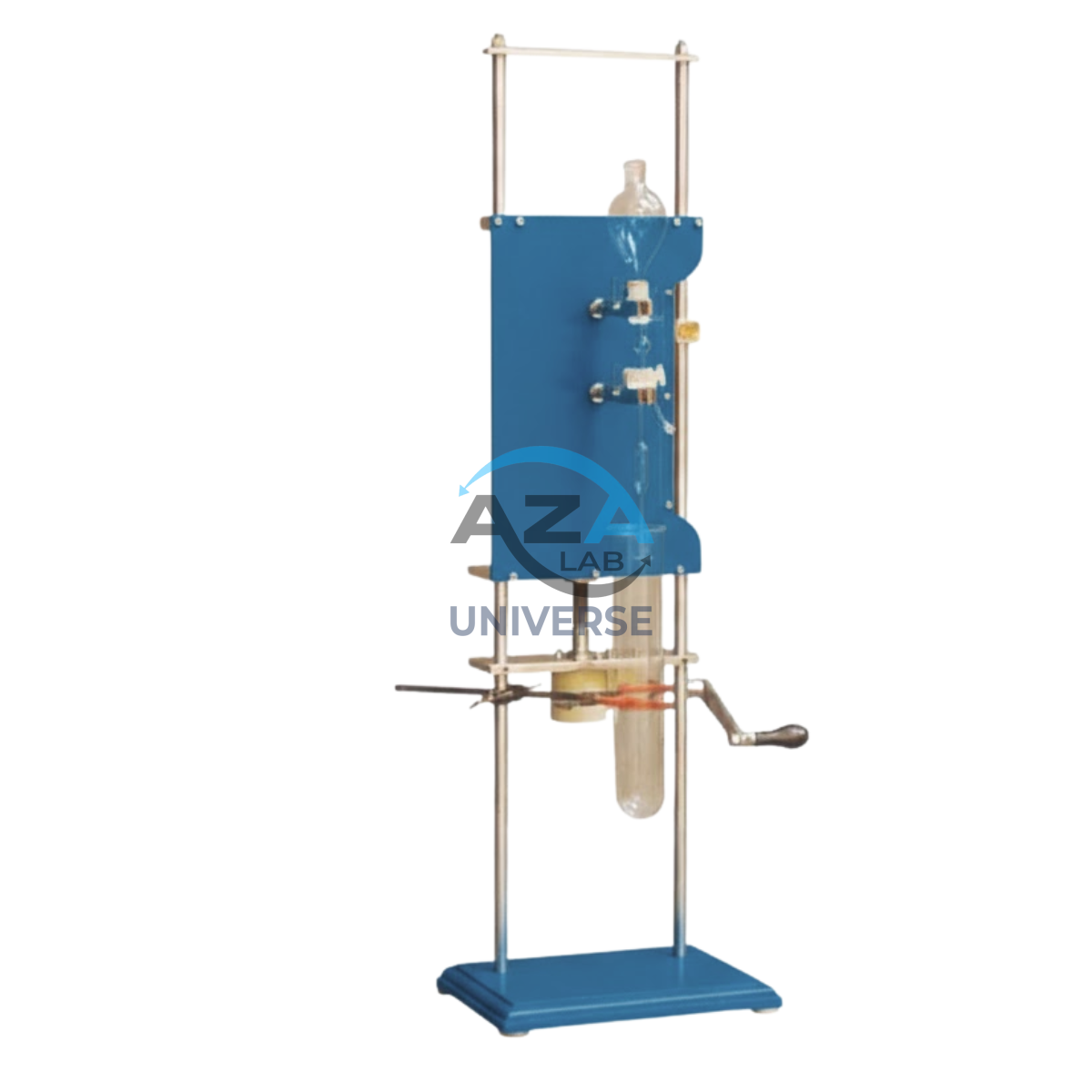

The system consists of a sliding vertical panel operated by a precision screw mechanism, allowing an Anderson pipette to be raised or lowered accurately. A sedimentation tube is held securely below the pipette using a laboratory clamp. The depth of immersion is measured using a millimeter-graduated scale mounted alongside the sliding panel.
The apparatus is supplied complete with a 10 ml Anderson pipette, a 500 ml glass sedimentation tube, and test form pads, conforming to standard laboratory practices.
Description
Working Principle
The AZA0856 operates on the principle of sedimentation of soil particles in a liquid medium (typically distilled water mixed with a dispersing agent such as sodium hexametaphosphate to prevent flocculation). Once a uniform suspension is prepared, soil particles settle under gravity.
According to Stokes’ Law, larger particles settle faster than finer ones. At predetermined time intervals, a fixed volume of suspension is extracted from a known depth using the pipette. The extracted samples are dried and weighed, enabling calculation of the percentage of particles finer than specific sizes.
This method is suitable for particle sizes ranging from 0.002 mm to 0.075 mm and is essential for accurate classification of cohesive soils.
Applications
- Geotechnical investigation and soil profiling
- Classification of fine-grained soils (clays and silts)
- Foundation and subgrade assessment
- Construction quality control and earthworks
- Academic teaching and soil mechanics research
Standards Compliance
- IS 2720 (Part IV) – Grain Size Analysis of Soils
- ASTM D422 – Particle-Size Analysis of Soils
- BS 1377 – Methods of Test for Soils for Civil Engineering Purposes
Technical Specifications
| Component | Specification |
|---|---|
| Model | AZA0856 |
| Sedimentation Cylinder | 1000 ml, borosilicate glass, graduated |
| Pipette Volume | 10 ml Anderson pipette, glass |
| Sedimentation Tube | 500 ml, glass |
| Stand Material | Mild steel / powder-coated aluminium |
| Depth Measurement | Adjustable, mm-graduated scale |
| Particle Size Range | 0.002 mm to 0.075 mm |
| Dispersing Agent | Sodium hexametaphosphate (not included) |
| Test Forms | Pad of 50 sheets (included) |
What’s Included
- 1 × Grain Size Analysis Apparatus with sliding stand (AZA0856)
- 1 × Anderson Pipette, 10 ml (glass)
- 1 × Sedimentation Tube, 500 ml (glass)
- 1 × Test Forms Pad (50 sheets)
Optional Accessories & Spares (At Extra Cost)
- Anderson Pipette – 25 ml
- Sedimentation Tube – 100 ml
- Anderson Pipette – 10 ml (spare)
- Sedimentation Tube – 500 ml (spare)
- Test Forms Pad – 50 sheets
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the pipette method in grain size analysis?
It is used to determine the proportion of fine soil particles smaller than 75 microns that cannot be analyzed using sieves.
Q2: Which standards does AZA0856 comply with?
The apparatus conforms to IS 2720 (Part IV), ASTM D422, and BS 1377.
Q3: Is this method suitable for all soil types?
It is most effective for fine-grained soils such as clays and silts. Coarser soils should be analyzed using sieve methods.
Q4: Is the dispersing agent included?
No. Dispersing agents such as sodium hexametaphosphate must be procured separately.
Q5: How accurate is the pipette method?
When performed correctly, it provides highly accurate and repeatable measurements of fine soil particle distribution.
Additional information
| Pipette Volume |
10 ml with 0.1 ml divisions |
|---|---|
| Sedimentation Cylinder |
1000 ml, Borosilicate Glass, Graduated |
| Sampling Depth |
Adjustable (commonly 10 cm below water level) |
You may also like…
ABRASION TESTING MACHINE FOR GLAZED TILES AZA1262
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1262) is a robust, high-performance laboratory instrument engineered for precise and high-speed abrasion resistance testing of glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is designed to ensure reliable evaluation of tile durability under simulated real-world wear conditions.
With the capability to test up to four specimens simultaneously, the AZA1262 significantly improves testing efficiency while maintaining exceptional accuracy and repeatability—making it ideal for tile manufacturers, certification laboratories, and quality control departments
Related products
DYNAMIC CONE PENETROMETER AZA0872
The AZA0872 Dynamic Cone Penetrometer (DCP) from Azalab is a robust, field-proven instrument designed for rapid in-situ evaluation of soil strength, stiffness, and compaction. It is extensively used by civil engineers, geotechnical consultants, and construction teams for pavement design, quality control, and site investigation works.
The DCP test provides a fast and economical method to assess the strength of subgrades, sub-bases, and granular base course layers, with results that can be directly correlated to California Bearing Ratio (CBR) values. This eliminates the need for time-consuming laboratory testing or undisturbed soil sampling, enabling immediate decision-making at site.

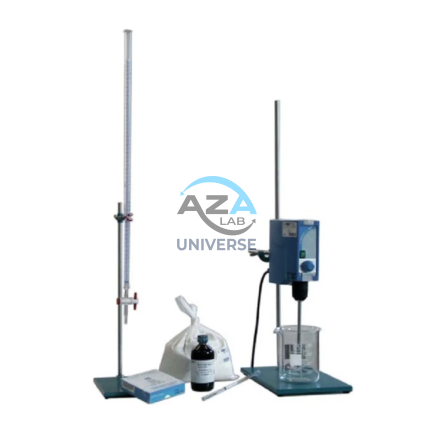

HIGH SPEED STIRRER AZA0855
LIQUID LIMIT DEVICE WITH COUNTER AZA0853
The AZA0853 Liquid Limit Device with Counter from AZALAB is a precision-engineered instrument used for determining the liquid limit of soils in accordance with the Casagrande method. This test is a fundamental component of soil classification and geotechnical investigation, providing critical insight into the plasticity, compressibility, and shear strength of fine-grained soils.
Designed for reliable, repeatable, and standardized testing, the AZA0853 is widely used in geotechnical laboratories, civil engineering departments, construction quality control labs, and academic institutions.
Principle of Liquid Limit Test (Casagrande Method)
The liquid limit is defined as the water content at which soil transitions from a plastic state to a liquid state. In practice, it is determined as the moisture content at which a standard groove cut in the soil sample closes over a length of 12.5 mm under 25 blows of the liquid limit apparatus.
The AZA0853 consists of a polished brass cup mounted on an adjustable bracket. The cup is repeatedly raised and dropped from a fixed height of 1 cm onto a hard rubber base by means of a manually operated cam mechanism. A built-in mechanical counter accurately records the number of blows, ensuring compliance with testing standards and reducing operator error.

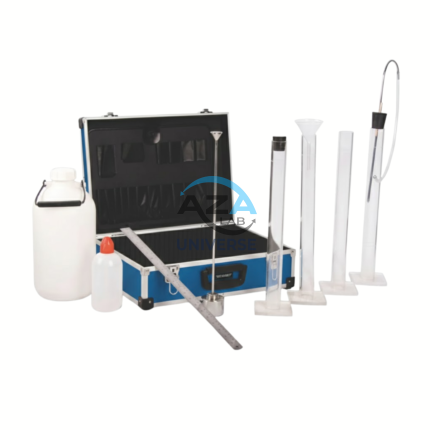

METHYLENE BLUE TEST SET AZA0860
