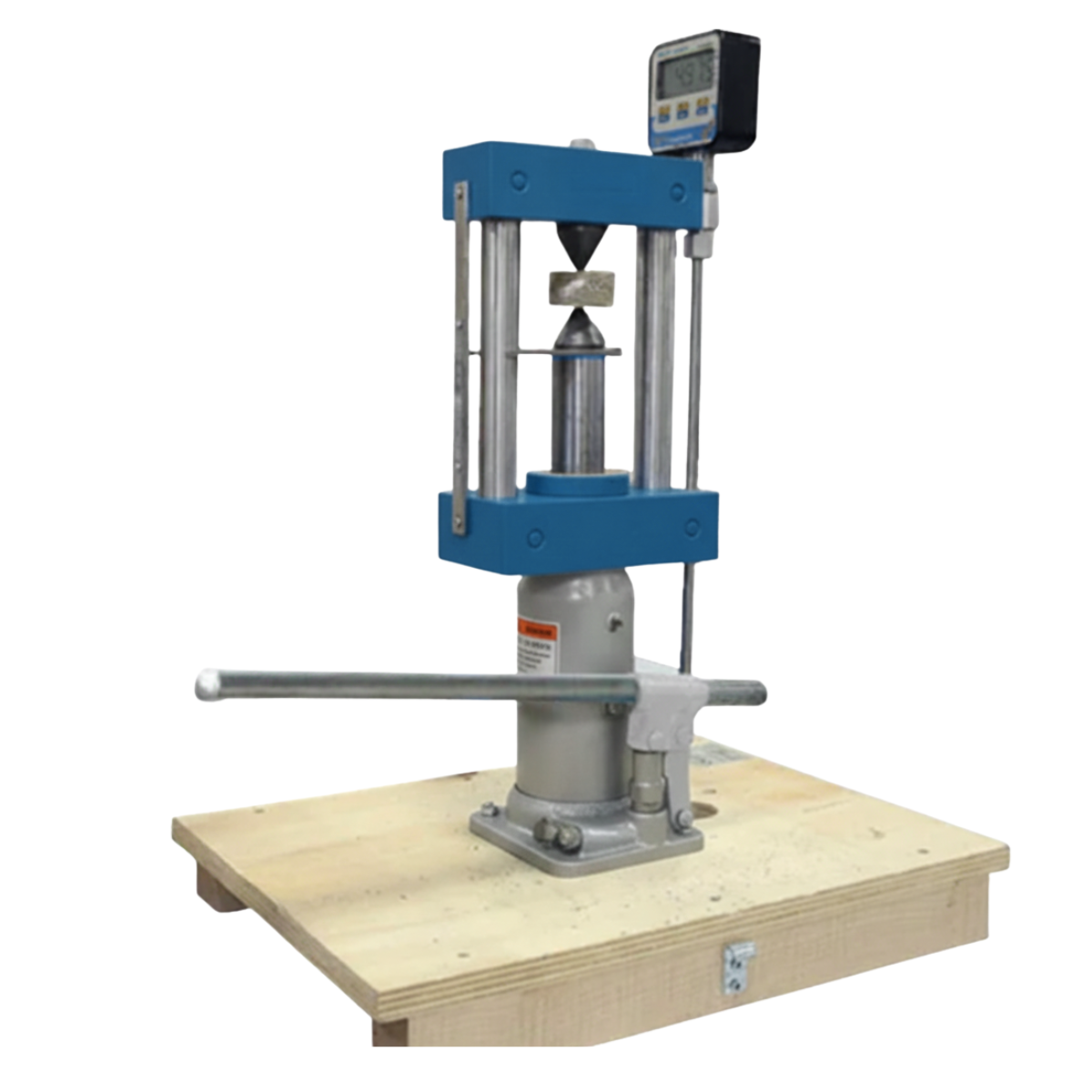

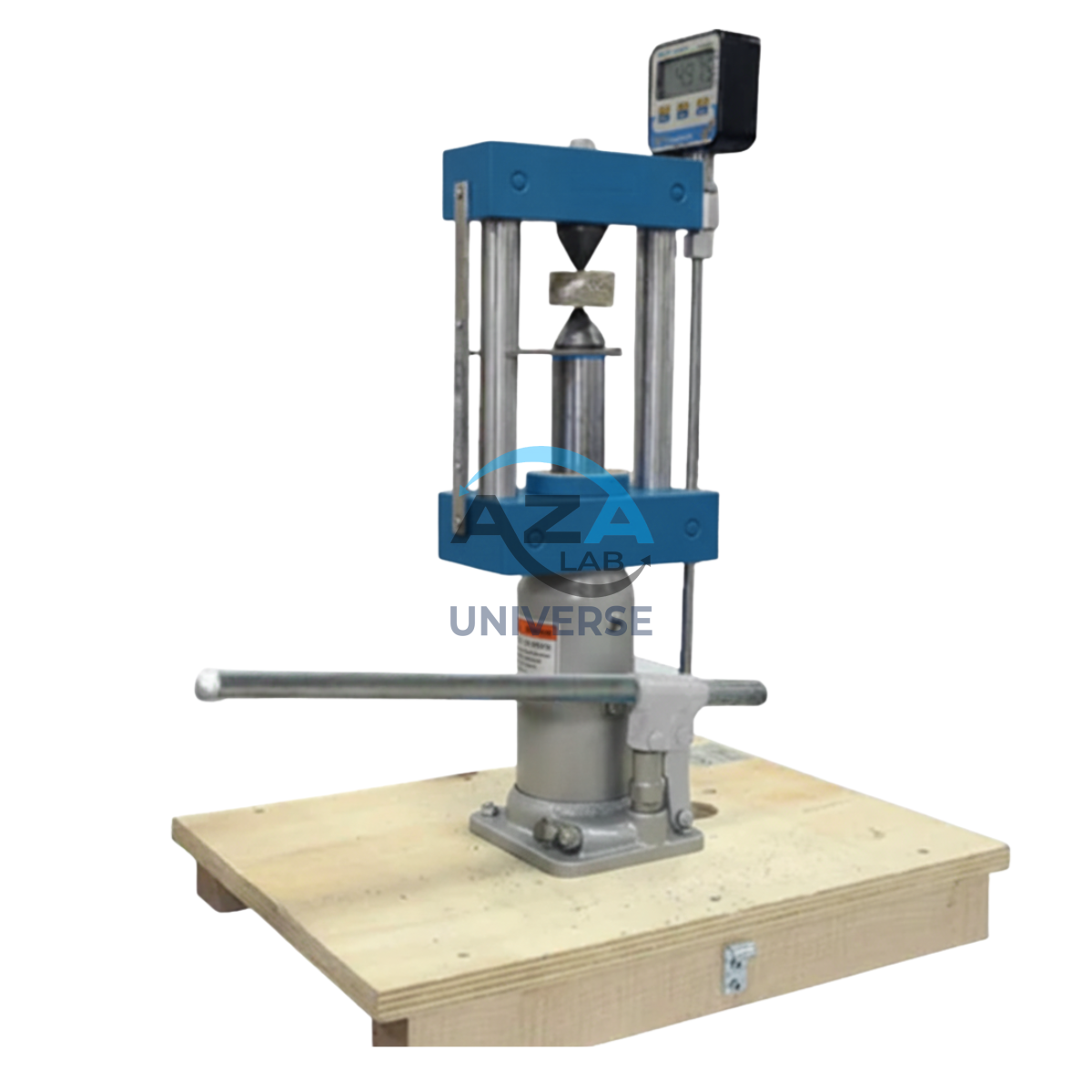

DIGITAL POINT LOAD TEST APPARATUS AZA1003
AZA1003 Digital Point Load Test Apparatus is a high-precision hydraulic testing system designed for determining the point load strength index of rock specimens in laboratory and field environments. Built with a 60 kN hydraulic load frame and an advanced digital measuring unit, this apparatus delivers accurate, repeatable, and standards-compliant results for geotechnical, mining, and civil engineering applications.
The manual hand-pump operated hydraulic system allows smooth and controlled load application, while the adjustable frame supports rock cores and irregular specimens up to 102 mm diameter.
Description
Key Features
• 60 kN capacity hydraulic load frame for rock testing
• Digital 2×16 character display for clear readings
• High-resolution system with 32,000 divisions
• ±1% measurement accuracy
• Displays load in both kN and MPa
• Adjustable frame for specimens up to 102 mm diameter
• Built-in ruler for platen distance measurement
• Manual hydraulic hand pump operation
• Serial port for PC connectivity and data logging
• Fully compliant with ASTM D5731 standards
Applications
• Rock strength classification
• Geotechnical investigations
• Mining and tunnel projects
• Core logging and laboratory testing
• Academic and research use
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1003 |
| Load Capacity | 0 – 60 kN |
| Display | 2×16 character digital display |
| Accuracy | ±1% |
| Resolution | 32,000 divisions |
| Load Units | kN / MPa |
| Max Specimen Diameter | 102 mm |
| Frame | Adjustable with built-in scale |
| Operation | Manual hydraulic hand pump |
| Data Output | Serial port for PC connection |
| Standard | ASTM D5731 |
Frequently Asked Questions (FAQ)
Q1: What does AZA1003 measure?
It determines the point load strength index of rock samples.
Q2: Is it suitable for field use?
Yes, it is portable and operates manually, making it ideal for field and lab use.
Q3: How is load applied?
Load is applied using a hydraulic ram controlled by a manual hand pump.
Q4: Can it connect to a computer?
Yes, it has a serial port for PC data logging and analysis.
Q5: Does it meet global standards?
Yes, it complies with ASTM D5731 testing standards.
Related products

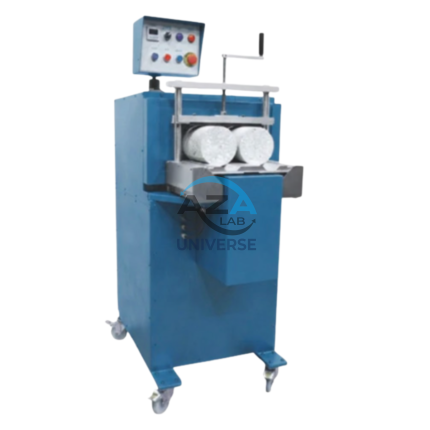

AUTOMATIC GRINDING MACHINE AZA1001
AZA1001 Automatic Grinding Machine is a high-precision laboratory system designed for perfect end-face preparation of cylindrical rock and concrete core samples. Built for geotechnical, mining, civil engineering, and material testing laboratories, this fully automatic grinder ensures flatness, parallelism, and repeatability required for accurate strength testing.
It is essential for preparing specimens for UCS (Uniaxial Compressive Strength), triaxial, Brazilian tensile, and point load tests, where poorly prepared end faces can compromise results.
With programmable controls and vibration-free construction, AZA1001 delivers consistent, hands-free grinding with minimal operator effort.
BRAZILIAN TEST APPARATUS AZA1004
AZA1004 Brazilian Test Apparatus is a precision-engineered device used to determine the indirect tensile strength of cylindrical rock samples using the standardized Brazilian (splitting tensile) test method. This apparatus is widely trusted in geotechnical engineering, mining, civil engineering, and academic research for evaluating rock behavior under tensile stress.
Built with a heavy-duty steel frame and plated loading jaws, AZA1004 ensures uniform load distribution and highly repeatable testing results in both laboratory and field environments.

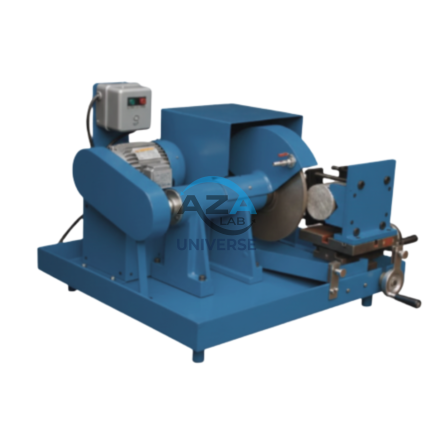

CORE CUTTING GRINDING MACHINE AZA0999
