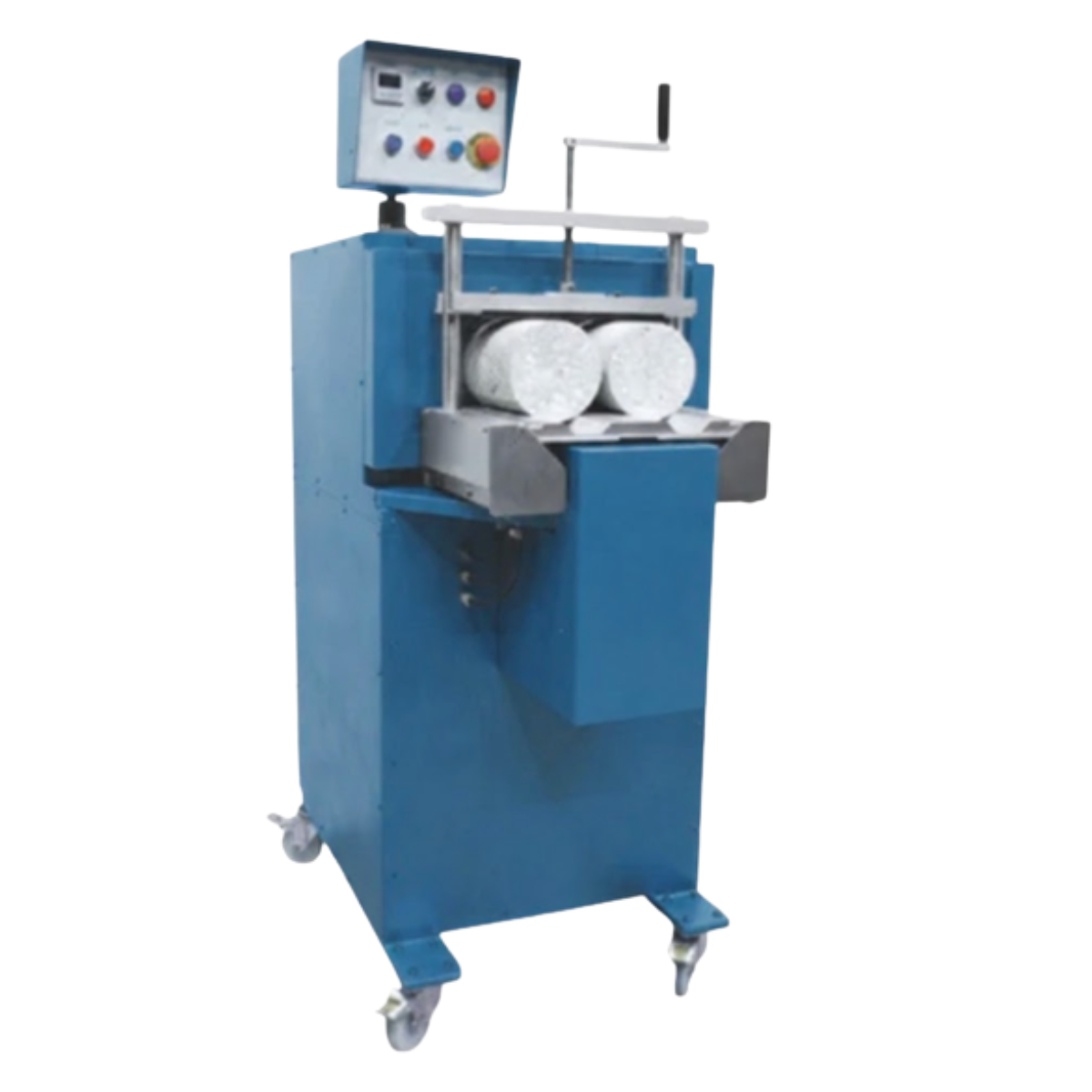

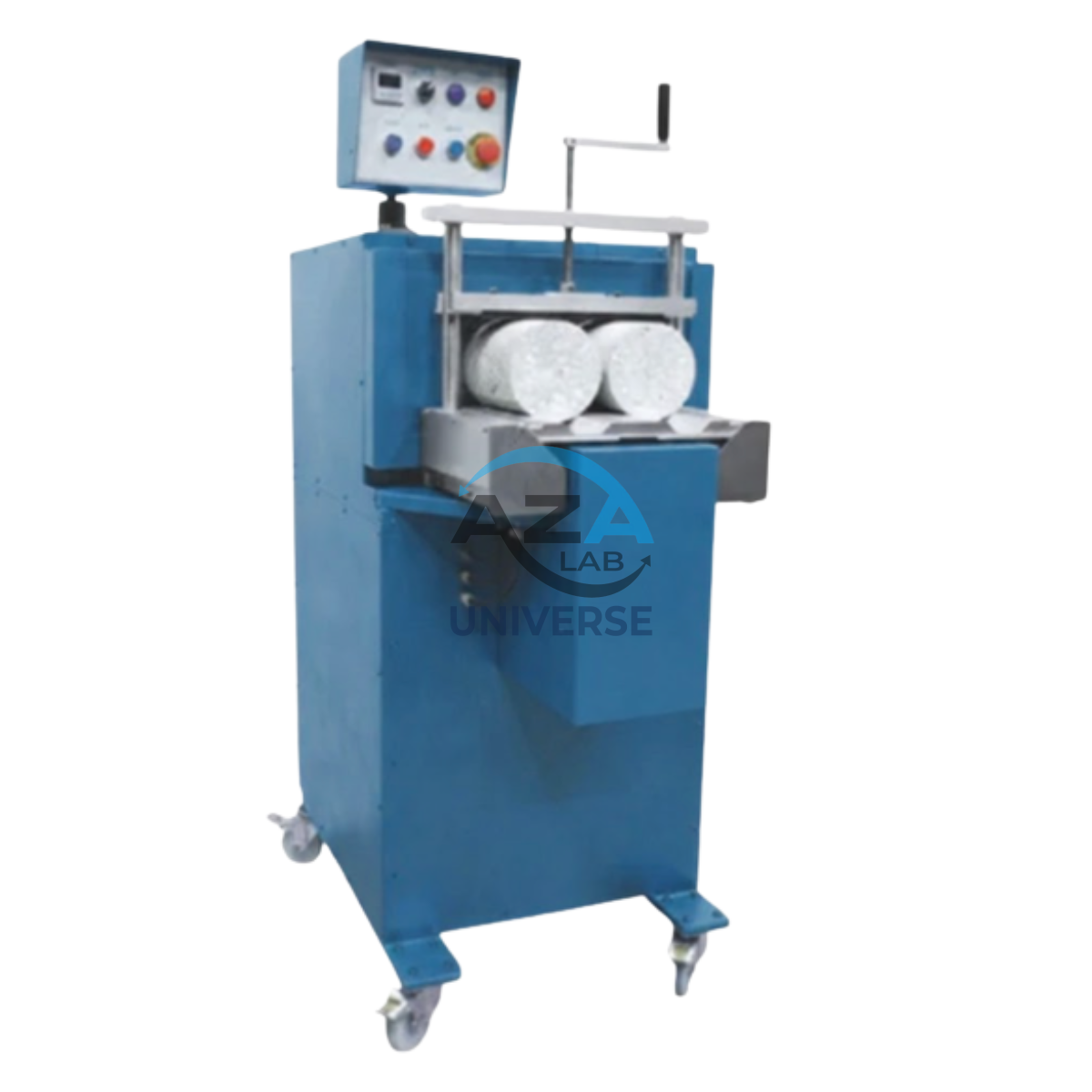

AUTOMATIC GRINDING MACHINE AZA1001
The AZA1001 Automatic Grinding Machine is designed for rapid preparation of flat, parallel ends on concrete cylinder specimens and drilled cores prior to compressive strength testing, in accordance with applicable EN and ASTM requirements.
With suitable specimen cradles and water restraint panels, it can grind three cylinders of Ø38–100 mm or two cylinders of Ø150–160 mm simultaneously. Automatic bidirectional radial cradle movement and selectable grinding cycles support consistent specimen preparation.
Description
KEY CAPABILITIES
- Simultaneous grinding of two or three cylindrical specimens
- Selectable grinding duration: 50–400 seconds
- Typical grinding time: 90–120 seconds per end
- Flatness accuracy: 0.05 mm
- Automatic bidirectional radial cradle movement
- Wheeled design with accessible maintenance components
TECHNICAL SPECIFICATIONS
01 / GRINDING SYSTEM
| Parameter | Specification |
| Model | AZA1001 |
| Specimen capacity | 3 cylinders (Ø38–100 mm) or 2 cylinders (Ø150–160 mm) |
| Minimum specimen length | More than 70 mm |
| Surface flatness accuracy | 0.05 mm |
| Perpendicularity deviation | 0.5° (see verification note) |
| Selectable grinding time | 50–400 seconds |
| Typical grinding time per end | 90–120 seconds |
| Cradle movement | Automatic bidirectional radial displacement |
| Dimensions (W × D × H) | 730 × 1080 × 1510 mm |
| Approximate weight | 280 kg |
| Rated power | 1850 W |
| Frame / exterior | Aluminium frame / stainless steel exterior shell |
| Mobility | Integral wheels |
02 / REFERENCED STANDARDS
Concrete cylinders: EN 12390-1, EN 12390-3; ASTM C31, C39, C192, C617.
Drilled concrete cores: EN 12504-1, EN 12390-1, EN 12390-3; ASTM C42. ASTM C397 is listed in the supplied source but requires verification.
03 / ACCESSORIES & OPERATION
Suitable specimen cradles and water restraint panels are required for different specimen sizes. Water restraint panels for cubic specimens or other cylinder sizes are to be ordered separately. The design provides access to water inlet/outlet and maintenance points.
Related products
ASPHALT & CONCRETE FLOOR SAW AZA0998
AZA0998 Asphalt & Concrete Floor Saw is a heavy-duty, professional cutting machine designed for high-precision cutting of asphalt and concrete surfaces. Built for demanding construction environments, this machine delivers powerful performance, long-term durability, and exceptional cutting accuracy for roadwork, utility installations, trenching, and demolition projects.
Powered by a high-performance industrial engine, the AZA0998 delivers consistent torque and blade speed, allowing smooth cutting through thick concrete slabs and dense asphalt without power loss. Its strong power transmission system ensures uninterrupted operation, improving job-site efficiency and reducing downtime.
The machine features a precision depth-control system, enabling operators to achieve accurate and uniform cutting depths. Its stable, reinforced steel chassis minimizes vibration and maintains straight-line stability, resulting in clean, professional-grade cuts every time.
Designed for harsh job-site conditions, the AZA0998 uses heavy-gauge steel construction, corrosion-resistant components, and durable mechanical parts that ensure long service life and reduced maintenance.
Operator comfort and safety are enhanced through ergonomically designed, vibration-dampened handlebars, easy-access controls, full blade guarding, and an emergency stop system, allowing safe and fatigue-free operation during extended use.
BRAZILIAN TEST APPARATUS AZA1004
AZA1004 Brazilian Test Apparatus is a precision-engineered device used to determine the indirect tensile strength of cylindrical rock samples using the standardized Brazilian (splitting tensile) test method. This apparatus is widely trusted in geotechnical engineering, mining, civil engineering, and academic research for evaluating rock behavior under tensile stress.
Built with a heavy-duty steel frame and plated loading jaws, AZA1004 ensures uniform load distribution and highly repeatable testing results in both laboratory and field environments.

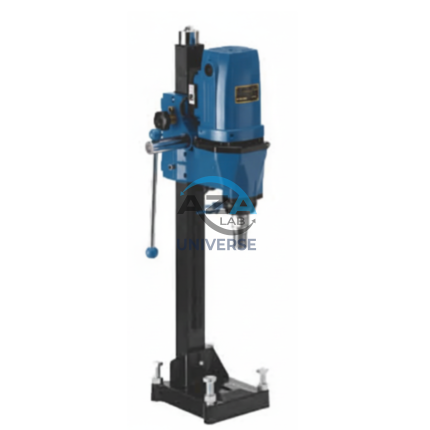

CORE CUTTING GRINDING MACHINE AZA0999
AZA0999 Core Cutting & Grinding Machine is a dual-function laboratory system designed for precision cutting and surface grinding of cylindrical core samples made from rock, concrete, minerals, and similar materials. This machine is engineered for geotechnical, civil engineering, mining, and material testing laboratories where accurate core preparation is essential for reliable test results.
By combining cutting and grinding in a single compact unit, AZA0999 significantly improves laboratory efficiency, reduces manual handling, and ensures flat, parallel, and smooth specimen ends, which are critical for compressive strength, triaxial, and indirect tensile tests.
This machine integrates a heavy-duty diamond cutting blade and a high-precision grinding wheel, mounted on a rigid, vibration-free steel structure to deliver stable, accurate, and repeatable results.
DIGITAL POINT LOAD TEST APPARATUS AZA1003
AZA1003 Digital Point Load Test Apparatus is a high-precision hydraulic testing system designed for determining the point load strength index of rock specimens in laboratory and field environments. Built with a 60 kN hydraulic load frame and an advanced digital measuring unit, this apparatus delivers accurate, repeatable, and standards-compliant results for geotechnical, mining, and civil engineering applications.
The manual hand-pump operated hydraulic system allows smooth and controlled load application, while the adjustable frame supports rock cores and irregular specimens up to 102 mm diameter.

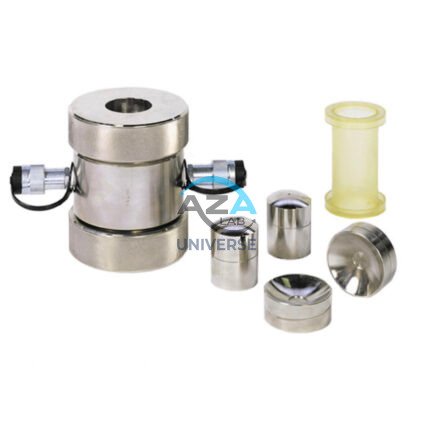

HOEK TRIAXIAL AZA1008
