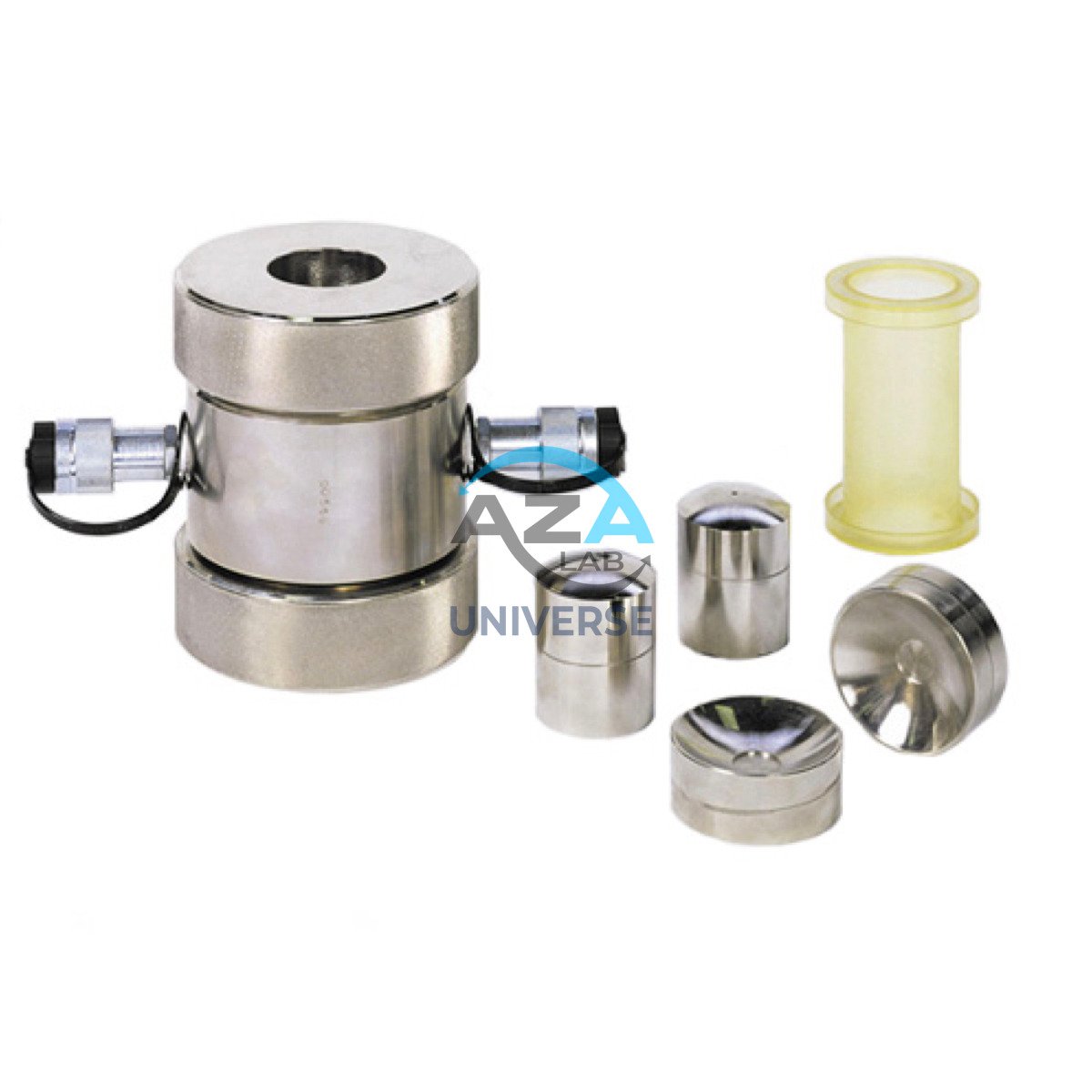

HOEK TRIAXIAL AZA1008
The AZA1008 Hoek Triaxial Rock Testing System is designed for advanced triaxial testing of rock core specimens under simulated underground stress conditions. Built for high precision and durability, this system enables accurate evaluation of rock strength, deformation, and elastic behavior, supporting critical geotechnical, mining, and civil engineering applications such as tunnels, slopes, dams, and underground excavations.
Key Features
-
Designed for triaxial testing of intact rock cores
-
Supports high confining pressures for realistic in-situ simulation
-
Compatible with manual and servo-controlled compression frames
-
Precision-machined high-grade stainless steel pressure vessel
-
Robust sealing system with high-performance rubber membranes
-
Low-friction piston system for enhanced measurement accuracy
-
Full compliance with international testing standards
Description
The AZA1008 Hoek Triaxial Cell consists of a heavy-duty stainless steel pressure chamber housing a cylindrical rock specimen enclosed in a flexible rubber membrane. A hydraulic confining fluid uniformly applies lateral pressure while an axial load is applied vertically through a loading piston, accurately reproducing true three-dimensional stress conditions.
The system measures peak compressive strength, stress–strain behavior, and elastic moduli. It supports integration with LVDTs, strain gauges, and digital load indicators for real-time data acquisition and graphical output. The unit operates seamlessly with both manual and servo-controlled testing machines.
Applications
- Rock mechanics and geotechnical investigations
- Mining and underground excavation design
- Dam foundation and slope stability studies
- Academic research and laboratory training
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | AZA1008 |
| Sample Diameter | 38 mm (NX), 50 mm, 54 mm (optional) |
| Confining Pressure Range | Up to 60 MPa |
| Cell Material | High-grade stainless steel |
| Sealing System | Neoprene / Nitrile membranes |
| Piston Travel | 25 mm to 50 mm (model dependent) |
| Ports | Axial loading, confining pressure, drainage |
| Compatibility | Manual & servo-controlled loading frames |
| Standards | ASTM D7012, ISRM |
| DAQ Compatibility | Strain gauges, LVDTs, digital indicators |
| Approx. Weight | 20–30 kg |
Standard Accessories
- Upper and lower loading caps
- Rubber membranes
- Sealing rings
- Drainage lines and pressure ports
- High-pressure fittings
Optional Accessories
- Pore pressure transducers
- Hydraulic pressure intensifier
- Computerized control and data acquisition system
FAQ
Q1: What is AZA1008 used for?
AZA1008 is used to simulate in-situ stress conditions and determine the strength and deformation behavior of rock core specimens.
Q2: What is the maximum confining pressure?
The system supports confining pressure up to 60 MPa or higher, depending on configuration.
Q3: Which sample sizes are supported?
Standard size is 38 mm (NX), with optional adapters for 50 mm and 54 mm cores.
Q4: Can it be integrated with digital systems?
Yes, AZA1008 is fully compatible with digital compression machines and data acquisition systems.
Q5: Which standards does it comply with?
It complies with ASTM D7012 and ISRM-recommended rock mechanics standards.
Additional information
| Sample Diameter |
38 mm (NX), 50 mm, 54 mm (optional sizes) |
|---|---|
| Confining Pressure Range |
Up to 60 MPa |
| Cell Material |
High-grade stainless steel |
| Sealing System |
Neoprene or nitrile rubber membranes |
