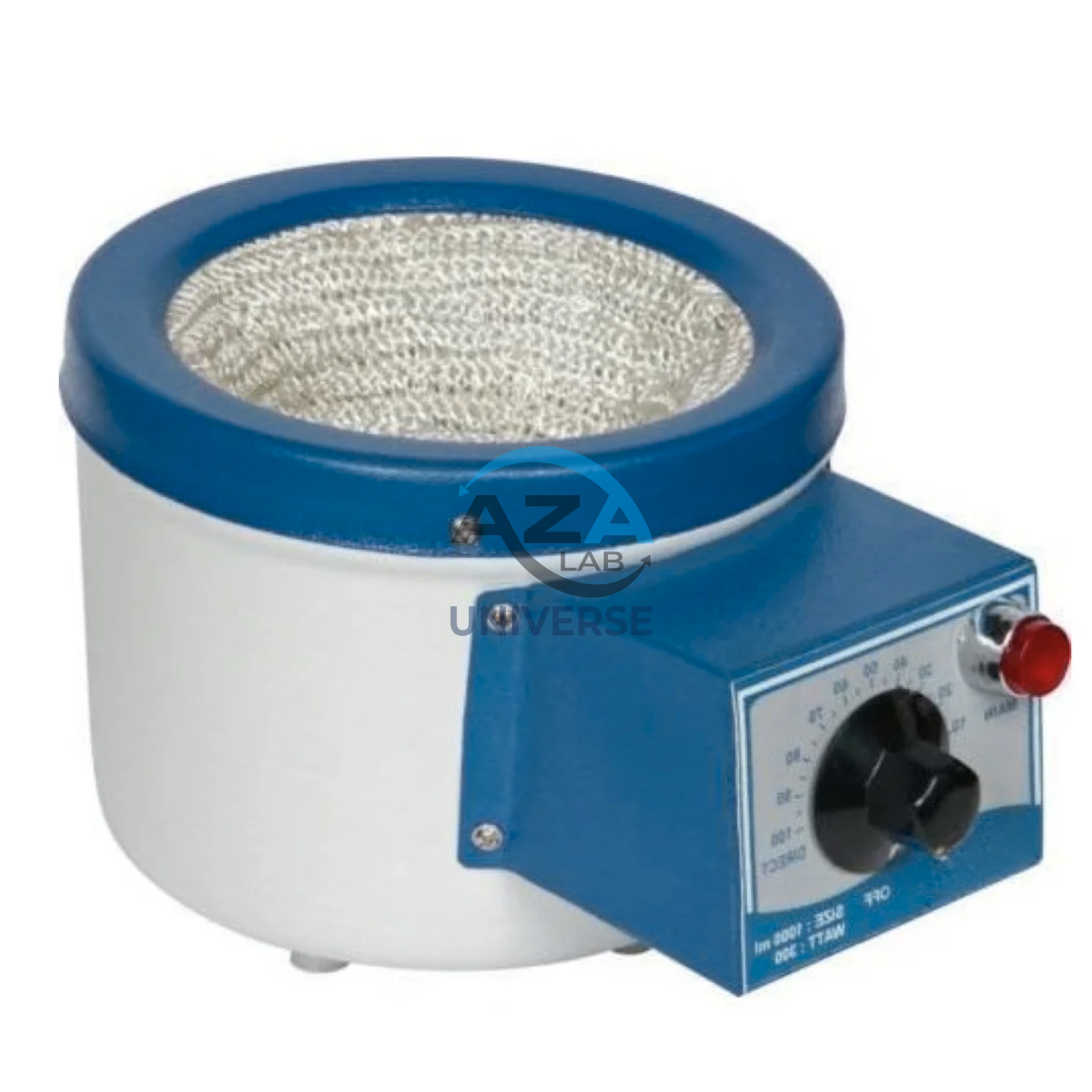

HEATING MANTLE AZA1061
The AZA1061 Heating Mantle from AZALAB is a precision-engineered, flame-free electric heating device designed specifically for the safe and uniform heating of inflammable liquids contained in round-bottom laboratory flasks. It is an essential piece of equipment for laboratories and industrial environments where controlled, risk-free heating is required without the hazards associated with open flames or hot plates.
This heating mantle is widely used in chemical laboratories, pharmaceutical production units, R&D facilities, glass manufacturing plants, and academic institutions. The design prioritizes safety, durability, thermal efficiency, and consistent performance, making it suitable for both routine laboratory operations and continuous industrial usage.
Description
At the heart of the AZA1061 is a hard-knitted, jointless glass yarn heating net, which ensures uniform heat distribution across the entire flask surface. The absence of joints significantly enhances the lifespan of the heating element while eliminating localized overheating or hotspots. This results in improved temperature consistency, reduced risk of flask damage, and safer handling of volatile or inflammable liquids.
The outer body of the heating mantle is constructed from a single-piece spun aluminum shell, which is inherently non-rusting, shock-resistant, and lightweight. The body is finished with stove-cured powder coating, providing superior resistance to chemicals, abrasion, and laboratory wear while maintaining a clean, professional appearance suitable for controlled lab environments.
Internally, the mantle is packed with special-grade mineral wool insulation, which offers excellent thermal retention and energy efficiency. This insulation minimizes heat loss, reduces external surface temperature for operator safety, and allows the unit to sustain a maximum operating temperature of up to 350°C with stable performance over extended durations.
The AZA1061 Heating Mantle operates on a standard 230V A.C., single-phase power supply, making it compatible with most laboratory electrical infrastructures. It is available in a wide range of capacities from 250 ml to 20 liters, allowing users to select the appropriate model based on their specific application—ranging from small-scale academic experiments to large-volume industrial processing.
Applications
- Safe heating of inflammable and volatile liquids
- Chemical synthesis and reaction processes
- Pharmaceutical formulation and R&D
- Distillation and reflux applications
- Glass manufacturing and thermal processing
- Academic laboratories and teaching institutions
- Industrial chemical and process laboratories
Specifications
| Feature | Details |
|---|---|
| Model | AZA1061 |
| Heating Element | Jointless hard-knitted glass yarn heating net |
| Maximum Operating Temperature | Up to 350°C |
| Body Construction | One-piece spun aluminum, rust-proof |
| Surface Finish | Stove-cured powder coating |
| Insulation | Special-grade mineral wool |
| Flask Compatibility | Round-bottom flasks |
| Power Supply | 230V A.C., Single Phase |
| Available Capacities | 250 ml to 20 liters |
| Design Characteristics | Compact, shock-proof, energy efficient |
Key Features
- Specifically designed for safe heating of inflammable liquids
- Flame-free electric heating eliminates fire hazards
- Jointless glass yarn heating net ensures uniform heat distribution
- Durable, rust-proof spun aluminum outer body
- High-efficiency mineral wool insulation for reduced heat loss
- Cool external surface for enhanced operator safety
- Suitable for continuous laboratory and industrial use
- Wide capacity range to suit diverse applications
- Compatible with standard laboratory power supply
Frequently Asked Questions (FAQ)
Q1: Why is a heating mantle safer than a hot plate for inflammable liquids?
Heating mantles provide flame-free, indirect heating using an enclosed electric heating element. This significantly reduces ignition risks compared to open flames or exposed heating surfaces, making them ideal for volatile and inflammable substances.
Q2: What type of glassware is compatible with AZA1061?
The AZA1061 is designed specifically for round-bottom flasks, ensuring full surface contact and uniform heating.
Q3: Is the heating element durable for long-term use?
Yes. The jointless hard-knitted glass yarn heating net is highly durable, resistant to thermal stress, and provides consistent performance over long operating periods.
Q4: What is the power requirement for this heating mantle?
The unit operates on 230V A.C., single-phase supply, which is standard in most laboratory and industrial environments.
Q5: Are different capacity options available?
Yes. AZALAB offers the AZA1061 in capacities ranging from 250 ml to 20 liters, allowing selection based on specific laboratory or industrial needs.
Additional information
| Heating Element |
Jointless glass yarn knitted net |
|---|---|
| Power Supply |
230V A.C., single phase |
| Capacities Available |
250 ml to 20 liters |
