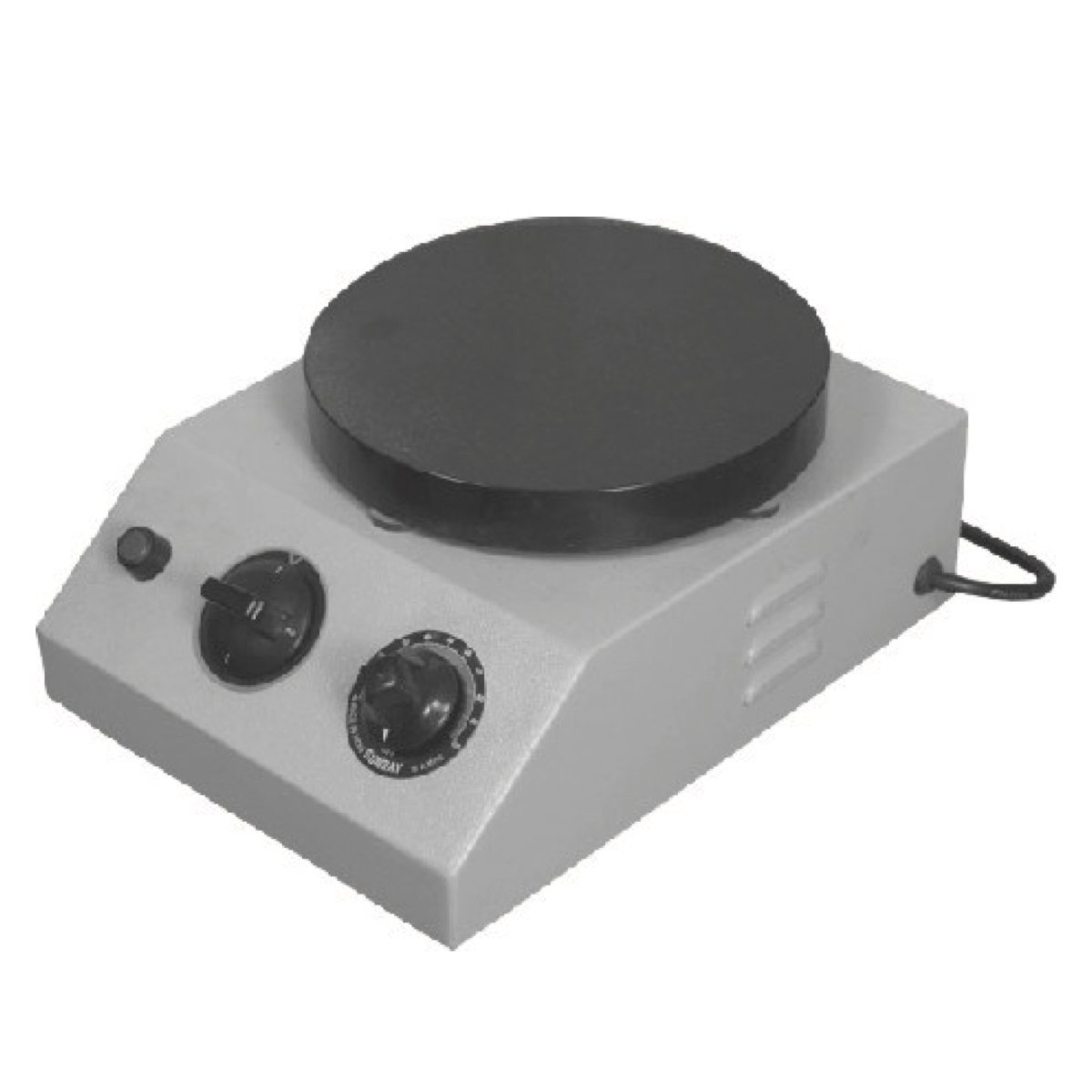

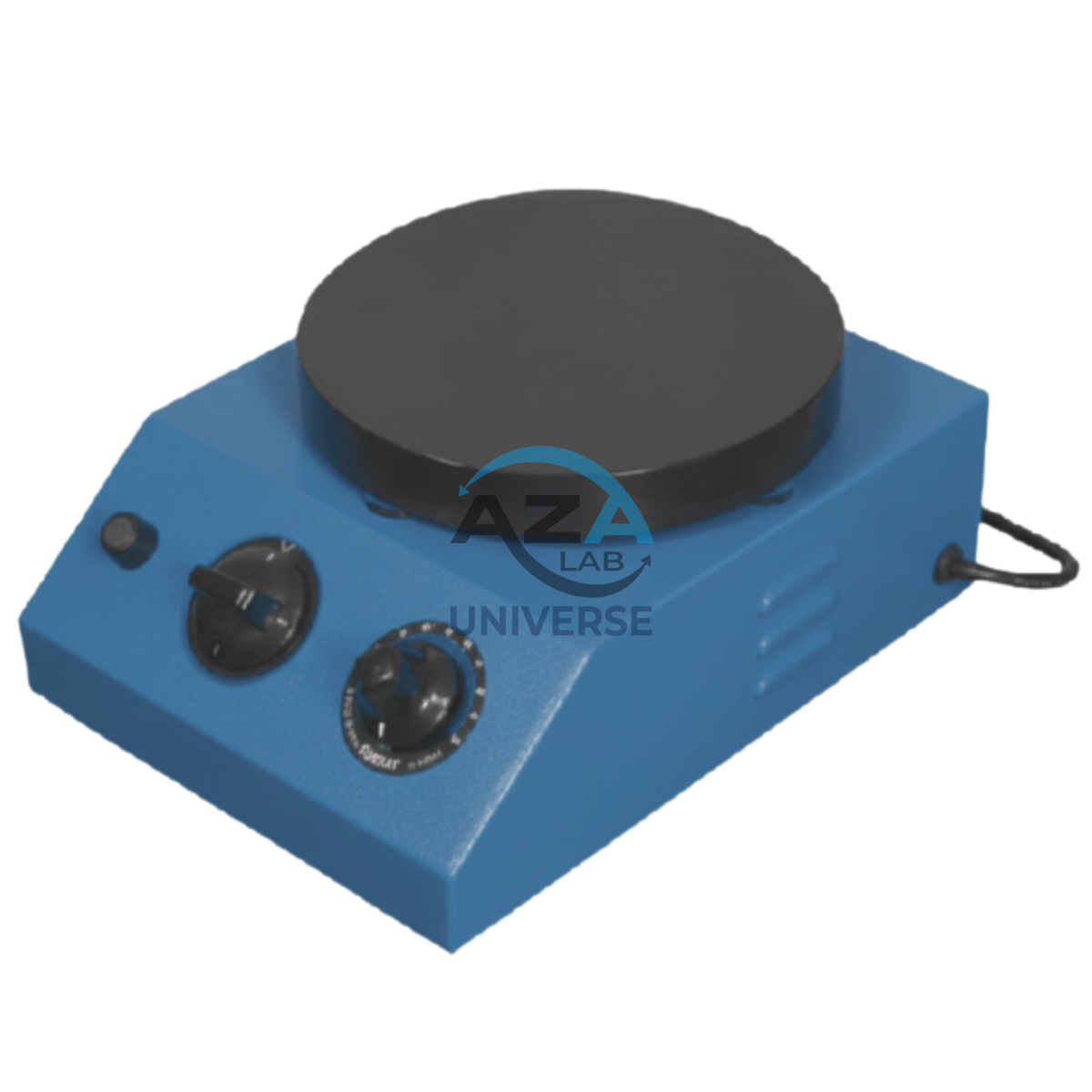

HOT PLATE (CIRCULAR) AZA1059

The AZA1059 Circular Hot Plate from AZALAB is a robust and reliable laboratory heating device designed for uniform and controlled heating across a wide range of routine and critical laboratory applications. Its compact circular design ensures efficient bench-space utilization while delivering consistent thermal performance, making it an essential tool in chemical, biological, pharmaceutical, research, and educational laboratories.

The AZA1059 is ideal for boiling liquids, evaporating solvents, heating reagents, and general sample preparation, where stable and evenly distributed heat is critical for reproducible results.

Category:
Description

Description

Key Features & Design

  • Uniform Circular Heating Surface
    The heating element is strategically embedded to provide even heat distribution across the entire circular plate, eliminating hot and cold spots.

  • Durable Heating Surface
    Available with cast iron, mild steel, or stainless steel heating plates, capable of withstanding high temperatures and routine laboratory chemical exposure.

  • Flexible Temperature Control Options
    Depending on configuration, the AZA1059 is available with:

    • Energy Regulator for stepless heat control

    • Hydraulic / Bimetallic Thermostat for stable fixed-range control

    • Digital PID Controller (optional) for precise temperature setting and display

  • High Temperature Capability
    Suitable for applications requiring temperatures up to 300°C or 350°C, depending on model and heater rating.

  • Rugged & Safe Construction

    • Outer Body: Mild steel with durable powder coating or stainless steel

    • Insulated Base: Minimizes heat transfer to the workbench

    • Stable Design: Prevents tipping during operation

    • Non-slip feet for enhanced bench safety

  • Operational Safety Indicators
    Equipped with a heating ON/OFF indicator lamp for clear operational status.


Applications

  • Boiling and evaporation of liquids

  • Heating solutions and reagents

  • Sample preparation and pre-heating

  • Short-term incubation processes

  • General laboratory heating tasks


Technical Specifications

Feature Specification
Model AZA1059
Type Circular Laboratory Hot Plate
Heating Surface Shape Circular
Heating Surface Material Cast Iron / Mild Steel / Stainless Steel
Plate Diameter 150 mm, 200 mm, 250 mm (model dependent)
Temperature Range Ambient to 300°C / 350°C
Temperature Control Energy regulator / Hydraulic thermostat / Digital PID (optional)
Temperature Accuracy ±2°C to ±5°C (controller dependent)
Body Material Powder-coated Mild Steel / Stainless Steel
Insulation High-quality thermal insulation
Power Consumption Approx. 500 W to 1500 W (size dependent)
Power Supply 220–240 V AC, 50 Hz, Single Phase
Indicator Heating ON/OFF lamp
Safety Features Insulated body, stable base, optional overheat protection

Advantages

  • Uniform and stable heating across the surface

  • Compact, space-saving circular design

  • Durable construction for long service life

  • Multiple control options for varied applications

  • Suitable for continuous laboratory operation


Frequently Asked Questions (FAQ)

Q1: What is the advantage of a circular hot plate?
A circular hot plate provides more uniform heat distribution, which is essential for consistent boiling, evaporation, and solution heating.

Q2: What is the maximum operating temperature?
Up to 300°C or 350°C, depending on the model and heating element.

Q3: How is temperature controlled?
Through an energy regulator, hydraulic thermostat, or optional digital PID controller, depending on configuration.

Q4: Is AZA1059 suitable for corrosive chemicals?
The heating surface is durable, but direct prolonged contact with highly corrosive chemicals should be avoided. Always use appropriate glassware.

Q5: Can the unit be used continuously?
Yes, AZA1059 is designed for continuous laboratory use within specified operating limits.


The AZA1059 Circular Hot Plate is a reliable, durable, and versatile laboratory heating solution engineered to deliver uniform heat with precise control. Its rugged construction, safety-focused design, and wide application range make it a dependable choice for laboratories seeking consistent and efficient heating performance.

Additional information

Additional information

Model Number

AZA 1059

Shape

Circular

Heating Surface Material

Cast Iron, Mild Steel, or Stainless Steel

Temperature Range

Ambient to $300^\\circ\\text{C}$ or $350^\\circ\\text{C}$

Body Material

Mild Steel with powder coating or Stainless Steel

Insulation

High-quality insulation to minimize heat loss to the surroundings

Power Supply

220-240V AC, 50 Hz, Single Phase
