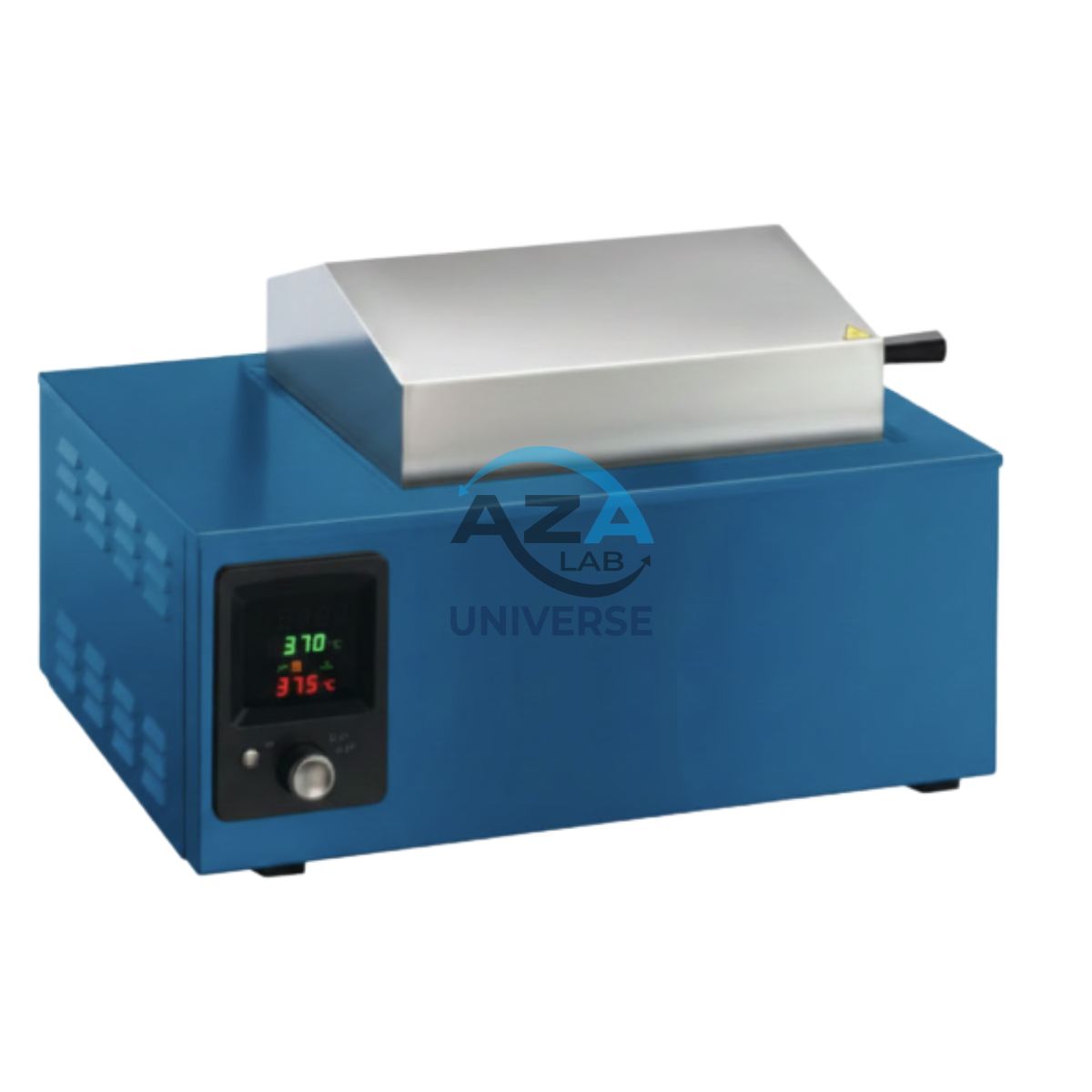

UNIVERSAL WATER BATH (SEROLOGICAL TYPE) AZA1056
The AZA1056 Universal Water Bath (Serological Type – Digital) from AZALAB is a high-precision laboratory water bath engineered for accurate temperature-controlled incubation and heating of biological and chemical samples. Designed specifically for serological, clinical, pharmaceutical, and research laboratories, this model ensures excellent temperature stability, reproducibility, and operational reliability.
Equipped with a digital temperature controller and a built-in FHP motor with stirrer, the AZA1056 delivers superior temperature uniformity throughout the water chamber, making it ideal for highly sensitive and critical laboratory applications.
Description
Key Features & Design
-
Digital Precision Temperature Control
Advanced digital controller offering:-
Temperature accuracy: ±0.2°C
-
Resolution (least count): ±0.1°C
Ensures precise and stable thermal conditions for serological and biological assays.
-
-
Built-in FHP Motor cum Stirrer
Integrated fractional horsepower (FHP) motor with stirrer provides continuous water circulation, eliminating temperature gradients and preventing hot spots across the chamber. -
Robust Double-Walled Construction
-
Inner Chamber: Stainless Steel SS 304 for corrosion resistance and easy cleaning
-
Outer Body: Mild steel with durable powder coating for long service life
-
-
Efficient Heating System
Fitted with a 2000 W immersion-type heating element for fast heat-up and consistent performance during continuous operation. -
User-Friendly Side Control Panel
Ergonomically designed side-mounted panel includes:-
Digital temperature controller
-
Main power ON/OFF switch
-
Stirrer speed regulator
-
Stirrer ON/OFF switch
-
Applications
-
Serological testing and diagnostics
-
Sample incubation
-
Reagent and media warming
-
Clinical and pharmaceutical laboratory procedures
-
Research and routine laboratory heating applications
Technical Specifications
| Feature | Details |
|---|---|
| Model | AZA1056 |
| Type | Universal Water Bath – Serological Type (Digital with Stirrer) |
| Temperature Range | Ambient to 100.0°C |
| Temperature Accuracy | ±0.2°C |
| Temperature Resolution | ±0.1°C |
| Inner Chamber Material | Stainless Steel (SS 304) |
| Outer Body Material | Mild Steel, powder coated |
| Chamber Size | 18” × 12” × 10” (L × W × H) |
| Heating Element | 2000 W |
| Motor | Built-in FHP motor with stirrer |
| Control Panel | Side-mounted (controller, stirrer regulator, main switch) |
| Power Supply | 230 V AC, Single Phase, 50 Hz |
Advantages
-
Highly uniform temperature distribution due to built-in stirrer
-
Accurate digital temperature control for sensitive samples
-
Durable, corrosion-resistant inner chamber
-
Suitable for continuous laboratory operation
-
Compact and ergonomic design for routine lab use
Frequently Asked Questions (FAQ)
Q1: What is the benefit of the FHP stirrer in AZA1056?
It ensures continuous water circulation, providing uniform temperature distribution and eliminating hot spots.
Q2: Is the temperature control suitable for biological and serological samples?
Yes. With ±0.2°C accuracy and ±0.1°C resolution, AZA1056 is ideal for serology, incubation, and clinical applications.
Q3: Can the AZA1056 be used for continuous operation?
Yes. It is designed for continuous laboratory use with stable thermal performance and durable components.
Q4: Does the unit have overheating protection?
Yes. The digital controller regulates heating and prevents overheating by maintaining the set temperature.
Q5: Is the unit rust-proof?
The inner chamber is rust-proof stainless steel (SS 304), while the outer body is protected with powder coating.
The AZA1056 Universal Water Bath (Serological Type – Digital with Stirrer) is a high-performance, precision-controlled laboratory instrument built to meet the demanding needs of modern diagnostic, clinical, and research laboratories. Its accurate digital control, uniform heating through stirring, and rugged construction make it a dependable choice for consistent and reproducible laboratory results.
If required, I can also provide:
Additional information
| Temperature Range |
Ambient to 100.0°C |
|---|---|
| Controller Type |
Digital Controller with ±0.2°C accuracy & ±0.1°C least count |
| Inner Chamber Material |
Stainless Steel (SS 304) |
| Chamber Size |
18” x 12” x 10” (L × W × H) |
