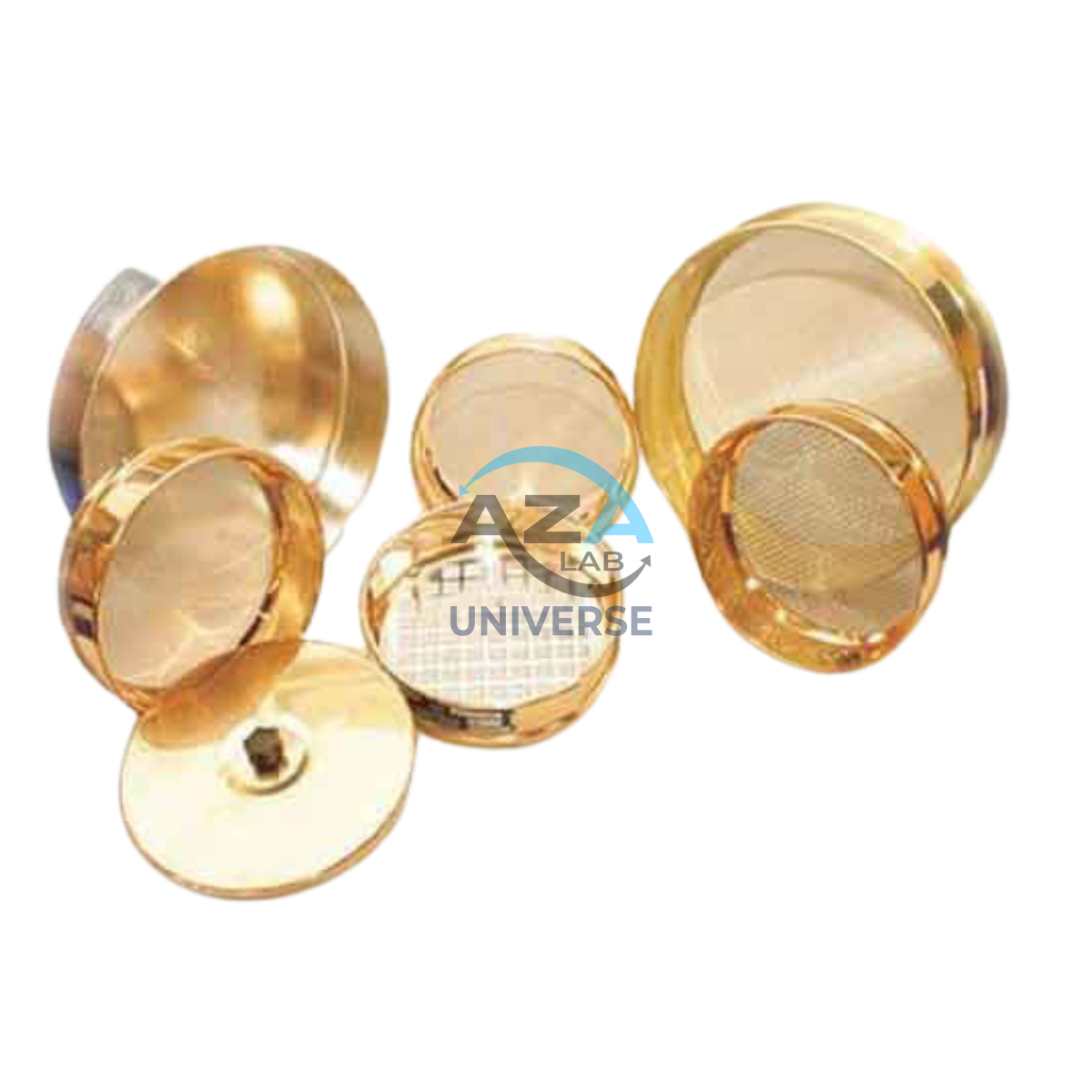

BRASS FRAME SIEVES 100,200, 300 & 450 MM DIA. AZA0924 - Image 1
Click to enlarge
AZA 0923 G.I. Frame Sieves | Azalab Aggregate Sieves
G. I. FRAME SIEVES 300 & 450 MM DIA (POWDER COATED) AZA0923
Back to products
SIEVE SHAKER AZA0925
SIEVE SHAKER AZA0925

BRASS FRAME SIEVES 100,200, 300 & 450 MM DIA. AZA0924

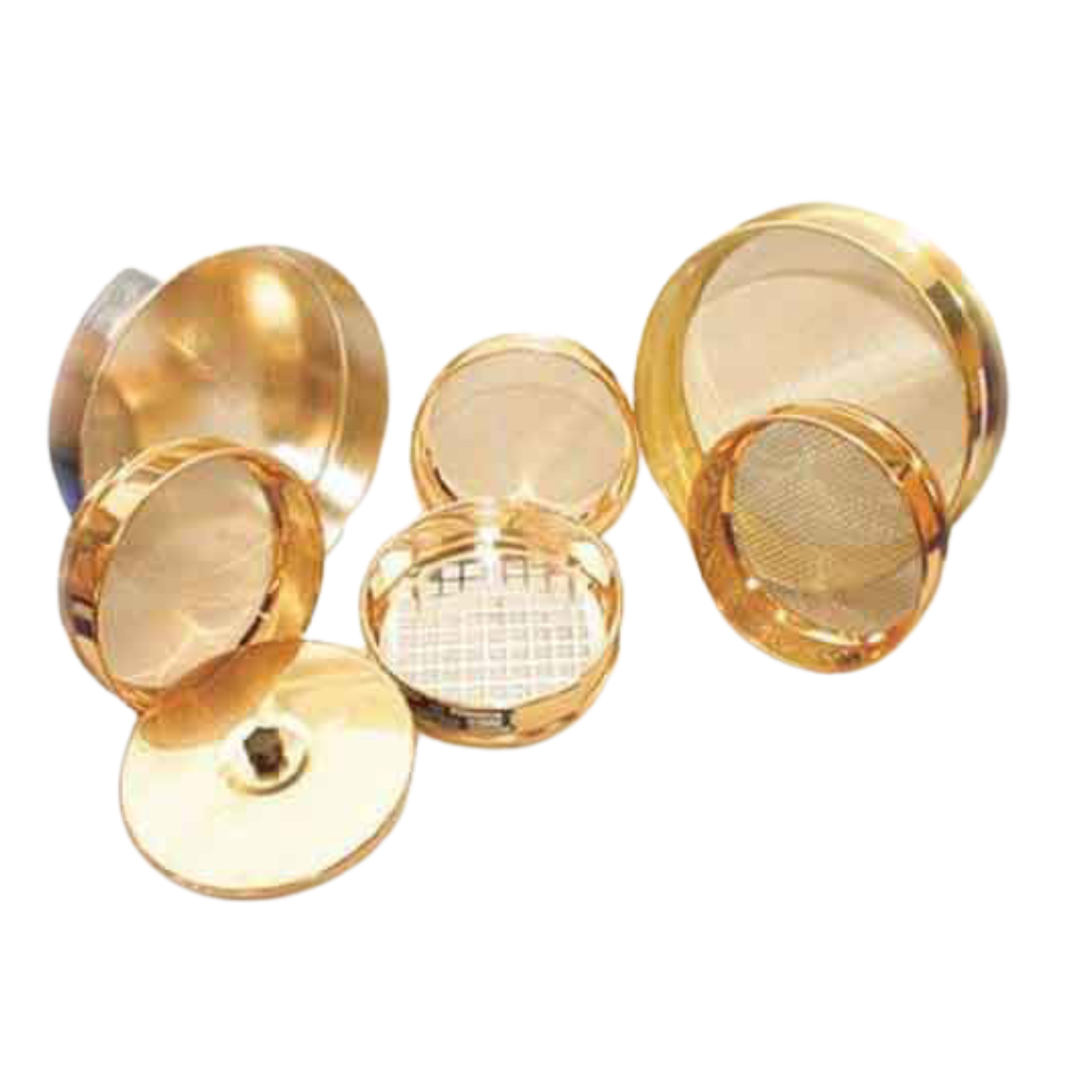

The AZA0924 Brass Frame Sieves by Azalab are precision-engineered laboratory test sieves designed for accurate and reproducible particle size distribution (sieve analysis) across a wide range of materials. Manufactured with high-quality seamless brass frames and precision woven wire mesh, these sieves are an essential tool for laboratories requiring dependable gradation results in accordance with national and international standards.

Available in 100 mm, 200 mm, 300 mm, and 450 mm diameters, AZA0924 sieves are suitable for both manual sieving and mechanical sieve shakers, making them versatile for routine quality control as well as advanced research applications

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Importance of Precision Sieving

Particle size distribution significantly affects material behavior and performance, including:

  • Soils: Permeability, shear strength, compaction behavior

  • Aggregates: Concrete workability, asphalt stability, pavement durability

  • Powders: Flowability, packing density, solubility, and reactivity

Accurate results depend directly on sieve quality. AZA0924 sieves are manufactured with tight aperture tolerances, ensuring uniform particle separation and reliable, repeatable test data.

Key Features

  • Seamless Brass Frame

    • Excellent corrosion resistance

    • Dimensional stability and long service life

    • Non-magnetic and suitable for diverse laboratory environments

  • Precision Woven Wire Mesh

    • Stainless steel or phosphor bronze options

    • High wear resistance and uniform aperture size

    • Manufactured to strict dimensional tolerances

  • Wide Range of Aperture Sizes

    • From very coarse (up to 100 mm) to very fine (down to 20 microns / 0.02 mm)

  • Standard Laboratory Diameters

    • 100 mm (4″) – small samples, research use

    • 200 mm (8″) – most common laboratory size

    • 300 mm (12″) – larger samples, aggregates

    • 450 mm (18″) – bulk material and high-volume testing

  • Stackable & Seamless Design

    • Secure stacking for multi-sieve analysis

    • Easy cleaning, minimal material loss or contamination

  • Traceability

    • Each sieve marked with aperture size and serial number

    • Optional NABL-traceable calibration certificates available

Applications

  • Soil grain size analysis (IS 2720 Part 4)

  • Aggregate gradation for concrete and asphalt

  • Cement, fly ash, and mineral powders

  • Pharmaceuticals and chemical powders

  • Food grains, flour, spices, and additives

  • Research, quality control, and compliance testing

Standards Compliance

  • IS 460 (Part 1 & 2) – Test Sieves

  • IS 2720 (Part 4) – Grain Size Analysis of Soils

  • ASTM E11 – Woven Wire Test Sieves

  • ISO 3310-1 – Metal Wire Cloth Test Sieves

Specifications

Parameter Details
Model AZA0924
Product Type Brass Frame Test Sieves
Frame Material Seamless Brass
Mesh Material Stainless Steel / Phosphor Bronze
Available Diameters 100 mm, 200 mm, 300 mm, 450 mm
Aperture Range 100 mm to 20 microns (0.02 mm)
Frame Height Full height / Half height
Construction Seamless, laboratory-grade
Stackability Yes
Compatibility Manual & mechanical sieve shakers
Marking Aperture size & serial number
Country of Origin Made in India

Frequently Asked Questions (FAQ)

Q1. What materials are AZA0924 sieves suitable for?
Soils, aggregates, cement, minerals, chemicals, pharmaceuticals, food products, and other dry granular or powdered materials.

Q2. What sizes are available?
Standard diameters of 100 mm, 200 mm, 300 mm, and 450 mm.

Q3. Do these sieves meet international standards?
Yes. They comply with IS 460, ASTM E11, and ISO 3310-1.

Q4. Can they be used with sieve shakers?
Yes. Especially the 200 mm and 300 mm sizes, which are widely compatible with laboratory sieve shakers.

Q5. Are calibration certificates available?
Optional NABL-traceable calibration certificates can be provided on request for critical applications.

Additional information

Additional information

Model

AZA 0924
Product Type

Test Sieves (Particle Size Analysis)
Frame Material

High-Quality Seamless Brass.
Construction

Seamless frame for easy cleaning and durability.
Stackability

Designed to stack perfectly for multi-sieve analysis.
Country of Origin

Made in India
