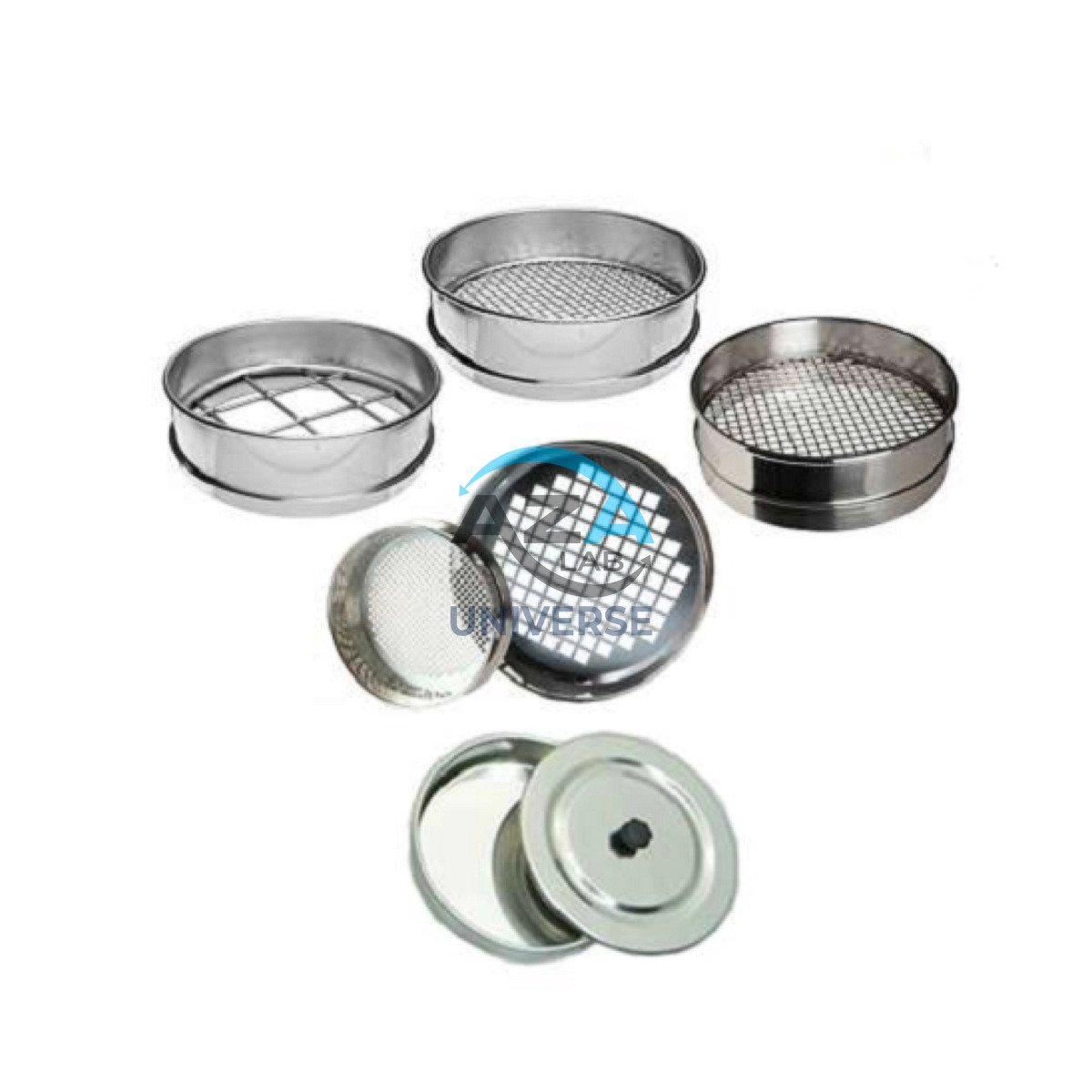

G. I. FRAME SIEVES 300 & 450 MM DIA (POWDER COATED) AZA0923

The AZA0923 G.I. Frame Sieves by Azalab are heavy-duty test sieves engineered for accurate and repeatable particle size distribution analysis of coarse aggregates, soils, and bulk granular materials. Designed specifically for demanding laboratory and field applications, these sieves are manufactured with galvanized iron (G.I.) frames and enhanced with a durable powder-coated finish, ensuring superior strength, corrosion resistance, and long service life.

Available in large diameters of 300 mm and 450 mm, AZA0923 sieves are ideally suited for civil engineering, construction, mining, geotechnical, and quality control laboratories where robustness and consistency are critical.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Why G.I. Frame Sieves – AZA0923

For large-diameter sieves handling heavy sample volumes, structural rigidity is essential. The AZA0923 excels due to:

  • Galvanized Iron Frame
    Manufactured from steel and hot-dip galvanized to provide a protective zinc layer, offering excellent resistance to rust and corrosion in humid and harsh environments.

  • Powder-Coated Finish
    Adds an extra protective barrier with:

    • Enhanced corrosion and chemical resistance

    • High scratch and abrasion resistance

    • Smooth, uniform, and durable surface finish

  • High Structural Strength
    G.I. frames provide significantly higher rigidity than brass frames, minimizing deformation during mechanical shaking and ensuring long-term dimensional accuracy.

Key Features

  • Heavy-duty galvanized iron frame with powder coating

  • Available in 300 mm (12 inch) and 450 mm (18 inch) diameters

  • Precision woven wire mesh in stainless steel or phosphor bronze

  • Mesh manufactured to strict aperture tolerances

  • Wide range of aperture sizes for aggregate and soil gradation

  • Seamless frame construction for easy cleaning

  • Stable and secure stackable design

  • Each sieve individually marked with aperture size and serial number

  • Suitable for manual and mechanical sieve shakers

Applications

  • Sieve analysis of coarse and fine aggregates

  • Soil grain size analysis

  • Road base and sub-base material testing

  • Concrete and asphalt mix design

  • Mining and quarry material grading

  • Geotechnical and construction quality control laboratories

Standards Compliance

  • IS 460 (Part 1 & 2) – Test Sieves

  • IS 2720 (Part 4) – Grain Size Analysis of Soils

  • ASTM E11 – Woven Wire Test Sieves

  • ISO 3310-1 – Test Sieves (Metal Wire Cloth)

Specifications

Parameter Details
Model AZA0923
Product Type G.I. Frame Test Sieves
Frame Material Galvanized Iron with Powder Coating
Mesh Material Stainless Steel / Phosphor Bronze
Available Diameters 300 mm (12 in), 450 mm (18 in)
Aperture Sizes 100 mm to 600 micron (and others as per standards)
Frame Height Full height / Half height (optional)
Construction Seamless, heavy-duty
Stackability Yes
Compatibility Manual & mechanical sieve shakers
Marking Aperture size & serial number
Country of Origin Made in India

Frequently Asked Questions (FAQ)

Q1. Why choose G.I. frame sieves over brass?
G.I. frames offer higher strength, rigidity, and corrosion resistance, making them ideal for large-diameter sieves and heavy sample loads.

Q2. What diameters are available?
AZA0923 sieves are available in 300 mm and 450 mm diameters.

Q3. What materials can be tested?
Coarse aggregates, gravel, sand, soils, and other bulk granular materials.

Q4. Do these sieves comply with Indian Standards?
Yes. They conform to IS 460 and are suitable for tests as per IS 2720 Part 4, as well as ASTM and ISO standards.

Q5. Can they be used with sieve shakers?
Yes. They are fully compatible with large-capacity mechanical sieve shakers designed for 300 mm and 450 mm sieves.

Additional information

Additional information

Model

AZA 0923
Product Type

Test Sieves (for Particle Size Analysis)
Frame Material

Galvanized Iron (G.I.) with Durable Powder Coating.
Construction

Seamless frame construction for easy cleaning and material flow.
Stackability

Designed for stable and secure stacking for multi-sieve analysis.
Country of Origin

Made in India.
