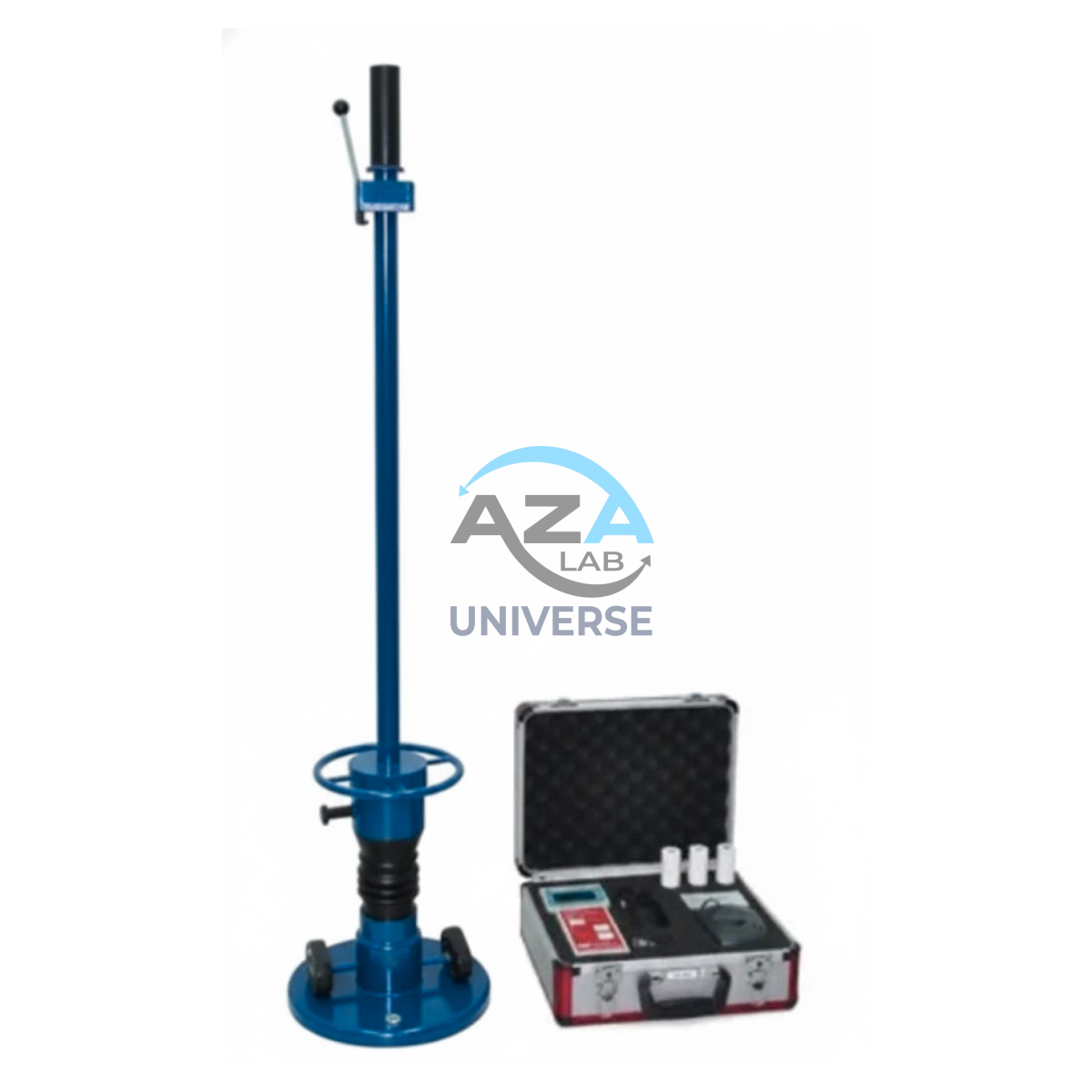

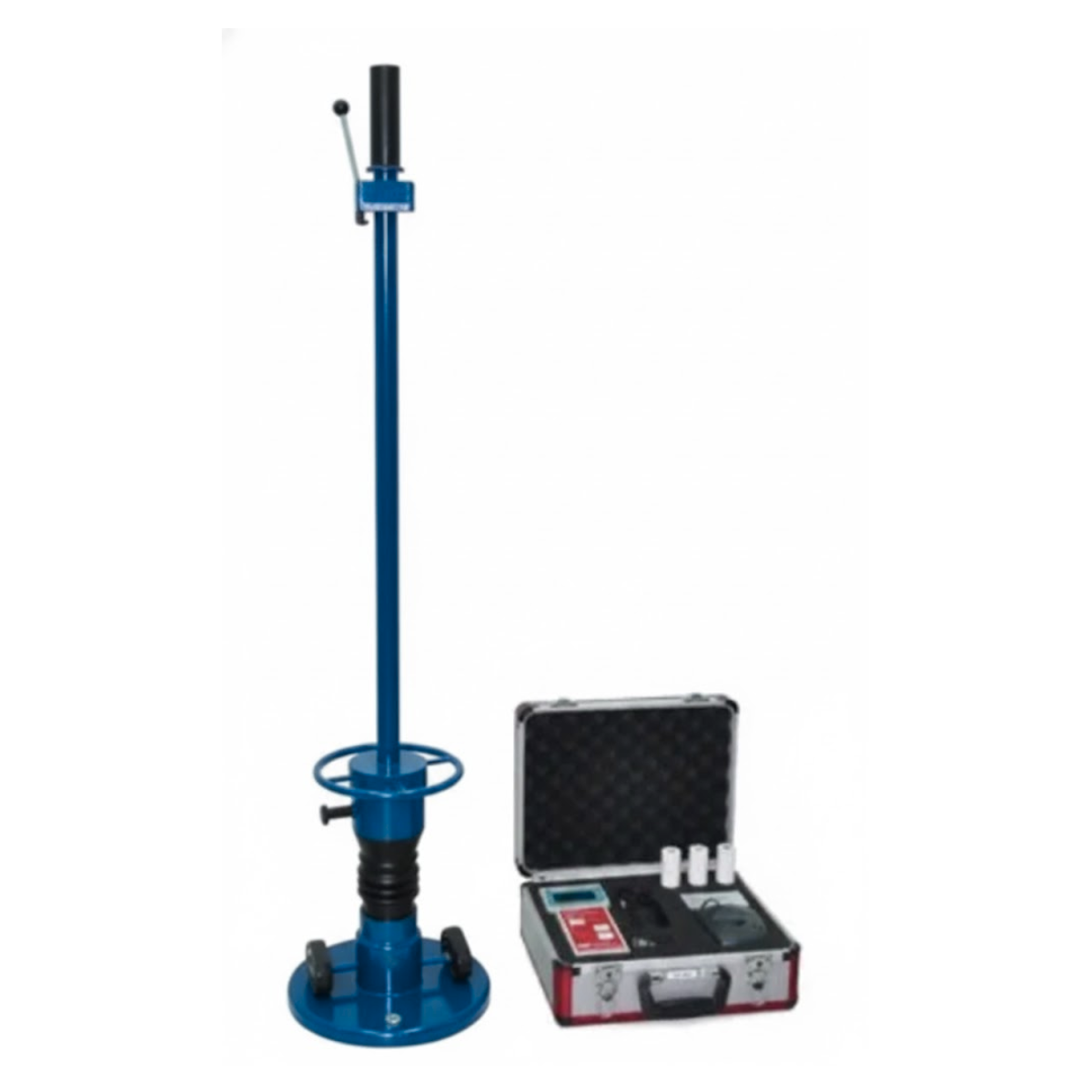

LIGHT WEIGHT DEFLECTOMETER AZA0930

The Azalab AZA0930 Light Weight Deflectometer (LWD) is a compact, portable, and non-destructive geotechnical testing instrument designed for the rapid evaluation of compaction quality and bearing capacity of unbound granular layers, subgrades, and backfills. It delivers instant, reliable results directly on site, making it an essential quality-control tool for modern civil engineering and infrastructure projects.

AZA0930 eliminates the need for time-consuming laboratory testing or heavy plate load test setups, enabling engineers and contractors to make immediate acceptance or corrective decisions during construction

Enquiry on WhatsApp
Category:
Description

Description

Working Principle

The AZA0930 operates on the dynamic plate load (impulse) testing principle:

  1. A rigid circular loading plate is placed on the prepared test surface.

  2. A standardized drop weight is lifted to a fixed height and released.

  3. The impact load is transferred through a spring system to the ground.

  4. A high-precision geophone measures peak surface deflection.

  5. An integrated load cell records applied force.

  6. The control unit calculates the Dynamic Deformation Modulus (Evd / E-value).

Multiple drops are performed at each test point to ensure repeatability and accuracy. Results are displayed within minutes.

Key Features

  • Portable, single-operator field device

  • Standardized drop weight and height for repeatable energy input

  • High-resolution geophone for precise deflection measurement

  • Integrated load cell for accurate force calculation

  • Digital control unit with real-time display

  • Instant Evd (dynamic modulus) computation

  • Internal data storage for multiple test points

  • USB / Bluetooth connectivity for PC data transfer

  • Rechargeable battery for extended field operation

  • Rugged construction for harsh site conditions

Applications

  • Road subgrade, sub-base, and base layer compaction control

  • Railway embankments and track bed verification

  • Shallow foundation bearing capacity assessment

  • Trench backfill and utility reinstatement checks

  • Airport pavement layer evaluation

  • Industrial yards, pavements, and sports fields

Standards Compliance

Designed to comply with and correlate to:

  • ASTM E2835 – Portable Impulse Plate Load Test

  • EN 13840 / DIN 18134 – Light Falling Weight Deflectometer

  • IRC Guidelines – Accepted correlation for road compaction quality control

Technical Specifications

Parameter Description
Model AZA0930
Product Type Light Weight Deflectometer (LWD / LFWD)
Test Method Dynamic Plate Load / Impulse Deflection
Drop Weight 10 kg (standard)
Drop Height 500 mm
Loading Plate Diameter 300 mm
Load Application Spring-assisted impulse load
Load Measurement Integrated load cell
Deflection Sensor High-precision geophone
Deflection Resolution 0.01 mm (typical)
Measurement Output Dynamic Deformation Modulus (Evd / MPa)
Display Digital LCD (backlit)
Data Storage Internal memory
Data Transfer USB / Bluetooth
Power Supply Rechargeable Li-ion battery
Operating Temperature –10 °C to +50 °C
Total Weight Approx. 15–20 kg
Construction Rugged, field-grade
Country of Origin Made in India
Standards ASTM E2835, EN 13840

Standard Supply

  • AZA0930 LWD main unit

  • Drop weight assembly

  • Loading plate

  • Integrated control & display unit

  • Rechargeable battery and charger

  • Data transfer cable / software

  • Carrying / transport case

  • User manual

Frequently Asked Questions (FAQ)

Q1. What does AZA0930 measure?
It measures ground stiffness and compaction quality in terms of Dynamic Deformation Modulus (Evd).

Q2. How fast are results available?
Results are available within minutes at each test location.

Q3. Is it suitable for clay soils?
It is best suited for unbound granular soils and backfills. Highly plastic or saturated clays may require alternative testing.

Q4. Can one person operate it?
Yes, AZA0930 is designed for single-person field operation.

Q5. Is it accepted for road construction quality control?
Yes, results are widely used and correlated with IRC and international specifications.

Product Summary

  • Model: AZA0930

  • Portable light weight deflectometer for on-site testing

  • Rapid evaluation of compaction and bearing capacity

  • Instant Evd results with digital display

  • Data logging and PC connectivity

  • Complies with ASTM and EN standards

  • Ideal for roads, railways, foundations, and backfills

AZA0930 – Fast, reliable ground performance verification at your fingertips.

Additional information

Additional information

Model

AZA 0930
Drop Weight

Typically 10 kg (standardized)
Drop Height

Typically 500 mm (standardized)
Loading Plate Diameter

Typically 300 mm
Load Application

Impulse load via spring mechanism.
Country of Origin

Made in India.
Operating Temperature

Typically -10°C to +50°C.
