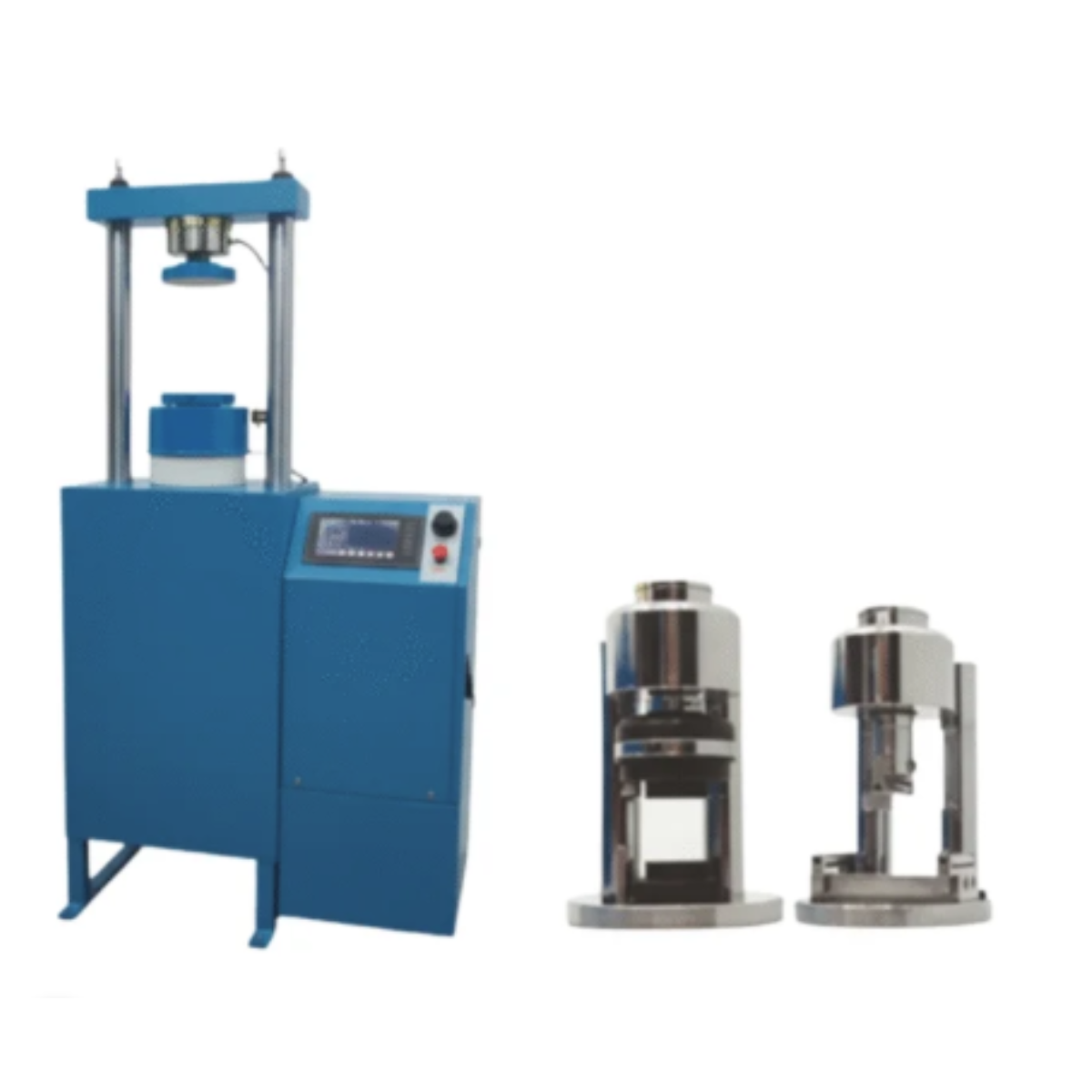

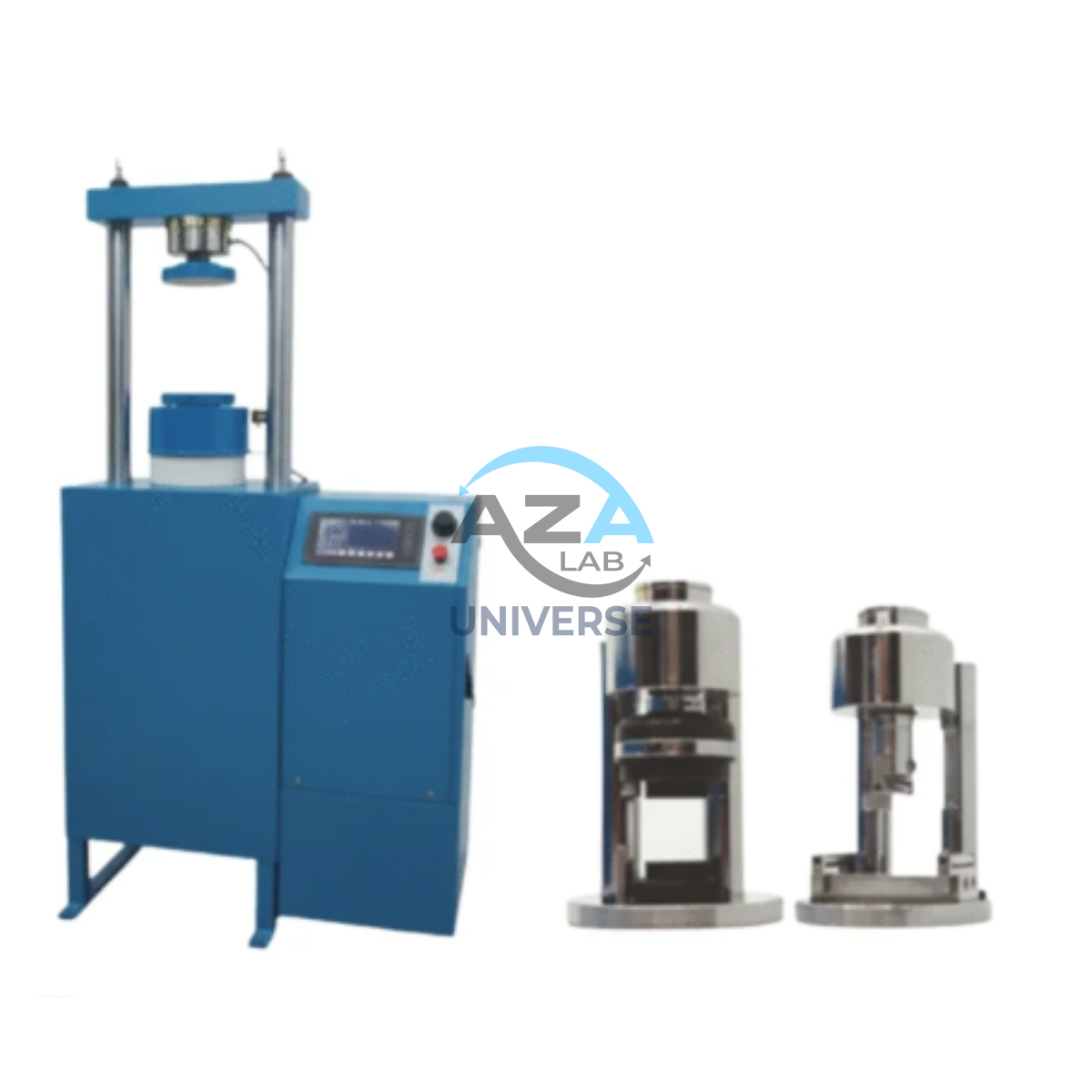

AUTOMATIC CEMENT COMPRESSION & FLEXURE TESTING MACHINES AZA0817
A dual-purpose, fully automated testing system designed to measure the compressive and flexural strength of cement cubes and prisms with high accuracy. Built to meet IS 516, IS 4031, ASTM C109, and ASTM C348 standards, it features an intelligent touchscreen controller, automatic loading, digital data storage, and a robust steel frame for long-term reliability. Ideal for cement plants, laboratories, and educational institutes requiring fast, precise, and repeatable cement strength testing
Description
1. Product Details
| Parameter | Specification |
|---|---|
| Model No. | AZA0817 |
| Type | Fully Automatic Compression & Flexure Testing Machine |
| Material | Heavy-Duty Steel Frame with Precision Hydraulics |
| Colour | Standard Industrial Finish (Grey/Blue) |
| Operation | Fully Automatic with Touchscreen Control |
| Test Modes | Compression & Flexure |
| Standards | IS 516, IS 4031, ASTM C109, ASTM C348 |
| Compatibility | Cement Cubes (70.6 mm), Cement Prisms/Beams |
2. Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions | Varies by configuration (Customizable) |
| Weight | Approx. 350–550 kg depending on capacity |
| Power Supply | 220–240V, 50 Hz |
3. Load Capacity
| Parameter | Specification |
|---|---|
| Compression Capacity | 100 kN to 200 kN (customizable) |
| Flexure Capacity | 10 kN or as Required |
| Load Application | Fully Automatic, Programmable Rate |
4. Key Features
• Fully automatic operation with programmable loading rates
• Dual testing capability – compression & flexure
• High-precision hydraulic loading system
• Touchscreen interface with real-time graphing
• Automatic data logging, peak load capture, and report storage
• USB, RS232, and printer connectivity
• Rigid, deformation-free steel frame
• Overload protection & emergency stop system
• Low maintenance with long service life
• Complies with IS & ASTM standards
5. Applications
Ideal for use in:
• Cement plants & manufacturing units
• QA/QC laboratories
• Construction material testing labs
• Educational institutions & research centers
• Civil engineering quality control departments
6. Specifications
| Feature | Description |
|---|---|
| Model | AZA0817 |
| Test Types | Compression & Flexure |
| Control System | Fully Automatic with Touchscreen Interface |
| Standards | IS 516, IS 4031, ASTM C109, C348 |
| Compression Capacity | 100–200 kN |
| Flexure Capacity | 10 kN |
| Load Rate | Programmable as per standards |
| Display | Digital Display with Real-Time Graph |
| Data Output | USB, RS232, Printer compatible |
| Safety | Overload Protection, Emergency Stop |
| Electrical | 220–240V AC, 50Hz |
Frequently Asked Questions (FAQ)
Q1: What specimens can be tested?
A1: Cement cubes (70.6 mm) for compression and beams/prisms for flexure.
Q2: Is the machine fully automatic?
A2: Yes, load application, data capture, and result storage are fully automated.
Q3: Does it comply with IS standards?
A3: Yes, it complies with IS 516 and IS 4031, and ASTM standards.
Q4: Is it suitable for academic labs?
A4: Yes, it is user-friendly and ideal for both teaching and research.
Q5: How are test results saved?
A5: Results can be stored digitally, exported via USB, or printed directly.
Highlights
-
AZA0817: Automatic machine for compression & flexure testing
-
Dual Functionality: Tests cubes & beams
-
Touchscreen Digital Control
-
High Precision – IS & ASTM compliant
-
Durable, heavy-duty construction
-
Low maintenance & long life
