APPARATUS FOR REACTIVITY OF QUICKLIME AZA0809
The AZA0809 Quicklime Reactivity Apparatus is a precision laboratory instrument engineered to measure the thermal reactivity of quicklime (CaO) when it reacts with water—a process known as slaking. This exothermic reaction produces heat, and by recording the temperature rise over time, the apparatus helps determine the quality, fineness, and reactivity rate of quicklime.
Widely used in lime processing plants, cement industries, construction materials testing labs, and research institutions, this apparatus ensures accurate evaluation of quicklime performance for applications in soil stabilization, water treatment, chemical manufacturing, and cement additives.
The apparatus fully complies with IS 1514:1990 – Methods of Sampling and Test for Quicklime and Hydrated Lime and ASTM C110 – Standard Test Methods for Physical Testing of Quicklime, Hydrated Lime, and Limestone.
Description
How the Test Works
A known mass of quicklime is placed in a borosilicate reaction flask. A measured quantity of water is added, and the temperature is recorded at defined intervals.
The ∆T (temperature rise) indicates the quicklime’s reactivity level and suitability for industrial use.
Features and Benefits
-

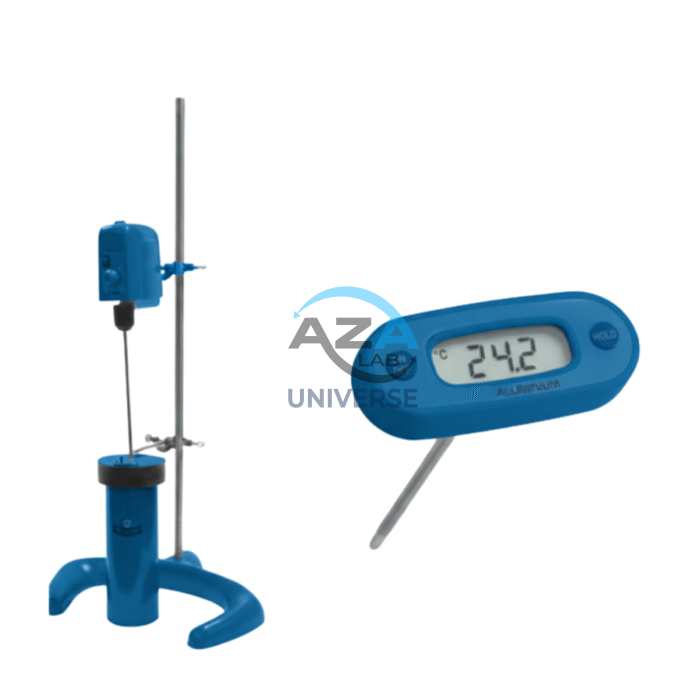

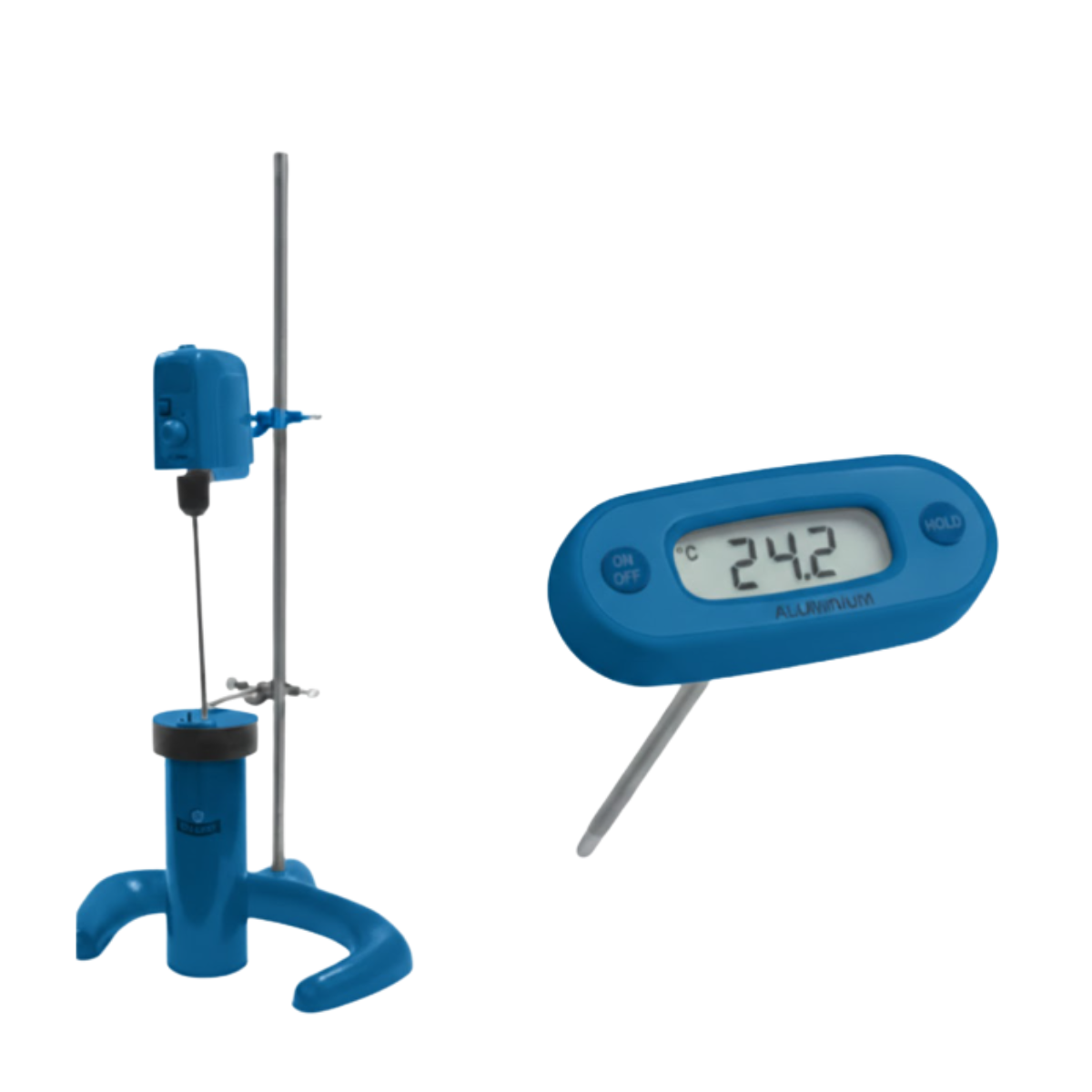

Complete Testing Setup: Includes 500 mL borosilicate reaction flask, precision thermometer, insulated chamber, stirrer, and support stand.
-
High Sensitivity: Detects small variations in heat release for accurate quality control.
-
Standard-Compliant: Follows IS 1514 and ASTM C110 procedures.
-
Durable Construction: Built using laboratory-grade glass and corrosion-resistant components.
-
Optional Automation: Digital temperature probe and data logger available in advanced variants.
-
User-Friendly Design: Compact, easy to operate, and suitable for routine QC testing.
Applications
-
Lime production and quality control
-
Cement and pozzolanic additive testing
-
Construction material testing (soil stabilization)
-
Metallurgical process evaluation
-
Research and academic demonstrations
Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0809 |
| Reaction Flask | 500 mL Borosilicate Glass |
| Thermometer Range | –10°C to +110°C (±0.1°C accuracy) |
| Stirrer Type | Manual / Magnetic |
| Insulated Vessel | Double-wall chamber with thermal jacket |
| Standard Compliance | IS 1514:1990, ASTM C110 |
| Optional Accessories | Digital data logger, pH probe |
| Dimensions | 300 × 200 × 250 mm (Approx.) |
| Application | Quicklime Reactivity Testing |
Frequently Asked Questions (FAQ)
Q1: What does the Quicklime Reactivity Apparatus measure?
It measures the heat released when quicklime reacts with water—an indicator of chemical purity and reactivity.
Q2: Which standards does the AZA0809 comply with?
It conforms to IS 1514 and ASTM C110 standards.
Q3: Is digital temperature measurement supported?
Yes, optional digital probes and data logging systems are available.
Q4: Which industries use this apparatus?
Cement plants, lime manufacturers, metallurgical industries, construction labs, and water treatment facilities.
Q5: What indicates high-quality quicklime?
Typically, a rapid temperature rise above 60–70°C within 3–5 minutes indicates highly reactive quicklime.
Additional information
| Reaction Flask |
500 mL Borosilicate Glass |
|---|---|
| Thermometer Range |
-10°C to +110°C (±0.1°C accuracy) |
| Stirrer Type |
Manual or Magnetic |
| Reaction Vessel Insulation |
Double-wall with insulating jacket |
