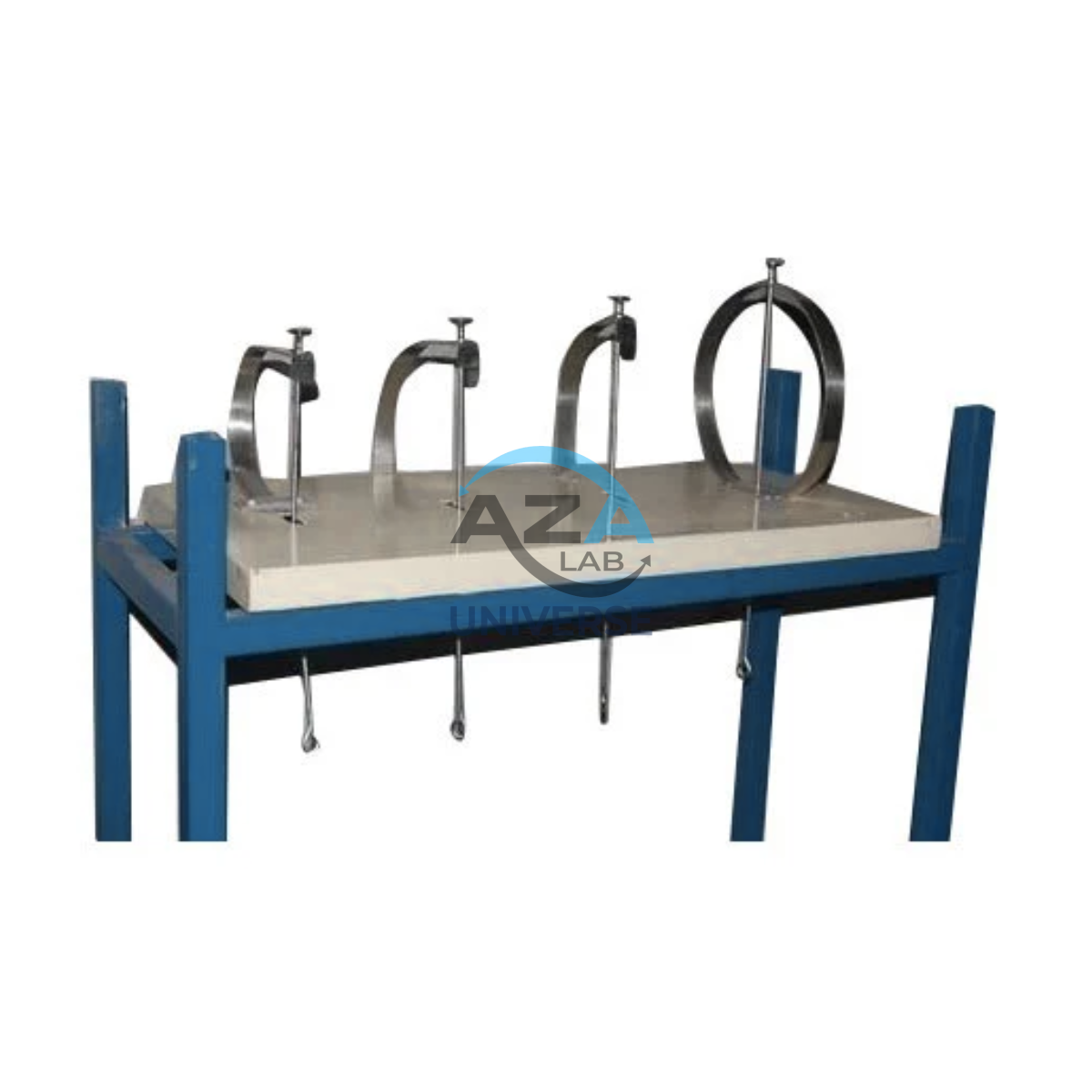

Curved Beam Deflection Apparatus AZA1338
The AZA1338 Curved Beam Deflection Apparatus is a precision laboratory instrument designed to study the horizontal and vertical deflection behavior of curved beams subjected to end loading. This apparatus is extensively used in Strength of Materials, Theory of Structures, and Applied Mechanics laboratories to demonstrate the deformation characteristics of curved structural members.
Description and Working Principle
The apparatus consists of a high-strength steel bar system that can be configured into various curved beam geometries. These interchangeable members allow students and researchers to analyze how curvature and shape influence stress distribution and deflection under applied loads.
The curved members that can be formed using the steel bar include:
- Circular ring segment
- Semicircular beam with straight arm
- Quadrant of a circle
- Quadrant of a circle with straight arm
Each curved member is rigidly fixed at the base, creating a cantilever-type condition. When a load is applied at the free end, the beam undergoes both horizontal and vertical deflection. These deflections are accurately measured using high-precision dial gauges, enabling comparison between experimental results and theoretical calculations.
Description
Measurement System
The apparatus is supplied with a dial gauge having 25 mm travel, mounted on a magnetic base. This arrangement allows flexible positioning of the gauge to measure deflection in different directions with high accuracy and repeatability.
Construction and Design Features
-
Heavy-duty steel curved members for long-term durability
-
Rigid base mounting to ensure stable fixing and accurate boundary conditions
-
Interchangeable beam configurations for multiple experiments
-
High-precision dial gauge for accurate displacement measurement
-
Compact and robust design, suitable for repeated laboratory use
Educational and Laboratory Applications
-
Strength of Materials laboratories
-
Civil Engineering and Mechanical Engineering practical classes
-
Structural mechanics and curved beam analysis
-
Demonstration of deflection behavior in non-linear beam geometries
-
Engineering colleges, universities, and technical institutes
Specifications
| Parameter | Details |
|---|---|
| Model | AZA1338 |
| Apparatus Type | Curved Beam Deflection Apparatus |
| Beam Material | High-strength steel |
| Beam Configurations | Circle, semicircle with straight arm, quadrant, quadrant with straight arm |
| End Condition | Fixed at base, load applied at free end |
| Measurement | Horizontal and vertical deflection |
| Dial Gauge | 25 mm travel with magnetic base |
| Mounting | Rigid base frame |
| Usage | Educational & laboratory experiments |
| Brand | AZALAB |
Key Advantages
-
Demonstrates deflection behavior of curved beams clearly
-
Supports multiple beam geometries in one apparatus
-
Accurate deflection measurement using dial gauges
-
Easy to operate and ideal for student experiments
-
Robust construction ensures long service life
Related products
Buckling of Columns Apparatus AZA1337
The AZA1337 Buckling of Columns Apparatus is a precision-engineered educational and laboratory instrument designed to study the buckling behavior of slender columns under axial compressive loads. This apparatus is widely used in Strength of Materials, Structural Engineering, and Mechanics of Solids laboratories to experimentally verify Euler’s Buckling Theory and to demonstrate the effect of different end conditions on the critical load of columns.
The apparatus consists of four high-quality spring steel columns mounted vertically on a rigid wooden backing board. Each column is configured with a different end condition, allowing direct comparison of column stability and buckling characteristics under identical loading conditions.
Column End Conditions Provided
- Both Ends Pinned
- Both Ends Fixed
- One End Fixed and One End Pinned
- One End Fixed and One End Free

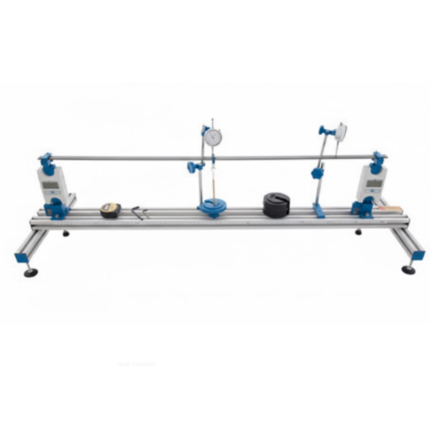

Deflections of Beams Apparatus AZA1339
The AZA1339 Deflections of Beams Apparatus is a comprehensive experimental setup designed to study the deflection characteristics of beams under various loading and support conditions. This apparatus is an essential teaching and research tool for Strength of Materials, Structural Mechanics, and Civil & Mechanical Engineering laboratories.
It enables students and engineers to experimentally verify fundamental beam theory, including simply supported beams, point loading, distributed loading effects, and reaction forces. The apparatus allows precise measurement of beam deflection and reactions, making it ideal for both academic instruction and advanced laboratory demonstrations.

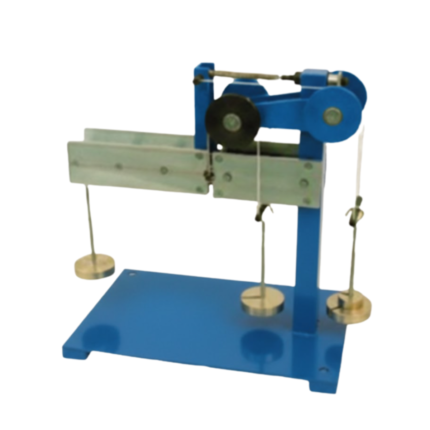

Shear Force and Bending Moment Apparatus AZA1336
Shear Force and Bending Moment Apparatus AZA1336
The Shear Force and Bending Moment Apparatus is a precision educational and laboratory instrument designed to demonstrate fundamental principles of structural mechanics in beams subjected to transverse loading. Suitable for both classroom instruction and laboratory experimentation, the apparatus provides a clear, visual understanding of shear force and bending moment relationships along a beam.
The apparatus allows students and engineers to verify that, at any section of a loaded beam:
-
The shear force is equal to the algebraic sum of the transverse components of all forces acting on one side of the section.
-
The bending moment is equal to the algebraic sum of the moments of all forces acting on one side of the section.

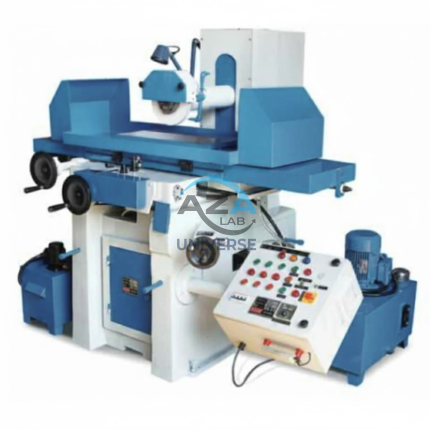

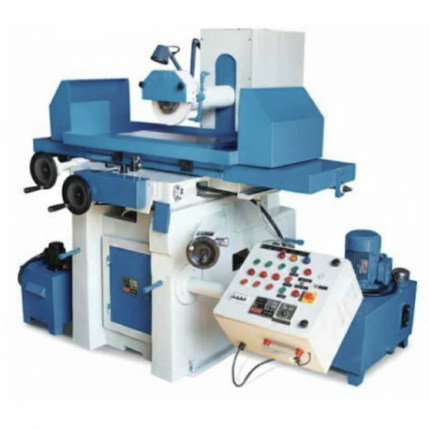

Surface Grinding Machine AZA1176A
