Shear Force and Bending Moment Apparatus AZA1336
Shear Force and Bending Moment Apparatus AZA1336

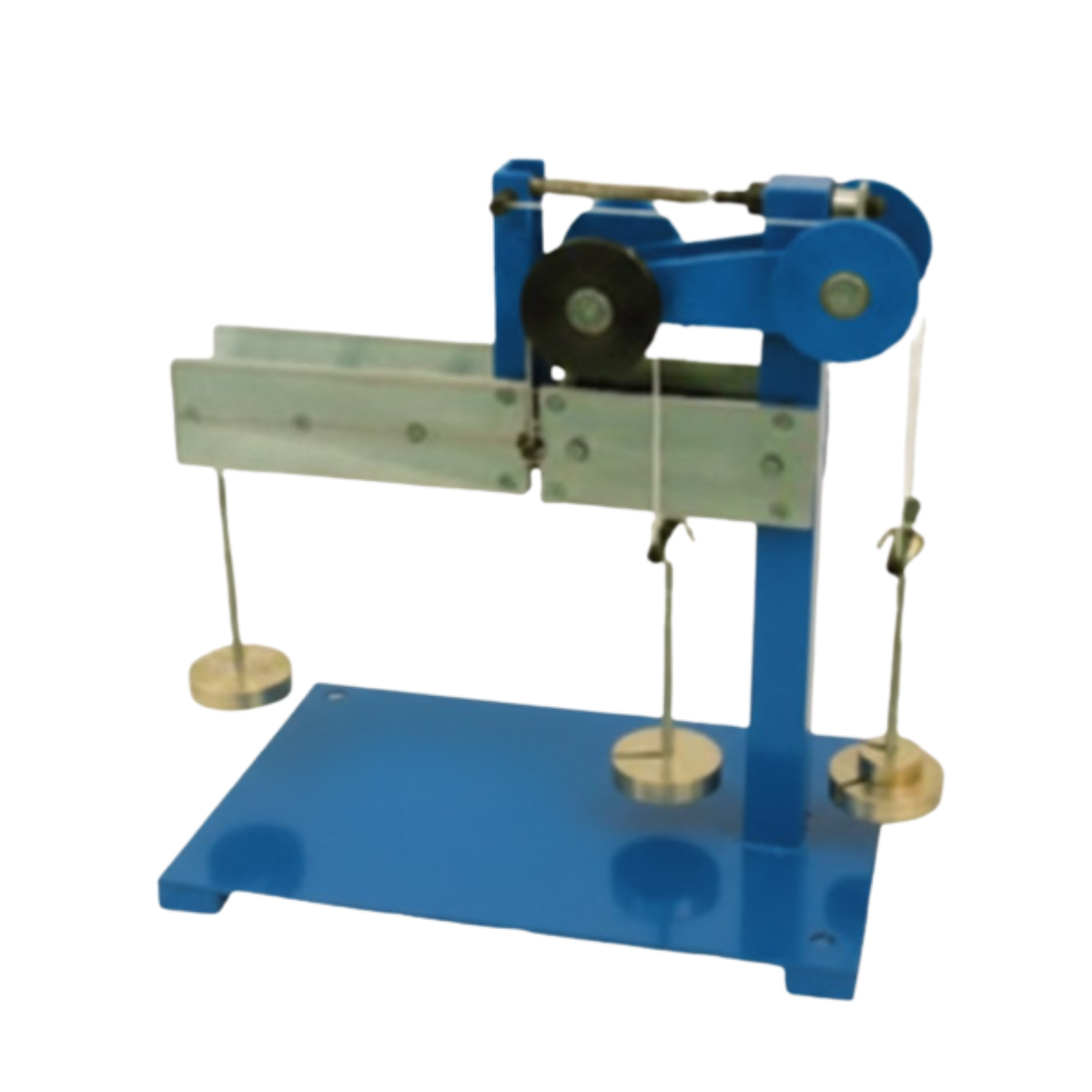

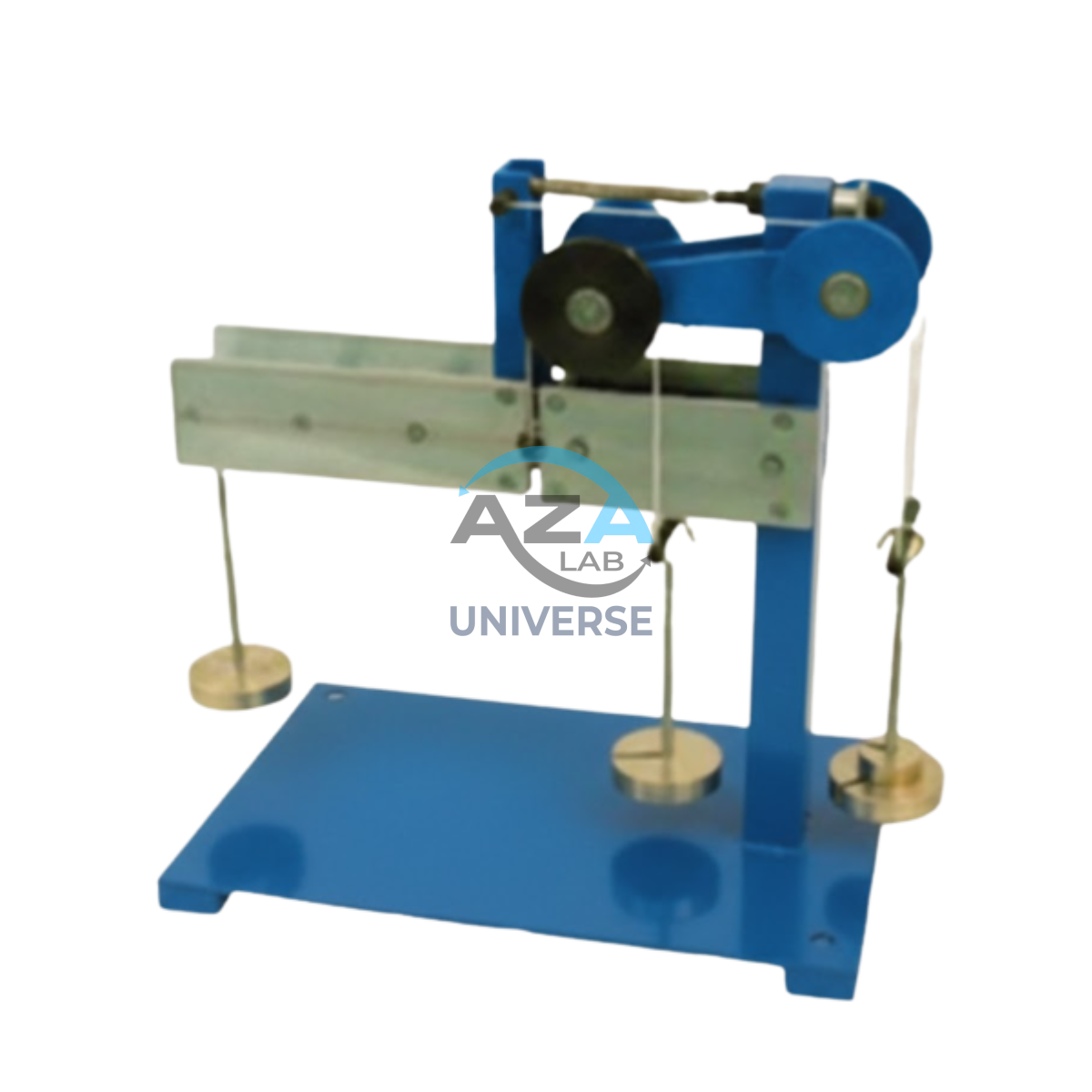

The Shear Force and Bending Moment Apparatus is a precision educational and laboratory instrument designed to demonstrate fundamental principles of structural mechanics in beams subjected to transverse loading. Suitable for both classroom instruction and laboratory experimentation, the apparatus provides a clear, visual understanding of shear force and bending moment relationships along a beam.
The apparatus allows students and engineers to verify that, at any section of a loaded beam:
-
The shear force is equal to the algebraic sum of the transverse components of all forces acting on one side of the section.
-
The bending moment is equal to the algebraic sum of the moments of all forces acting on one side of the section.
Description
The beam is hinged at a representative transverse section, enabling direct observation of equilibrium conditions. Loads can be applied at variable positions along the beam span to study their influence on shear force and bending moment distribution.
For achieving equilibrium, balancing forces are applied at the hinge point using calibrated masses suspended via cords passing over smooth-running ball-bearing pulleys. This arrangement ensures accurate force transmission and repeatable experimental results.
The apparatus is supplied complete with a full set of masses, making it ready for immediate use in teaching and demonstration environments.
Key Features and Benefits
-
Demonstrates shear force and bending moment principles clearly
-
Hinged beam for realistic section analysis
-
Variable load positions along the beam
-
Ball-bearing pulleys for smooth and accurate force application
-
Supplied complete with calibrated masses
-
Suitable for classroom demonstrations and laboratory experiments
Applications
-
Strength of materials laboratories
-
Civil and mechanical engineering education
-
Structural mechanics demonstrations
-
Engineering training institutes
Related products
Buckling of Columns Apparatus AZA1337
The AZA1337 Buckling of Columns Apparatus is a precision-engineered educational and laboratory instrument designed to study the buckling behavior of slender columns under axial compressive loads. This apparatus is widely used in Strength of Materials, Structural Engineering, and Mechanics of Solids laboratories to experimentally verify Euler’s Buckling Theory and to demonstrate the effect of different end conditions on the critical load of columns.
The apparatus consists of four high-quality spring steel columns mounted vertically on a rigid wooden backing board. Each column is configured with a different end condition, allowing direct comparison of column stability and buckling characteristics under identical loading conditions.
Column End Conditions Provided
- Both Ends Pinned
- Both Ends Fixed
- One End Fixed and One End Pinned
- One End Fixed and One End Free
Curved Beam Deflection Apparatus AZA1338
Description and Working Principle
The apparatus consists of a high-strength steel bar system that can be configured into various curved beam geometries. These interchangeable members allow students and researchers to analyze how curvature and shape influence stress distribution and deflection under applied loads. The curved members that can be formed using the steel bar include:- Circular ring segment
- Semicircular beam with straight arm
- Quadrant of a circle
- Quadrant of a circle with straight arm
Deflections of Beams Apparatus AZA1339
The AZA1339 Deflections of Beams Apparatus is a comprehensive experimental setup designed to study the deflection characteristics of beams under various loading and support conditions. This apparatus is an essential teaching and research tool for Strength of Materials, Structural Mechanics, and Civil & Mechanical Engineering laboratories.
It enables students and engineers to experimentally verify fundamental beam theory, including simply supported beams, point loading, distributed loading effects, and reaction forces. The apparatus allows precise measurement of beam deflection and reactions, making it ideal for both academic instruction and advanced laboratory demonstrations.
Surface Grinding Machine AZA1176A
If your workshop demands precision, durability, and operational efficiency, the AZA LAB Hydraulic Surface Grinder – Model AZA1176A is the ideal solution. This heavy-duty machine is engineered for large-scale and high-precision grinding applications, delivering exceptional stability, accuracy, and surface finish.
Designed for tool rooms, production lines, and fabrication facilities, the AZA1176A combines a robust hydraulic system with fine feed control and rigid construction to ensure consistent, vibration-free grinding even during prolonged operations.
