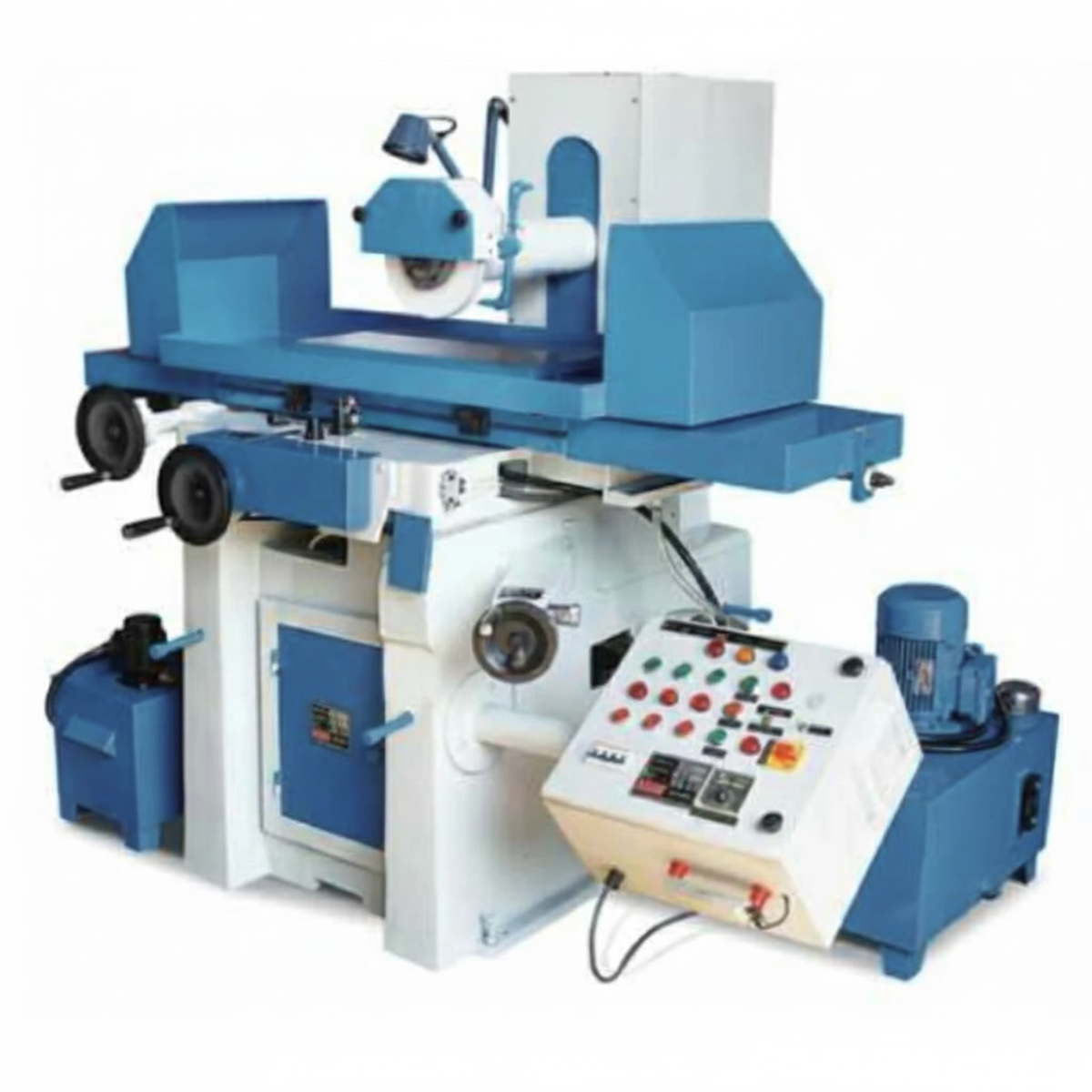

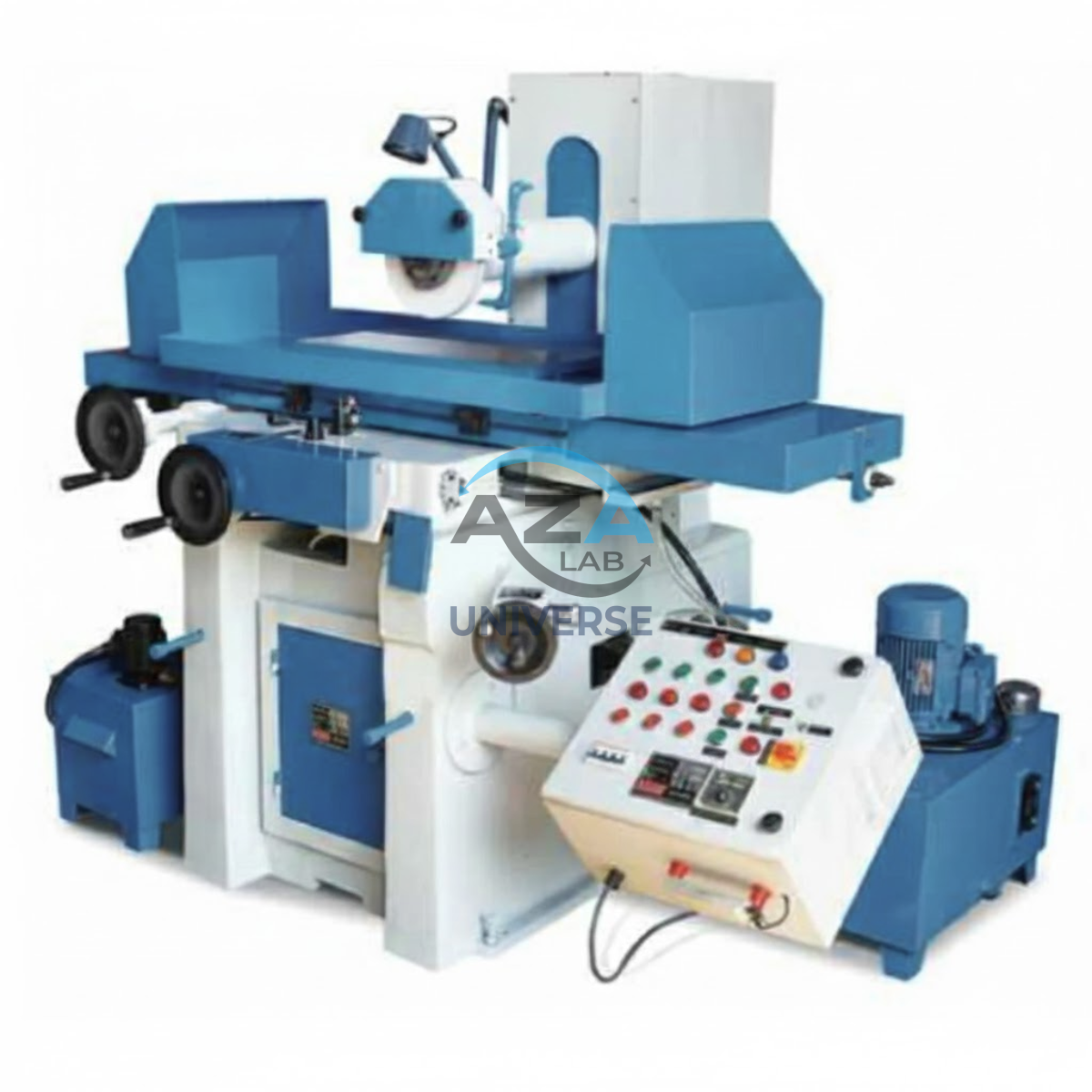

Surface Grinding Machine AZA1176A

If your workshop demands precision, durability, and operational efficiency, the AZA LAB Hydraulic Surface Grinder – Model AZA1176A is the ideal solution. This heavy-duty machine is engineered for large-scale and high-precision grinding applications, delivering exceptional stability, accuracy, and surface finish.

Designed for tool rooms, production lines, and fabrication facilities, the AZA1176A combines a robust hydraulic system with fine feed control and rigid construction to ensure consistent, vibration-free grinding even during prolonged operations.

Enquiry on WhatsApp
Category:
Description

Description

Key Features

Generous Working Capacity

  • Large working surface of 1000 × 400 mm

  • Equal maximum table travel for handling heavy and oversized components

Motorised Cross Feed

  • Smooth and accurate automatic cross feed

  • Reduces operator fatigue and improves productivity

High-Precision Grinding Control

  • Vertical down feed of 0.01 mm

  • Microfeed (elevation) of 0.002 mm per division for superior accuracy

High-Speed Wheel Operation

  • Grinding wheel speed of 1400 RPM

  • Ensures fine surface finish with efficient material removal

Rugged & Stable Construction

  • Massive machine weight of 2000 KGS

  • Excellent vibration dampening for consistent grinding accuracy

Efficient Hydraulic System

  • 2 HP hydraulic pump motor

  • 80-litre hydraulic tank for smooth, continuous operation

Technical Specifications

Specification Value
Model AZA1176A
Working Surface of Table 1000 × 400 mm
Maximum Table Travel 1000 × 400 mm
Suitable Magnetic Chuck 1000 × 400 mm
Max. Distance (Spindle Centre to Table) 400 mm
Vertical Down Feed (Hand Wheel) 0.01 mm
Microfeed (Elevation) 0.002 mm / 1 Division
Wheel Speed 1400 RPM
Wheel Dimensions 300 × 25 × 76.2 mm
Spindle Motor (3 Phase) 3 HP
Table Speed 8 – 15 m/min
Auto Cross Feed Increment 0.1 – 1.0 mm
Cross Feed (Hand Wheel) 0.05 mm = 1 Grad = 5.00 mm / 1 Rev
Hydraulic Pump Motor 2 HP
Hydraulic Tank Capacity 80 Litres
Floor Area (L × B × H) 136 × 80 × 80 inches
Packing Size (L × B × H) 145 × 78 × 72 inches
Machine Weight 2000 KGS

Standard Accessories (Included)

  • Permanent Magnet Chuck (1000 × 400 mm)

  • Coolant Tank with Pump & Splash Guard

  • Grinding Wheel

  • Spanner for Wheel Change

  • Diamond Dresser with Holder

  • Electric Control Panel

  • Speed Control Valve

  • Hydraulic Power Pack (Without Oil)

  • Turcite Coating

  • Work Light

  • Automatic Lubrication System

  • Operation Manual

Applications

  • Tool rooms and die-making units

  • Precision production grinding

  • Heavy fabrication workshops

  • Automotive and engineering industries

  • Flat surface finishing and precision machining

Why Choose AZA1176A?

  • Heavy-duty design for industrial workloads

  • Superior accuracy with microfeed control

  • Reliable hydraulic performance

  • Long service life with minimal maintenance

  • Trusted AZA LAB engineering and quality

Why Choose the AZA 1176 A?

Industrial-Grade Build – Designed for high production loads
Unmatched Precision – Perfect for tool room and production grinding
Minimal Maintenance – Hydraulic and lubrication systems for reliability
Ready-to-Use Package – Includes all standard accessories

Related products

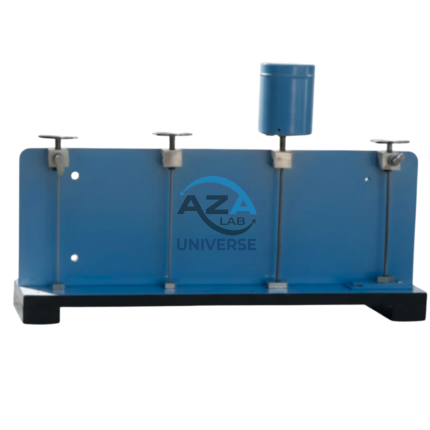

Buckling of Columns Apparatus AZA1337

The AZA1337 Buckling of Columns Apparatus is a precision-engineered educational and laboratory instrument designed to study the buckling behavior of slender columns under axial compressive loads. This apparatus is widely used in Strength of Materials, Structural Engineering, and Mechanics of Solids laboratories to experimentally verify Euler’s Buckling Theory and to demonstrate the effect of different end conditions on the critical load of columns.

The apparatus consists of four high-quality spring steel columns mounted vertically on a rigid wooden backing board. Each column is configured with a different end condition, allowing direct comparison of column stability and buckling characteristics under identical loading conditions.

Column End Conditions Provided

  1. Both Ends Pinned
  2. Both Ends Fixed
  3. One End Fixed and One End Pinned
  4. One End Fixed and One End Free
These configurations enable students and researchers to clearly observe how boundary conditions significantly influence the critical buckling load and deformation pattern of columns.
Read more
Quick view

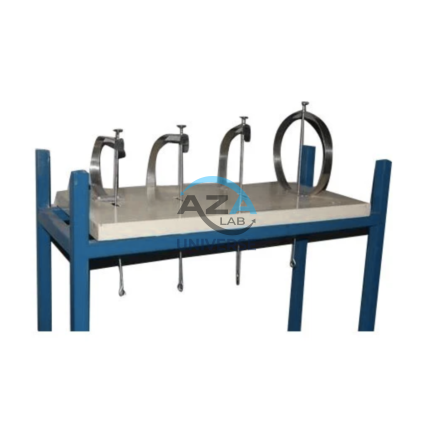

Curved Beam Deflection Apparatus AZA1338

The AZA1338 Curved Beam Deflection Apparatus is a precision laboratory instrument designed to study the horizontal and vertical deflection behavior of curved beams subjected to end loading. This apparatus is extensively used in Strength of Materials, Theory of Structures, and Applied Mechanics laboratories to demonstrate the deformation characteristics of curved structural members.

Description and Working Principle

The apparatus consists of a high-strength steel bar system that can be configured into various curved beam geometries. These interchangeable members allow students and researchers to analyze how curvature and shape influence stress distribution and deflection under applied loads. The curved members that can be formed using the steel bar include:
  • Circular ring segment
  • Semicircular beam with straight arm
  • Quadrant of a circle
  • Quadrant of a circle with straight arm
Each curved member is rigidly fixed at the base, creating a cantilever-type condition. When a load is applied at the free end, the beam undergoes both horizontal and vertical deflection. These deflections are accurately measured using high-precision dial gauges, enabling comparison between experimental results and theoretical calculations.
Read more
Quick view

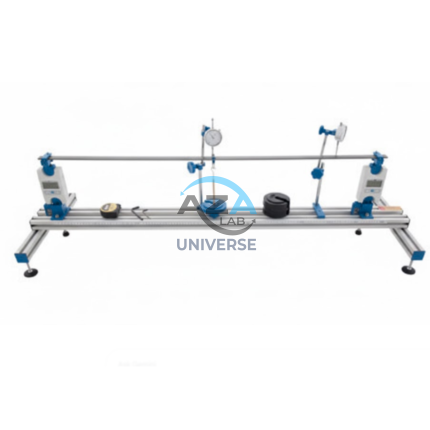

Deflections of Beams Apparatus AZA1339

The AZA1339 Deflections of Beams Apparatus is a comprehensive experimental setup designed to study the deflection characteristics of beams under various loading and support conditions. This apparatus is an essential teaching and research tool for Strength of Materials, Structural Mechanics, and Civil & Mechanical Engineering laboratories.

It enables students and engineers to experimentally verify fundamental beam theory, including simply supported beams, point loading, distributed loading effects, and reaction forces. The apparatus allows precise measurement of beam deflection and reactions, making it ideal for both academic instruction and advanced laboratory demonstrations.

Read more
Quick view

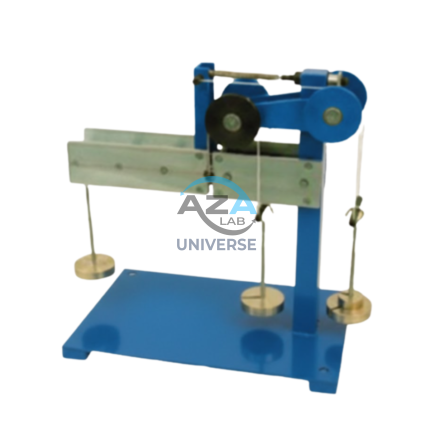

Shear Force and Bending Moment Apparatus AZA1336
