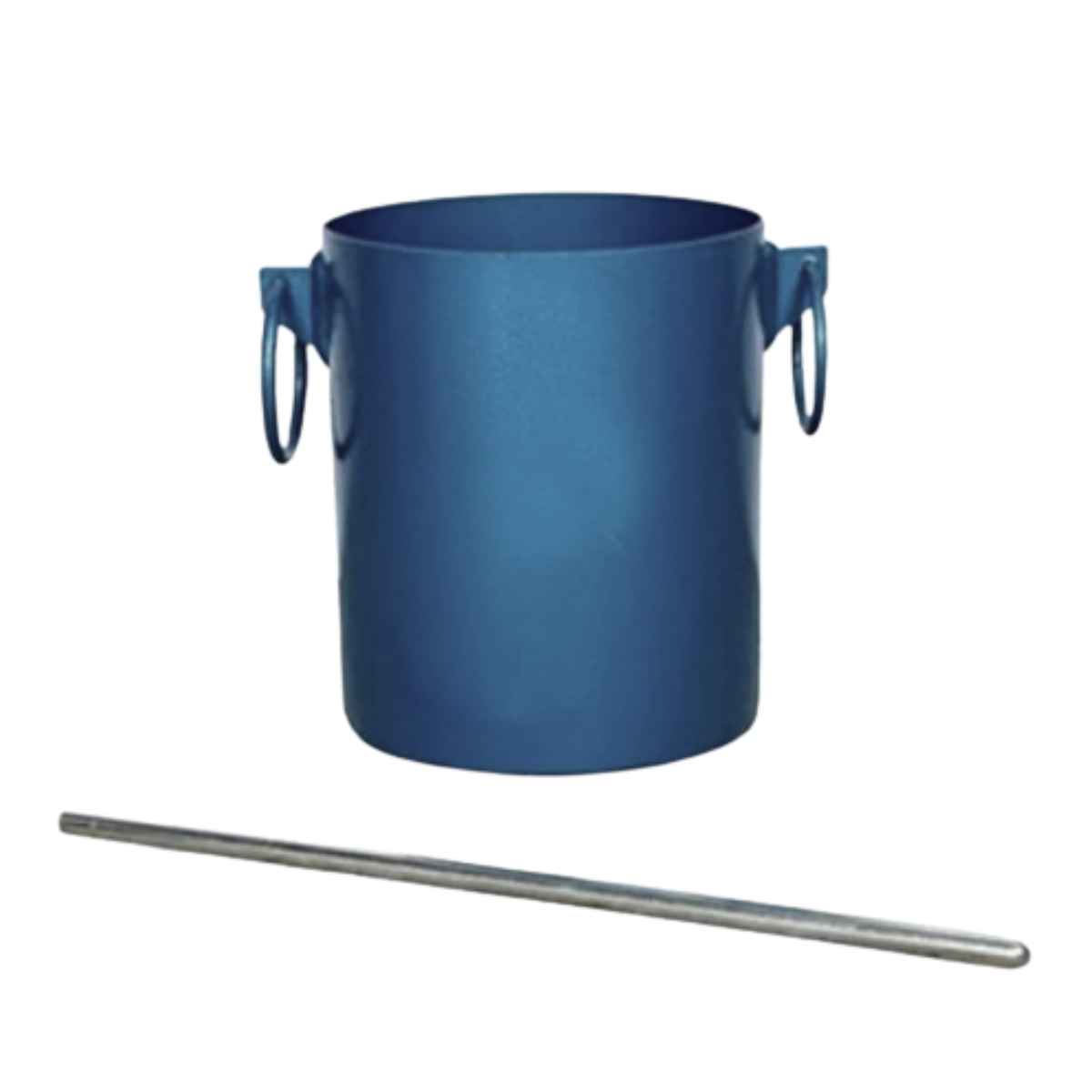

CYLINDRICAL MEASURES AZA0977 - Image 1
Click to enlarge
average least dimension, flakiness index tester, aggregate gauge
AVERAGE LEAST DIMENSION AZA0976
Back to products
Density Basket, AZA 0978, specific gravity test, lab equipment, Azalab
DENSITY BASKET AZA0978

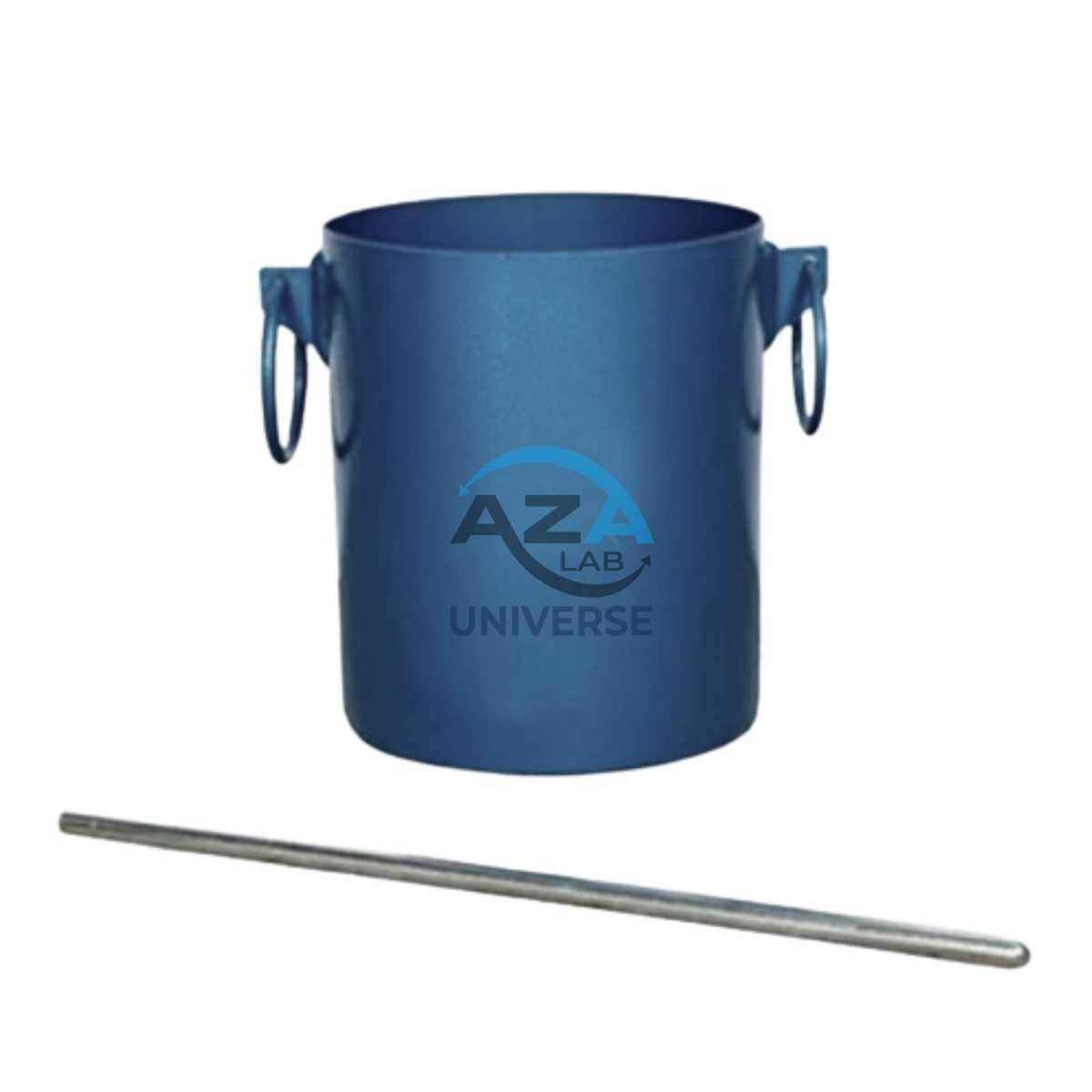

CYLINDRICAL MEASURES AZA0977

The AZA0977 Cylindrical Measures are precision laboratory containers designed for determining the bulk density (unit weight) and void ratio of fine and coarse aggregates. These measurements are essential for quality control in concrete mix design, highway construction, and geotechnical investigations. Manufactured by Azalab, these measures fully comply with IS 2386 (Part III), ASTM C29, and BS 812 standards.

Key Features

  • Used for measuring bulk density and void ratio of aggregates

  • Available in standard capacities: 3L, 5L, and 15L

  • Heavy-duty mild steel / aluminum construction

  • Smooth, accurately machined internal surfaces

  • Supplied with tamping rod and leveling accessories

  • Corrosion-resistant, long-life surface finish

  • Easy-grip handles for portability

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Applications

  • Civil engineering and construction material laboratories

  • Concrete and asphalt mix design

  • Road and highway construction projects

  • Geotechnical testing and research

  • Educational and training institutes

Construction & Design

Each AZA0977 cylindrical measure is fabricated from heavy-gauge mild steel or aluminum and features:

  • Calibrated internal volume for precise density calculations

  • Smooth internal surface to minimize material loss

  • Sturdy lifting handles

  • Powder-coated or anodized finish for corrosion resistance

Available capacities:

  • 3 Liters – Ideal for fine aggregates

  • 5 Liters – General laboratory use

  • 15 Liters – Suitable for coarse aggregates

Technical Specifications

Parameter Specification
Model No. AZA0977
Material Mild Steel / Aluminum
Available Capacities 3L, 5L, 15L
Applicable Standards IS 2386 (Part III), ASTM C29, BS 812
Accessories Supplied Tamping rod (16 mm dia × 600 mm length), leveling tools
Surface Finish Powder-coated / Anodized
Application Bulk density & voids determination
Approx. Weight 2 – 6 kg (varies by capacity)

FAQ

Q1: What are AZA0977 Cylindrical Measures used for?
They are used to determine the bulk density (unit weight) and void ratio of fine and coarse aggregates.

Q2: What capacities are available?
Standard capacities include 3L, 5L, and 15L.

Q3: Do they comply with international standards?
Yes, they conform to IS 2386 (Part III), ASTM C29, and BS 812.

Q4: Is a tamping rod included?
Yes, a standard tamping rod is supplied with each unit.

Q5: Can they be used for all aggregate types?
Yes, simply select the appropriate capacity based on aggregate size.
