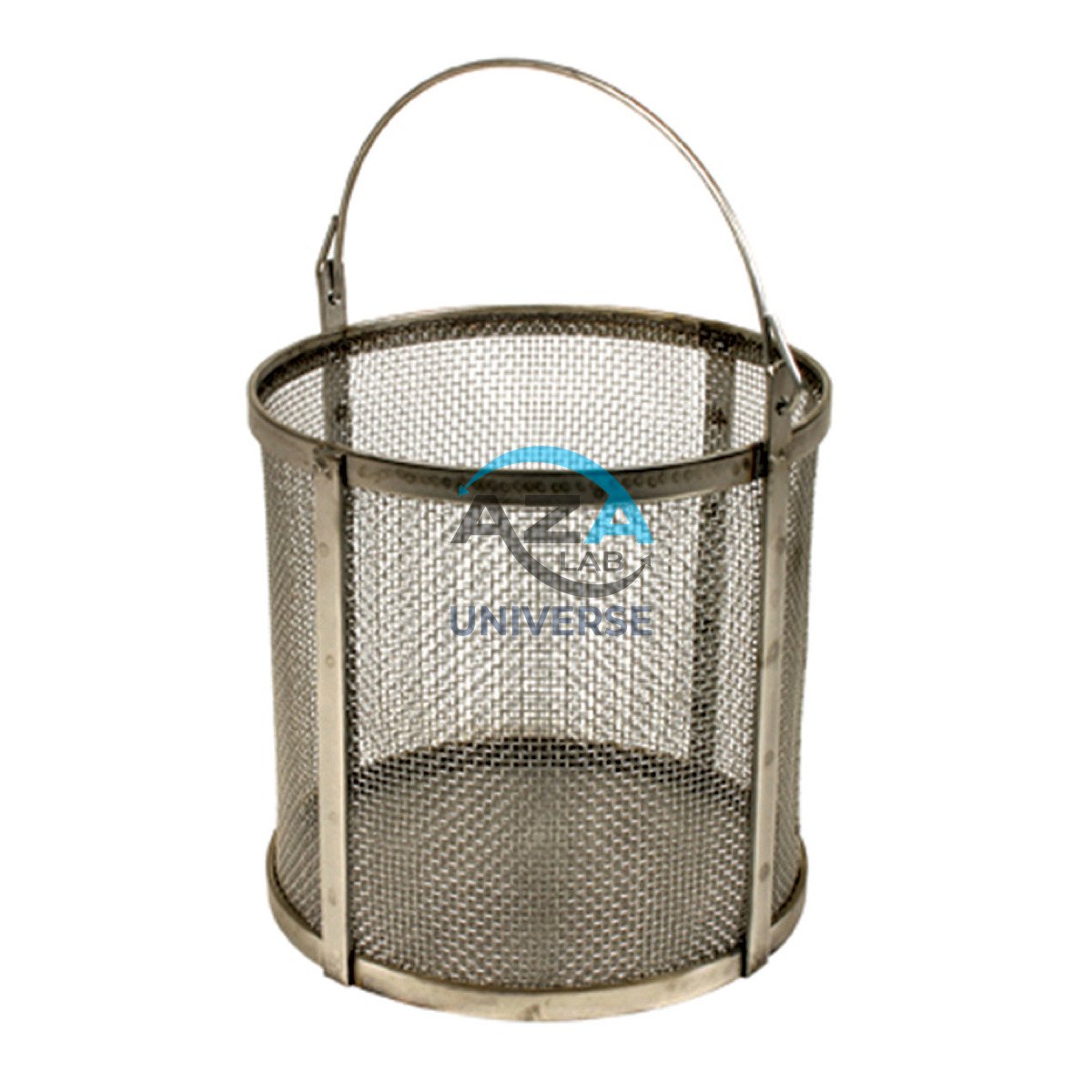

DENSITY BASKET AZA0978
The AZA0978 Density Basket is a precision testing accessory designed for determining specific gravity and water absorption of fine and coarse aggregates. Manufactured by Azalab, this stainless steel mesh basket is engineered for repeated water immersion and accurate weighing, ensuring reliable results in material testing laboratories. It fully conforms to IS 2386 (Part III), ASTM C127, and BS 812 standards.
Key Features
- Used for specific gravity and water absorption tests
- Made from high-quality stainless steel mesh
- Equipped with a strong welded suspension hook
- Corrosion-resistant, rust-free and long-lasting
- Smooth welded edges to prevent sample damage
- Standardized mesh aperture for proper water flow
Description
Purpose & Function
The AZA0978 Density Basket is designed to suspend aggregate samples in water while being weighed using a digital or mechanical balance. This allows accurate calculation of:
-
Specific gravity (relative density)
-
Water absorption percentage
These parameters are essential for ensuring aggregate quality and optimizing concrete mix designs.
Applications
-
Civil engineering and construction material laboratories
-
Concrete quality control and mix design
-
Highway and infrastructure material testing
-
Educational and research institutions
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | AZA0978 |
| Material | Stainless Steel Mesh |
| Basket Diameter | Approx. 200 mm |
| Basket Height | Approx. 200 mm |
| Mesh Aperture | 6.3 mm (standard) / Customizable |
| Suspension Hook | Welded SS hook for balance suspension |
| Approx. Weight | 1.5 – 2.5 kg |
| Conformance | IS 2386 (Part III), ASTM C127, BS 812 |
FAQ
Q1: What is AZA0978 used for?
It is used for determining the specific gravity and water absorption of aggregates.
Q2: Can it be used with digital balances?
Yes, it is fully compatible with both digital and mechanical balances with suspension arrangements.
Q3: Does it rust with long-term use?
No. It is made from corrosion-resistant stainless steel for long service life.
Q4: Is it suitable for fine aggregates?
Primarily designed for coarse aggregates, but it can be adapted for fine aggregates with a liner.
Q5: Is it compliant with standards?
Yes, it conforms to IS 2386 (Part III), ASTM C127, and BS 812.
Related products
AGGREGATE IMPACT TESTER WITH BLOW COUNTER AZA0983
The AZA0983 Aggregate Impact Tester with Digital Blow Counter is a precision-engineered laboratory apparatus used to determine the Aggregate Impact Value (AIV) of coarse aggregates. It is designed to evaluate the toughness and resistance of aggregates used in road pavements, highways, and structural concrete.
This equipment is manufactured for durability, accuracy, and long service life, and is fully compliant with IS:2386 (Part IV) and BS 812 standards.
Key Features
-
Determines Aggregate Impact Value (AIV) for pavement materials
-
Integrated digital blow counter for accurate strike counting
-
Conforms to IS:2386 (Part IV) and BS 812
-
Heavy-duty, vibration-resistant frame
-
Cylindrical steel cup and standard impact hammer
FLAKINESS SIEVE SET AZA0973
The AZA0973 Flakiness Sieve Set is a laboratory-grade testing instrument designed to determine the flakiness index of coarse aggregates. It is an essential tool for evaluating aggregate particle shape, helping ensure strength, durability, and performance of concrete and road construction materials. This system is manufactured for full compliance with IS 2386 (Part I) and is widely used in civil engineering laboratories and construction quality control sites.
Key Features
-
Used for determining flakiness index of coarse aggregates
-
Fully compliant with IS 2386 (Part I) standards
-
Precision-machined slotted gauges for multiple aggregate sizes
-
Heavy-duty stainless steel / powder-coated steel construction
-
Corrosion-resistant, long service life
-
Portable and easy to use in lab and field environments
GRID SIEVES AZA0972
The AZA0972 Grid Sieves are heavy-duty screening tools designed for rapid particle size classification of coarse soils and aggregates. These sieves are ideal for quick, visual separation of gravel, crushed stone, and coarse sands in civil engineering, geotechnical, and construction materials laboratories. Their rugged construction makes them suitable for both laboratory and field applications.
Key Features
-
Designed for fast classification of coarse particles
-
Suitable for soil and aggregate testing
-
Heavy-duty stainless steel / galvanized steel construction
-
Precision-welded square or rectangular grid openings
-
Corrosion-resistant, abrasion-resistant long life design
-
Compatible with standard manual and mechanical sieve shakers
LENGTH GAUGE AZA0971
The AZA0971 Length Gauge is a precision construction materials testing instrument designed to determine the elongation index of coarse aggregates. It is an essential tool for evaluating particle shape characteristics, which directly influence the strength, durability, and workability of concrete and asphalt mixes. The gauge is manufactured to strict quality standards, ensuring reliable and repeatable results in laboratory and field environments.
Key Features
-
Designed for determining elongated particles in coarse aggregates
-
Essential for concrete, bituminous, and road material analysis
-
Precision metal frame with standard machined slot dimensions
-
Heavy-duty, corrosion-resistant construction
-
Accurate performance as per international and national standards

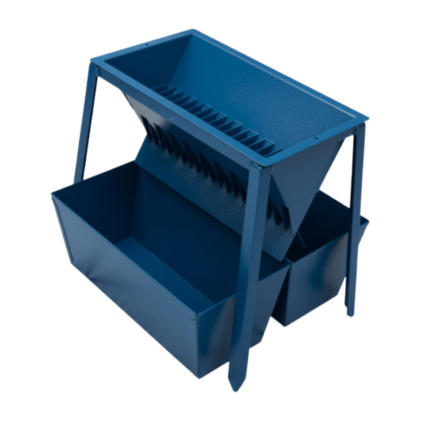

RIFFLE SAMPLE DIVIDER AZA0980
Key Features
- Accurate material splitting for laboratory testing
- Heavy-duty corrosion-resistant metal construction
- Uniform slot widths for consistent sample division
- Smooth-flow chute design for minimal sample loss
- Supplied with two receiving pans for clean, efficient operation
- Compact bench-top design
SHAPE INDEX CALIPER AZA0974
The AZA0974 Shape Index Caliper is a precision hand-held measuring instrument designed to evaluate the shape index of coarse aggregates by measuring their flakiness and elongation values. It is an essential tool in construction material testing, helping laboratories and site engineers ensure that aggregates meet dimensional and performance standards as per IS 2386 (Part I).
Key Features
-
Evaluates shape index of coarse aggregates
-
Measures both flakiness and elongation characteristics
-
Durable stainless steel / hardened steel construction
-
Precision engraved measuring scale
-
Ergonomic, easy-to-handle manual design
-
Suitable for laboratory and on-site field use
-
Fully compliant with IS 2386 (Part I)
THICKNESS GAUGE AZA0970
The AZA0970 Thickness Gauge is a precision measuring instrument designed for accurate thickness measurement of coatings, films, metals, plastics, rubbers, and painted surfaces. Engineered for laboratory and industrial applications, this compact and reliable device ensures consistent quality control, compliance with standards, and improved material performance across multiple industries.
Key Features
-
High-precision thickness measurement for laboratory and field use
-
Suitable for metals, films, plastics, rubber, and paint coatings
-
Available in analog dial and digital LCD display models
-
Lightweight, compact, and portable design
-
Fast response time with stable, repeatable readings
-
Easy zeroing and calibration mechanism

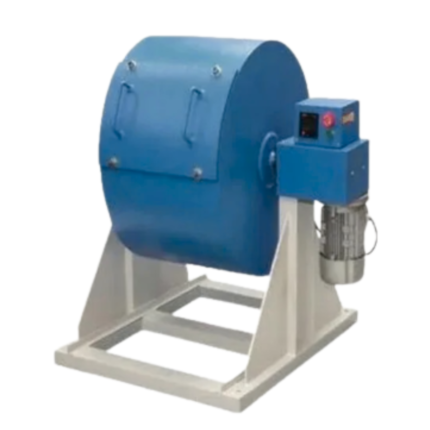

TILE ABRASION TESTING MACHINE AZA0992
