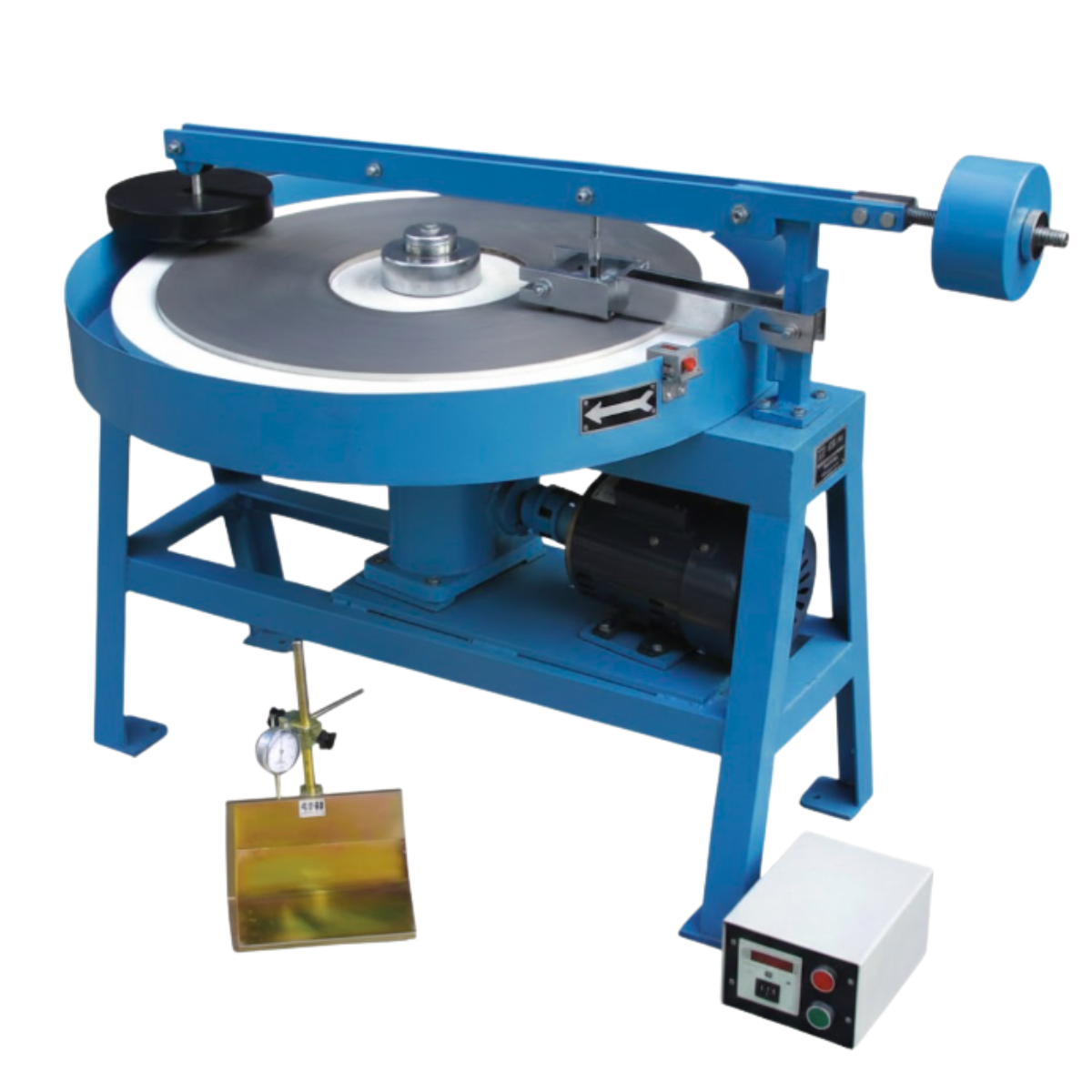

TILE ABRASION TESTING MACHINE AZA0992

The AZA0992 Tile Abrasion Testing Machine from Azalab is a precision laboratory instrument designed to evaluate the surface wear resistance of flooring tiles. It simulates real-world foot traffic and mechanical abrasion to determine the durability of ceramic, vitrified, and cement concrete tiles.

This machine is manufactured in compliance with IS 1237 and IS 13630 (Part 11) standards, making it ideal for quality control, research, and compliance testing in construction material laboratories.

Purpose of Testing

This test determines the depth of wear (in mm) on the tile surface after a fixed number of revolutions under an abrasive load. It helps manufacturers, contractors, and consultants verify whether tiles meet durability requirements for high-traffic applications.

Enquiry on WhatsApp
Category:
Description

Description

Key Applications

  • Quality control for ceramic and vitrified tile manufacturers

  • Construction material testing laboratories

  • Consultants, architects, and QA/QC contractors

  • Civil engineering and academic institutions

Working Principle

The tile specimen is fixed in the holding tray on a rotating cast iron disc.
A calibrated quantity of abrasive powder (typically aluminum oxide) is fed onto the surface.
The disc rotates at a constant speed, subjecting the tile to controlled abrasion.
After the preset number of revolutions, the depth of wear is measured using a depth gauge.

Main Features

  • Heavy-duty cast iron base with steel enclosure

  • Precision rotating disc mechanism

  • Digital / mechanical revolution counter (up to 10,000 counts)

  • Uniform abrasive feeding system

  • Dust-guard safety enclosure

  • Low vibration, smooth motorized operation

Technical Specifications

Parameter Specification
Model AZA0992
Rotation Speed 30 ±1 RPM
Motor 1 HP, Single Phase
Disc Diameter Approx. 200 mm
Tile Size Capacity Up to 200 × 200 mm
Abrasive Feeding Manual / Optional Automatic
Revolution Counter Digital / Mechanical (0–10,000)
Body Cast Iron Base with Steel Enclosure
Standards IS 1237, IS 13630 (Part 11)

Advantages

  • Accurate and repeatable wear measurements

  • Rugged construction for long service life

  • Easy operation with minimal maintenance

  • Suitable for routine QC and R&D work

Frequently Asked Questions (FAQ)

Q1. What is AZA0992 used for?
To measure abrasion resistance of ceramic, vitrified, and cement flooring tiles.

Q2. Which standards does it follow?
IS 1237 and IS 13630 (Part 11).

Q3. Can it test large tiles?
Yes, it supports tiles up to 200 mm × 200 mm.

Q4. Is the revolution counter included?
Yes, digital or mechanical counter is provided as standard.

Q5. Is it suitable for vitrified and marble tiles?
Yes, it works with ceramic, vitrified, and cementitious tiles.

Related products

AGGREGATE CRUSHING VALUE APPARATUS AZA0982

The AZA0982 Aggregate Crushing Value (ACV) Apparatus is a heavy-duty laboratory testing system used to determine the crushing strength of coarse aggregates. It is designed for standard compliance testing required in road construction, concrete production, and civil engineering quality control. Manufactured with precision-machined components, this apparatus delivers consistent, accurate, and repeatable results in accordance with IS:2386 (Part IV) and BS 812 standards.

Key Features

  • Measures crushing strength of coarse aggregates
  • Conforms to IS:2386 (Part IV) and BS 812 standards
  • Precision-machined steel cylinder and plunger
  • Heavy-duty, corrosion-resistant construction
  • Supplied with complete accessories for immediate testing
Read more
Quick view

DEVEL ATTRITION TESTER AZA0989

The AZA0989 Devel Attrition Tester by Azalab is a heavy-duty laboratory machine designed to evaluate the resistance of coarse aggregates to abrasion and wear. It is widely used in road construction, railway ballast testing, and concrete material laboratories to ensure aggregates meet strength and durability requirements. This equipment complies with IS 2386 (Part IV) and ASTM C131 / ASTM C535 standards, providing reliable and repeatable test results.

Key Applications

  • Road and highway material testing
  • Railway ballast quality assessment
  • Concrete mix design durability testing
  • Civil engineering research & academic laboratories
Read more
Quick view

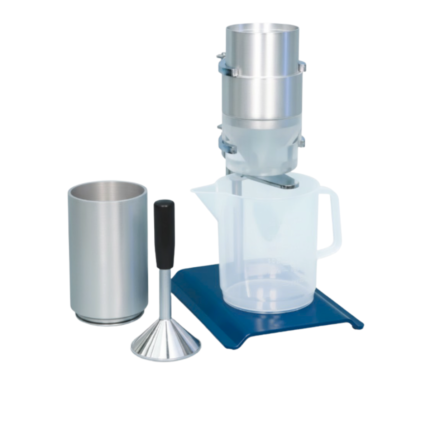

INDEX APPARATUS (FLOW COEFFICIENT OF FINE AGGREGATES) AZA0975
