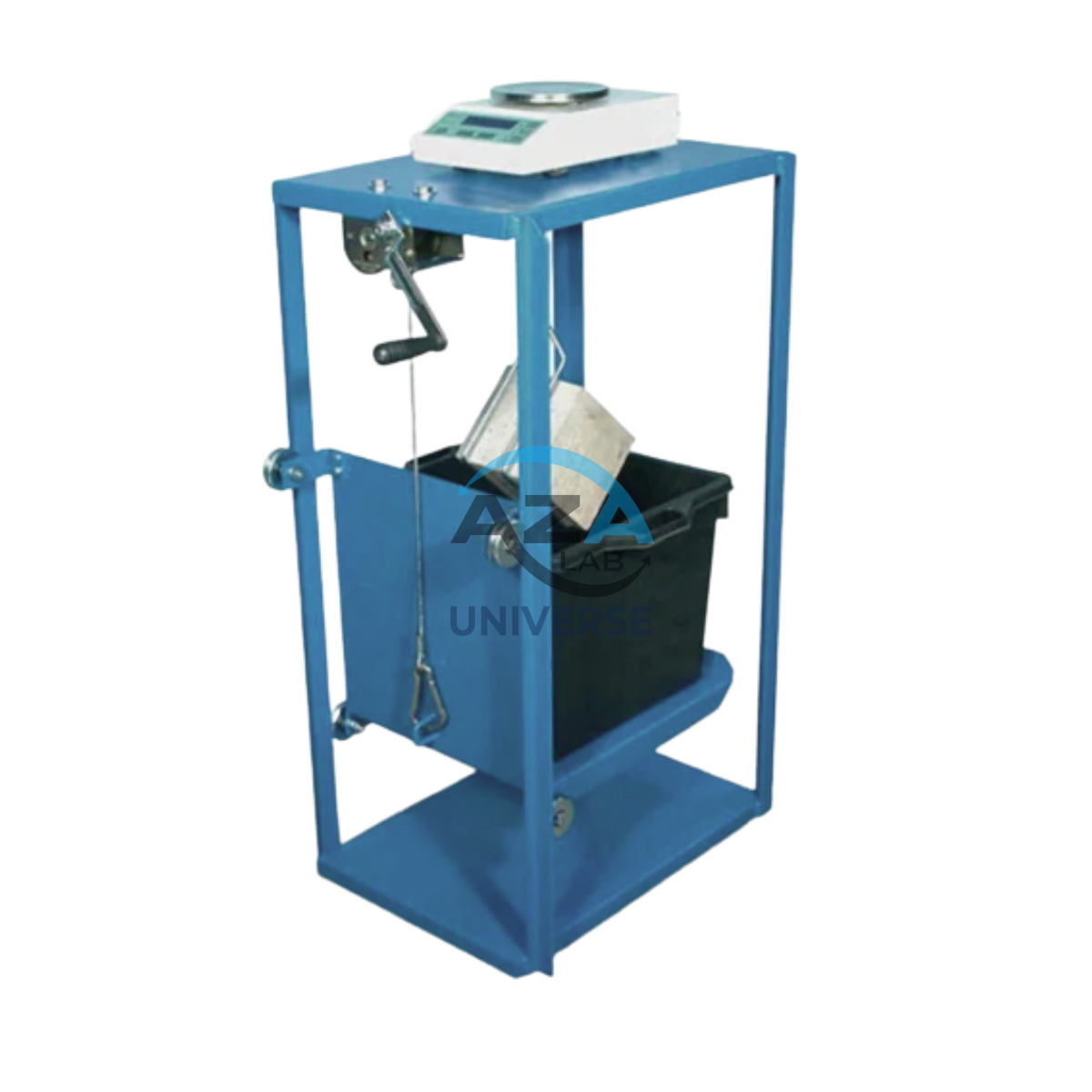

DENSITY OF FRESH AND HARDENED CONCRETE AZA1132 - Image 1
Click to enlarge
ASTM C128
SAND ABSORPTION CONE AND TAMPER AZA1131
Back to products
COMPRESSION TESTING MACHINE (CHANNEL TYPE LOAD FRAME) HAND OPERATED AZA1133
COMPRESSION TESTING MACHINE (CHANNEL TYPE LOAD FRAME) HAND OPERATED AZA1133

DENSITY OF FRESH AND HARDENED CONCRETE AZA1132

The Azalab Density Apparatus AZA1132 is a precision-engineered system designed to measure the density of both fresh (plastic) and hardened (cured) concrete. Conforming to IS 1199 and ASTM C642, it is essential for material testing laboratories, construction quality assurance teams, and field technicians who require accurate and consistent density evaluations.

Density is a key parameter that influences concrete strength, durability, compaction quality, and structural performance. The AZA1132 enables reliable assessment at every stage of the concrete lifecycle—ensuring mix design accuracy, detecting voids, and verifying on-site production consistency.

Key Benefits

  • Dual-Purpose Instrument: Tests both fresh and hardened concrete
  • High Accuracy: Provides precise results using weight–volume and displacement methods
  • Standards Compliant: Meets IS 1199 and ASTM C642 testing guidelines
  • Durable Construction: Built from corrosion-resistant materials for long-term use
  • Field-Ready: Lightweight, portable, and suitable for lab and on-site applications
  • Easy Maintenance: Simple to clean, assemble, and operate
Enquiry on WhatsApp
Category:
Description

Description

Technical Overview

Fresh Concrete Density

Using a calibrated density container:

  • Fill, rod, or vibrate the container to eliminate air voids

  • Record weight

  • Compute density using weight ÷ volume
    This process verifies mix uniformity, yield, and air content control.

Hardened Concrete Density

Using water displacement (Archimedes’ method):

  • Weigh specimen in air

  • Weigh specimen in water using suspension frame

  • Volume and density are computed from the difference
    This identifies internal deficiencies such as voids, honeycombing, or poor compaction.

Construction & Components

  • Calibrated Density Container (1L or 3L) – steel or plastic variants

  • Weighing Scale (digital/manual)

  • Suspension Frame for immersion tests

  • Water Tank/Bucket

  • All parts corrosion-resistant and lab/field durable

Specifications

Feature Description
Model AZA 1132
Function Density of Fresh & Hardened Concrete
Standards IS 1199, ASTM C642
Fresh Test Volume 1 L or 3 L container (optional sizes available)
Material Stainless steel / high-grade plastic
Measuring Methods Weight–Volume (Fresh), Water Displacement (Hardened)
Usage Areas Labs, construction sites, QA/QC, R&D, education
Portability Yes – field-ready design

Applications

  • Ready-mix concrete QC

  • Concrete mix design verification

  • On-site field density testing

  • Civil engineering labs and universities

  • Assessment of structural samples (cores, cubes, cylinders)

Frequently Asked Questions (FAQ)

Q1: Why is concrete density measured?
Density indicates the compactness, quality, strength potential, and durability of concrete.

Q2: Can AZA 1132 measure both fresh and hardened concrete?
Yes, it is engineered specifically for dual-mode density testing.

Q3: Does the apparatus follow recognized standards?
Yes, it complies with IS 1199 and ASTM C642.

Q4: Is it suitable for field testing?
Absolutely. Its lightweight and compact design make it ideal for on-site work.

Q5: Does it require calibration?
Periodic calibration of the container and weighing scale is recommended for consistent accuracy.
