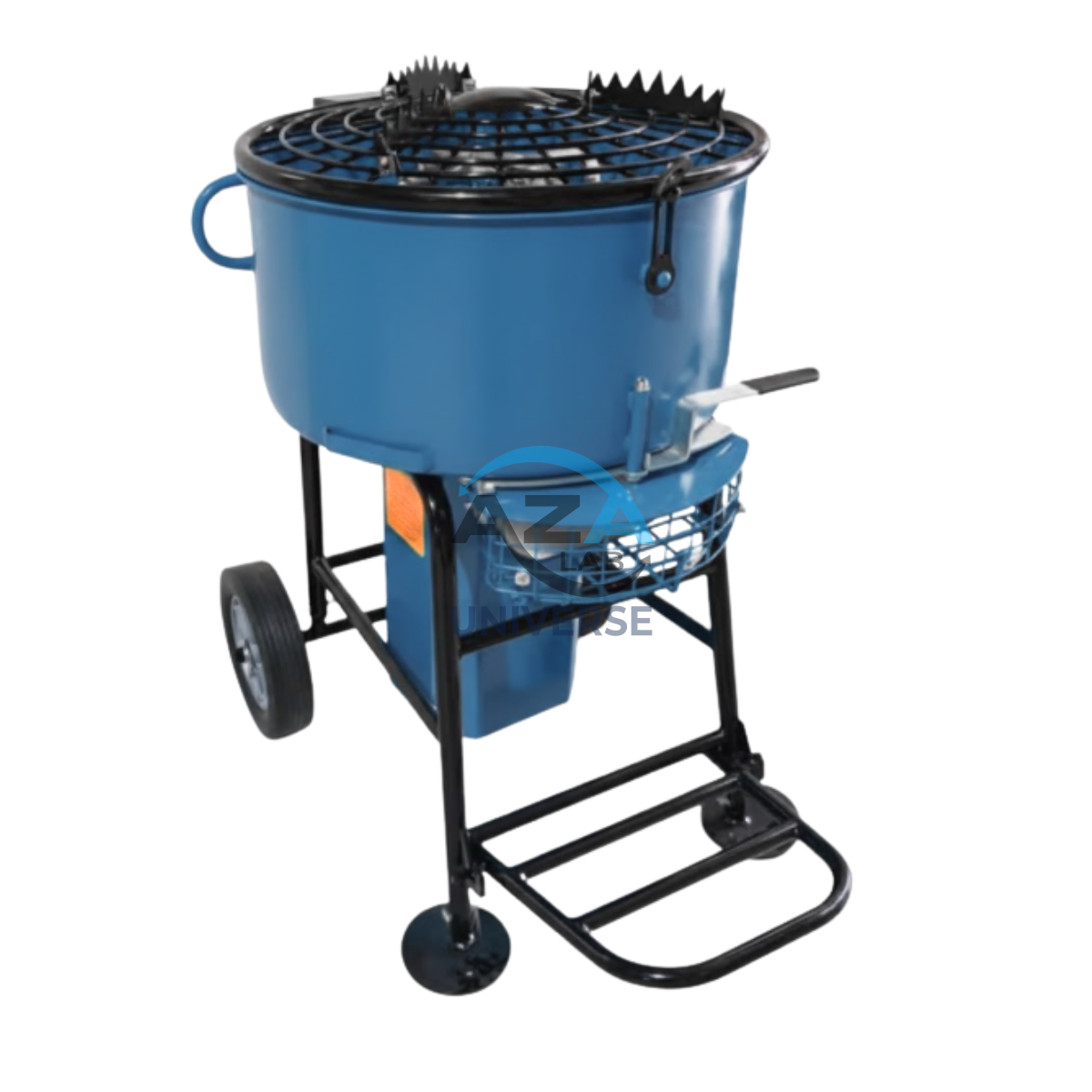

LABOMIX CONCRETE PAN MIXER AZA1118
The AZA1118 Labomix Concrete Pan Mixer is designed for demanding, high-volume mixing operations in construction laboratories, R&D facilities, and material testing centers. Built for durability and precision, it delivers consistent blends of concrete, mortar, grout, and aggregate mixes while supporting rigorous IS/ASTM test procedures.
Engineered with a high-efficiency gear-driven transmission, it provides stable torque, low maintenance requirements, and excellent mixing uniformity. The unit is available in multiple capacities from 90 litres to 300 litres, enabling users to select suitable volume for their operational needs.
The mixer features exchangeable mixing shovels, a safe-locking automatic discharge system, and large mobility wheels that allow a single operator to handle batching, mixing, and discharging efficiently.
Description
Specifications
| Feature | Details |
|---|---|
| Model Code | AZA1118 |
| Available Capacities | 90 L, 120 L, 150 L, 200 L, 300 L |
| Motor Power | 1.1 kW to 4.0 kW (based on capacity) |
| Drive Mechanism | High-efficiency, maintenance-free gear drive |
| Mixing Tools | Replaceable / exchangeable steel mixing shovels |
| Discharge System | Automatic container emptying with safety lock lid |
| Container Type | Heavy-gauge steel pan, powder-coated |
| Material Loading | Wide-mouth top opening for easy charging |
| Mobility | Heavy-duty wheels for transport and positioning |
| Operation | Single-operator handling |
| Power Supply | 230V single phase or 440V 3-phase (capacity dependent) |
Applications
-
Preparing concrete & mortar batches for laboratory strength testing
-
Mix design trials for R&D and QA/QC departments
-
Production of grout, dry mixes, fiber-reinforced mixes
-
Material preparation for IS 516, ASTM C192, BS 1881 testing
-
Ideal for construction labs, universities, cement plants, research centers
Key Advantages
-
High torque mixing for uniform consistency
-
Suitable for coarse aggregates depending on model
-
Fully enclosed drive reducing maintenance
-
Designed for continuous, professional use
-
Safe and easy operation by a single technician
Frequently Asked Questions (FAQ)
Q1: What capacities are available in AZA1118?
Models range from 90 L to 300 L depending on application load.
Q2: Is the gear drive maintenance heavy?
No. The gear system is sealed and maintenance-free for long operating cycles.
Q3: Can the mixing shovels be replaced?
Yes. Exchangeable and replaceable shovels extend overall machine life.
Q4: Is it suitable for on-site mixing?
Primarily laboratory-grade, but portable enough for on-site or mobile labs.
Q5: Does it support automatic discharge?
Yes. The mixer is equipped with a safe-lock, assisted emptying mechanism.
