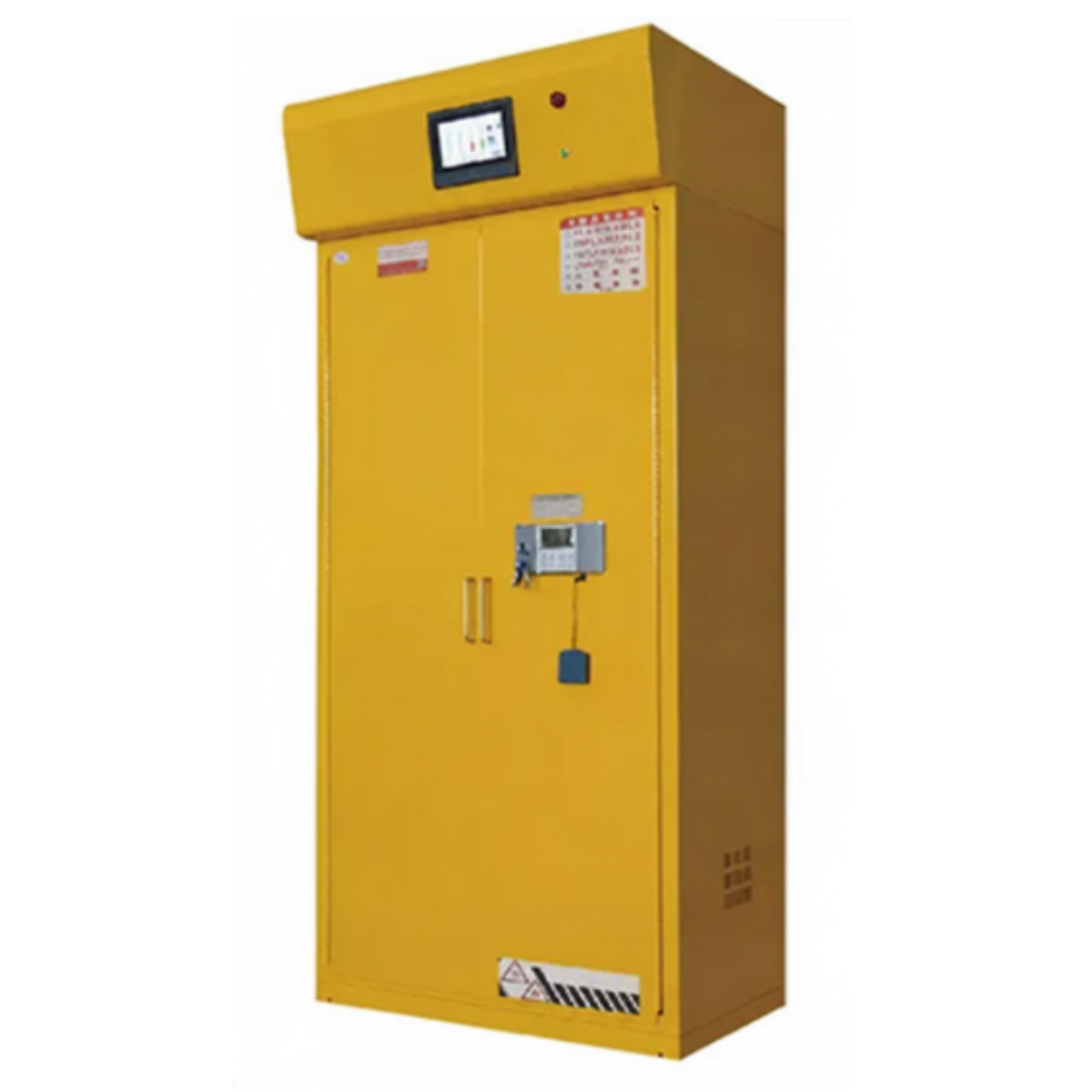

Fireproof and Gas-Purifying Chemical Safety Cabinet AZA-1306
Layer Board: 3 PP stepped movable shelves
Load Bearing: > 70kg/㎡
Air Handling Capacity: 230m³/h
External Size (WxDxH): 900×510×1960 mm
The AZA Model 1306 Fireproof and Gas-Purifying Chemical Safety Cabinet is a pipeline-free storage solution for toxic, hazardous, and highly corrosive chemicals. Designed for research, educational, pharmaceutical, and industrial laboratories, it combines fireproof protection, gas purification, and smart monitoring for maximum safety and compliance.
Description
Working Principle
-
Top-Mounted Fan: Draws laboratory air into the cabinet, generating negative pressure to prevent chemical vapor escape.
-
Gas Filtration: Harmful gases pass through the filtration module; toxic molecules are intercepted, and clean air is returned safely to the laboratory.
-
Air Purification: Ensures safe indoor air quality for personnel.
-
Continuous Operation: Recommended 24/7 to maintain air quality.
Key Advantages
-
Pipeline-Free & Eco-Friendly: No complex piping, no waste gas discharge.
-
Customizable Filtration Modules: Supports multiple chemical types (organic, inorganic, ammonia, formaldehyde, acid/base).
-
Advanced Filtration Technology: Efficiently absorbs gases, dust, and other hazardous substances.
-
Energy Efficient: No air-conditioning energy loss.
-
Portable & Accessible: Equipped with mobile wheels and adjustable shelving for flexible placement.
| Parameter | Specification |
|---|---|
| Model | AZA 1306 |
| External Size (WxDxH) | 900×510×1960 mm |
| Internal Size (WxDxH) | 800×410×1680 mm |
| Molecular Filter Size | 370×395×50 mm |
| Primary Filter Size | 740×396×21 mm |
| Display | 7-inch LCD touch screen |
| Layer Board | 3 PP stepped movable boards |
| Load Bearing | > 70kg/㎡ |
| Air Handling Capacity | 230 m³/h |
| Cabinet Volume | 0.55 m³ |
| Storage Capacity | 120 bottles (500ml) |
| Noise Level | 40 dBA |
| Power Supply | 220V / 50Hz |
| Power Consumption | 42W |
| Gross Weight | 195 kg |
| Shipping Size (WxDxH) | 950×670×2200 mm |
-
Body Material: 1.2mm cold-rolled steel (shell) and 2.0mm steel (base) with acid-washed, epoxy resin powder coating, baked for durability.
-
Inner Lining: Porcelain white PP boards; bottom layer includes landfill chamber for flammable materials (metallic sodium, yellow phosphorus).
-
Shelves: Three-layer stepped PP movable boards with 10mm ventilation holes, corrosion-resistant.
-
Fireproofing: Filled with ceramic fiber, lightweight, heat-resistant, and non-toxic.
-
Hinges & Seals: Seamless piano hinge, 180° door opening; thermal expansion seals compliant with GB 16807-2009 standards.
-
Locks & Security: Magnetic and mechanical password locks; dual-person key system for high-security compliance.
-
Mobility: Equipped with four 50mm steel wheels; front wheels have adjustable levers for positioning.
-
Temperature & Humidity Monitoring: Real-time digital display with configurable alarms.
-
Fan Monitoring: Adjustable speed with online monitoring and alarm notifications.
-
VOC Monitoring: Dual high-quality VOC probes (filter saturation + indoor air quality).
-
Filtration System: High-efficiency molecular + HEPA filters (99.995% for ≥0.3μm particles), ASTM-compliant.
-
PSC Fan: 24V imported fan, ultra-quiet, spark-free, and anti-static.
-
7-inch IoT HMI Touchscreen (1024×600): User-friendly interface for control and monitoring.
-
4G Remote Monitoring: Nationally certified SIM module for cloud connectivity.
-
Chemical Inventory Management: Supports ≥100 chemical types, including serial numbers, quantities, and units; cloud synchronization.
-
Remote Access via WeChat: Historical VOC, temperature, humidity data visualization; fan and alarm control.
-
API Integration: Enables connection with third-party lab management systems.
-
Certified Software: Tested and approved by the China Software Evaluation Center.
-
4× Molecular filters
-
1× Primary filter
-
1× Fan
-
3× PP stepped layer boards
-
1× Control system
-
2× VOC alarm systems
-
1× Temperature & humidity alarm
-
1× Item list function
-
1× Remote monitoring system
-
1× Power cord
-
GA password lock + mechanical lock
Optional Accessories
-
OG: Organic filter
-
AG: Inorganic filter
-
AM: Ammonia filter
-
FO: Formaldehyde filter
-
HEPA H14: High-efficiency filter
-
Ammonia/Formaldehyde/HCL alarm
-
Intelligent card swiping lock
