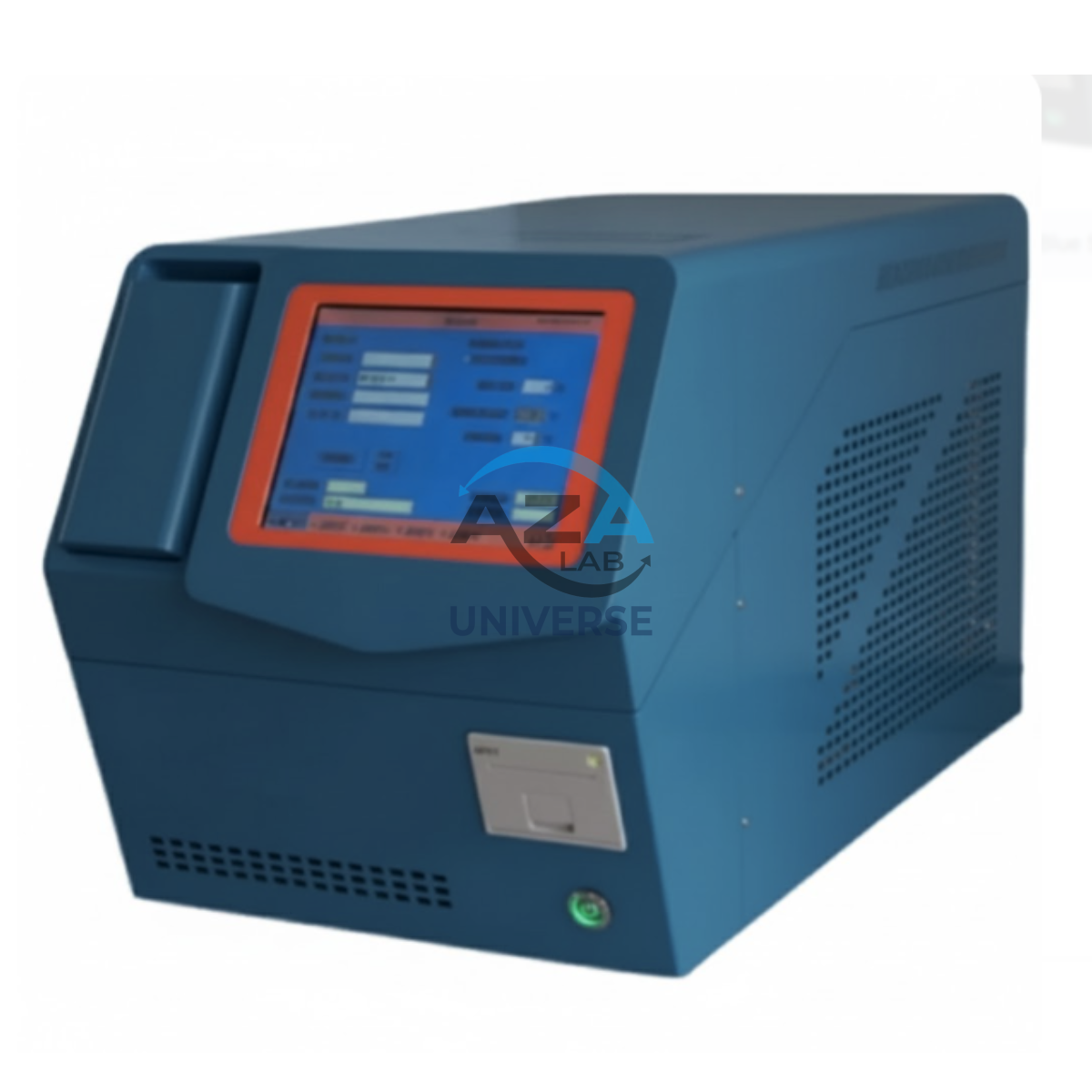

Freezing Point Tester AZA1322
The AZA1322 Freezing Point Tester from AZA Lab is a fully automated, high-precision instrument designed for determining the freezing point of aviation fuels in accordance with ASTM D7153. Utilizing the automatic laser detection method, the system accurately identifies the lowest temperature at which fuel remains free of solid hydrocarbon crystals.
Freezing point determination is critical for aviation safety, as fuel temperature decreases significantly with altitude, speed, and flight duration. The AZA1322 ensures that aviation fuels meet regulatory requirements by confirming that the freezing point remains below the minimum operational temperature, guaranteeing safe fuel flow and reliable aircraft performance.
Description
Operating Principle
The AZA1322 uses laser-based optical detection to continuously monitor crystal formation during controlled cooling. The exact freezing point is automatically detected and recorded with high accuracy, eliminating subjectivity and operator variability associated with manual methods.
Key Features
ASTM D7153 Compliance
-
Fully compliant with international aviation fuel testing standards
-
Automatic laser detection ensures objective and repeatable results
High-Performance Cooling System
-
Built-in compressor cooling
-
Achieves temperatures down to –62°C, extendable to –70°C
-
Stable and uniform temperature control
Fast & Efficient Testing
-
Complete freezing point analysis in 15–20 minutes
-
Minimal sample volume required (5 mL)
User-Friendly Operation
-
One-button test initiation
-
8-inch color touchscreen displays:
-
Real-time sample temperature
-
Test progress
-
Final freezing point result
-
Advanced Data Management
-
USB and LAN connectivity
-
LIMS compatibility for centralized laboratory data handling
-
Integrated compact thermal printer for immediate result output
Reliable Embedded System
-
WinCE®-based MCU ensures stable performance and long-term reliability
-
Designed for continuous laboratory operation
Applications
-
Aviation fuel testing laboratories
-
Aircraft maintenance and refueling facilities
-
Petroleum and refinery quality control labs
-
Regulatory and inspection agencies
-
R&D and aviation fuel certification centers
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1322 |
| Test Method | Automatic Laser Method |
| Standard Compliance | ASTM D7153 |
| Cooling System | Built-in compressor |
| Temperature Range | –62°C (extendable to –70°C) |
| Sample Volume | 5 mL |
| Test Time | 15–20 minutes |
| Display | 8-inch color touchscreen |
| Communication Ports | 1 × LAN, 2 × USB, 1 × Parallel |
| Power Supply | AC 220V ±10%, 50/60 Hz |
| Power Consumption | 1200 W |
| Dimensions (L×W×H) | 670 × 385 × 390 mm |
| Net Weight | 64 kg |
Why Choose AZA1322?
-
Accurate laser-based freezing point detection
-
Fully automated operation with minimal operator intervention
-
Fast analysis suitable for high-throughput labs
-
LIMS-ready data handling and flexible result output
-
Robust construction for long-term aviation fuel testing
Model: AZA1322 – Automatic Aviation Fuel Freezing Point Tester
