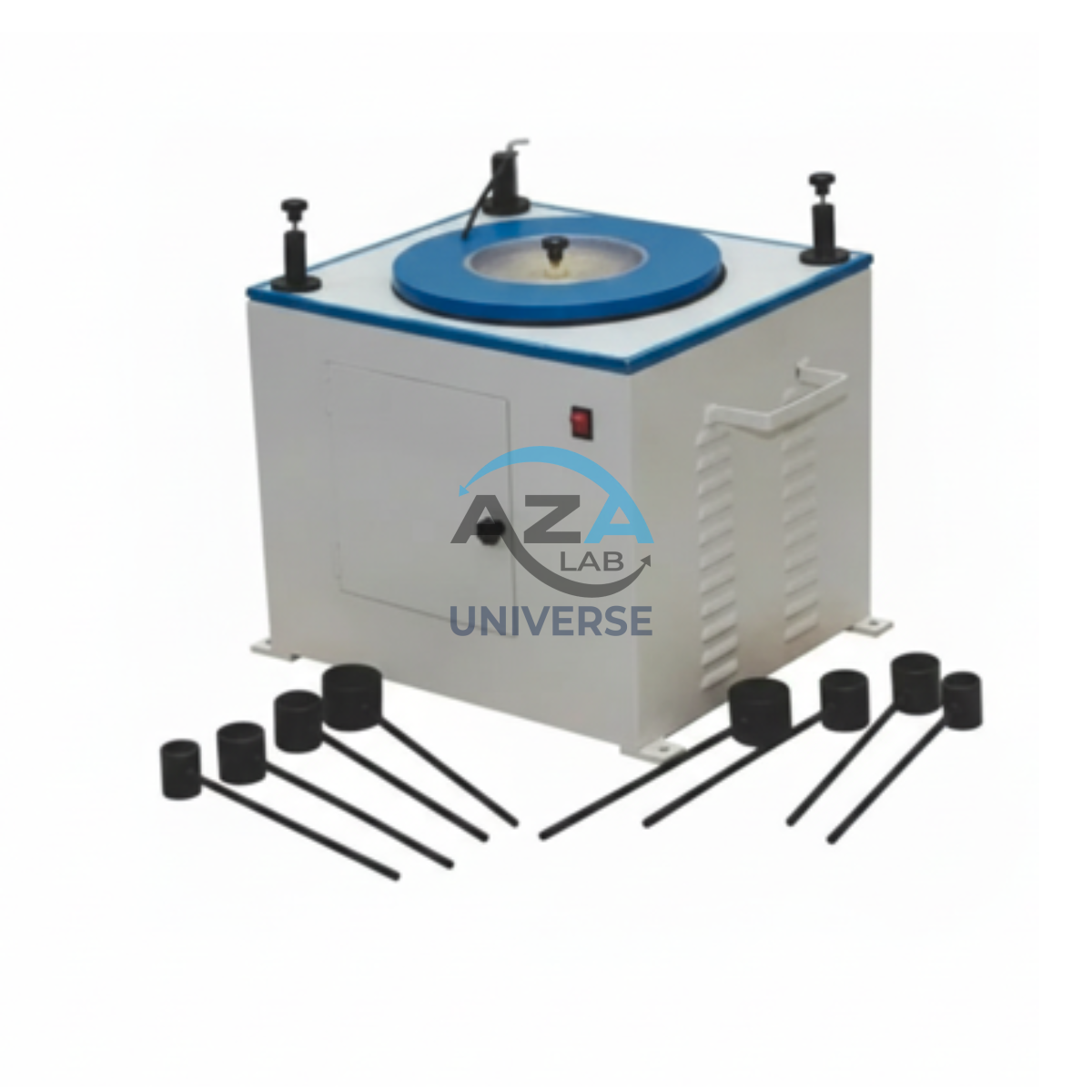

POLISHING AND LAPPING MACHINE AZA1000
AZA1000 Polishing & Lapping Machine is a dual-purpose laboratory system engineered to achieve exceptionally flat, smooth, and mirror-finished surfaces on rock, mineral, metallurgical, ceramic, and composite samples. It is widely used in geology, metallurgy, material science, and civil engineering laboratories for preparing test specimens before microscopic analysis, spectroscopic evaluation, and mechanical testing.
By combining both lapping and polishing operations in one compact unit, AZA1000 ensures consistent surface flatness, controlled material removal, and low surface roughness, delivering highly repeatable and accurate test preparation results.
Description
Key Features
• Dual-purpose polishing and lapping machine
• Suitable for rocks, minerals, and metallurgical samples
• Precision flat surface finishing for laboratory testing
• Adjustable speed control for different materials
• Adjustable plate pressure for uniform material removal
• Heavy-duty vibration-free steel construction
• Integrated water cooling and debris removal system
• Emergency stop and full safety enclosure
Applications
• Geological and petrological laboratories
• Metallurgical and metal structure evaluation labs
• Ceramic and composite material testing
• University and R&D institutions
• Civil engineering and construction material testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1000 |
| Lapping Plate Diameter | 300 mm (custom sizes available) |
| Polishing Disc Diameter | 300 mm |
| Motor Power | 0.5 HP – 1 HP |
| Speed Range | Variable, 50 – 500 RPM |
| Load Application | Manual / Pneumatic (optional) |
| Sample Holder | Multi-sample fixture included |
| Cooling System | Integrated water jet with drain tray |
| Safety System | Emergency stop, enclosure, anti-slip base |
| Frame Type | Powder-coated heavy-duty steel |
| Power Supply | 220V, 50 Hz |
| Machine Weight | Approx. 90 – 120 kg |
| Standards Compliance | ASTM C285, ISRM suggested methods |
Frequently Asked Questions (FAQ)
Q1: What is the difference between lapping and polishing?
Lapping removes material to achieve flatness, while polishing refines the surface to a smooth, mirror-like finish.
Q2: Can AZA1000 process hard rocks like granite or quartzite?
Yes, it supports diamond polishing and lapping discs suitable for very hard materials.
Q3: Is water cooling required?
Yes, the integrated coolant system prevents overheating and improves surface quality.
Q4: Can multiple samples be processed at the same time?
Yes, the machine includes a multi-sample holder for batch processing.
Q5: Does it comply with international standards?
Yes, it follows ASTM and ISRM laboratory preparation standards.
Related products
ASPHALT & CONCRETE FLOOR SAW AZA0998
AZA0998 Asphalt & Concrete Floor Saw is a heavy-duty, professional cutting machine designed for high-precision cutting of asphalt and concrete surfaces. Built for demanding construction environments, this machine delivers powerful performance, long-term durability, and exceptional cutting accuracy for roadwork, utility installations, trenching, and demolition projects.
Powered by a high-performance industrial engine, the AZA0998 delivers consistent torque and blade speed, allowing smooth cutting through thick concrete slabs and dense asphalt without power loss. Its strong power transmission system ensures uninterrupted operation, improving job-site efficiency and reducing downtime.
The machine features a precision depth-control system, enabling operators to achieve accurate and uniform cutting depths. Its stable, reinforced steel chassis minimizes vibration and maintains straight-line stability, resulting in clean, professional-grade cuts every time.
Designed for harsh job-site conditions, the AZA0998 uses heavy-gauge steel construction, corrosion-resistant components, and durable mechanical parts that ensure long service life and reduced maintenance.
Operator comfort and safety are enhanced through ergonomically designed, vibration-dampened handlebars, easy-access controls, full blade guarding, and an emergency stop system, allowing safe and fatigue-free operation during extended use.

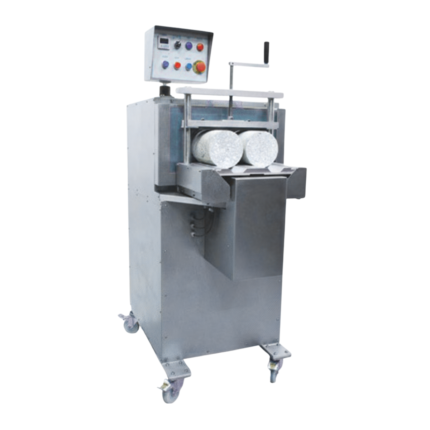

AUTOMATIC GRINDING MACHINE AZA1001
AZA1001 Automatic Grinding Machine is a high-precision laboratory system designed for perfect end-face preparation of cylindrical rock and concrete core samples. Built for geotechnical, mining, civil engineering, and material testing laboratories, this fully automatic grinder ensures flatness, parallelism, and repeatability required for accurate strength testing.
It is essential for preparing specimens for UCS (Uniaxial Compressive Strength), triaxial, Brazilian tensile, and point load tests, where poorly prepared end faces can compromise results.
With programmable controls and vibration-free construction, AZA1001 delivers consistent, hands-free grinding with minimal operator effort.
BRAZILIAN TEST APPARATUS AZA1004
AZA1004 Brazilian Test Apparatus is a precision-engineered device used to determine the indirect tensile strength of cylindrical rock samples using the standardized Brazilian (splitting tensile) test method. This apparatus is widely trusted in geotechnical engineering, mining, civil engineering, and academic research for evaluating rock behavior under tensile stress.
Built with a heavy-duty steel frame and plated loading jaws, AZA1004 ensures uniform load distribution and highly repeatable testing results in both laboratory and field environments.
CORE CUTTING/CORE DRILLING MACHINE (PETROL) AZA0994
LOAD FRAME FOR UNIVERSAL COMPRESSION TEST OF ROCKS12 SPEED 200 KN AZA1007
The AZA1007 Universal Compression Test Load Frame is a heavy-duty mechanical and hydraulic testing system specially designed for determining the uniaxial compressive strength (UCS) and deformation behavior of rock core specimens. Engineered for precision and durability, this equipment is widely used in geotechnical laboratories, civil engineering institutes, mining operations, tunneling projects, and research organizations.
Built with a 200 kN high-capacity loading system and a 12-speed gear control mechanism, AZA1007 allows highly controlled and uniform load application, ensuring repeatable and accurate test results. Its rigid steel construction minimizes frame deformation during testing, offering maximum stability and long service life even under heavy laboratory workloads.
This load frame is manufactured to comply with ISRM Suggested Methods and ASTM D7012 requirements, making it a reliable solution for internationally accepted rock strength testing.
PORTABLE CORE CUTTING DRILLING MACHINE PETROL DRIVEN AZA0995
AZA0995 Petrol-Driven Core Cutting & Drilling Machine is a high-performance, portable coring system designed for on-site sampling of concrete, asphalt (bitumen), and rock surfaces. Built for demanding field conditions, this machine combines power, mobility, and cutting precision, making it ideal for civil engineers, geotechnical teams, road authorities, and construction quality control laboratories.
The petrol-powered 4-stroke engine ensures complete independence from electrical power, allowing reliable operation in remote and off-grid locations. Mounted on a trolley-type heavy-duty steel frame, the unit is easy to transport across rough or uneven terrain while providing excellent stability during drilling.
This machine supports core barrel sizes from 25 mm to 150 mm, making it suitable for a wide range of sampling requirements—from pavement layer checks to structural concrete strength investigations. The adjustable vertical drill column allows accurate alignment, ensuring clean, straight, and damage-free cores.
An integrated water feed system enables wet drilling, which keeps the diamond core bit cool, minimizes dust, and improves core quality. The vibration-dampened spindle system ensures smooth cutting, reduced operator fatigue, and longer machine life.
Designed with operator safety and durability in mind, AZA0995 features ergonomic handles, emergency cut-off, corrosion-resistant components, and a robust engine mount to prevent unwanted movement during operation.
ROCK BOLT PULL OUT TEST APPARATUS AZA1006
AZA1006 Rock Bolt Pull Out Test Apparatus is a high-precision, field-grade hydraulic testing system designed to determine the anchoring strength and load-bearing capacity of rock bolts, anchor bars, and grouted tendons directly in-situ. It is widely used in mining, tunneling, underground excavation, dam construction, and slope stabilization projects to verify the safety and performance of installed support systems.
This rugged and portable apparatus allows engineers to apply a controlled tensile load to rock bolts and measure both ultimate pull-out force and displacement. By simulating real-world tensile stresses, it helps evaluate grout bonding quality, rock mass interaction, and overall installation effectiveness before final commissioning of underground structures.
As underground infrastructure grows, ensuring the reliability of anchoring systems is critical. AZA1006 delivers dependable performance through its hydraulic pull mechanism, precision pressure monitoring, and easy-to-deploy field design, making it an essential tool for geotechnical safety assurance.

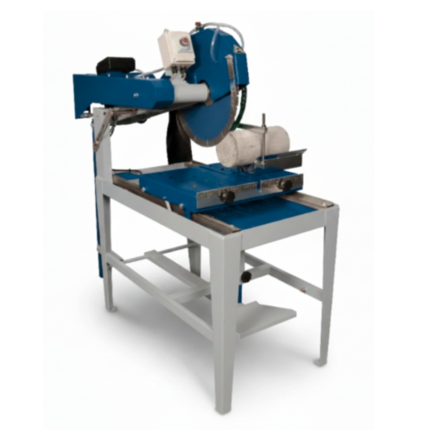

ROCK/CONCRETE CUTTING MACHINE AZA0997
