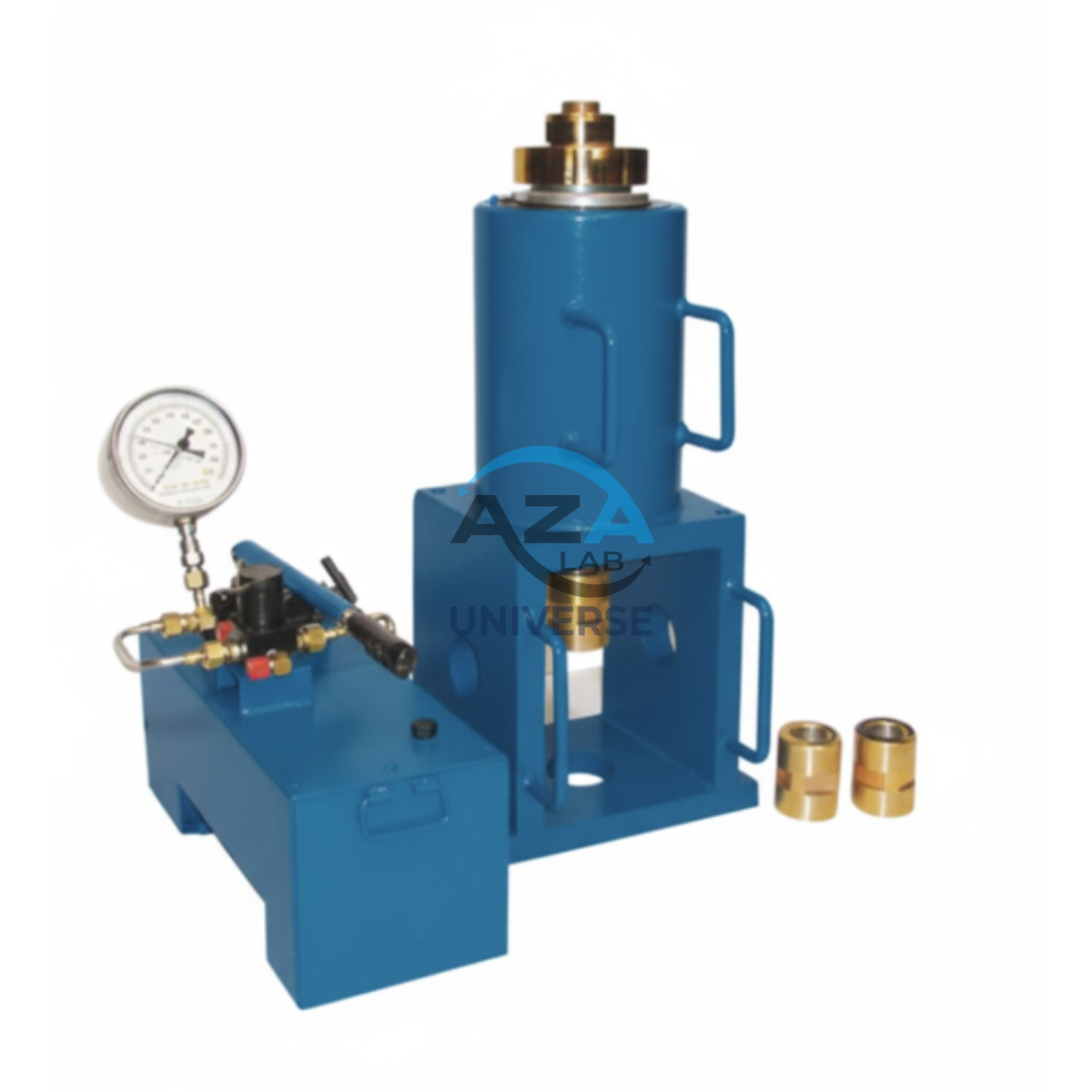

ROCK BOLT PULL OUT TEST APPARATUS AZA1006
AZA1006 Rock Bolt Pull Out Test Apparatus is a high-precision, field-grade hydraulic testing system designed to determine the anchoring strength and load-bearing capacity of rock bolts, anchor bars, and grouted tendons directly in-situ. It is widely used in mining, tunneling, underground excavation, dam construction, and slope stabilization projects to verify the safety and performance of installed support systems.
This rugged and portable apparatus allows engineers to apply a controlled tensile load to rock bolts and measure both ultimate pull-out force and displacement. By simulating real-world tensile stresses, it helps evaluate grout bonding quality, rock mass interaction, and overall installation effectiveness before final commissioning of underground structures.
As underground infrastructure grows, ensuring the reliability of anchoring systems is critical. AZA1006 delivers dependable performance through its hydraulic pull mechanism, precision pressure monitoring, and easy-to-deploy field design, making it an essential tool for geotechnical safety assurance.
Description
What is a Rock Bolt Pull Out Test?
A pull-out test measures the maximum tensile force a rock bolt can withstand before failure or excessive deformation. The test helps assess:
-
Anchoring strength of the bolt
-
Bond integrity between grout and rock
-
Load-transfer behavior of the anchoring system
-
Quality of installation workmanship
This test is performed directly at the site, making portability and durability critical — both of which are core strengths of AZA1006.
Key Features
-
Tests anchoring strength of rock bolts in-situ
-
High-precision hydraulic pull mechanism
-
Manual hydraulic pump for controlled loading
-
Built-in pressure gauge for load monitoring
-
Dial gauge for displacement measurement
-
Portable and rugged construction for underground use
-
Universal gripping system for various bolt sizes
-
Quick setup and simple field operation
Applications
-
Underground mining support testing
-
Tunnel and metro construction projects
-
Slope stabilization and rock anchoring works
-
Dam and hydroelectric cavern testing
-
Geotechnical investigation and research
-
Civil and infrastructure quality control
Compliance Standards
AZA1006 is designed in accordance with international testing guidelines:
-
ASTM D4435 – Rock Bolt Pull-Out Strength
-
ISRM Suggested Methods – Rock mechanics field testing
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1006 |
| Max Load Capacity | 100–200 kN (model dependent) |
| Load Application | Manual hydraulic pump |
| Load Measurement | Analog pressure gauge / optional digital |
| Bolt Diameter Range | 12 mm to 25 mm |
| Displacement Reading | Dial gauge (optional digital upgrade) |
| Construction | Heavy-duty steel frame |
| Portability | Rugged portable field design |
| Compliance | ASTM D4435, ISRM standards |
| Accessories | Grips, adaptors, carrying case |
Advantages
-
Ensures underground structural safety before project handover
-
Reliable, repeatable, and accurate field results
-
Lightweight enough for underground transport
-
Minimal maintenance requirements
-
Supplied with calibration certificate and operating manual
Frequently Asked Questions (FAQ)
Q1: Can AZA1006 be used underground?
Yes, it is specifically designed for in-situ underground testing.
Q2: What bolts can it test?
It supports threaded, smooth, expansion shell, and grouted bolts from 12–25 mm diameter.
Q3: Is calibration provided?
Yes, it is supplied with a valid calibration certificate.
Q4: How is the load applied?
Via a manual hydraulic pump with real-time pressure gauge indication.
Q5: Are accessories included?
Yes, complete grips and accessories are supplied as standard.
