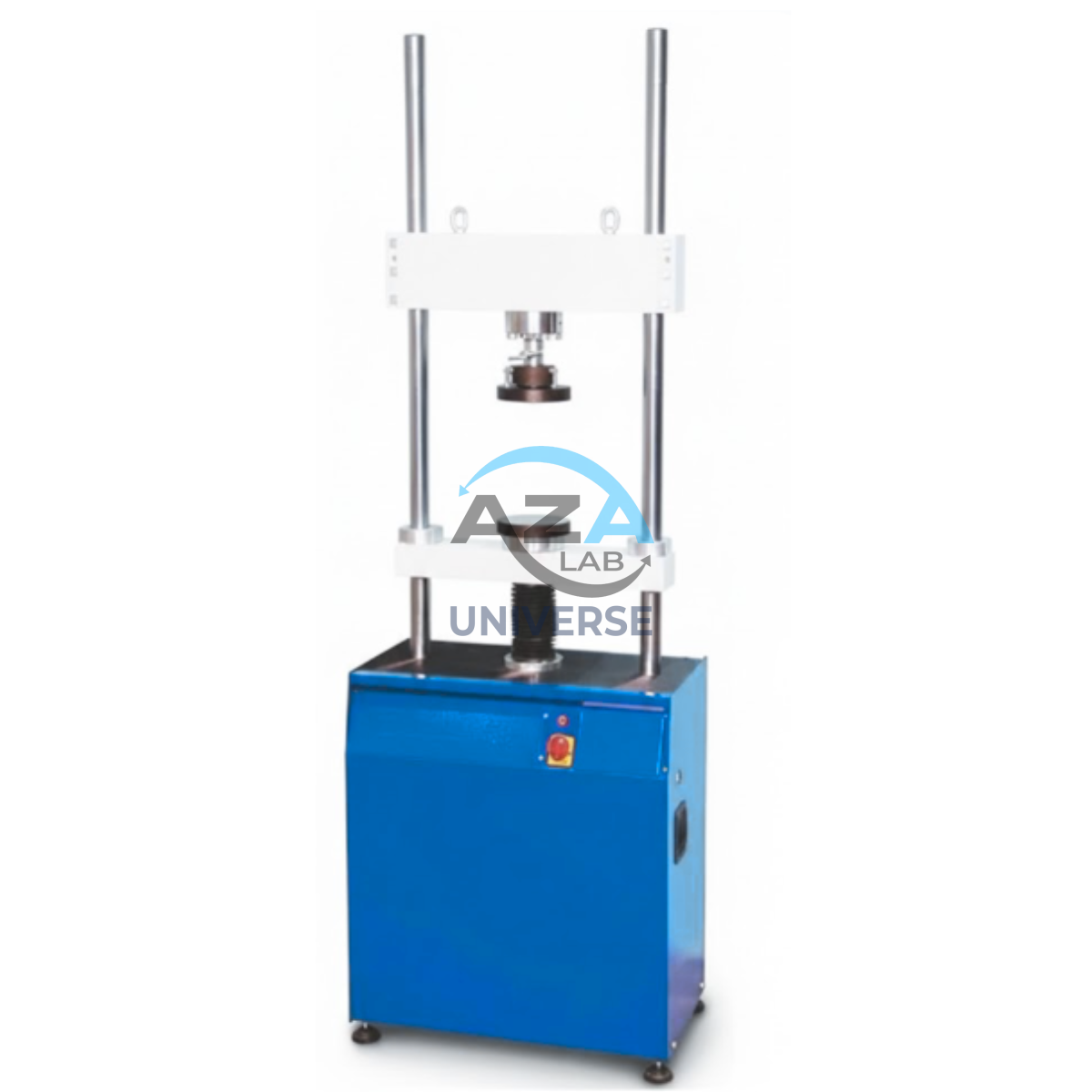

LOAD FRAME FOR UNIVERSAL COMPRESSION TEST OF ROCKS12 SPEED 200 KN AZA1007
The AZA1007 Universal Compression Test Load Frame is a heavy-duty mechanical and hydraulic testing system specially designed for determining the uniaxial compressive strength (UCS) and deformation behavior of rock core specimens. Engineered for precision and durability, this equipment is widely used in geotechnical laboratories, civil engineering institutes, mining operations, tunneling projects, and research organizations.
Built with a 200 kN high-capacity loading system and a 12-speed gear control mechanism, AZA1007 allows highly controlled and uniform load application, ensuring repeatable and accurate test results. Its rigid steel construction minimizes frame deformation during testing, offering maximum stability and long service life even under heavy laboratory workloads.
This load frame is manufactured to comply with ISRM Suggested Methods and ASTM D7012 requirements, making it a reliable solution for internationally accepted rock strength testing.
Description
Why Rock Compression Testing is Important
Rock compression testing determines the maximum axial stress that a rock sample can withstand before failure. This data is essential for:
-
Foundation and footing design
-
Tunnel and underground support planning
-
Slope stability and landslide assessment
-
Dam and hydropower project safety analysis
-
Seismic and rock fracture behavior studies
AZA1007 enables engineers to obtain these critical parameters with high accuracy.
Working Principle
The machine operates using a vertical compression system where cylindrical rock core specimens (typically Ø50–100 mm) are placed between hardened steel platens. A hydraulic or mechanically driven system applies a steadily increasing compressive load.
The 12-speed gearbox allows operators to adjust loading rates based on rock type and testing standards. A calibrated load indicator displays force in real time, while optional digital systems can record stress–strain curves for advanced analysis.
Key Features
-
200 kN load capacity for high-strength rock testing
-
12-speed gear control for precise load rate adjustment
-
Heavy-duty rigid steel frame for maximum stability
-
Precision-machined hardened steel platens
-
Accurate axial alignment system
-
Ready for data logging and PC connectivity (optional)
-
Designed as per ISRM and ASTM standards
Applications
-
Geotechnical and civil engineering laboratories
-
Mining and mineral exploration projects
-
Tunnel boring and slope stability evaluation
-
Dam foundation and hydropower investigations
-
Academic training and research institutions
Compliance Standards
This machine is manufactured in accordance with:
-
ISRM Suggested Methods for Rock Testing
-
ASTM D7012 – Uniaxial Compressive Strength of Rock Cores
Technical Specifications
| Specification | Details |
|---|---|
| Model | AZA1007 |
| Type | Universal Compression Load Frame |
| Load Capacity | 200 kN |
| Speed Control | 12-speed mechanical gearbox |
| Platen Diameter | 150 mm |
| Maximum Sample Height | 300 mm |
| Specimen Type | Rock cores Ø50–100 mm |
| Frame Material | Heavy-duty powder-coated steel |
| Data System | Optional digital & PC interface |
| Power Supply | 220–240V AC (or manual variant) |
| Machine Weight | Approx. 250 kg |
Advantages
-
Accurate and repeatable UCS testing
-
Strong, vibration-free frame structure
-
Flexible speed control for different rock types
-
Easy operation and maintenance
-
Supplied with calibration certificate and user manual
Frequently Asked Questions (FAQ)
Q1: What does AZA1007 measure?
It measures the uniaxial compressive strength and deformation behavior of rock specimens.
Q2: What is the benefit of 12-speed control?
It allows precise control of load rate to comply with different testing standards.
Q3: Can it be upgraded for triaxial testing?
Yes, optional triaxial attachments are available.
Q4: Is data logging possible?
Yes, digital models support USB and PC connectivity.
Q5: Is calibration provided?
Yes, each machine is supplied with a calibration certificate.
