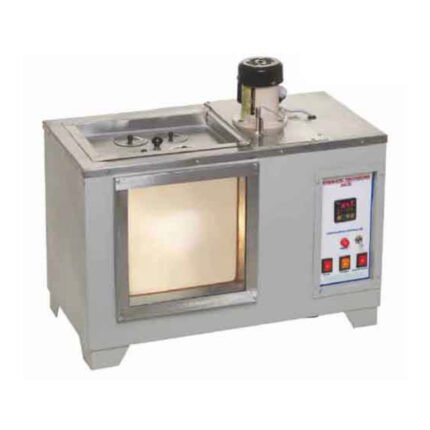

This bath is designed and developed under the strict supervision of our experienced professionals in accordance with the international quality standards. Our offered bath is thoroughly checked on various parameters to ensure zero-defect. This bath is widely used in national laboratories and pharmaceutical industries. Features: ! Intelligent signal sampling for accurate data measuring and parameter reading ! Accurate viscometer for improving experimental efficiency ! High precision digital display ! Ideal for controlling the temperature accuracy ! Durable glass bath for optimum heat preservation ! Desktop based all-in-one design for easy operations and portability ! Electric stirrer for ensuring uniform temperature of bath ! Easy cleaning and drying of viscometer tubes Other Information: The accompanying absolute kinematic viscosity bath are utilized to measure supreme thickness of consistency reviewed clearing bitumen (IS:73:2006) at 60°C as per IS:1206 (part II) (like ASTM D 2171), which utilizes a vacuum slender viscometer. Complete absolute viscosity testing equipment adjusting to IS: 1206 (part II) method for testing tar and bitumen materials: determination of absolute viscosity with the accompanying segments:

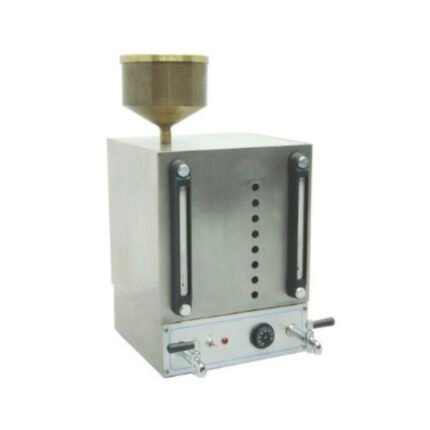

On-flammable solvent liquids used for the binder extraction test can be successfully recovered using the solvent recovery unit. The recovery unit consists of two stainless steel chambers, one for the dirty used solvent and the other for the cleaned recovered solvent. Solvent in the left-hand side chamber is distilled by an electrical heater and then passes through a water cooling system and drops into the second chamber ready for re-use. A temperature switch automatically stops the heating elements when the recovery process is completed. The unit is supplied complete with 10 m plastic tubing, tube clamps, sieve insert 0.6 mm opening and one lid. The solvent recovery unit is supplied complete with: ! Plastic tubing, 10 m ! Sieve insert, 0.6 mm Specifications: Dimensions : 400 x 320 x 650 mm Weight (approx.) : 17 Kg Power : 1200 W Max. Tempature : 150°C

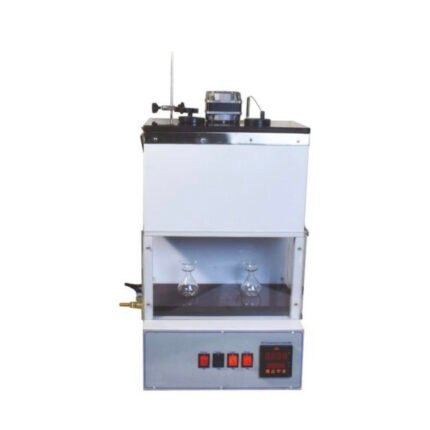

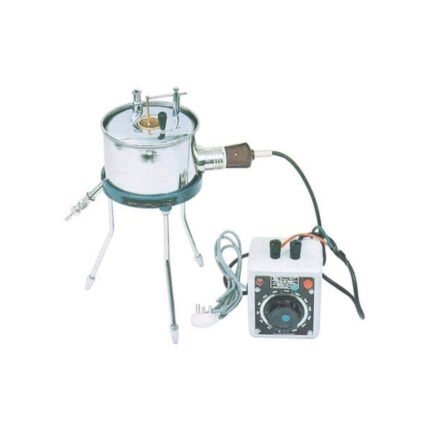

Electrical Heating with Immersion Heating Elements and Dimmer stat for controlling the temperature. Suitable for operation on 230 V, 50Hz, Single Phase , A.C. supply. Supplied complete with 10mm cup and valve. AZA 0952A Cup, 10mm AZA 0952B Ball Valve, 10mm AZA 0952C Cup, 4mm AZA 0952D Ball Valve, 4mm Optional Extras: AZA 0952E Thermometer IP 8C, Range: 0° to 45° C AZA 0952F Thermometer IP 9C, Range: 40° to 85°C AZA 0952G Thermometer IP 10C, Range: 76° - 122° C

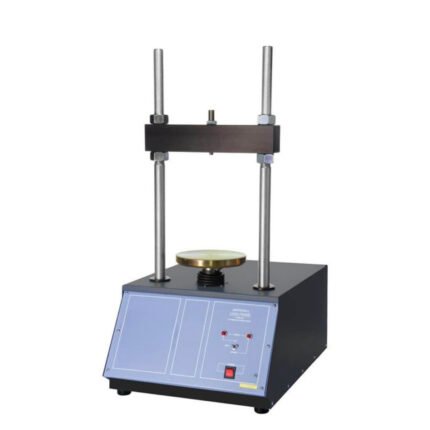

ASTM: D 1559 T- 62. BS 598-107 Marshall Apparatus Consists Of: ! Robust construction ! 50KN capacity ! Rate of travel 50.8mm/min ! Safety cut-off switch It consists of body housing, a geared screw jack and motor drive mechanism suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply. AZA 0953-A MARSHALL LOAD FRAME 1 No. AZA 0953-B Breaking Head Stability Mould, with a dial gauge ( having 25mm travel and 0.01mm least count), for flow measurement 1 No. AZA 0953-C Compaction Mould, Steel cylindrical 3 Nos. AZA 0953-D Base Plate 3 Nos. AZA 0953-E Extension Collar 3 Nos. AZA 0953-F Compaction Pedestal, Manual Operation, Comprising a steel plate capped on a wooden post. A Mould Clamp is fitted to the top of the plate . 1 No. AZA 0953-G Compaction Hammer, satisfies BS 598. The hammer has a 4535 g sliding weight with a free fall of 457 mm 2 Nos. AZA 0953-H Load Transfer Bar 1 No. AZA 0953-I Paper Discs, Non absorbent, 11 cm diameter pack of 100 No. 1 Pkt.

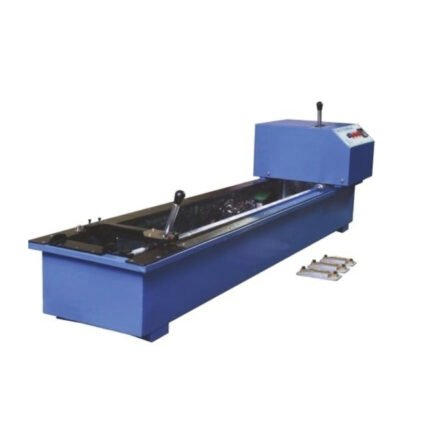

IS 1208-1058, ASTM D 113, IP32, 55, AASHTO T 51 Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a stainless steel lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 50 mm/min and 10 mm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply. Complete With: AZA 0956-A Ductility Mould, with Base Plate 3 Nos. AZA 0956-B Thermometer IP 38° C, Range: 23° C to 27° C

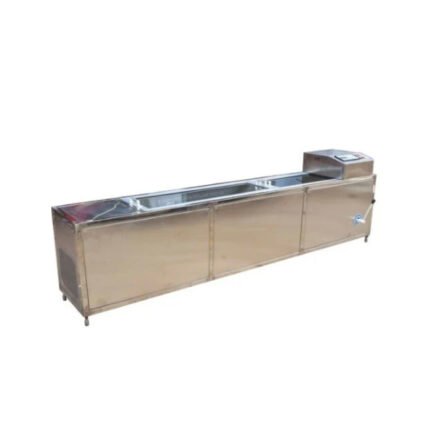

With refrigeration system and micro-processor based digital temperature controller. Ductility is defined as distance in cm to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mm/min.± 2.5mm per minute at a temperature of 27°c ± 0.5°C. The machine is having built in refrigeration system to work a below ambient temperature up to 8°C in tropical conditions. The machine will operate at 27°C with control accuracy of ± 0.5°C as per the requirement of IS. The apparatus consists of water bath with a heater, and a circulating pump to maintain uniform water temperature . One half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch, the motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. A scale graduated from 0-100 cm x 1mm fixed on the bath with "0" (zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. And 1cm/min. Selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with is fitted inside the water bath. The temperature is controlled by dual display microprocessor based auto tuning PID digital temp. Indicator cum controller. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briquette moulds and one base plate, all supply single phase. As per IS 1208.
