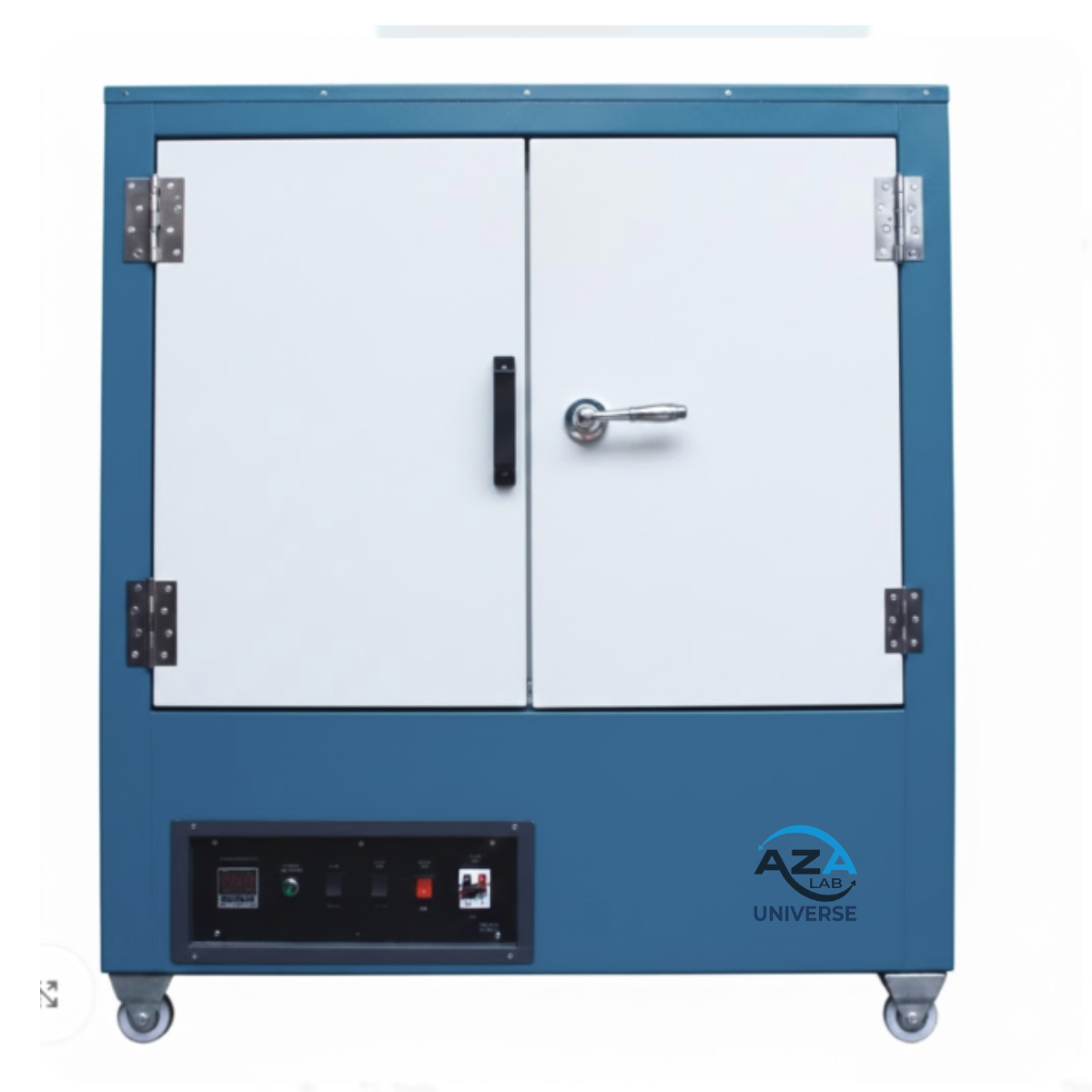

DIGITAL DOUBLE DOOR DRYING OVEN AZA1058
The AZA1058 Digital Double Door Drying Oven from AZALAB is a high-performance, forced-air convection oven engineered for critical drying, sterilization, curing, aging, and material conditioning applications in laboratory, industrial, and research environments. Designed for demanding workflows, it delivers exceptional temperature uniformity, stability, and repeatability, even during continuous operation.
The innovative double-door configuration enhances operational efficiency by improving access control, reducing heat loss during loading/unloading, and enabling better segregation of samples in multi-user or high-throughput environments.
Description
Key Features & Design
-
Advanced Digital PID Temperature Control
Microprocessor-based PID digital controller ensures precise temperature regulation with minimal fluctuation. Real-time temperature display and programmable control enable consistent and reproducible results for critical processes. -
Forced Air Circulation System
Integrated motorized blower fan ensures rapid and uniform heat distribution throughout the chamber, eliminating temperature gradients and ensuring even drying or curing of all samples. -
Double Door Configuration
Dual doors (vertical or horizontal split, capacity dependent) reduce heat loss, improve workflow efficiency, and allow selective access without disturbing ongoing processes. -
Robust Double-Walled Construction
-
Inner Chamber: High-grade Stainless Steel (SS 304 / SS 316) for corrosion resistance, hygiene, and high-temperature durability
-
Outer Body: Powder-coated mild steel or stainless steel for long service life
-
Insulation: High-density mineral wool or ceramic fiber to minimize heat loss and maintain safe external surface temperature
-
-
High-Efficiency Heating System
Fitted with nickel-chrome tubular air heaters, designed for rapid heat-up and stable long-term operation. -
Enhanced Safety Features
-
Over-temperature protection
-
Independent high-limit cut-off
-
MCB / ELCB protection
-
Door safety interlock (optional)
Ensures safe, unattended operation during extended cycles.
-
-
Flexible Shelf Arrangement
Supplied with adjustable, removable wire-mesh or perforated stainless-steel shelves to accommodate varied sample sizes and airflow requirements.
Applications
-
Pharmaceutical drying, sterilization, and stability testing
-
Chemical research and sample preparation
-
Electronics curing, PCB baking, and component drying
-
Materials science heat treatment and aging tests
-
Biological and clinical glassware sterilization
-
Industrial drying and conditioning processes
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1058 |
| Type | Digital Double Door Drying Oven |
| Chamber Type | Forced air circulation (convection) |
| Door Configuration | Double door (vertical / horizontal split – model dependent) |
| Temperature Range | Ambient +5°C to 250°C / 300°C |
| Temperature Accuracy | ±0.5°C to ±1°C |
| Temperature Uniformity | ±1°C to ±2°C (at 100°C, unloaded) |
| Controller | Microprocessor-based PID digital controller |
| Inner Chamber | Stainless Steel (SS 304 / SS 316) |
| Outer Body | Powder-coated Mild Steel / Stainless Steel |
| Insulation | High-density mineral wool / ceramic fiber |
| Heating Elements | Nickel-chrome tubular air heaters |
| Air Circulation | Motorized blower fan |
| Shelves | Adjustable wire mesh / perforated SS |
| Door Gasket | High-temperature silicone |
| Safety | Over-temp cut-off, MCB/ELCB, optional door interlock |
| Power Supply | 230 V AC, 50 Hz, Single Phase (3-phase for large models) |
| Capacity Options | Approx. 200 L to 1000 L+ (capacity dependent) |
Advantages
-
Superior temperature uniformity through forced air circulation
-
Reduced heat loss and improved efficiency with double doors
-
Precise digital PID temperature control
-
Heavy-duty construction for continuous operation
-
Suitable for laboratory and industrial-scale applications
Frequently Asked Questions (FAQ)
Q1: What is the key benefit of the double-door design?
It reduces heat loss, improves access management, and allows better segregation of samples during operation.
Q2: What is the maximum operating temperature?
Up to 250°C or 300°C, depending on the model configuration.
Q3: How does forced air circulation improve performance?
It ensures uniform temperature distribution, faster drying, and consistent results across all shelves.
Q4: Is AZA1058 suitable for sterilization?
Yes, it is suitable for sterilizing glassware and heat-resistant materials when used with validated temperature and holding times.
Q5: Can it be used for curing resins and coatings?
Yes, the precise PID control and uniform airflow make it ideal for curing epoxies, paints, and coatings.
The AZA1058 Digital Double Door Drying Oven is a premium, high-capacity, precision heating solution built for laboratories and industries where accuracy, reliability, and efficiency are critical. Its advanced digital control, forced air convection, robust construction, and dual-door design make it an excellent choice for demanding drying, sterilization, and curing applications.
Additional information
| Model Number |
AZA 1058 |
|---|---|
| Chamber Type |
Forced Air Circulation |
| Configuration |
Double Door |
| Inner Chamber Material |
Stainless Steel (SS 304 / SS 316) |
| Outer Body Material |
Mild Steel (Powder Coated) or Stainless Steel |
| Insulation |
High-density mineral wool or ceramic fiber |
| Power Supply |
230V AC, 50 Hz, Single Phase |
