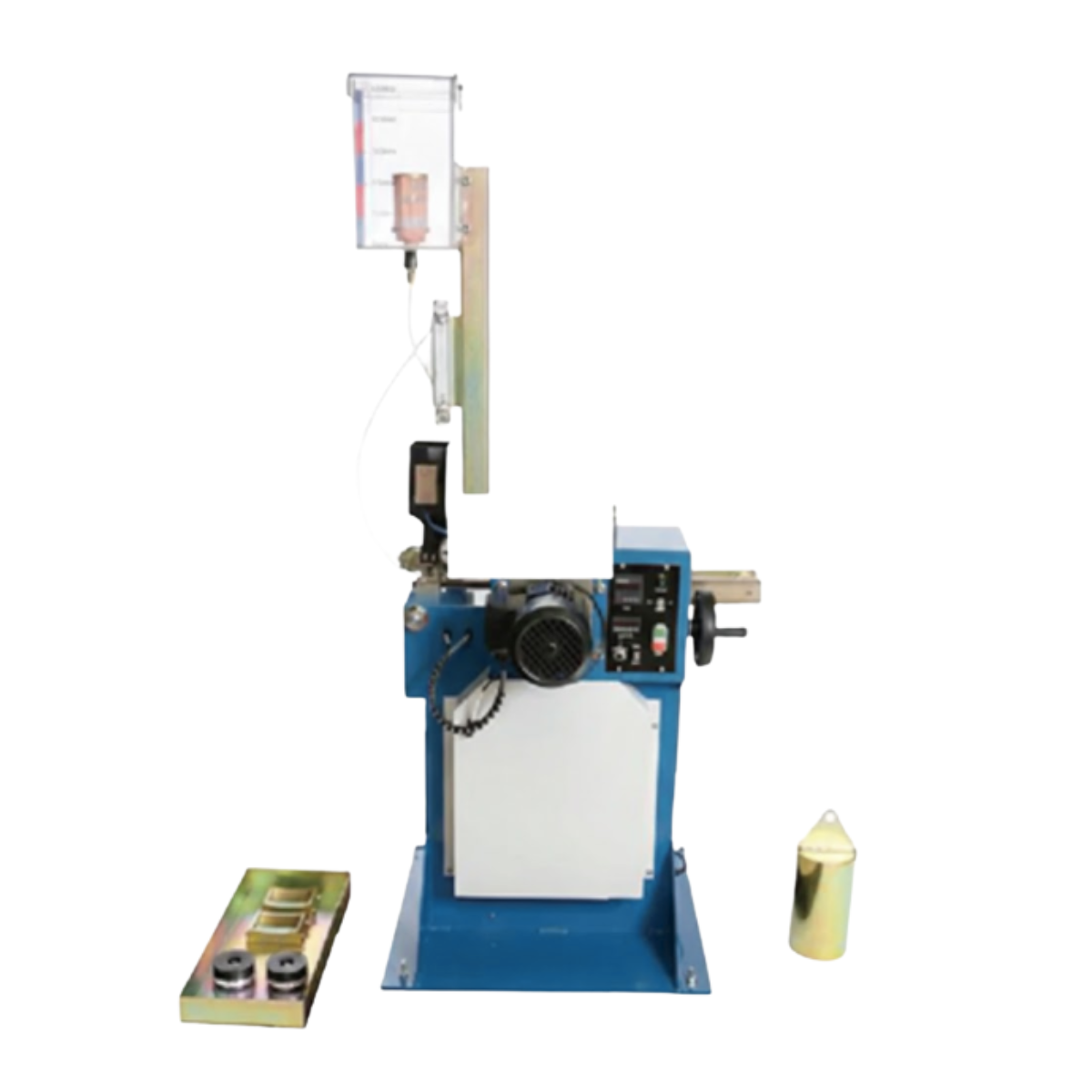

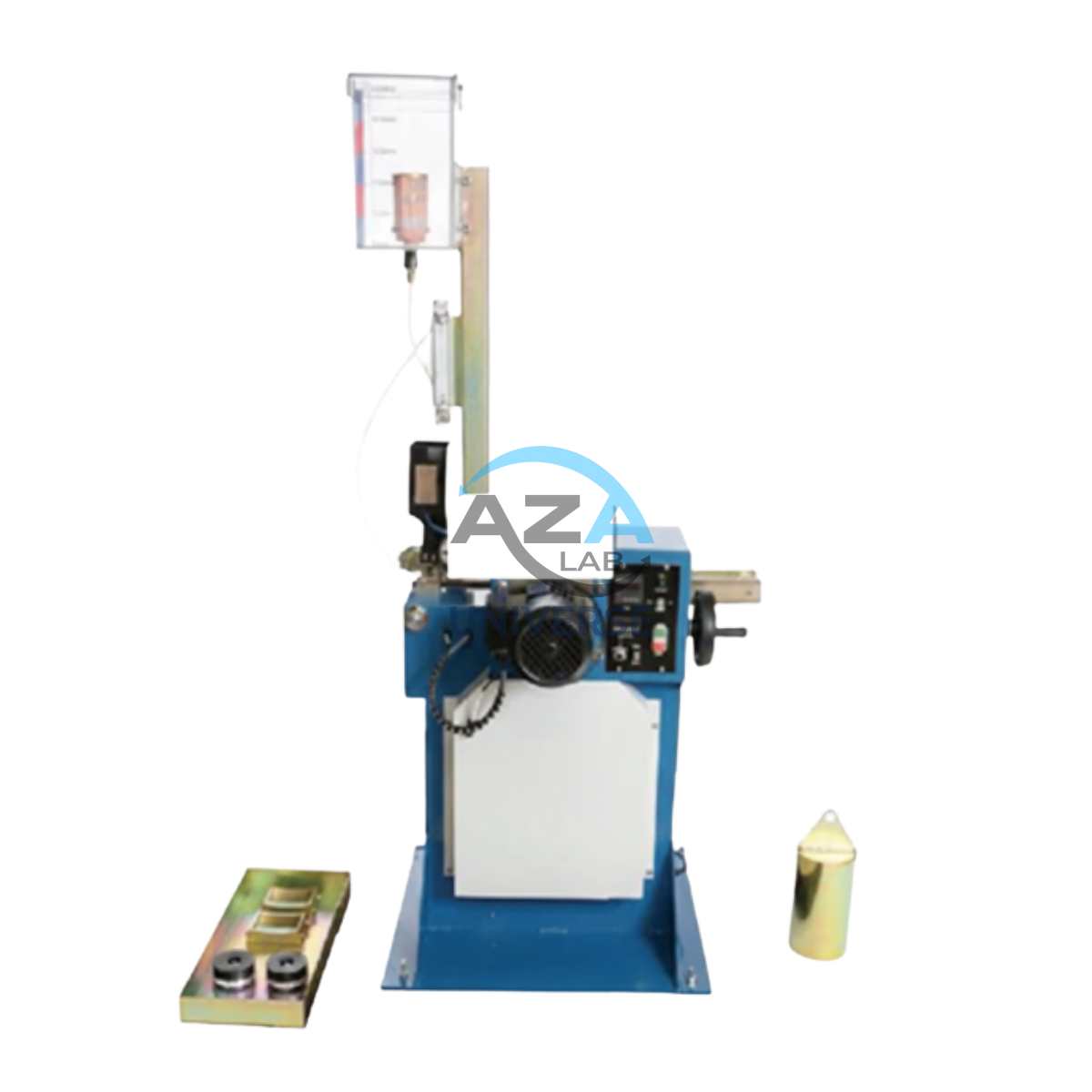

ACCELERATED POLISHING MACHINE AZA0984
The AZA0984 Accelerated Polishing Machine is a laboratory-grade apparatus designed to determine the Polished Stone Value (PSV) of aggregates. It simulates real-life tyre-induced wear on road surfacing materials to evaluate skid resistance and surface friction performance. This machine is widely used in highway engineering laboratories, research institutions, and quality control departments.
Manufactured for long-term reliability, the AZA0984 complies with ASTM D3319 and BS 812 (Part 114) standards.
Key Features
- Tests polished stone value (PSV) of road aggregates
- Conforms to ASTM D3319 and BS 812 Part 114
- Heavy-duty rotating disc with abrasive feed system
- Integrated water spray system to simulate wet road conditions
- Powder-coated steel body for corrosion resistance
Description
Purpose & Importance
The polishing of aggregates directly affects road surface friction. Aggregates with low PSV become smooth quickly, increasing the risk of skidding and accidents, especially on highways, curves, and wet surfaces.
The AZA0984 helps engineers select safer, high-friction aggregates before construction.
Working Principle
Aggregate specimens are mounted on a rotating disc. A set of rubber polishing wheels, along with silicon carbide abrasive and a controlled water spray, act on the surface to simulate long-term traffic wear.
After polishing, the samples are tested using a skid resistance tester to determine their PSV.
Applications
-
Highway and expressway material testing
-
Road safety and skid resistance studies
-
Research laboratories and universities
-
Airport runway and bridge projects
-
Government and private QC laboratories
Technical Specifications
| Parameter | Details |
|---|---|
| Model No. | AZA0984 |
| Compliance | ASTM D3319, BS 812 Part 114 |
| Sample Capacity | Up to 14 specimens |
| Rotation Speed | 320 ±10 rpm |
| Abrasive System | Silicon carbide with water feed |
| Power Supply | 220V, 50Hz, Single Phase |
| Body Material | Powder-coated steel |
| Dimensions | Approx. 1200 × 700 × 950 mm |
| Weight | Approx. 150–180 kg |
FAQ
Q1: What is this machine used for?
It is used to determine the Polished Stone Value (PSV) of aggregates.
Q2: Why is PSV important?
It indicates how slippery an aggregate becomes after traffic wear.
Q3: Is this for field use?
No, it is designed for controlled laboratory use.
Q4: Does it include abrasive and water system?
Yes, both systems are integrated.
Q5: Does it comply with international standards?
Yes, it complies with ASTM and BS standards.
Related products
FLAKINESS SIEVE SET AZA0973
The AZA0973 Flakiness Sieve Set is a laboratory-grade testing instrument designed to determine the flakiness index of coarse aggregates. It is an essential tool for evaluating aggregate particle shape, helping ensure strength, durability, and performance of concrete and road construction materials. This system is manufactured for full compliance with IS 2386 (Part I) and is widely used in civil engineering laboratories and construction quality control sites.
Key Features
-
Used for determining flakiness index of coarse aggregates
-
Fully compliant with IS 2386 (Part I) standards
-
Precision-machined slotted gauges for multiple aggregate sizes
-
Heavy-duty stainless steel / powder-coated steel construction
-
Corrosion-resistant, long service life
-
Portable and easy to use in lab and field environments
INDEX APPARATUS (FLOW COEFFICIENT OF FINE AGGREGATES) AZA0975
The AZA0975 Flow Coefficient Index Apparatus is a precision laboratory instrument designed to measure the flow coefficient of fine aggregates, such as natural sand and crushed sand. This test helps evaluate workability, particle shape, and grading, which are critical factors in concrete and mortar mix performance. The apparatus is manufactured in compliance with IS 2386 (Part I) and is widely used in civil engineering laboratories and construction quality control departments.
Key Features
-
Measures flow coefficient of fine aggregates
-
Fully compliant with IS 2386 (Part I)
-
Evaluates workability and particle shape characteristics
-
Supplied as a complete set: funnel, stand, cylinder, and base plate
-
Precision-machined components for consistent results
-
Corrosion-resistant, durable construction
-
Easy manual operation for laboratory and field use
JAW CRUSHER AZA0990
Key Applications
- Crushing of rocks, minerals & hard aggregates
- Soil and geotechnical laboratories
- Cement plants and construction R&D labs
- Pre-processing for pulverisers and sieve shakers
- Mining and metallurgical laboratories
Laboratory Pulveriser AZA0991
Key Applications
- Cement laboratories – clinker & cement grinding
- Soil and geotechnical labs – fine soil preparation
- Mining & metallurgy – ore and mineral pulverizing
- Construction material testing – mortar & concrete sample prep
- Agricultural and environmental labs
LENGTH GAUGE AZA0971
The AZA0971 Length Gauge is a precision construction materials testing instrument designed to determine the elongation index of coarse aggregates. It is an essential tool for evaluating particle shape characteristics, which directly influence the strength, durability, and workability of concrete and asphalt mixes. The gauge is manufactured to strict quality standards, ensuring reliable and repeatable results in laboratory and field environments.
Key Features
-
Designed for determining elongated particles in coarse aggregates
-
Essential for concrete, bituminous, and road material analysis
-
Precision metal frame with standard machined slot dimensions
-
Heavy-duty, corrosion-resistant construction
-
Accurate performance as per international and national standards

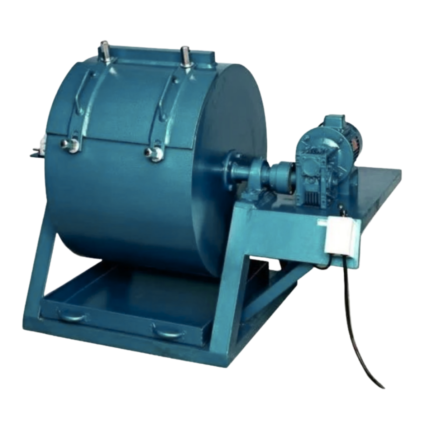

LOS ANGELES ABRASION TESTING MACHINE AZA0986
Key Functions
- Tests abrasion resistance of coarse aggregates
- Evaluates impact strength under repeated load cycles
- Ensures material suitability for roads, highways, and structural concrete
- Provides accurate, repeatable test results for quality control
THICKNESS GAUGE AZA0970
The AZA0970 Thickness Gauge is a precision measuring instrument designed for accurate thickness measurement of coatings, films, metals, plastics, rubbers, and painted surfaces. Engineered for laboratory and industrial applications, this compact and reliable device ensures consistent quality control, compliance with standards, and improved material performance across multiple industries.
Key Features
-
High-precision thickness measurement for laboratory and field use
-
Suitable for metals, films, plastics, rubber, and paint coatings
-
Available in analog dial and digital LCD display models
-
Lightweight, compact, and portable design
-
Fast response time with stable, repeatable readings
-
Easy zeroing and calibration mechanism
