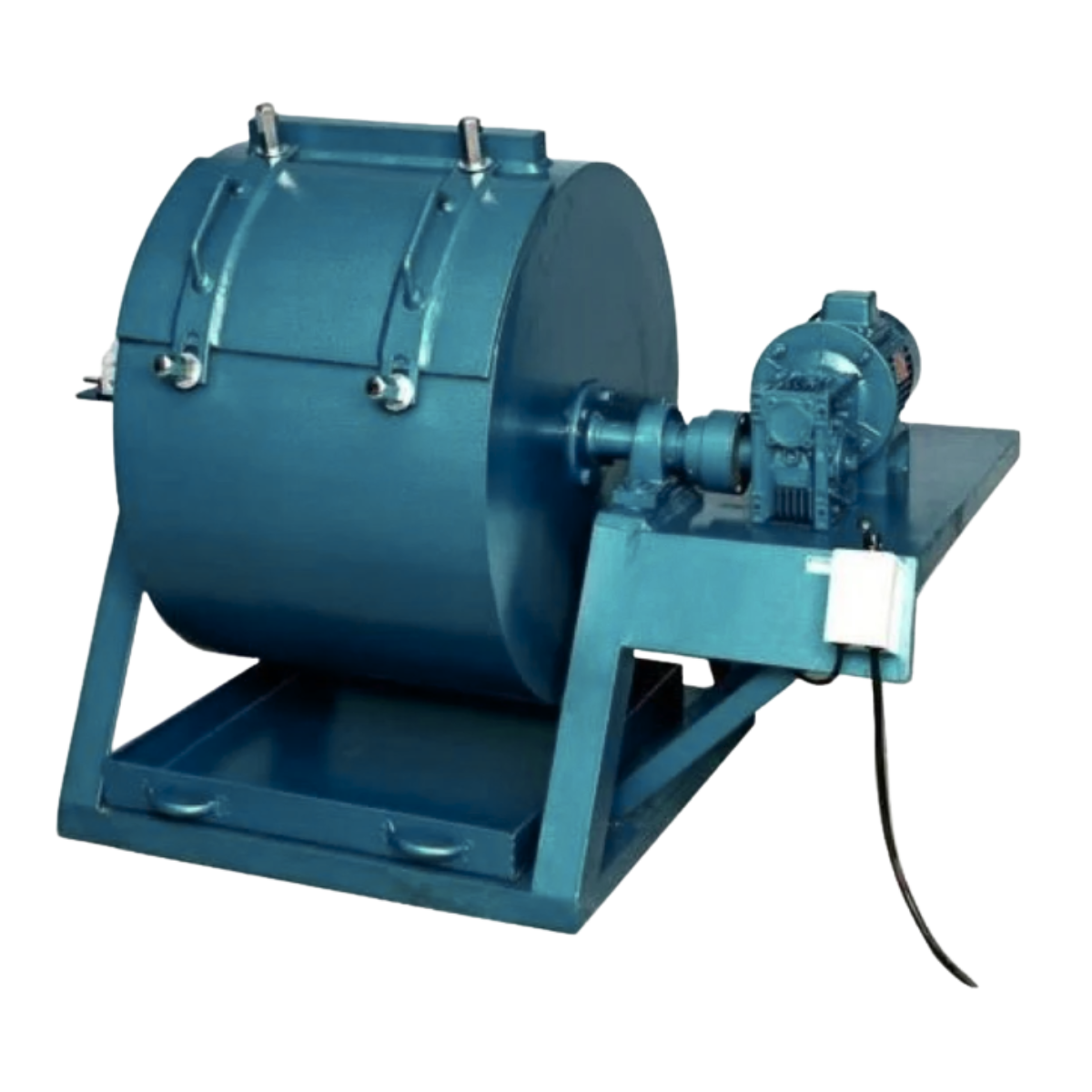

LOS ANGELES ABRASION TESTING MACHINE AZA0986
The AZA0986 Los Angeles Abrasion Testing Machine is a heavy-duty laboratory instrument designed to evaluate the abrasion and impact resistance of aggregates used in roadworks, concrete, and asphalt applications. The machine accurately simulates the mechanical wear aggregates experience under traffic loads, ensuring material durability and compliance with international construction standards.
Key Functions
- Tests abrasion resistance of coarse aggregates
- Evaluates impact strength under repeated load cycles
- Ensures material suitability for roads, highways, and structural concrete
- Provides accurate, repeatable test results for quality control
Description
Standards Compliance
-
IS 2386 (Part IV)
-
ASTM C131
-
AASHTO T-96
Construction & Design
-
Heavy-duty hollow steel drum mounted on a rigid steel frame
-
Drum size as per standards: 711 mm diameter × 508 mm length
-
Internal detachable shelf for lifting and dropping aggregates
-
Dust-sealed cover with locking mechanism
-
Smooth operation via ball-bearing supported shaft
Working Principle
The aggregate sample and the abrasive charge (steel balls) are placed inside the rotating drum. As the drum revolves, the internal shelf lifts and drops the materials repeatedly. The combined impact and abrasion simulate field conditions. After the specified revolutions, the material is sieved and the percentage wear is calculated.
Motor & Drive System
-
Powerful electric motor with heavy reduction gearbox
-
Controlled drum speed: 30–33 RPM
-
Built-in revolution counter for accurate cycle tracking
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0986 |
| Drum Diameter | 711 mm (28 in) |
| Drum Length | 508 mm (20 in) |
| Drum Speed | 30–33 RPM |
| Motor Type | Electric motor with reduction gear |
| Revolution Counter | Yes (fitted) |
| Abrasive Charge | 12 steel balls, ~48 mm dia |
| Power Supply | 440V, 3 Phase, 50Hz AC |
| Standards | IS 2386 (Part IV), ASTM C131, AASHTO T-96 |
Applications
-
Highway & road construction laboratories
-
Concrete and asphalt mix design testing
-
Research and development institutes
-
Government quality control labs
FAQ
Q1: What does the machine measure?
It measures the abrasion and impact resistance of aggregates.
Q2: Does it include steel balls?
Yes, the standard set of 12 hardened steel balls is included.
Q3: Is it suitable for continuous laboratory use?
Yes, it is designed for heavy-duty, long-term operation.
Q4: What type of power is required?
It operates on 440V, 3-phase, 50Hz AC supply.
Q5: Can it be used for international projects?
Yes, it complies with IS, ASTM, and AASHTO standards.
