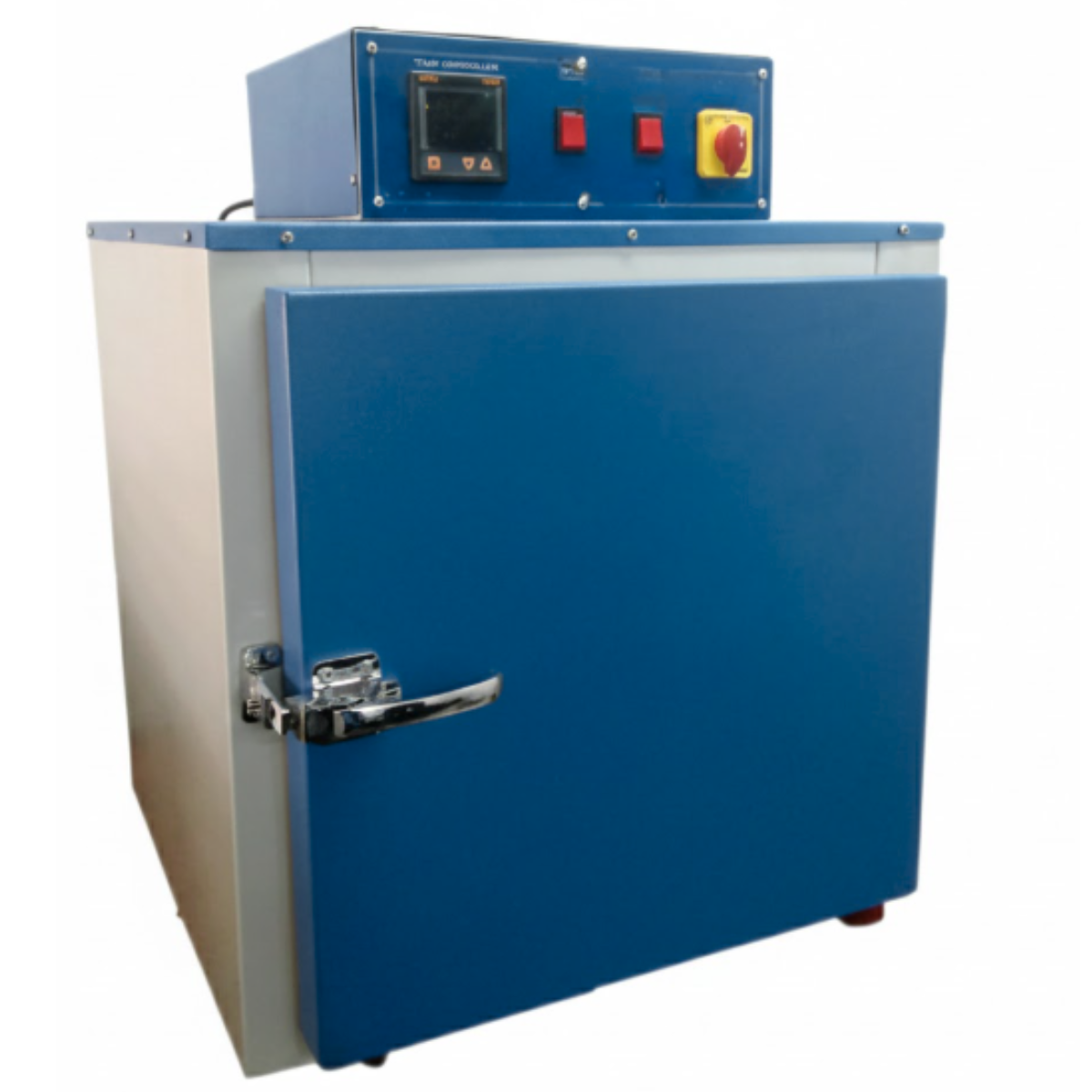

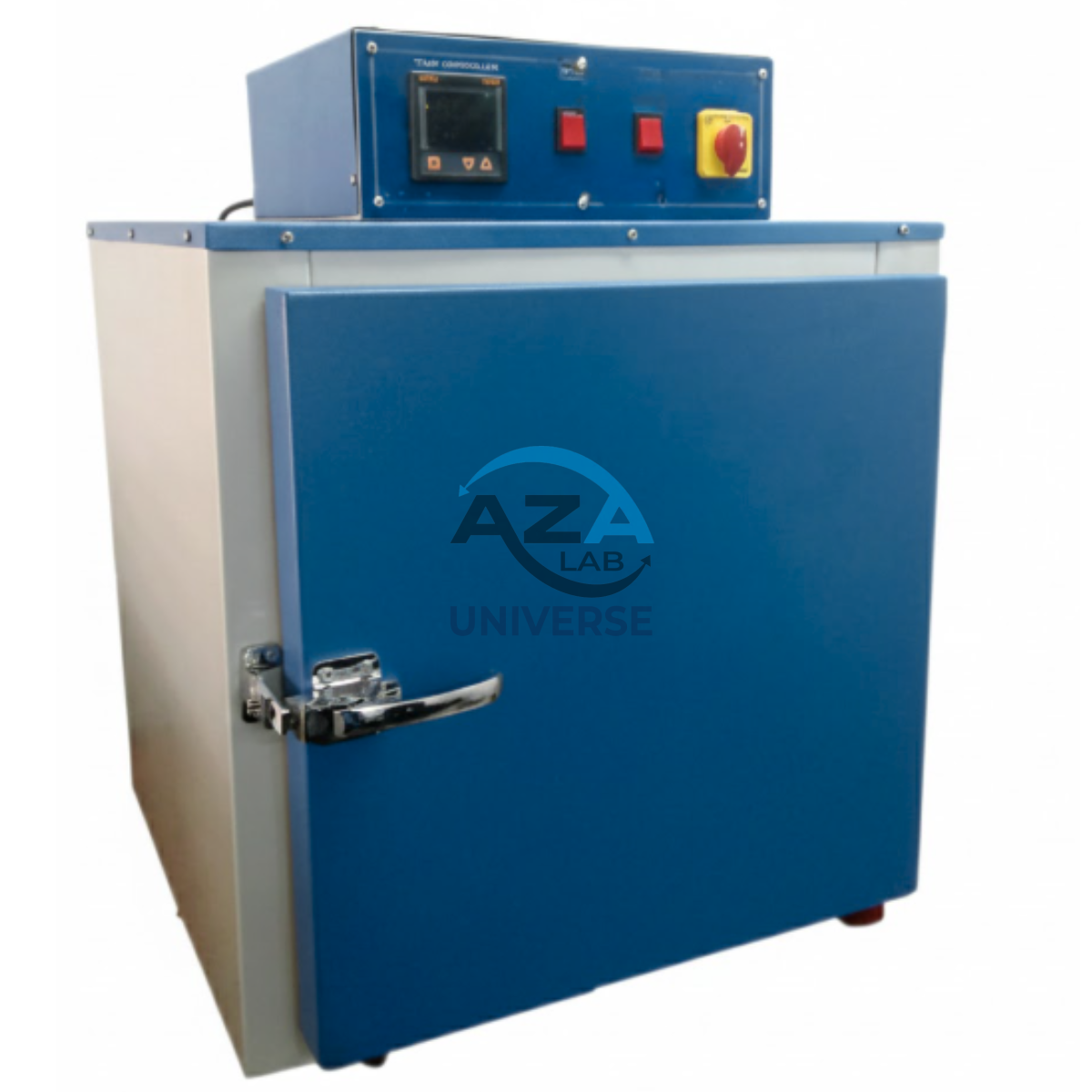

LABORATORY OVEN AZA1057
The AZA1057 Durable Laboratory Oven from AZALAB is a robust and reliable heating solution designed for drying, heating, sterilization, curing, and sample conditioning across a wide range of laboratory and industrial applications. Built with a double-walled construction and efficient insulation, this oven delivers consistent temperature performance with minimal heat loss and high energy efficiency.
The AZA1057 is widely used in geotechnical, medical, pharmaceutical, chemical, food, educational, and R&D laboratories, where dependable and uniform heating is essential.
Description
Key Features & Construction
-
Double-Walled Cabinet Design
Heavy-duty outer body with an insulated inner chamber ensures safety, durability, and thermal stability during continuous operation. -
High-Quality Inner Chamber
Available in Stainless Steel or Aluminum, suitable for handling chemicals, moisture, and elevated temperatures. -
Efficient Thermal Insulation
60–75 mm thick glass wool insulation between walls minimizes heat loss and improves energy efficiency. -
Uniform Heating System
Equipped with Kanthal resistance wire heaters, mounted on all sides of the chamber to ensure uniform heat distribution. -
Accurate Temperature Control
Fitted with a hydraulic capillary thermostat for precise and reliable temperature regulation over extended operating periods. -
Temperature Monitoring
Front-mounted L-shaped thermometer allows clear and convenient temperature reading. -
Flexible Sample Handling
Supplied with adjustable trays (steel / aluminum / wire mesh) for accommodating different sample types and sizes. -
Heavy-Duty Door Assembly
Chrome-plated, robust hinges ensure smooth operation and long service life. -
User-Friendly Operation
Includes two pilot lamps for power/heater status indication and standard plug pins for easy electrical connection.
Applications
-
Soil and aggregate drying (geotechnical and civil labs)
-
Sterilization of glassware and instruments (medical and biotech labs)
-
Moisture content testing of construction materials
-
Food, chemical, and pharmaceutical processing
-
Research, testing, and educational laboratory use
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1057 |
| Type | Durable Laboratory Oven – Dual Wall Heating |
| Inner Chamber Material | Stainless Steel or Aluminum |
| Construction | Double-walled cabinet |
| Insulation | 60–75 mm glass wool |
| Temperature Control | Hydraulic capillary thermostat |
| Temperature Display | Front-mounted L-shaped thermometer |
| Heating Elements | Kanthal resistance wire heaters (side-mounted) |
| Trays | Adjustable steel / aluminum / wire mesh |
| Door Fittings | Chrome-plated heavy-duty hinges |
| Power Indicators | Two pilot lamps + plug pins |
| Voltage Supply | 230 V AC, 50 Hz |
| Standard Capacities | 30 L, 60 L, 90 L, 120 L, 200 L |
| Maximum Temperature | Up to 250°C (model dependent) |
What’s Included
-
1 × AZA1057 Laboratory Oven
-
2–4 × Adjustable trays (capacity dependent)
-
1 × Power cable with plug pins
-
1 × User manual
-
Optional: Calibration certificate, additional spare trays
Advantages
-
Uniform heating from all sides
-
Energy-efficient insulated design
-
Rugged construction for long service life
-
Suitable for continuous laboratory operation
-
Wide range of capacities and applications
Frequently Asked Questions (FAQ)
Q1: What is the maximum operating temperature of AZA1057?
Typically up to 250°C, depending on the chamber material and model size.
Q2: What type of heating elements are used?
High-grade Kanthal resistance wire heaters, mounted on all sides for even heat distribution.
Q3: Is the oven properly insulated?
Yes, it features 60–75 mm thick glass wool insulation between the double walls.
Q4: How is temperature controlled?
Temperature is regulated using a hydraulic capillary thermostat with a front thermometer display.
Q5: Is AZA1057 suitable for soil and material testing?
Yes, it is extensively used for soil, aggregate, and material drying in geotechnical and construction labs.
The AZA1057 Durable Laboratory Oven is a dependable, energy-efficient, and versatile heating solution designed to meet the rigorous demands of modern laboratories. Its uniform heating, precise control, and sturdy construction make it an excellent choice for drying, sterilization, and material testing applications.
