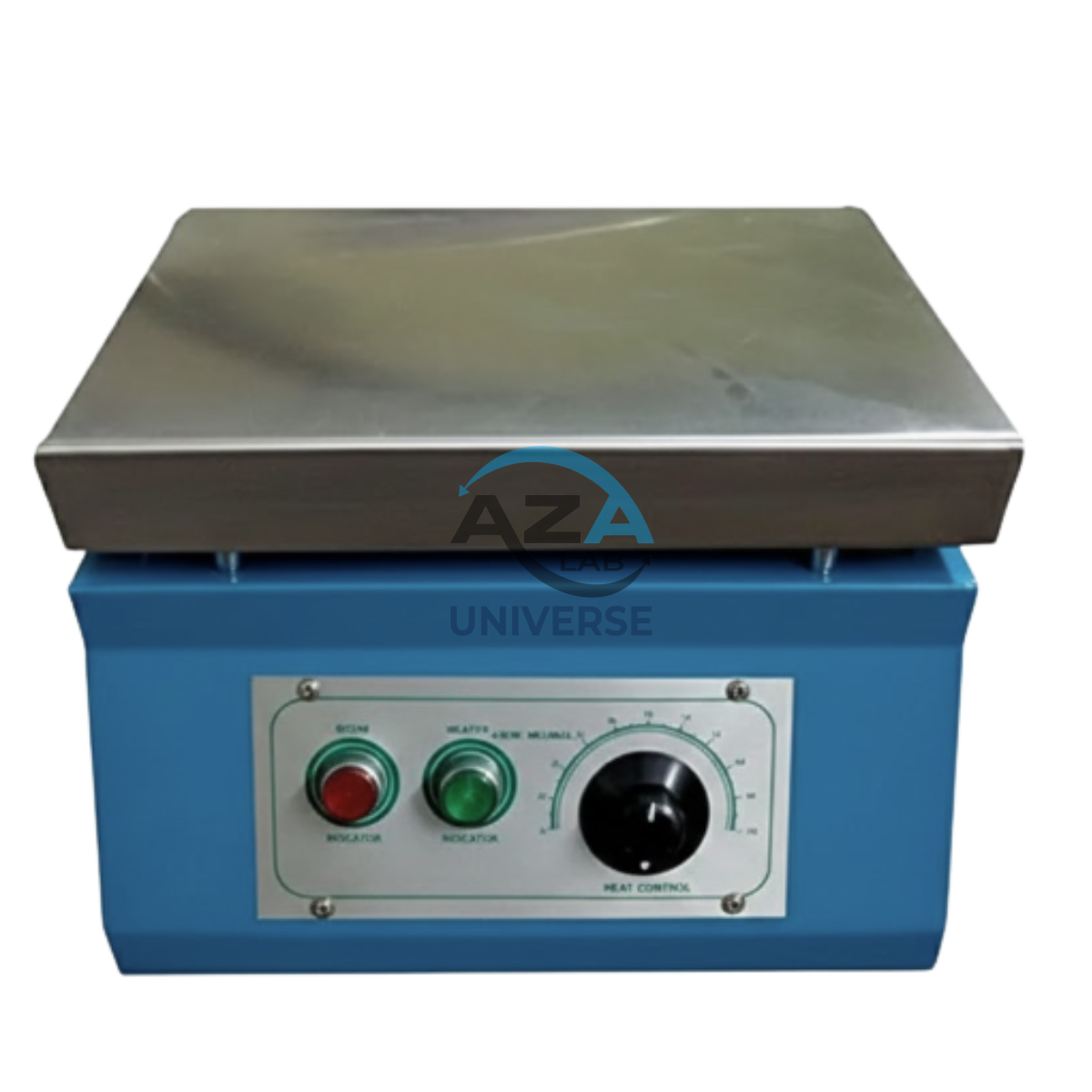

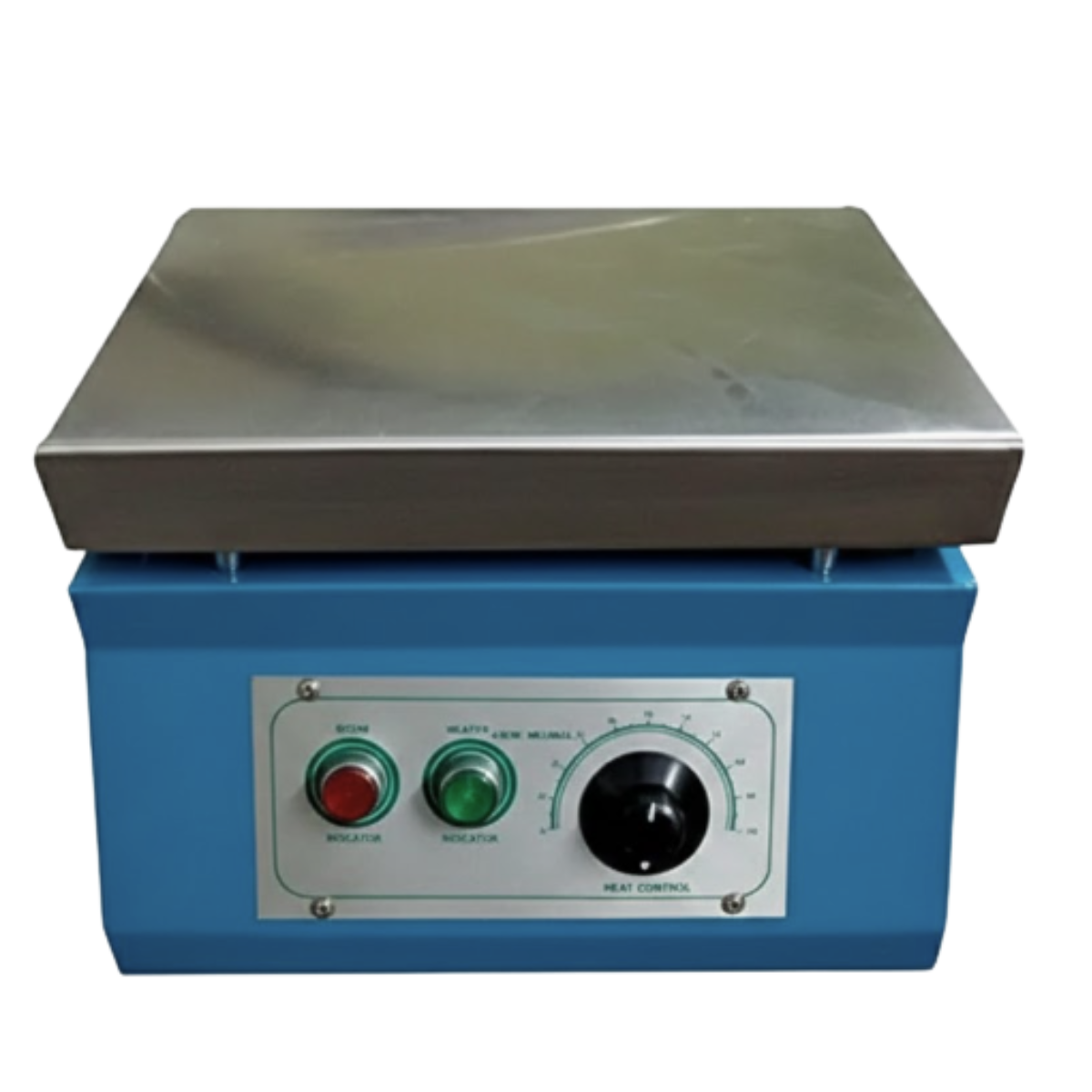

HOT PLATE (RECTANGULAR) AZA1060
The AZA1060 Rectangular Hot Plate from AZALAB is a robust, high-performance heating solution engineered for laboratories and industrial environments requiring uniform, continuous heating up to 300°C. Designed for durability and consistent thermal performance, the AZA1060 is suitable for academic, research, quality control, and industrial testing laboratories.
The unit features a powder-coated mild steel body with stove paint finish and a heavy-duty cast iron heating top with heat-resistant coating, ensuring efficient heat transfer and long operational life. The rectangular design provides a larger usable heating area, making the AZA1060 ideal for heating multiple vessels or larger glassware simultaneously.
Uniform heating is achieved through side-fitted high-grade heating elements, ensuring consistent temperature distribution across the plate surface. Temperature regulation is available via capillary thermostat or energy regulator, depending on application requirements. All size variants operate at a rated power of 1.5 kW, ensuring reliable and stable performance.
Description
Applications
-
Drying and boiling laboratory samples
-
Heating chemical solutions and glassware
-
Soil testing and construction material laboratories
-
Quality control (QC) and R&D laboratories
-
Continuous heat source for industrial testing setups
-
Suitable for biotech, pharmaceutical, educational, and industrial labs
Technical Specifications
Model: AZA1060 Rectangular Hot Plate
| Model Variant | Hot Plate Size (mm) | Approx. Size (inches) | Power Rating |
|---|---|---|---|
| AZA1060-A | 250 × 300 × 150 | 10″ × 12″ | 1.5 kW |
| AZA1060-B | 400 × 250 × 150 | 16″ × 10″ | 1.5 kW |
| AZA1060-C | 450 × 300 × 150 | 18″ × 12″ | 1.5 kW |
| AZA1060-D | 450 × 600 × 150 | 18″ × 24″ | 1.5 kW |
Heating Surface: Cast iron with heat-resistant coating
Body Material: Powder-coated mild steel (stove paint finish)
Temperature Range: Ambient to 300°C (continuous operation)
Control Options: Thermostat or Energy Regulator
Heating Type: Side-fitted high-grade heaters
Power Supply: 230V AC, 50 Hz, Single Phase
Frequently Asked Questions (FAQ)
Q1: What is the maximum operating temperature?
The AZA1060 supports continuous heating up to 300°C.
Q2: What material is the heating surface made of?
A heavy-duty cast iron plate with heat-resistant coating for long service life.
Q3: Is precise temperature control available?
Yes. The unit can be supplied with either a capillary thermostat or an energy regulator, based on user preference.
Q4: What power supply is required?
Standard 230V AC, single-phase, 50 Hz supply.
Q5: Can multiple beakers or vessels be heated simultaneously?
Yes. Larger variants, especially the 18″ × 24″ model, are well-suited for heating multiple vessels at once.
