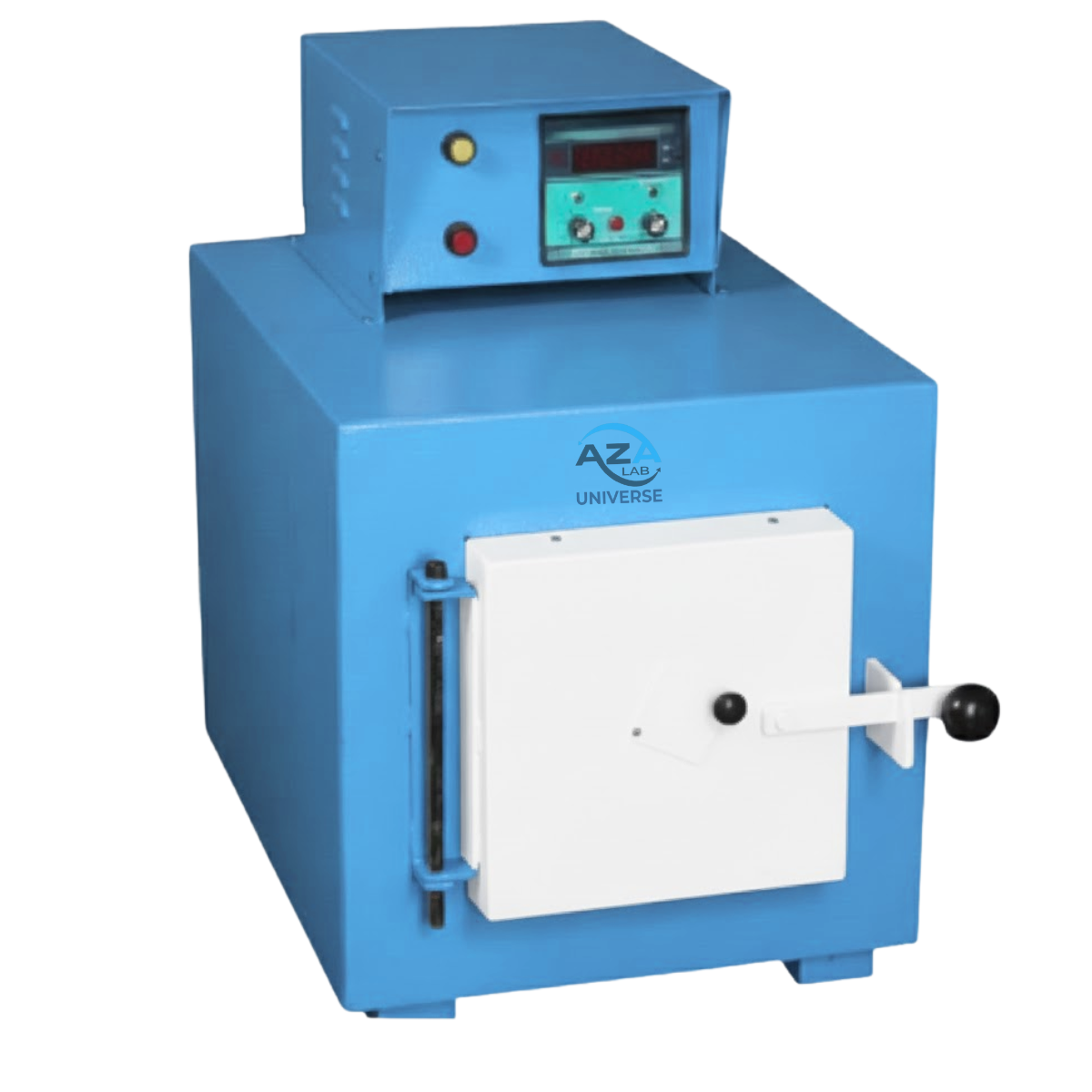

MUFFLE FURNACE AZA1066

Description

High-Performance Heating & Insulation Design

The AZA1066 features a rectangular muffle chamber lined with high-temperature ceramic fiber wool insulation, which offers a modern and efficient alternative to conventional fire brick insulation. This advanced insulation ensures:

• Faster heat-up times

• Excellent heat retention

• Reduced power consumption

• Lightweight construction with enhanced safety

The muffle chamber is baked at high temperature during manufacturing to ensure dimensional stability and long-term performance under repeated thermal cycling.

Robust Outer Construction

The outer body of the AZA1066 is constructed from double-walled thick P.C.R.C. sheets, providing strength and thermal isolation from the internal chamber. The bottom section is reinforced with perforated shielding, allowing effective ventilation while improving structural integrity.

The exterior is finished with stove enamel or durable powder coating, offering resistance to corrosion, heat exposure, and laboratory chemicals, thereby extending the service life of the furnace.

Reliable Heating Elements & Power Regulation

Heating is achieved using Kanthal A-1 wire elements, uniformly wound and securely embedded within the chamber walls. These elements are supported by ceramic backing insulation, minimizing heat loss and ensuring consistent temperature distribution.

The standard configuration is equipped with a manual energy regulator featuring a 0–100 scale dial. This regulator controls the electrical current supplied to the furnace, allowing the operator to adjust heating intensity. While the dial does not display temperature directly, it enables smooth and stable power regulation.

Pilot indicator lamps provide clear visual confirmation of power and heating status during operation.

Standard Accessories Included

The AZA1066 is supplied as a complete, ready-to-use system, including:

• Pyrometer

• Thermocouple

• Thermal fuse

• Lever

• Main power lead with plug

The unit operates on 230V AC, single phase, making it compatible with standard laboratory and industrial electrical infrastructure.

Optional Control Upgrades

To meet higher precision or compliance requirements, the AZA1066 can be upgraded with advanced temperature control systems:

• Digital Temperature Controller – Replaces the analog energy regulator and pyrometer, providing real-time temperature display and improved control

• PID Temperature Controller – Enables highly accurate and stable temperature regulation with minimal deviation (available at additional cost)

Technical Specifications

Applications

• Ash Content & Loss-on-Ignition Testing

• Annealing & Sintering of Materials

• Calcination & Thermal Decomposition Studies

• Heat Treatment of Metals & Ceramics

• Research & Educational Laboratory Experiments

Key Advantages

• Maximum temperature up to 950°C

• High-efficiency ceramic wool insulation

• Kanthal A-1 heating elements for long service life

• Compact, lightweight, and energy-efficient design

• Manual energy regulator with clear pilot indication

• Optional digital and PID control upgrades

• Supplied complete with essential accessories

Frequently Asked Questions (FAQ)

Q1: What is the difference between the energy regulator and a digital controller?
The energy regulator controls current flow without indicating actual temperature. A digital controller provides precise temperature display and automatic regulation.

Q2: Can the furnace be upgraded to PID control later?
Yes. The AZA1066 is compatible with PID controller upgrades at additional cost.

Q3: Is ceramic fiber insulation better than brick insulation?
Yes. Ceramic fiber offers superior thermal efficiency, faster heating, reduced weight, and improved safety.

Q4: What temperature accuracy can be achieved?
With a digital or PID controller, temperature accuracy is typically within ±1°C.

Q5: Is this furnace suitable for ash testing?
Yes. The AZA1066 is ideal for ash content determination, ignition loss testing, and similar high-temperature laboratory applications.

Product Highlights

• Max temperature: 950°C | Working temperature: 900°C

• Kanthal A-1 wire heating with ceramic wool insulation

• Double-walled powder-coated steel construction

• Energy regulator dial with pilot lamps and pyrometer

• Optional digital or PID temperature control

• Delivered complete with thermocouple, lever, fuse, and power plug

Model: AZA1066
