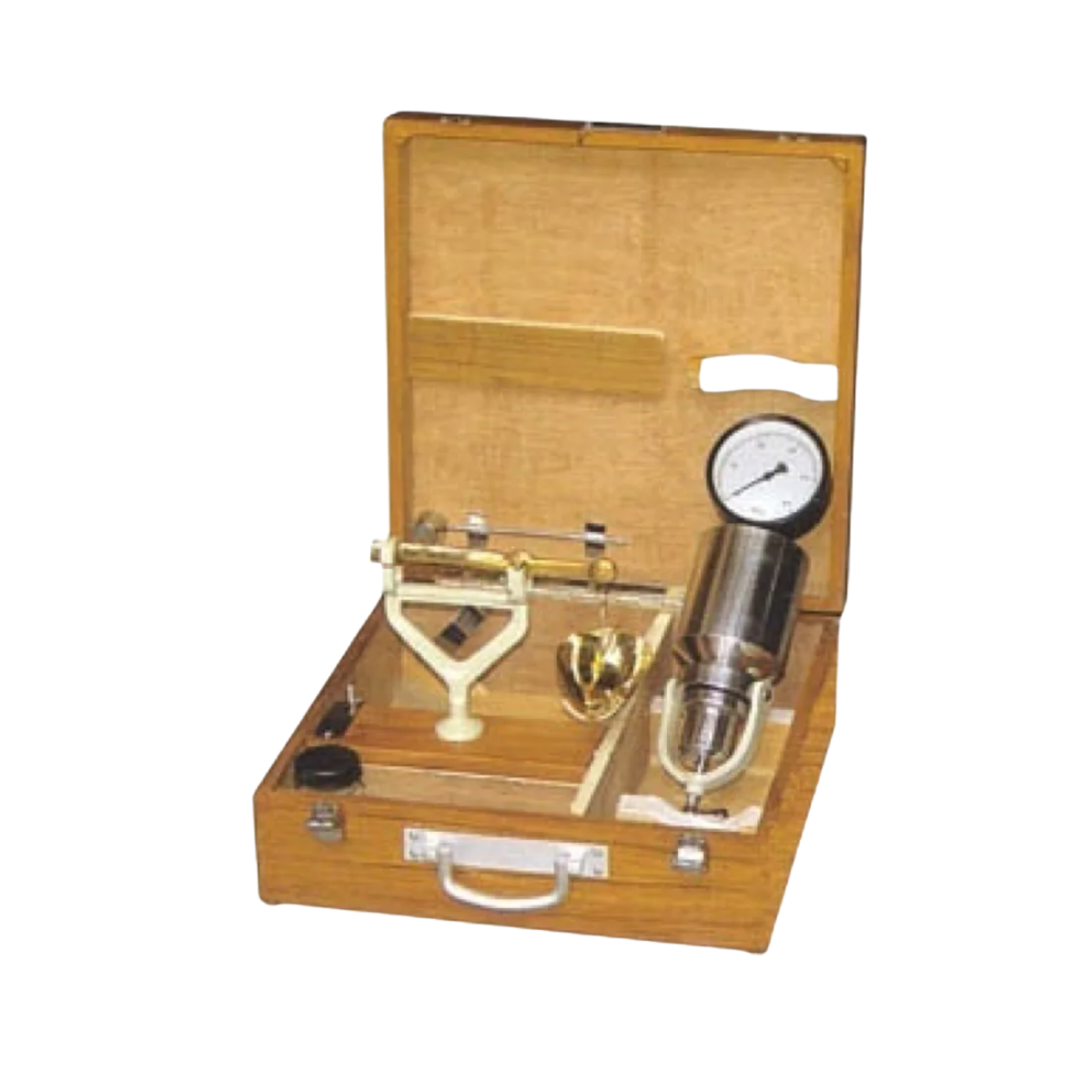

SPEEDY MOISTURE ZI 3027 METER (D2 LARGE) AZA0873 - Image 1
Click to enlarge
Dynamic Cone Penetrometer AZA 0872 - In-Situ Soil Strength Test
DYNAMIC CONE PENETROMETER AZA0872
Back to products
Rapid Moisture Meter AZA 0874 - Calcium Carbide Soil Moisture Tester
RAPID MOISTURE METER AZA0874

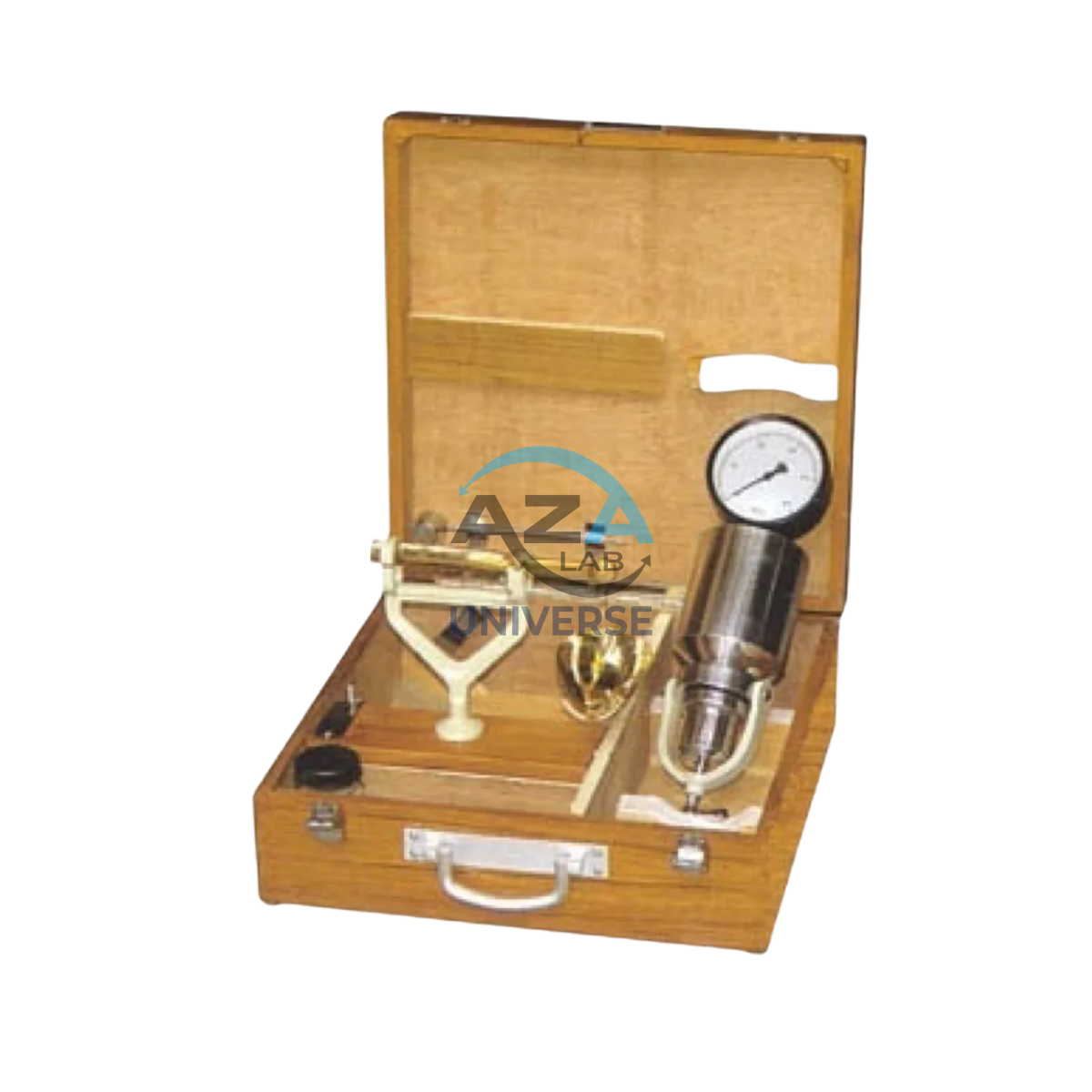

SPEEDY MOISTURE ZI 3027 METER (D2 LARGE) AZA0873

The AZA0873 Speedy Moisture ZI 3027 Meter (D2 Large) from Azalab is a high-performance field instrument designed for rapid and accurate determination of moisture content in soils, aggregates, sand, and similar materials. Based on the proven calcium carbide gas pressure method, this instrument is widely used in earthwork compaction control, road construction, geotechnical investigations, and concrete production, where immediate moisture data is critical for quality assurance.

The D2 Large configuration distinguishes the AZA0873 by allowing a larger sample size, providing more representative and reliable results, especially for heterogeneous materials and aggregates with larger particle sizes. Its rugged ZI 3027 construction ensures dependable performance under demanding site conditions.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Principle of Operation

The AZA0873 operates on the calcium carbide reaction principle. When moisture present in the test sample reacts with calcium carbide (CaC₂) inside a sealed pressure vessel, acetylene gas (C₂H₂) is generated. The pressure produced is directly proportional to the moisture content of the sample.

A precision-calibrated pressure gauge, integrated into the vessel, directly indicates the moisture content as a percentage. The test is fully self-contained and does not require any external power source, making it ideal for remote and on-site applications.

Key Features

  • Rapid, on-site moisture content determination
  • Calcium carbide gas pressure method
  • D2 Large capacity for larger, more representative samples
  • Direct moisture percentage readout on calibrated gauge
  • No electricity or external power required
  • Robust ZI 3027 frame for intensive field use
  • Quick results enabling real-time decision-making

Applications

  • Earthwork and embankment compaction control
  • Road and pavement construction quality checks
  • Aggregate and sand moisture assessment
  • Concrete mix moisture control
  • General geotechnical and construction field testing

Technical Specifications

Model Number: AZA0873 (ZI 3027)
Apparatus Type: Speedy Moisture Meter – D2 Large
Measurement Principle: Calcium Carbide Gas Pressure Method
Test Type: Field / On-site testing

Moisture Content Range:

  • Typically 0–20% or up to 0–50% (depending on D2 Large gauge calibration)

Sample Size (Capacity):

  • Large capacity sample, typically 20 g or 26 g

Accuracy:

  • Approx. ±0.2% at low moisture levels
  • Approx. ±0.5% at higher moisture levels

Main Components:

  • Airtight pressure vessel (heavy-duty aluminum alloy)
  • Precision pressure gauge calibrated in % moisture (D2 Large scale)
  • Secure sealing clamp
  • Portable digital weighing balance (0.01 g readability)
  • Chrome steel mixing balls
  • Measuring scoop and cleaning brush

Reagent:

  • Calcium carbide powder (supplied separately)

Power Requirement:

  • None (self-contained chemical reaction)

Portability:

  • Supplied in a sturdy carrying case for field use

Compliance:

  • Designed in accordance with ASTM D4944
  • IS 2720 (Part 2) – equivalent principles

Construction:

  • Durable ZI 3027 frame suitable for harsh site conditions

Operating Procedure (Summary)

  1. Weigh the required sample (20 g or 26 g).
  2. Place the sample, steel balls, and calcium carbide into the vessel.
  3. Seal the vessel securely using the clamp.
  4. Shake vigorously to initiate the reaction.
  5. Read the moisture percentage directly from the gauge within a few minutes.

Frequently Asked Questions (FAQ)

Q1: What is the primary use of AZA0873?
It is used for rapid, accurate field determination of moisture content in soils, aggregates, and granular materials.

Q2: What does “D2 Large” mean?
It indicates a larger sample capacity compared to standard Speedy meters, improving result reliability for coarse or heterogeneous materials.

Q3: How quickly are results obtained?
Results are typically available within 5–10 minutes.

Q4: Does AZA0873 require electricity or batteries?
No. The instrument is fully mechanical and chemical-reaction based.

Q5: Which standards does AZA0873 follow?
It conforms to the principles of ASTM D4944 and IS 2720 (Part 2).

Additional information

Additional information

Model Number

AZA 0873 (ZI 3027)
Apparatus Type

Speedy Moisture Meter (D2 Large Capacity)
Measurement Principle

Calcium Carbide Gas Pressure Method
Test Type

Field Testing / On-site measurement.
Scoop & Brush

For measuring calcium carbide and cleaning.
Carbide Reagent

Calcium carbide powder (supplied separately).

Related products

GRAIN SIZE ANALYSIS (PIPETTE METHOD) AZA0856

The AZA0856 Grain Size Analysis (Pipette Method) Apparatus from AZA Lab is a precision testing setup used for determining the distribution of fine soil particles such as silt and clay. It is widely used in geotechnical engineering, civil construction quality control, soil mechanics research, and academic laboratories, particularly where conventional sieve analysis is ineffective for particles finer than 75 microns. This apparatus is designed for the mechanical analysis of sub-sieve soil particles, expressing quantitatively the proportion by weight of various particle sizes present in a soil sample. The pipette method, based on sedimentation principles and Stokes’ Law, provides accurate and repeatable results for fine-grained soils. The system consists of a sliding vertical panel operated by a precision screw mechanism, allowing an Anderson pipette to be raised or lowered accurately. A sedimentation tube is held securely below the pipette using a laboratory clamp. The depth of immersion is measured using a millimeter-graduated scale mounted alongside the sliding panel. The apparatus is supplied complete with a 10 ml Anderson pipette, a 500 ml glass sedimentation tube, and test form pads, conforming to standard laboratory practices.
Read more
Quick view

LINEAR SHRINKAGE MOULD AZA0850

The AZA0850 Precision Linear Shrinkage Mould from AZALAB is a compact and highly accurate laboratory instrument designed for determining the linear shrinkage of fine-grained cohesive soils in accordance with BS 1377-2. This test is a key component of soil classification and is especially important in identifying shrink–swell behavior of clays and expansive soils.

Linear shrinkage testing measures the reduction in length of a soil specimen upon drying, expressed as a percentage of its original length. The results provide valuable insight into soil expansiveness, volume stability, and suitability for foundations, pavements, and earthworks.

Manufactured from high-quality brass or stainless steel, the AZA0850 mould offers precise internal dimensions, excellent corrosion resistance, and a smooth polished finish for easy sample preparation and removal. Its robust construction ensures repeatable, reliable results even under high-frequency laboratory use.

Read more
Quick view

LIQUID LIMIT DEVICE WITH COUNTER AZA0853

The AZA0853 Liquid Limit Device with Counter from AZALAB is a precision-engineered instrument used for determining the liquid limit of soils in accordance with the Casagrande method. This test is a fundamental component of soil classification and geotechnical investigation, providing critical insight into the plasticity, compressibility, and shear strength of fine-grained soils.

Designed for reliable, repeatable, and standardized testing, the AZA0853 is widely used in geotechnical laboratories, civil engineering departments, construction quality control labs, and academic institutions.

Principle of Liquid Limit Test (Casagrande Method)

The liquid limit is defined as the water content at which soil transitions from a plastic state to a liquid state. In practice, it is determined as the moisture content at which a standard groove cut in the soil sample closes over a length of 12.5 mm under 25 blows of the liquid limit apparatus.

The AZA0853 consists of a polished brass cup mounted on an adjustable bracket. The cup is repeatedly raised and dropped from a fixed height of 1 cm onto a hard rubber base by means of a manually operated cam mechanism. A built-in mechanical counter accurately records the number of blows, ensuring compliance with testing standards and reducing operator error.

Read more
Quick view

PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD) AZA0857

AZA0857 – Particle Size Sedimentation Apparatus (Hydrometer Method) The AZA0857 Particle Size Sedimentation Apparatus (Hydrometer Method) from AZA Lab is designed for determining the particle size distribution of fine-grained soils, particularly silts and clays smaller than 75 microns. This method is widely adopted in soil mechanics, geotechnical engineering, civil construction quality control, and academic laboratories where accurate characterization of cohesive soils is essential. The hydrometer method is based on the sedimentation principle governed by Stokes’ Law, measuring changes in the density of a soil–water suspension over time. By recording hydrometer readings at defined intervals, the percentage of soil particles remaining in suspension is calculated, enabling precise determination of grain size distribution for fine soils beyond the practical limits of sieve analysis.
Read more
Quick view

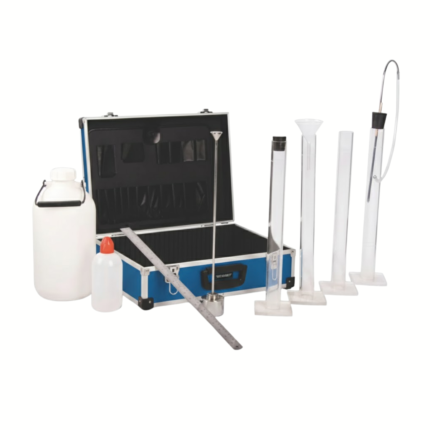

SAND EQUIVALENT TEST SET AZA0859
