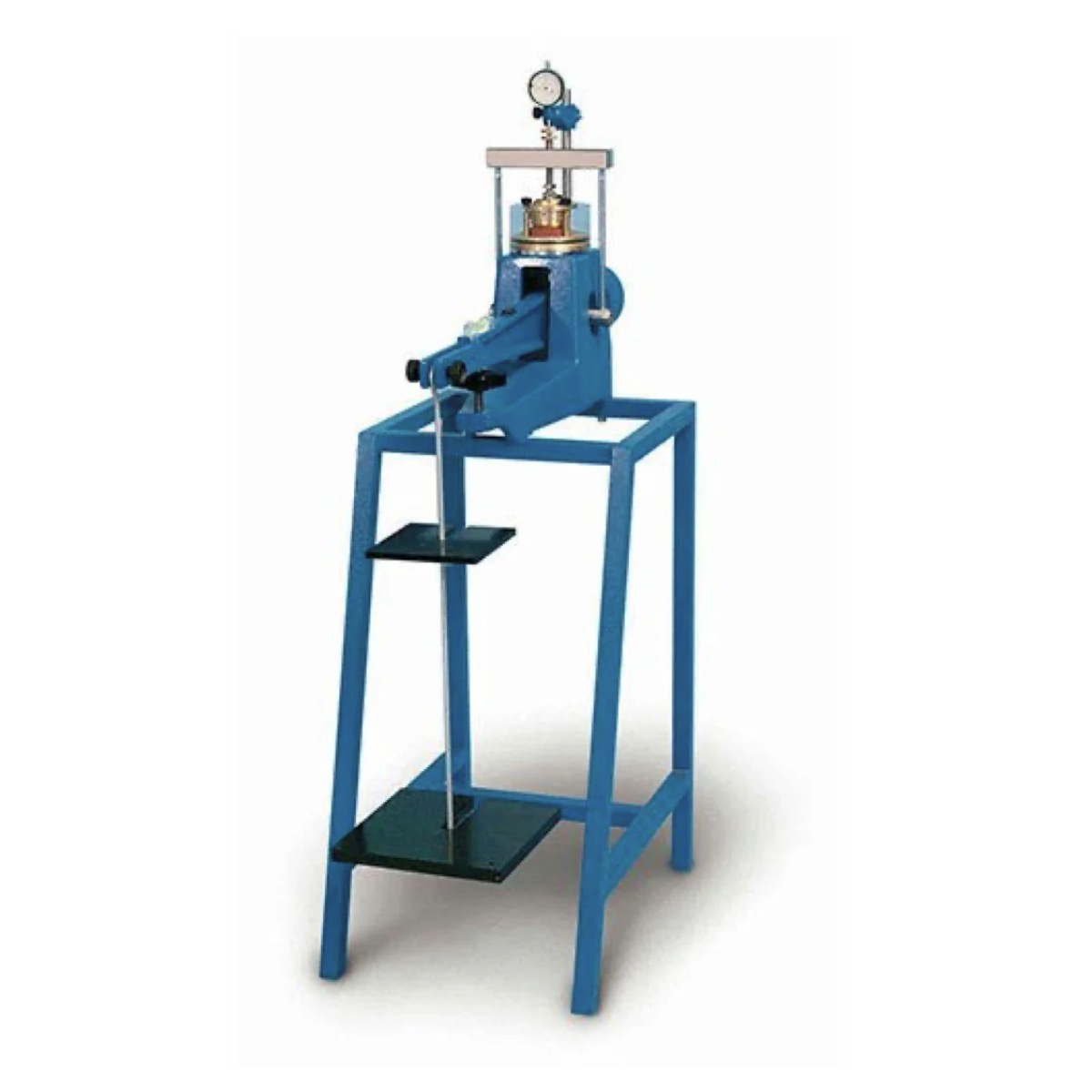

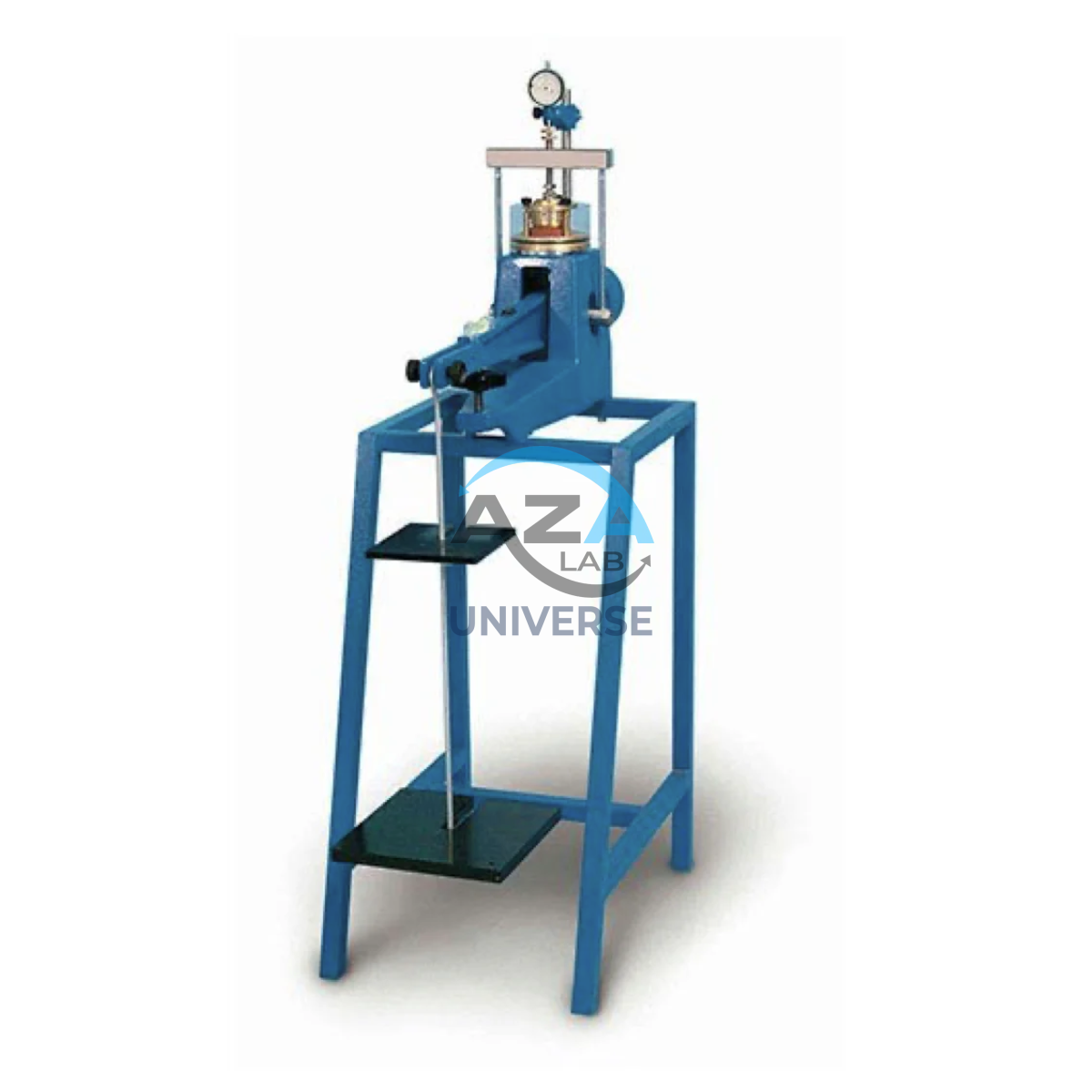

CONSOLIDATION APPARATUS (FRONT LOADING TYPE) AZA0896

The AZA0896 Front Loading Consolidation Apparatus is a precision-engineered instrument designed for geotechnical laboratories performing one-dimensional soil consolidation tests. Its front loading configuration offers superior ergonomics compared to conventional top-loading systems, allowing easy placement and removal of consolidation cells while reducing operator fatigue and handling errors.

This apparatus is used to determine soil compressibility and settlement characteristics, which are critical parameters in the design of foundations, embankments, retaining structures, and other civil engineering works. The AZA0896 combines operational convenience with high measurement accuracy, making it suitable for both educational and professional testing laboratories.

Enquiry on WhatsApp
Category:
Description

Description

Purpose and Working Principle

In a consolidation (oedometer) test, a laterally confined, saturated soil specimen is subjected to incremental vertical loads. The resulting vertical deformation is measured over time as pore water dissipates. Using this data, engineers can determine:

  • Coefficient of consolidation (cᵥ)

  • Compression index (C𝑐)

  • Swelling index (C𝑠)

  • Preconsolidation pressure (p′𝑐)

These parameters are essential for predicting long-term settlement and assessing soil behavior under sustained loading.

Key Features

  • Front loading mechanism for easy and safe cell handling

  • Single-station configuration for focused, accurate testing

  • Dead-weight loading system with precision lever arm

  • Mechanical dial gauge for deformation measurement

  • Optional LVDT and digital data acquisition upgrade

  • Stable, rigid steel frame for vibration-free testing

  • Compatible with standard oedometer consolidation cells

Applications

  • Soil consolidation and compressibility studies

  • Settlement analysis for foundations and embankments

  • Geotechnical investigation and quality control

  • Academic teaching and research laboratories

  • Civil engineering design verification

Standards Compliance

Designed to comply with major international soil testing standards:

  • ASTM D2435 – One-Dimensional Consolidation Properties of Soils

  • BS 1377-5 – Compression and Swelling Tests

  • Compatible with IS soil testing standards

Technical Specifications

Parameter Specification
Model AZA0896
Test Type One-Dimensional Soil Consolidation (Oedometer)
Loading Type Front Loading
Configuration Single Station
Loading System Dead weights with lever arm
Load Ratio Typically 10:1 or 1:1
Consolidation Cell Sizes 50 mm, 63.5 mm, 75 mm diameter (standard)
Deformation Measurement Mechanical dial gauge (standard)
Dial Gauge Resolution 0.01 mm
Optional Upgrade LVDT with digital display & data logging
Maximum Load Capacity Typically up to 1000 kPa or higher
Construction Heavy-duty steel frame with precision components
Compliance ASTM D2435, BS 1377-5
Installation Benchtop
Stability High mass for stable load application

Why Choose Azalab’s AZA0896

  • Improved Ergonomics: Front loading design simplifies operation

  • Accurate Settlement Prediction: Reliable consolidation parameters

  • Upgradeable System: Supports digital measurement and automation

  • Laboratory-Grade Durability: Built for continuous professional use

  • User-Friendly: Ideal for both academic and commercial labs

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of the front loading design?
It allows easier placement and removal of consolidation cells, improving ergonomics and reducing handling time.

Q2: What tests are performed using AZA0896?
One-dimensional soil consolidation (oedometer) tests for settlement analysis.

Q3: Which soil parameters can be obtained?
Coefficient of consolidation, compression index, swelling index, and preconsolidation pressure.

Q4: Can this apparatus be automated?
Yes. It can be upgraded with LVDTs and digital data acquisition systems.

Q5: What soil types can be tested?
Cohesive soils such as clays and silts, both undisturbed and remoulded.

Q6: Is this suitable for educational use?
Yes. Its ergonomic design and clear operation make it ideal for teaching laboratories as well as commercial facilities.

AZA0896 – Ergonomic, Reliable, and Accurate Soil Consolidation Testing Solution

A trusted Azalab instrument delivering efficiency and precision for settlement analysis in geotechnical engineering.

Additional information

Additional information

Model Number

AZA 0896
Test Type

Soil Consolidation (One-Dimensional Consolidation / Oedometer Test)
Loading Type

Front Loading mechanism for easy cell placement and removal.
Dimensions

Benchtop footprint, designed for stability.
Weight

Substantial, to ensure stable load application.
