STANDARD COMPACTION TEST AZA0863

The AZA0863 Standard Compaction Test Apparatus from Azalab is designed to perform the Standard Proctor Compaction Test, a fundamental geotechnical laboratory procedure used to determine the Maximum Dry Density (MDD) and Optimum Moisture Content (OMC) of soils. These parameters are essential for ensuring proper soil compaction in the construction of roads, embankments, foundations, and other earth structures.

This apparatus simulates light compaction effort typically applied in the field and provides reliable, repeatable results for laboratory quality control and design verification.

Purpose & Principle

The Standard Compaction Test establishes the relationship between soil moisture content and dry density under a standard compactive effort. Soil samples are compacted in layers within a cylindrical mould using a specified hammer weight and drop height. By testing at varying moisture contents and plotting a compaction curve, the MDD and OMC are obtained.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

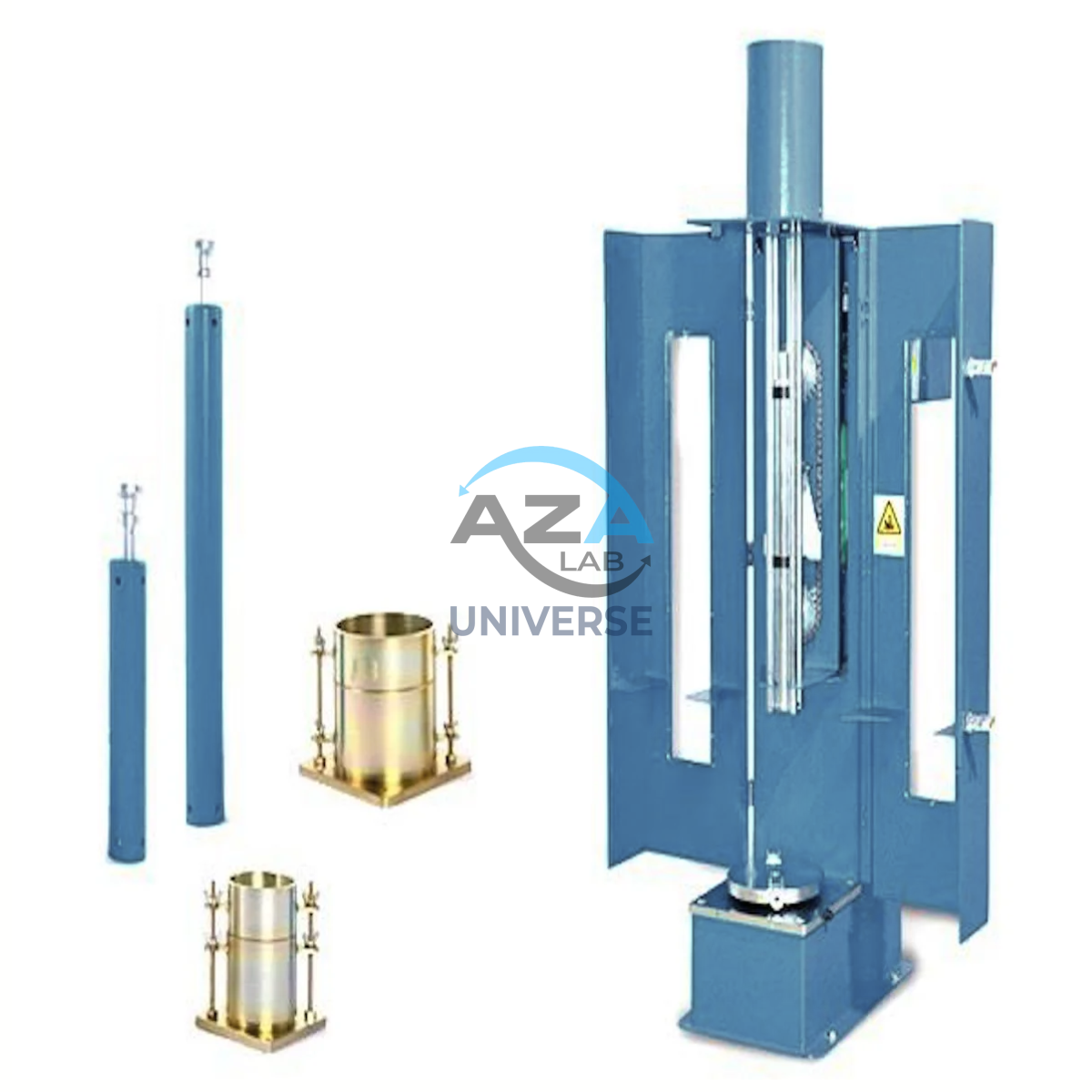

Main Components

  • Compaction Mould with Collar & Base Plate
    Heavy-duty steel mould designed to hold a defined soil volume for compaction.
  • Standard Compaction Rammer (Hammer)
    Precisely machined rammer with controlled weight and drop height to ensure uniform compactive effort.
  • Accessories (Optional)
    Sample extruder, mixing tray, trimming tools.

Standards Compliance

  • ASTM D698 – Standard Proctor Compaction Test
  • IS 2720 (Part VII) – Light Compaction Method
  • BS 1377 – Part 4 – Compaction-related tests

Applications

  • Road and highway construction quality control
  • Earth embankments and dams
  • Building foundations and subgrades
  • Geotechnical investigation laboratories
  • Academic and research institutions

Specifications

Parameter Specification
Model Number AZA0863
Test Type Standard Compaction (Standard Proctor)
Compaction Mould – ASTM 101.6 mm dia × 116.4 mm height, ~944 cm³
Compaction Mould – IS 100 mm dia × 127.3 mm height, 1000 cm³
Rammer – ASTM 2.49 kg, 304.8 mm drop, 50.8 mm face dia
Rammer – IS 2.6 kg, 310 mm drop, 50 mm face dia
Compaction Layers 3 layers
Blows per Layer 25 (4-inch mould)
Construction Heavy-duty steel, corrosion-resistant finish
Compliance ASTM D698, IS 2720 (Part VII), BS 1377-4

What’s Included

  • Compaction mould with detachable collar and base plate
  • Standard compaction rammer (as per selected standard)
  • Trimming collar
  • User instruction manual

Key Advantages

  • Accurate determination of MDD and OMC
  • Robust construction for long laboratory life
  • Fully compliant with international standards
  • Simple, reliable, and widely accepted test method
  • Essential apparatus for earthwork quality assurance

Frequently Asked Questions (FAQ)

Q1: What does the AZA0863 determine?
It determines the Maximum Dry Density (MDD) and Optimum Moisture Content (OMC) of soils.

Q2: Which standards are supported?
ASTM D698, IS 2720 (Part VII), and BS 1377-4.

Q3: Is this suitable for all soils?
It is suitable for most fine-grained and granular soils used in earthworks.

Q4: Is this a manual or automatic system?
AZA0863 is a manual compaction apparatus. Automatic compactors are available separately.

Q5: Can both ASTM and IS moulds be supplied?
Yes, moulds and rammers can be supplied as per ASTM, IS, or both upon request.

Additional information

Additional information

Model Number

AZA 0863
Test Method

Standard Compaction Test (Standard Proctor Compaction Test)
Application

Geotechnical testing laboratories
Purpose

To determine the Maximum Dry Density
