CONSOLIDATION CELLS (FLOATING) AZA0897

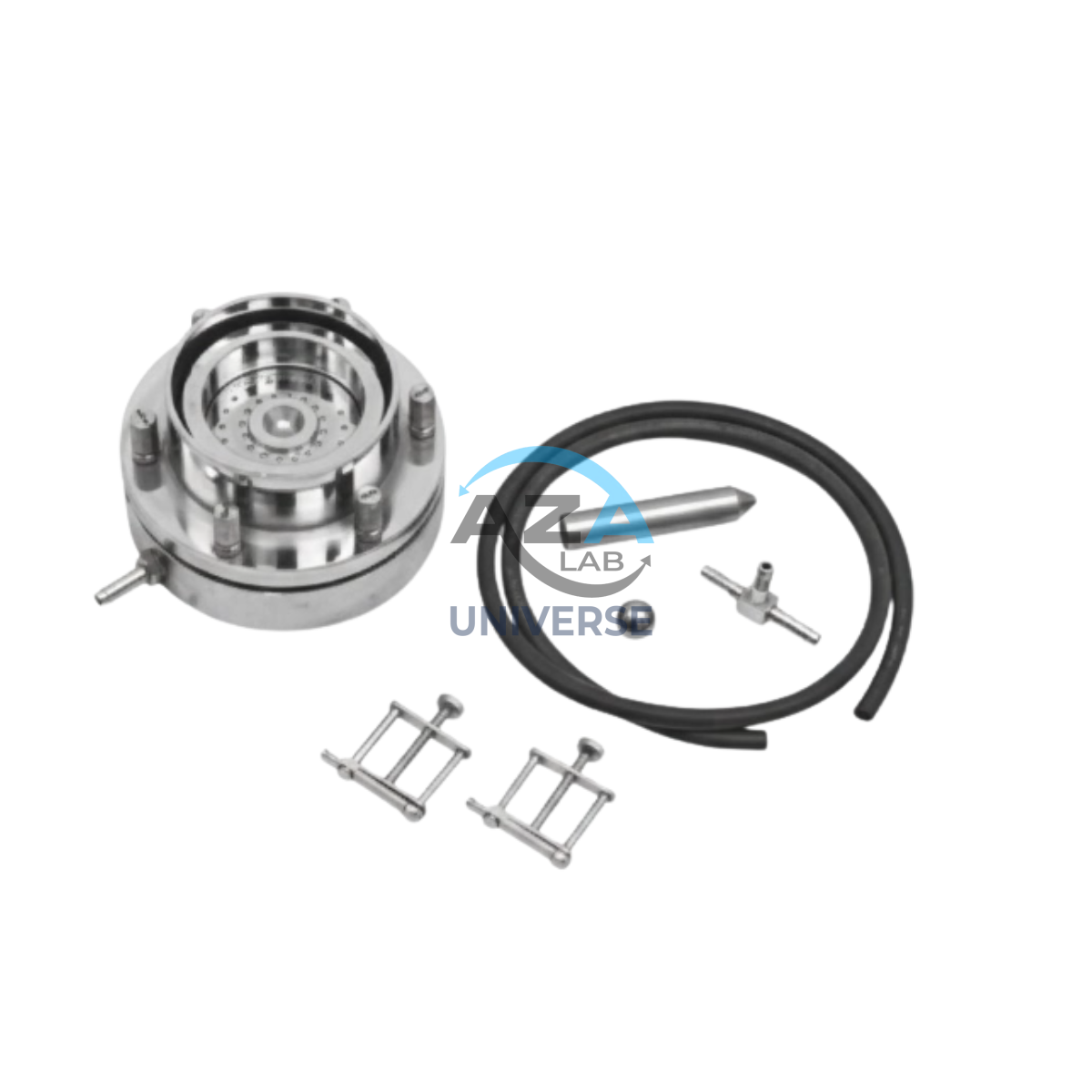

The AZA0897 Consolidation Cell (Floating Type) is a precision-engineered component used in oedometer (consolidation) testing to determine the compressibility and settlement characteristics of fine-grained soils such as clays and silts. These cells are essential accessories for geotechnical laboratories performing soil consolidation analysis for foundations, embankments, dams, and infrastructure projects.
The floating ring design significantly reduces side-wall friction between the soil specimen and the ring, ensuring more uniform vertical stress transfer. This design enhances the accuracy of deformation and settlement measurements, particularly during low-stress loading stages and long-duration consolidation tests.
Description
Purpose and Function
In consolidation testing, soil specimens are laterally confined and subjected to incremental vertical loads. The AZA0897 Floating Type Consolidation Cell ensures:
-
Uniform vertical loading
-
Minimal frictional restraint
-
Reliable measurement of vertical deformation over time
The data obtained is used to calculate critical soil parameters such as the coefficient of consolidation (Cᵥ), compression index (C𝑐), void ratio, and preconsolidation pressure, which are vital for settlement prediction and foundation design.
Key Applications
-
Soil compressibility determination
-
Settlement analysis for foundations and embankments
-
Long-term consolidation behavior studies
-
Determination of preconsolidation pressure
-
Academic, commercial, and research geotechnical testing
Construction & Features
Each AZA0897 Consolidation Cell (Floating Type) includes:
-
Floating ring for reduced side friction
-
Precision-machined cutting ring for undisturbed samples
-
Top and bottom porous stones for effective drainage
-
Water-tight loading cap and base
-
Clamp screws and sealing gaskets
-
Corrosion-resistant stainless steel or hard anodized aluminum body
Optional accessories such as spacers, loading pads, and enhanced drainage components are available for specialized testing requirements.
Standards Compliance
Manufactured to comply with international soil testing standards:
-
ASTM D2435 / ASTM D3877 – One-Dimensional Consolidation
-
BS 1377 Part 5 – Compression and Swelling Tests
-
IS 2720 (Part 15) – Determination of Consolidation Properties
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA0897 |
| Cell Type | Floating Ring Consolidation Cell |
| Sample Diameter | 60 mm or 100 mm |
| Sample Thickness | Up to 25 mm (standard) |
| Material | Stainless Steel / Hard Anodized Aluminum |
| Drainage | Top & Bottom Porous Stones |
| Sealing | Gasket with Clamp Screws |
| Compatibility | Single, Double & Triple Gang Consolidometers |
| Accessories Included | Cutting Ring, Porous Stones, Loading Cap |
| Optional Accessories | Spacers, Loading Pads, Extra Drainage |
| Standards | ASTM D2435, BS 1377, IS 2720 |
Key Benefits
-
Floating ring design minimizes side-wall friction
-
Accurate vertical load transfer and deformation readings
-
High sensitivity for low-stress consolidation stages
-
Suitable for long-duration and high-load testing
-
Durable, corrosion-resistant construction
-
Interchangeable components for flexible lab setups
Frequently Asked Questions (FAQ)
Q1: What is a floating type consolidation cell?
It is a consolidation cell designed to minimize friction between the soil specimen and the ring, ensuring more accurate settlement measurements.
Q2: What specimen sizes are supported?
Standard sizes are 60 mm and 100 mm diameter specimens. Custom sizes are available on request.
Q3: Are porous stones and cutting rings included?
Yes. Each AZA0897 cell is supplied with top and bottom porous stones and a matching cutting ring.
Q4: Is it compatible with digital displacement gauges?
Yes. It works with both mechanical dial gauges and electronic displacement transducers (LVDTs).
Q5: Can multiple tests be conducted simultaneously?
Yes. The cell is compatible with single, double, and triple-gang consolidation frames.
AZA0897 – Precision Floating Type Consolidation Cell
A reliable Azalab solution for accurate soil compressibility and settlement analysis in geotechnical engineering laboratories.
Additional information
| Sample Diameter |
60 mm or 100 mm |
|---|---|
| Sample Thickness |
Up to 25 mm (standard), customizable |
| Cell Type |
Floating Ring Consolidation Cell |
| Material |
Stainless Steel / Hard Anodized Aluminum |
