UNCONFINED COMPRESSION TESTER (MOTORISED) AZA0902

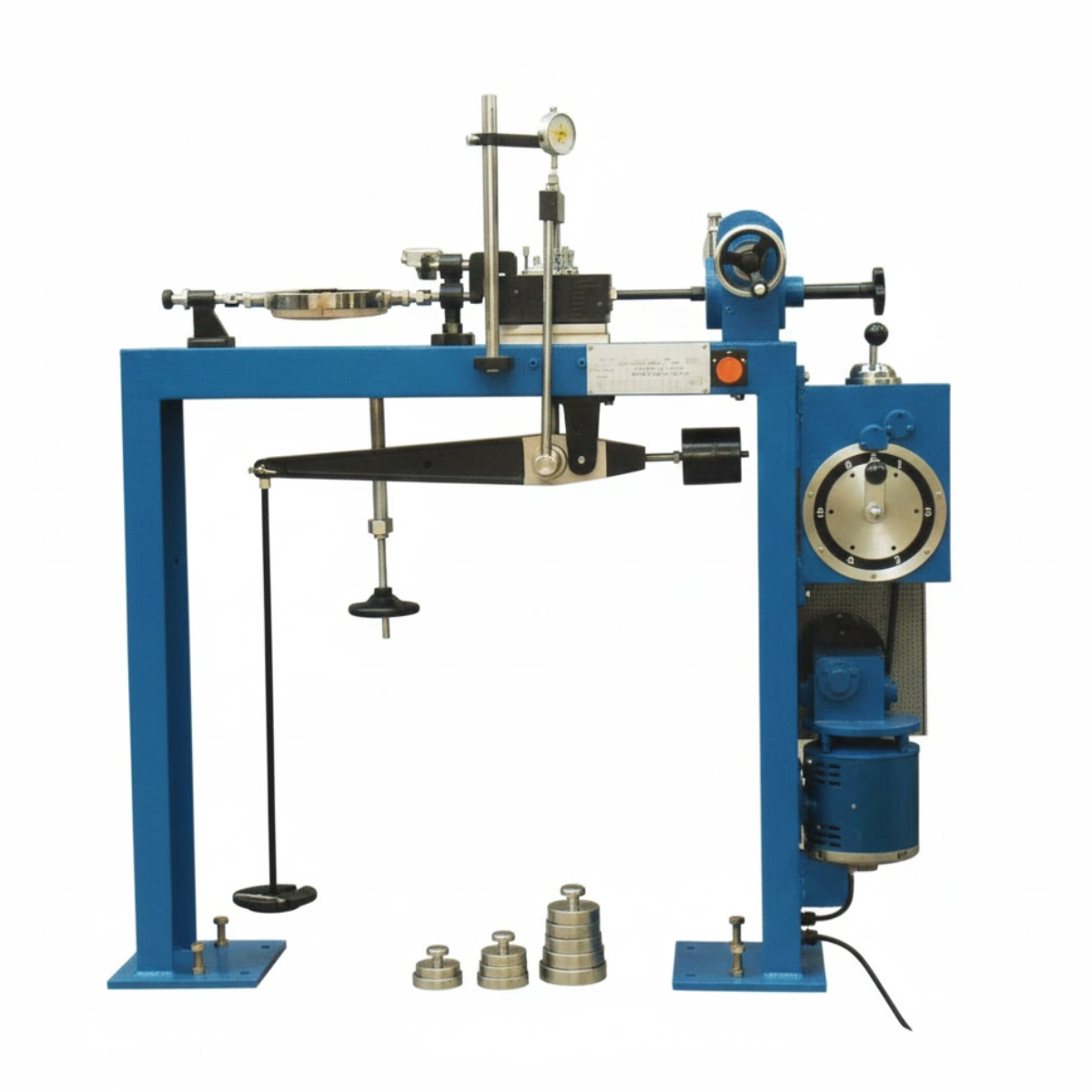

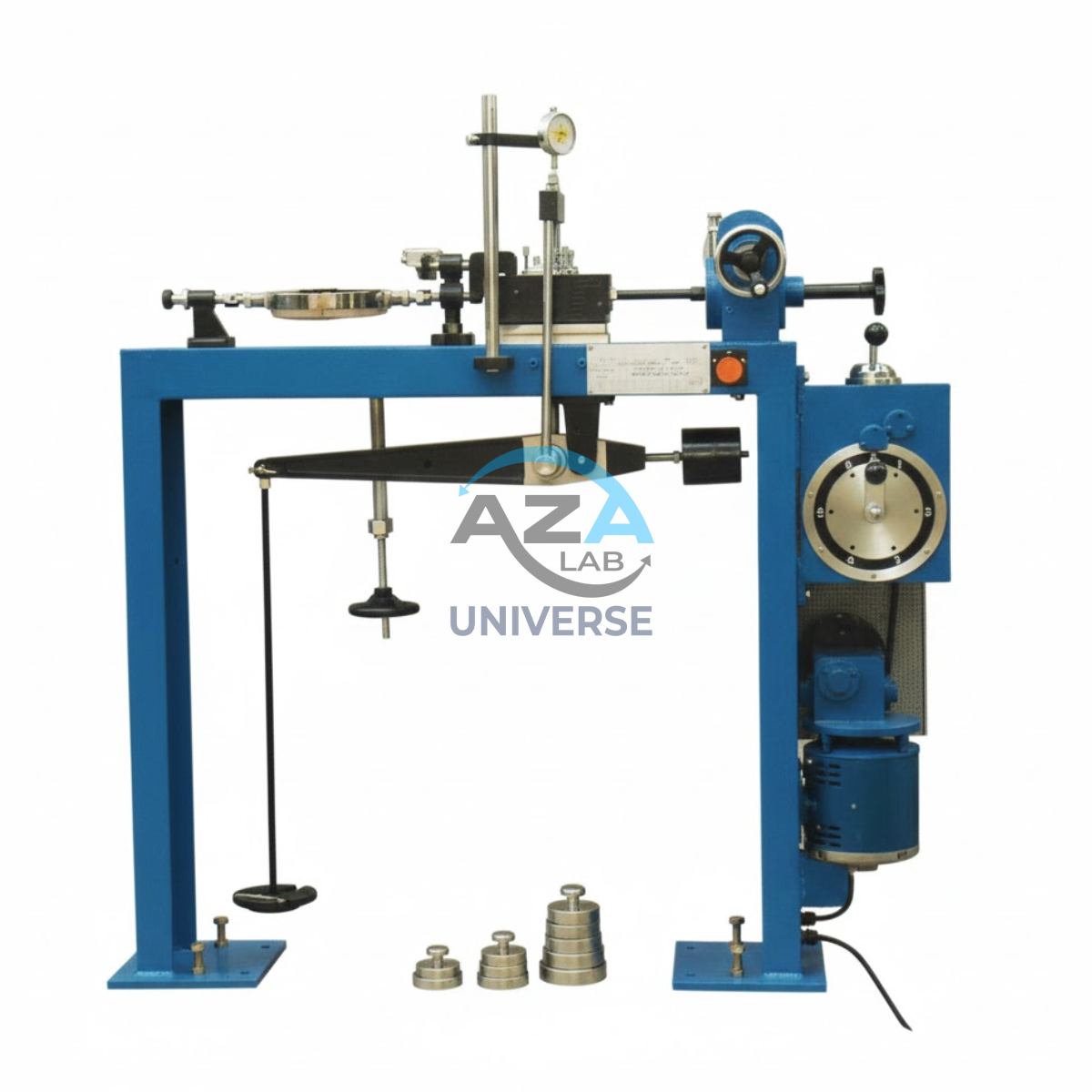

DIRECT SHEAR (MOTORISED TWELVE SPEED) AZA0901

The AZA0901 Motorised Twelve-Speed Direct Shear Apparatus from Azalab is a high-performance geotechnical testing instrument designed for accurate determination of soil shear strength parameters, namely cohesion (c) and angle of internal friction (φ). Engineered for precision, repeatability, and versatility, this apparatus is widely used in foundation engineering, slope stability analysis, retaining structure design, and academic research.

The AZA0901 is distinguished by its motorised twelve-speed drive system, offering exceptional control over shear displacement rates. This feature enables compliance with multiple international standards and allows laboratories to evaluate soil behavior under varying strain rates—an essential requirement for both routine testing and advanced research applications.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Purpose and Applications

The AZA0901 is used to evaluate shear strength characteristics of soils for:

  • Foundation bearing capacity analysis

  • Slope stability and embankment design

  • Retaining wall pressure calculations

  • Pavement and subgrade investigations

  • Research on rate-dependent soil behavior

Motorised Twelve-Speed Control

Unlike conventional single-speed or manually operated direct shear machines, the AZA0901 offers twelve selectable shear rates, ensuring:

  • Constant and uniform rate of strain

  • Reduced operator dependency and human error

  • High repeatability of test results

  • Flexibility for different soil types and test standards

This makes the AZA0901 particularly suitable for laboratories handling diverse soil conditions and compliance-driven testing programs.

Test Principle

The direct shear test involves placing a soil specimen in a split shear box, applying a controlled normal load, and shearing one half of the box horizontally at a constant rate. The shear force and corresponding displacement at failure are measured to determine shear strength parameters based on the Mohr–Coulomb failure criterion.

The AZA0901 ensures smooth, low-friction shear movement through precision bearings and a rigid frame, minimizing parasitic losses and ensuring accurate force transmission.

Construction & Features

  • Heavy-duty steel frame with high rigidity

  • Motorised constant-rate shear drive

  • Twelve discrete speed settings

  • Precision-machined shear box assembly

  • Roller bearing system for frictionless movement

  • Compatibility with mechanical or electronic measurement systems

Standards & Compliance

Designed to comply with major international standards, including:

  • ASTM D3080 – Direct Shear Test of Soils

  • IS 2720 (Part 13) – Direct Shear Test

  • Relevant ISSMGE recommendations

Technical Specifications

Feature Specification
Model AZA0901
Test Type Direct Shear Test
Operation Motorised, Constant Rate of Strain
Speed Control Twelve selectable speeds
Typical Speed Range ~0.001 to 2.0 mm/min
Normal Load Application Dead Weights with Lever Arm
Maximum Normal Stress Typically up to 8 kg/cm² or higher
Shear Box Sizes 60 × 60 mm, 100 × 100 mm, or circular
Shear Load Measurement Proving Ring or Electronic Load Cell
Horizontal Displacement Dial Gauge or LVDT
Vertical Displacement Dial Gauge or LVDT
Power Supply 230 V AC, 50 Hz
Construction Steel Frame, Brass / Stainless Steel Components
Mounting Stable Benchtop Design

Key Benefits

  • Twelve-speed motorised control for versatile testing

  • Constant strain rate for accurate and repeatable results

  • Suitable for a wide range of soil types

  • Robust, low-maintenance construction

  • Compliant with international testing standards

  • Ideal for both commercial and academic laboratories

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of the AZA0901?
To determine soil shear strength parameters (c and φ) under controlled normal loads.

Q2: Why is the twelve-speed feature important?
It allows testing at different strain rates, improving accuracy and enabling compliance with multiple standards and research needs.

Q3: What soils can be tested?
Sands, silts, and clays, in remoulded or undisturbed condition, provided they can be prepared in the shear box.

Q4: Does it comply with ASTM and IS standards?
Yes, it is designed to meet ASTM D3080 and IS 2720 (Part 13).

Q5: Is it suitable for research work?
Yes, the multiple speed options make it especially suitable for advanced geotechnical research.

AZA0901 – Motorised Twelve-Speed Direct Shear Apparatus

A reliable Azalab solution delivering precise, repeatable, and standards-compliant soil shear strength data for modern geotechnical laboratories.

Additional information

Additional information

Model Number

AZA 0901
Test Type

Direct Shear Test (for soil shear strength)
Operation

Motorised, constant rate of strain
Shear Box Size

Standard sizes (e.g., 60×60 mm, 100×100 mm, or circular samples)
Power Supply

Standard electrical supply (e.g., 230V AC, 50Hz)
Material Construction

Heavy-duty steel frame, precision-machined brass or stainless steel shear box and components.

Related products

Untitled design – 2025-12-17T184619.747

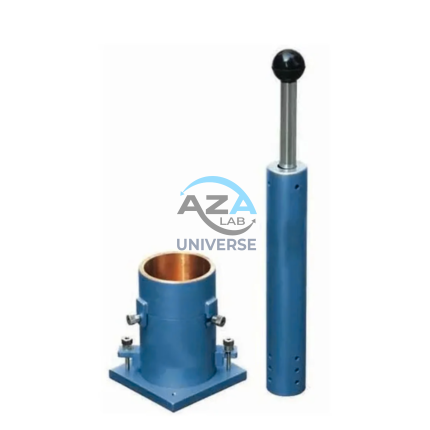

HEAVY COMPACTION TEST AZA0865

The AZA0865 Heavy Compaction Test Apparatus from Azalab is designed for performing the Heavy Compaction Test, commonly known as the Modified Proctor Compaction Test. This test establishes the relationship between moisture content and dry density of soils under high compaction energy, simulating field conditions achieved by modern heavy compaction equipment. The apparatus is essential for determining Maximum Dry Density (MDD) and Optimum Moisture Content (OMC) for soils used in heavy-duty pavements, airfield runways, embankments, dams, and foundations, where higher strength and durability are required.
Purpose of Test The Modified Proctor Test applies significantly greater compactive effort compared to the Standard Proctor test. The results are used by engineers to:
    • Specify target field compaction densities
    • Control moisture during earthwork
    • Ensure long-term stability and load-bearing performance
Read more
Quick view
Untitled design – 2025-12-17T184815.578

HEAVY COMPACTION TEST AZA0866

The AZA0866 Heavy Compaction Test Set from Azalab is designed for determining the Maximum Dry Density (MDD) and Optimum Moisture Content (OMC) of soils using the Heavy Compaction (Modified Proctor) Method, in accordance with IS 2720 (Part VIII). This test is fundamental in geotechnical engineering, road and highway construction, foundation design, embankment works, and earthworks where soils are subjected to high compactive effort. The heavy compaction test realistically simulates field compaction achieved by modern construction equipment, enabling reliable prediction of soil behavior under service loads. This configuration is supplied with a 150 mm diameter mould (2250 cc volume), making it particularly suitable for coarse-grained and granular soils. Scope of Use The AZA0866 Heavy Compaction Test Set is used to establish the relationship between moisture content and dry density of soil under heavy compaction energy. The resulting compaction curve is used to determine MDD and OMC, which are essential parameters for compaction control and quality assurance in field construction.
Read more
Quick view
Untitled design – 2025-12-17T164520.745

HIGH SPEED STIRRER AZA0855

The AZA0855 High Speed Stirrer from AZA Lab is a robust and versatile laboratory instrument designed for efficient mixing, homogenizing, and dispersion of liquids and semi-liquids. Engineered for mechanical analysis as well as general laboratory applications, it is ideal for research, analytical, academic, and industrial laboratories requiring precise and reliable stirring performance. Driven by a high-torque motor, the AZA0855 is capable of achieving high stirring speeds of approximately 4000 RPM under load, ensuring uniform blending, effective particle dispersion, and consistent results. The unit supports a dispersion cup mounted on a dedicated rest provided on the stirrer stand, complete with a removable baffle to enhance mixing efficiency and reduce vortex formation. Operating on 230V AC, the AZA0855 is suitable for continuous laboratory use and is supplied with a dispersion cup / baffle cup in accordance with AZA Lab design principles.
Read more
Quick view
Untitled design – 2025-12-17T164405.068

LIQUID LIMIT DEVICE WITH COUNTER AZA0853

The AZA0853 Liquid Limit Device with Counter from AZALAB is a precision-engineered instrument used for determining the liquid limit of soils in accordance with the Casagrande method. This test is a fundamental component of soil classification and geotechnical investigation, providing critical insight into the plasticity, compressibility, and shear strength of fine-grained soils.

Designed for reliable, repeatable, and standardized testing, the AZA0853 is widely used in geotechnical laboratories, civil engineering departments, construction quality control labs, and academic institutions.

Principle of Liquid Limit Test (Casagrande Method)

The liquid limit is defined as the water content at which soil transitions from a plastic state to a liquid state. In practice, it is determined as the moisture content at which a standard groove cut in the soil sample closes over a length of 12.5 mm under 25 blows of the liquid limit apparatus.

The AZA0853 consists of a polished brass cup mounted on an adjustable bracket. The cup is repeatedly raised and dropped from a fixed height of 1 cm onto a hard rubber base by means of a manually operated cam mechanism. A built-in mechanical counter accurately records the number of blows, ensuring compliance with testing standards and reducing operator error.

Read more
Quick view
Untitled design – 2025-12-17T165904.944

PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD) AZA0857

AZA0857 – Particle Size Sedimentation Apparatus (Hydrometer Method) The AZA0857 Particle Size Sedimentation Apparatus (Hydrometer Method) from AZA Lab is designed for determining the particle size distribution of fine-grained soils, particularly silts and clays smaller than 75 microns. This method is widely adopted in soil mechanics, geotechnical engineering, civil construction quality control, and academic laboratories where accurate characterization of cohesive soils is essential. The hydrometer method is based on the sedimentation principle governed by Stokes’ Law, measuring changes in the density of a soil–water suspension over time. By recording hydrometer readings at defined intervals, the percentage of soil particles remaining in suspension is calculated, enabling precise determination of grain size distribution for fine soils beyond the practical limits of sieve analysis.
Read more
Quick view
Untitled design – 2025-12-17T191034.877

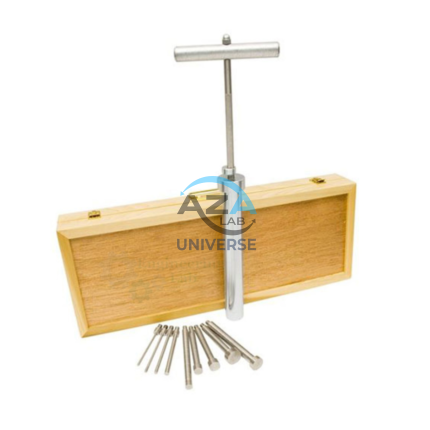

PROCTOR NEEDLES (SPRING TYPE) AZA0868

The AZA0868 Precision Proctor Needles (Spring Type) from Azalab are designed for rapid, on-site estimation of soil compaction and moisture condition. This portable instrument provides a practical alternative to full laboratory Proctor testing for preliminary assessment and quality control, particularly on cohesive and semi-cohesive soils encountered in embankments, subgrades, and trench backfills. The instrument employs a calibrated, spring-loaded plunger to measure penetration resistance directly (0–40 kg range). Two graduated stems allow accurate tracking of penetration depth, while a comprehensive set of interchangeable needle tips enables testing across a range of soil densities and particle characteristics.
Applications
  • Field assessment of soil compaction
  • Estimation of optimum moisture condition
  • Subgrade, fill, and trench inspection
  • Construction quality control checks
  • Geotechnical and educational field investigations
Read more
Quick view

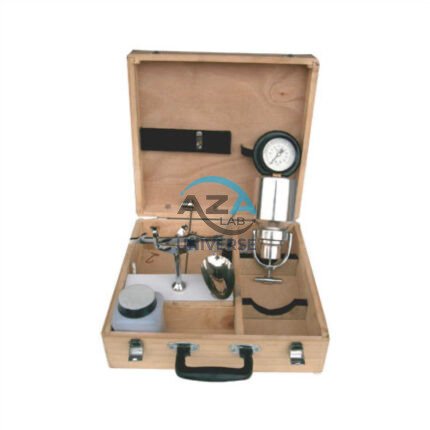

Rapid Moisture Meter AZA 0874 - Calcium Carbide Soil Moisture Tester
