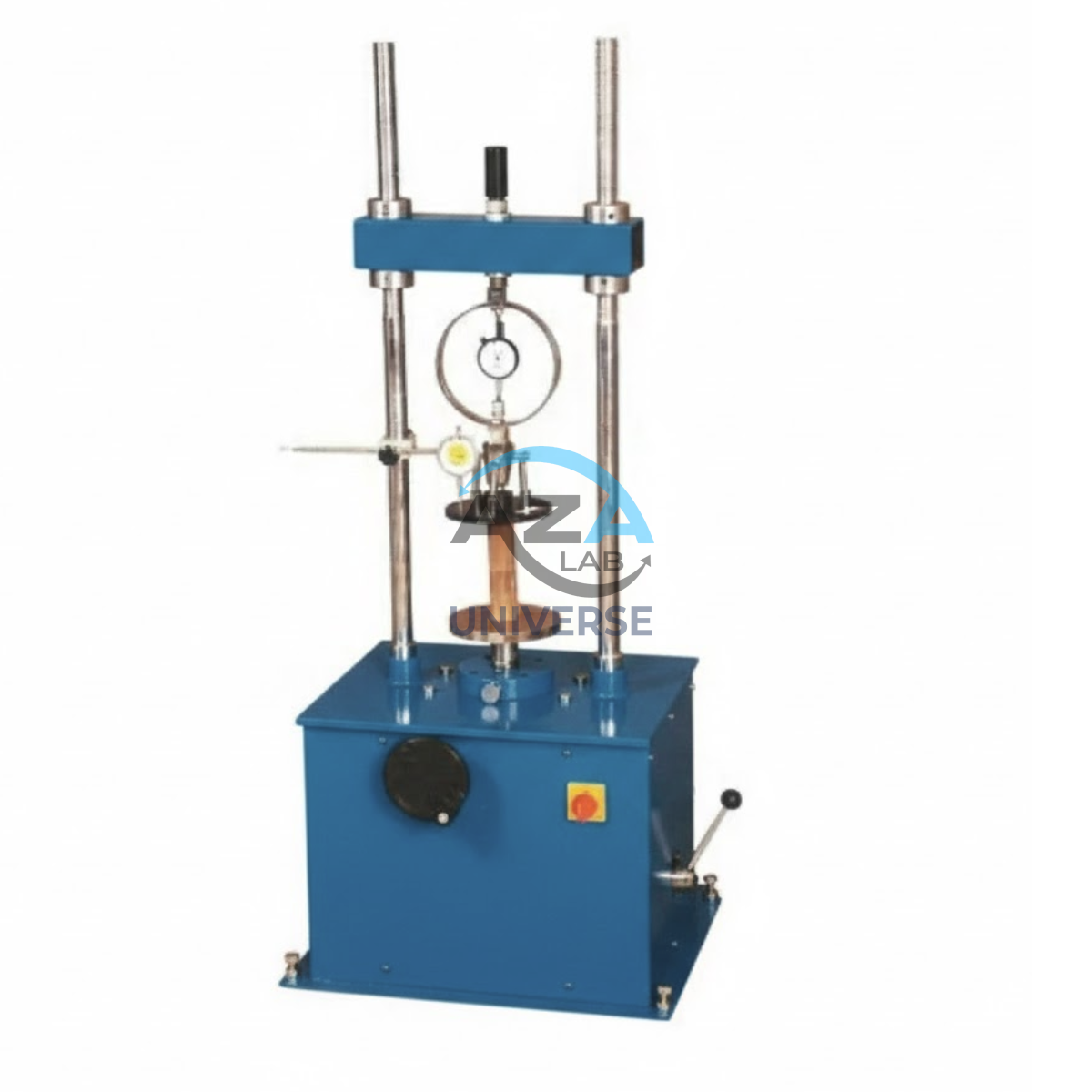

UNCONFINED COMPRESSION TESTER (MOTORISED) AZA0902

The AZA0902 Motorised Unconfined Compression Tester from Azalab is a fundamental geotechnical testing instrument designed for accurate determination of the unconfined compressive strength (qᵤ) of cohesive soils. This parameter is critical for evaluating the undrained shear strength of clays and silts and is widely used in foundation design, slope stability assessment, and preliminary geotechnical investigations.

Unlike manual systems, the motorised operation of the AZA0902 ensures a constant and controlled rate of strain, which is essential for achieving repeatable and standards-compliant test results. The apparatus is designed in accordance with internationally recognized standards such as ASTM D2166 and IS 2720 (Part 10).

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Test Principle

In the unconfined compression test, a cylindrical soil specimen is subjected to an increasing axial compressive load without lateral confinement until failure occurs. The maximum axial stress at failure is recorded as the unconfined compressive strength (qᵤ). For saturated cohesive soils, the undrained shear strength (cᵤ) is derived as:

cᵤ = qᵤ / 2

The AZA0902 applies load through a gear-driven, motorised screw jack, ensuring smooth, uniform deformation throughout the test and minimizing operator-dependent variability.

Applications

  • Determination of unconfined compressive strength (qᵤ)

  • Evaluation of undrained shear strength of cohesive soils

  • Foundation and bearing capacity assessment

  • Slope stability and embankment analysis

  • Educational demonstrations and routine laboratory testing

Construction & Features

  • Motorised loading system with constant strain rate

  • Gear-driven screw jack for smooth axial loading

  • Heavy-duty rigid frame for stability and durability

  • Compatible with proving ring or electronic load cell

  • Provision for axial deformation measurement via dial gauge or LVDT

  • Designed for standard cylindrical soil specimens (L/D ≈ 2:1)

Standards & Compliance

Manufactured to comply with:

  • ASTM D2166 – Unconfined Compressive Strength of Cohesive Soil

  • IS 2720 (Part 10) – Determination of Unconfined Compressive Strength

Technical Specifications

Feature Specification
Model AZA0902
Test Type Unconfined Compression Test
Operation Motorised, Constant Rate of Strain
Loading Mechanism Gear-driven Screw Jack
Load Capacity 50 kg / 100 kg / 200 kg (as per proving ring or load cell)
Rate of Strain Typically 1.25 mm/min (or as per standards)
Sample Size 38 mm or 50 mm diameter (standard)
Load Measurement Proving Ring or Electronic Load Cell
Deformation Measurement Dial Gauge (0.01 mm) or LVDT
Power Supply 230 V AC, 50 Hz
Construction Steel Frame with Precision-Machined Components
Mounting Benchtop Design

Key Benefits

  • Motorised operation ensures uniform strain rate

  • Accurate and repeatable strength measurements

  • Simple setup and intuitive operation

  • Suitable for routine, academic, and commercial testing

  • Durable construction for long-term laboratory use

Frequently Asked Questions (FAQ)

Q1: What is the primary use of AZA0902?
It is used to determine the unconfined compressive strength (qᵤ) of cohesive soils such as clays and silts.

Q2: Why is a motorised system important?
Motorisation ensures a constant rate of strain, which is critical for accurate, repeatable, and standard-compliant results.

Q3: What soils are suitable for this test?
Cohesive soils that can stand unsupported, typically clays and silts.

Q4: How is undrained shear strength obtained?
For saturated cohesive soils, undrained shear strength is calculated as cᵤ = qᵤ / 2.

Q5: Is AZA0902 suitable for educational use?
Yes, it is ideal for teaching soil mechanics concepts and standard laboratory procedures.

AZA0902 – Motorised Unconfined Compression Tester

A reliable Azalab solution for precise, repeatable, and standards-compliant evaluation of cohesive soil strength in modern geotechnical laboratories.

Additional information

Additional information

Model Number

AZA 0902
Test Type

Unconfined Compressive Strength of Cohesive Soils
Operation

Motorised, constant rate of strain
Loading Mechanism

Gear-driven screw jack
Material Construction

Robust frame (steel), precision-machined components
Safety Features

Overload protection, emergency stop (depending on specific model)
Dimensions

Varies, designed for laboratory benchtop use.

Related products

Untitled design – 2025-12-17T165748.200

GRAIN SIZE ANALYSIS (PIPETTE METHOD) AZA0856

The AZA0856 Grain Size Analysis (Pipette Method) Apparatus from AZA Lab is a precision testing setup used for determining the distribution of fine soil particles such as silt and clay. It is widely used in geotechnical engineering, civil construction quality control, soil mechanics research, and academic laboratories, particularly where conventional sieve analysis is ineffective for particles finer than 75 microns. This apparatus is designed for the mechanical analysis of sub-sieve soil particles, expressing quantitatively the proportion by weight of various particle sizes present in a soil sample. The pipette method, based on sedimentation principles and Stokes’ Law, provides accurate and repeatable results for fine-grained soils. The system consists of a sliding vertical panel operated by a precision screw mechanism, allowing an Anderson pipette to be raised or lowered accurately. A sedimentation tube is held securely below the pipette using a laboratory clamp. The depth of immersion is measured using a millimeter-graduated scale mounted alongside the sliding panel. The apparatus is supplied complete with a 10 ml Anderson pipette, a 500 ml glass sedimentation tube, and test form pads, conforming to standard laboratory practices.
Read more
Quick view
Untitled design – 2025-12-17T164520.745

HIGH SPEED STIRRER AZA0855

The AZA0855 High Speed Stirrer from AZA Lab is a robust and versatile laboratory instrument designed for efficient mixing, homogenizing, and dispersion of liquids and semi-liquids. Engineered for mechanical analysis as well as general laboratory applications, it is ideal for research, analytical, academic, and industrial laboratories requiring precise and reliable stirring performance. Driven by a high-torque motor, the AZA0855 is capable of achieving high stirring speeds of approximately 4000 RPM under load, ensuring uniform blending, effective particle dispersion, and consistent results. The unit supports a dispersion cup mounted on a dedicated rest provided on the stirrer stand, complete with a removable baffle to enhance mixing efficiency and reduce vortex formation. Operating on 230V AC, the AZA0855 is suitable for continuous laboratory use and is supplied with a dispersion cup / baffle cup in accordance with AZA Lab design principles.
Read more
Quick view
Untitled design – 2025-12-15T163042.672

LINEAR SHRINKAGE MOULD AZA0850

The AZA0850 Precision Linear Shrinkage Mould from AZALAB is a compact and highly accurate laboratory instrument designed for determining the linear shrinkage of fine-grained cohesive soils in accordance with BS 1377-2. This test is a key component of soil classification and is especially important in identifying shrink–swell behavior of clays and expansive soils.

Linear shrinkage testing measures the reduction in length of a soil specimen upon drying, expressed as a percentage of its original length. The results provide valuable insight into soil expansiveness, volume stability, and suitability for foundations, pavements, and earthworks.

Manufactured from high-quality brass or stainless steel, the AZA0850 mould offers precise internal dimensions, excellent corrosion resistance, and a smooth polished finish for easy sample preparation and removal. Its robust construction ensures repeatable, reliable results even under high-frequency laboratory use.

Read more
Quick view
Untitled design – 2025-12-17T171015.120

METHYLENE BLUE TEST SET AZA0860

The AZA0860 Methylene Blue Test Set from AZA Lab is a comprehensive laboratory system designed to determine the clay content and clay activity in fine aggregates and soils through measurement of the Methylene Blue Value (MBV). The test is highly sensitive to active clay minerals—particularly montmorillonite—that can adversely affect the performance of concrete, asphalt, and other construction materials. This method is widely adopted in aggregate quality control, concrete mix design, asphalt technology, and geotechnical investigations, providing a reliable indicator of fines reactivity and cation exchange capacity.
Standards Compliance
  • EN 933-9 – Tests for geometrical properties of aggregates (Methylene Blue Test)
  • NF P94-068
  • UNE 83 180
  • UNI 8520-15
  • ASTM C837 – Methylene Blue Index of Clay in Fine Aggregate
Read more
Quick view
Untitled design – 2025-12-17T191756.799

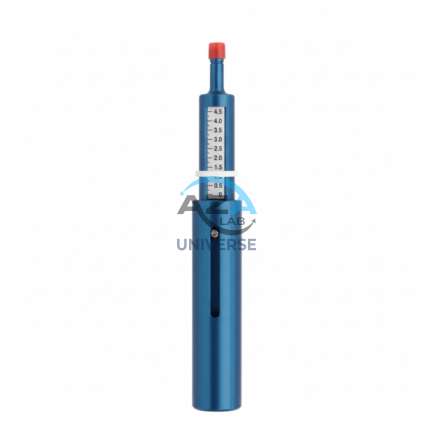

POCKET PENTROMETER AZA0869
