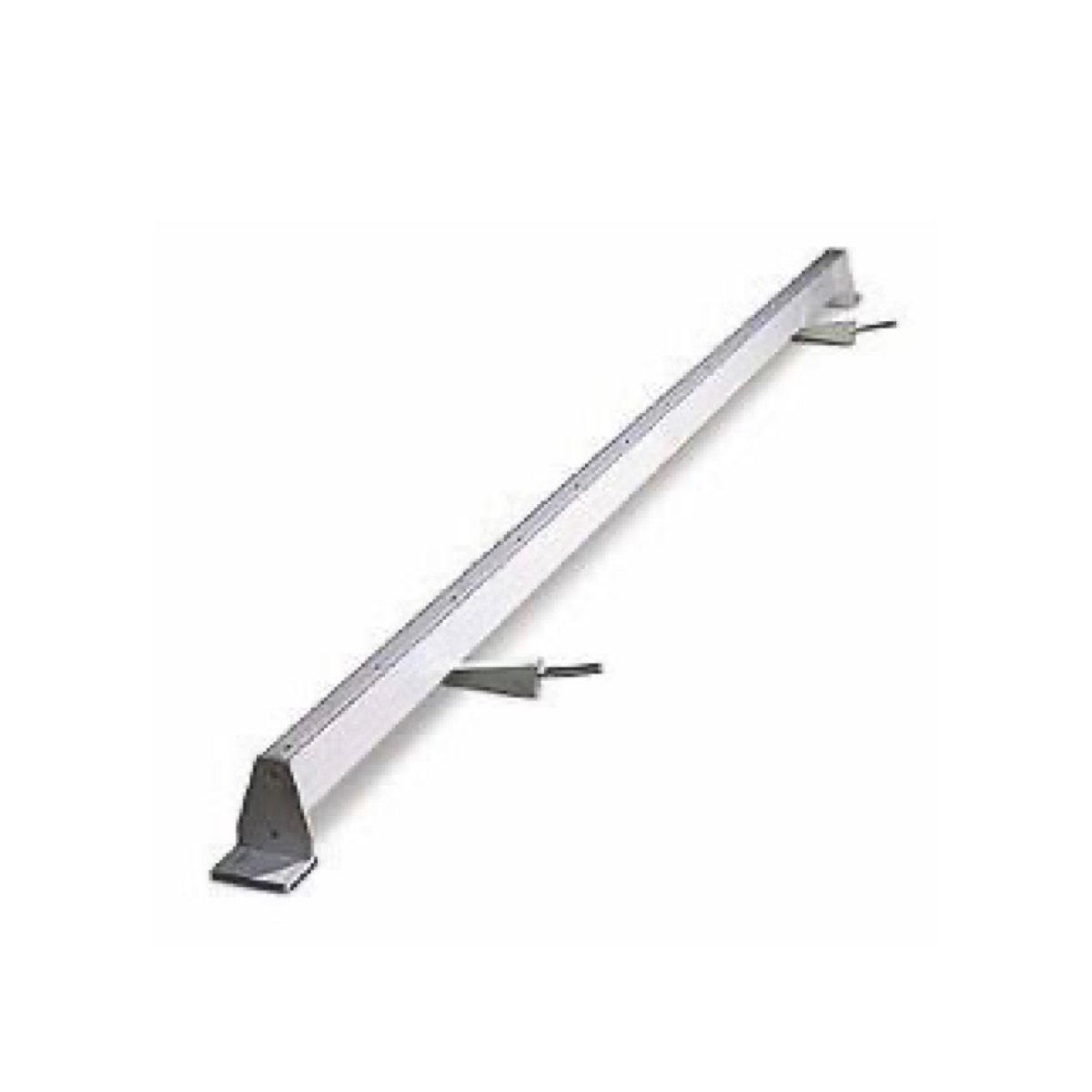

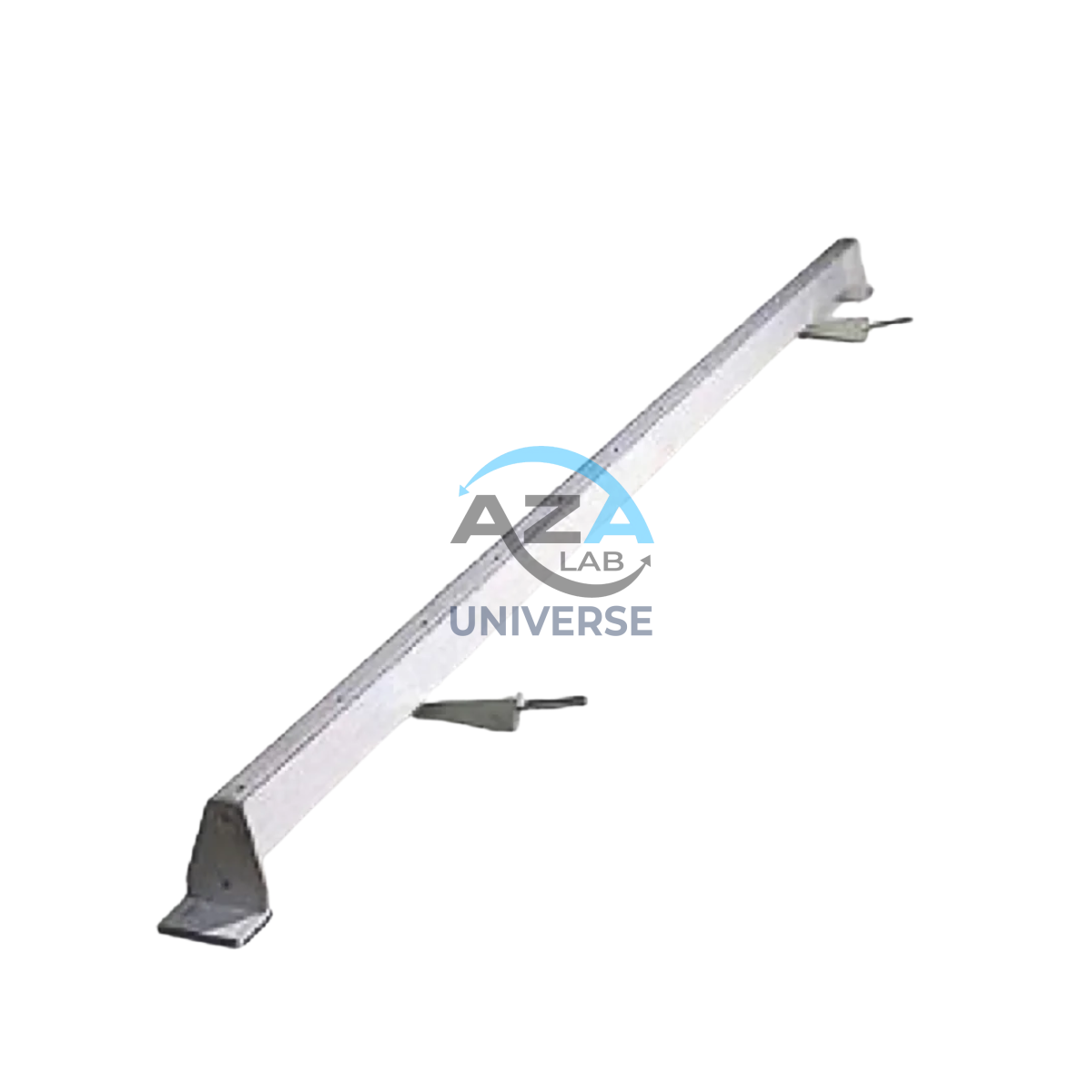

AZA 0959 STRAIGHT EDGE (3 Meters)

Description

The AZA 0959 Straight Edge (3 Meters) from AZALAB is a fundamental and indispensable quality control tool used extensively in road construction and maintenance. This simple yet highly effective device is designed to measure and identify surface irregularities, such as undulations, depressions, and high spots, on newly constructed or existing pavement layers, including asphalt concrete, cement concrete, and granular bases. Ensuring the longitudinal and transverse regularity of a road surface is paramount for achieving optimal riding comfort, enhancing safety, facilitating proper drainage, and contributing significantly to the long-term durability of the pavement.

At the core of the AZA 0959’s functionality is its precision-machined straight edge. The device consists of a rigid, precisely manufactured beam, typically 3 meters in length, crafted from a lightweight yet robust material like aluminum alloy. To perform a check, the straight edge is manually placed directly onto the pavement surface, either longitudinally or transversely. Any gaps between the underside of the beam and the pavement surface indicate an irregularity. These gaps are then measured using specialized tools such as graduated wedges or feeler gauges. The maximum gap observed under the straight edge over a given length is the measure of unevenness, which is then compared against specified permissible limits. This method is crucial for ensuring compliance with strict quality standards set by authorities like the Ministry of Road Transport & Highways (MoRTH) in India, particularly for surface finish specifications in road projects.

Key Applications and Benefits of the AZA 0959 Straight Edge (3 Meters)

The AZA 0959 Straight Edge (3 Meters) is meticulously designed for ease of use, durability, and accurate measurement in field conditions. Its lightweight construction allows for easy handling and portability by a single operator, facilitating rapid and frequent checks during pavement laying. The edges are precisely machined to ensure a true straight line, crucial for accurate identification of even subtle irregularities. Many models include convenient handles for ergonomic positioning and manipulation. Its 3-meter length is specifically chosen to span typical construction irregularities effectively, making it suitable for both short-span local irregularities and assessing broader pavement profiles.

The data obtained from the AZA 0959 is invaluable for:

• Quality Control During Construction: Enables contractors to identify and rectify irregularities immediately after laying and compaction, ensuring compliance with specifications before the pavement cools or sets.
• Acceptance Testing: Used by supervising engineers to verify the longitudinal and transverse regularity of completed pavement layers as part of acceptance criteria.
• Maintenance Assessment: Helps identify areas in existing roads that have developed excessive undulations, guiding targeted repair and rehabilitation efforts.
• Ensuring Riding Comfort: A smooth road surface directly translates to better riding comfort for vehicle occupants.
• Enhancing Safety: Reduces potential hazards caused by abrupt changes in elevation or unevenness, which can impact vehicle stability and control.
• Improving Drainage: Proper surface regularity prevents water ponding, which can lead to premature pavement deterioration and stripping. For detailed guidelines on road construction quality control and testing, resources from the Indian Roads Congress (IRC) are the primary reference in India.

Operating the AZA 0959 is a simple, visual inspection process. Technicians systematically place the straight edge along the road surface, observing for gaps and measuring them with wedges/feeler gauges. The locations of irregularities are noted for rectification. Routine maintenance is minimal, primarily involving keeping the straight edge clean and ensuring its edges remain free from damage or deformation.

In conclusion, the AZA 0959 Straight Edge (3 Meters) from AZALAB is a cost-effective, practical, and highly effective tool for guaranteeing the surface regularity of road pavements. Its simplicity, combined with its precision and adherence to standard practices, makes it an indispensable asset for ensuring the quality, safety, and long-term performance of critical road infrastructure projects across India.

Specifications

• Model Number: AZA 0959
• Type: Pavement Surface Regularity Checker / Straight Edge
• Application: Measurement of longitudinal and transverse irregularities (undulations) on road pavements.
• Length: 3.0 meters (3000 mm)
• Material: High-grade Aluminum Alloy (lightweight, corrosion-resistant, rigid).
• Edge: Precision-machined straight edge for accurate contact with the pavement surface.
• Handles: Ergonomic handles for easy manipulation and placement.
• Compliance: Conforms to relevant national standards and specifications for road construction quality control, including those by the Ministry of Road Transport & Highways (MoRTH) in India.
• Weight: Approximately 5-8 kg (lightweight for easy handling).
• Accessories (Commonly Used With): Graduated wedges or Feeler Gauges (typically supplied separately).

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What is the primary purpose of the AZA 0959 Straight Edge (3 Meters)? A1: The AZA 0959 Straight Edge (3 Meters) is used to quickly and accurately check the longitudinal and transverse regularity of road pavement surfaces, identifying undulations, depressions, and high spots that can affect riding comfort, safety, and drainage.

Q2: Why is a 3-meter length significant for this Straight Edge? A2: A 3-meter length is a standard and effective length for spanning typical irregularities that affect riding quality and drainage on road surfaces, as specified by various road authorities and standards in India.

Q3: How is the AZA 0959 used to measure irregularities? A3: The straight edge is placed on the pavement, and any gaps between its underside and the surface are measured using a calibrated wedge or a set of feeler gauges. The maximum measured gap indicates the extent of the irregularity.

Q4: What materials can be tested with this Pavement Irregularity Gauge? A4: The Straight Edge (3 Meters) is suitable for checking the surface regularity of various pavement layers, including asphalt concrete, cement concrete, granular sub-bases, and base courses, both during and after construction.

Q5: What are the key benefits of using the AZA 0959 for road construction quality control? A5: It enables rapid identification of surface defects, allowing for immediate rectification. This ensures compliance with specifications, improves riding comfort and safety, facilitates proper drainage, and contributes to the long-term performance and durability of the road pavement.

Q6: Does the AZA 0959 comply with Indian road construction standards? A6: Yes, the AZA 0959 Straight Edge is designed to conform to the specifications and quality control guidelines stipulated by authorities like the Ministry of Road Transport & Highways (MoRTH) and the Indian Roads Congress (IRC) for road construction in India.
