STRIPPING VALUE APPARATUS AZA0943
The AZA0943 Stripping Value Apparatus from Azalab is a precision laboratory instrument designed to evaluate the adhesion characteristics of bitumen-coated aggregates when subjected to water immersion. This test is critical in assessing the resistance of aggregates to stripping, a major cause of premature pavement failure due to moisture ingress.
The apparatus is widely used in road construction quality control laboratories, civil engineering departments, research institutions, and third-party testing facilities. It fully complies with ASTM D1664 and IS 6241, ensuring acceptance across both international and Indian testing frameworks.
Description
Importance of the Stripping Value Test
Moisture damage is one of the leading causes of deterioration in bituminous pavements. The stripping value test determines the ability of bitumen to retain its bond with aggregates under adverse water and temperature conditions.
Using the AZA0943, bitumen-coated aggregate samples are immersed in hot water under controlled conditions. After immersion, the aggregates are visually examined to assess the percentage of bitumen film stripped from the aggregate surface. This qualitative evaluation plays a vital role in:
-
Selecting suitable aggregates
-
Designing durable bituminous mixes
-
Evaluating the need for anti-stripping agents or additives
-
Ensuring long-term pavement performance
Robust Design & Efficient Operation
The AZA0943 Stripping Value Apparatus features a thermostatically controlled, double-walled stainless steel water bath capable of maintaining temperatures up to 100°C, simulating extreme service conditions. The system includes six heat-resistant glass beakers, suspended uniformly on a specially designed stand to ensure consistent heating and immersion.
The apparatus is engineered for laboratory safety, durability, and ease of operation, with corrosion-resistant construction and a compact footprint suitable for routine testing.
Key Features & Advantages
-
Designed for bitumen adhesion and aggregate stripping evaluation
-
Thermostatically controlled water bath up to 100°C
-
Six 500 ml heat-resistant glass beakers included
-
Stainless steel (SS304) construction for corrosion resistance
-
Uniform beaker suspension for consistent test conditions
-
Stable, anti-slip base for laboratory safety
-
Simple operation with reliable, repeatable results
Standards Compliance
The AZA0943 conforms to internationally recognized standards:
-
ASTM D1664 – Resistance of Bituminous Coatings to Water
-
IS 6241 – Method of Test for Determination of Stripping Value of Road Aggregates
Compliance ensures that results are consistent, reproducible, and acceptable for regulatory approvals and project specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0943 |
| Test Type | Bitumen adhesion / aggregate stripping test |
| Number of Beakers | 6 |
| Beaker Capacity | 500 ml each |
| Water Bath Type | Double-walled, stainless steel |
| Temperature Control | Thermostatic, up to 100°C |
| Heating Element | Electric immersion heater |
| Construction Material | Stainless Steel (SS304) |
| Included Accessories | Beakers, beaker stand, thermometer |
| Power Supply | 230V AC, 50 Hz |
| Safety Features | Overheat protection, insulated handles |
| Dimensions (L×W×H) | Approx. 600 × 350 × 300 mm |
| Weight | Approx. 20–25 kg |
| Standards | ASTM D1664, IS 6241 |
Applications
-
Highway and road construction quality control
-
Bituminous mix design laboratories
-
Civil engineering testing departments
-
Research and academic institutions
-
Third-party material testing laboratories
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the stripping value test?
A: It evaluates how effectively bitumen adheres to aggregate surfaces and whether moisture causes bond failure, directly impacting pavement durability.
Q2: Which standards does the AZA0943 comply with?
A: ASTM D1664 and IS 6241.
Q3: Can it simulate field temperature conditions?
A: Yes, the thermostatic water bath can operate up to 100°C.
Q4: What types of aggregates can be tested?
A: All standard bitumen-coated aggregates used in road construction, including crushed stone and gravels.
Q5: Is the test qualitative or quantitative?
A: The test is primarily qualitative, based on visual assessment of bitumen film stripping.
AZA0943 Stripping Value Apparatus
-
Determines adhesion of bitumen to aggregate surfaces
-
Ensures moisture resistance of bituminous mixes
-
Complies with ASTM D1664 and IS 6241
-
Essential for pavement quality assurance
-
Durable, easy-to-use laboratory equipment
Additional information
| No. of Beakers |
6 (500 ml capacity each) |
|---|---|
| Bath Type |
Double-walled, stainless steel |
| Temperature Control |
Thermostatic, up to 100°C |
| Heating Element |
Electric immersion heater |
You may also like…
ADVANCED TRIAXIAL TEST SYSTEM (UU–CU–CD CAPABLE) AZA1296
The AZA LAB Advanced Triaxial Test System AZA1296 is a fully automated geotechnical laboratory testing system designed for accurate determination of soil shear strength and deformation characteristics under controlled stress and drainage conditions.
The system supports all major triaxial compression testing modes including:
- Unconsolidated Undrained (UU)
- Consolidated Undrained (CU)
- Consolidated Drained (CD)
Engineered for high-precision geotechnical analysis, the AZA1296 replicates in-situ soil stress conditions to evaluate soil stability, strength behavior, pore pressure response, and failure mechanisms under axial loading.
The system integrates servo-controlled loading, automatic pressure regulation, real-time pore pressure monitoring, automated data acquisition, and advanced software analysis, making it ideal for geotechnical laboratories, civil engineering projects, infrastructure development, research institutions, and academic applications.
AIR BAG TRAINER AZA1246
The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.
This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.
ALTERNATOR TRAINER AZA1247
The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.
This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.
ARC WELDING MACHINE AZA1234
The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.
With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.
AUOTFLASH AUTOMATED ABEL FLASH POINT ANALYZER AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
AUTODIST-86 GLASS DISTILLATION UNITAZA1282
The AutoDist-86 Glass Distillation Unit (Model AZA1282) is a high-performance laboratory water distiller designed for the continuous production of high-purity distilled water.
Constructed entirely from borosilicate glass 3.3, the unit ensures zero metallic contamination, excellent thermal resistance, and long operational life. It is ideal for laboratories requiring consistent, low-conductivity distilled water for analytical, pharmaceutical, and research applications.Distillation Performance
- Distillate Output: Up to 4 L/hour (±10%)
- Suitable for routine and medium-scale laboratory demand
- Efficient removal of:
- Dissolved salts
- Heavy metals
- Organic/inorganic impurities
- Microbial contaminants
Related products
AUTOMATIC MARSHALL STABILITY TEST MACHINE AZA0954
The AZA0954 Automatic Marshall Stability Test Machine from AZALAB is a cornerstone instrument for modern civil engineering, highway material, and asphalt testing laboratories. Designed for fully automated determination of Marshall Stability and Marshall Flow, the AZA0954 plays a critical role in asphalt mix design, quality control, and performance evaluation of bituminous pavements.
Compared to conventional manual Marshall testers, the AZA0954 represents a significant technological advancement, offering superior accuracy, repeatability, operational efficiency, and digital data management. It is ideally suited for laboratories handling high sample volumes, regulatory testing, and advanced pavement research.
DUCTILITY TESTING APPARATUS AZA0956
The AZA0956 Ductility Testing Apparatus from AZALAB is a precision-engineered laboratory instrument designed to determine the ductility of bituminous materials, including paving grade bitumen, asphalt binders, and similar viscoelastic materials. Ductility is defined as the ability of a bituminous material to undergo tensile deformation before rupture and is a critical parameter for evaluating binder performance in flexible pavements.
In road construction, ductility testing plays a vital role in assessing how well bitumen will perform under temperature variations, repeated traffic loading, and long-term aging. A binder with adequate ductility is less prone to cracking and brittle failure, thereby contributing to durable, flexible, and high-performing pavements. The AZA0956 accurately measures the elongation distance (in centimeters) that a standard bitumen specimen can be stretched at a specified temperature and rate of pull before breaking.
MARSHALL STABILITY TEST APPARATUS AZA0953
The AZA0953 Marshall Stability Test Apparatus from AZALAB is a fundamental and widely adopted instrument in civil engineering and highway material laboratories for evaluating the performance characteristics of compacted bituminous mixtures. It forms the core equipment of the Marshall Mix Design Method, a globally recognized and extensively used procedure for asphalt concrete pavement design and quality control.
The apparatus is designed to accurately determine two critical parameters of asphalt mixtures—Marshall Stability and Marshall Flow—which together indicate the mix’s load-bearing capacity, resistance to permanent deformation, and ability to accommodate traffic-induced stresses without cracking.
REFLUX EXTRACTOR 4000 GMS AZA0941
The AZA0941 Reflux Extractor 4000 GMS from Azalab is a high-efficiency laboratory apparatus designed for the quantitative determination of bitumen content in asphalt paving mixtures using the reflux extraction method. Engineered for large sample capacities up to 4000 grams, the AZA0941 is an essential instrument for civil engineering laboratories, road construction quality control, and materials testing facilities.
By ensuring accurate separation of bitumen binder from aggregates, the AZA0941 helps verify compliance with asphalt mix design specifications, directly contributing to durable, high-performance pavement construction.

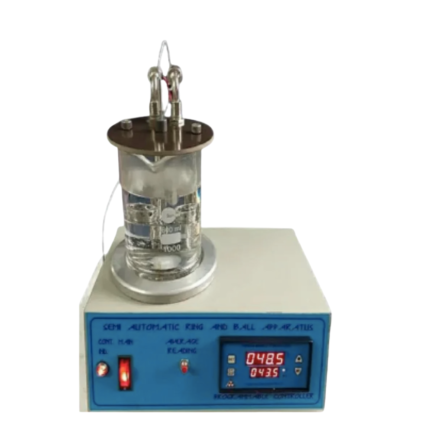

RING AND BALL APPARATUS AZA0932
