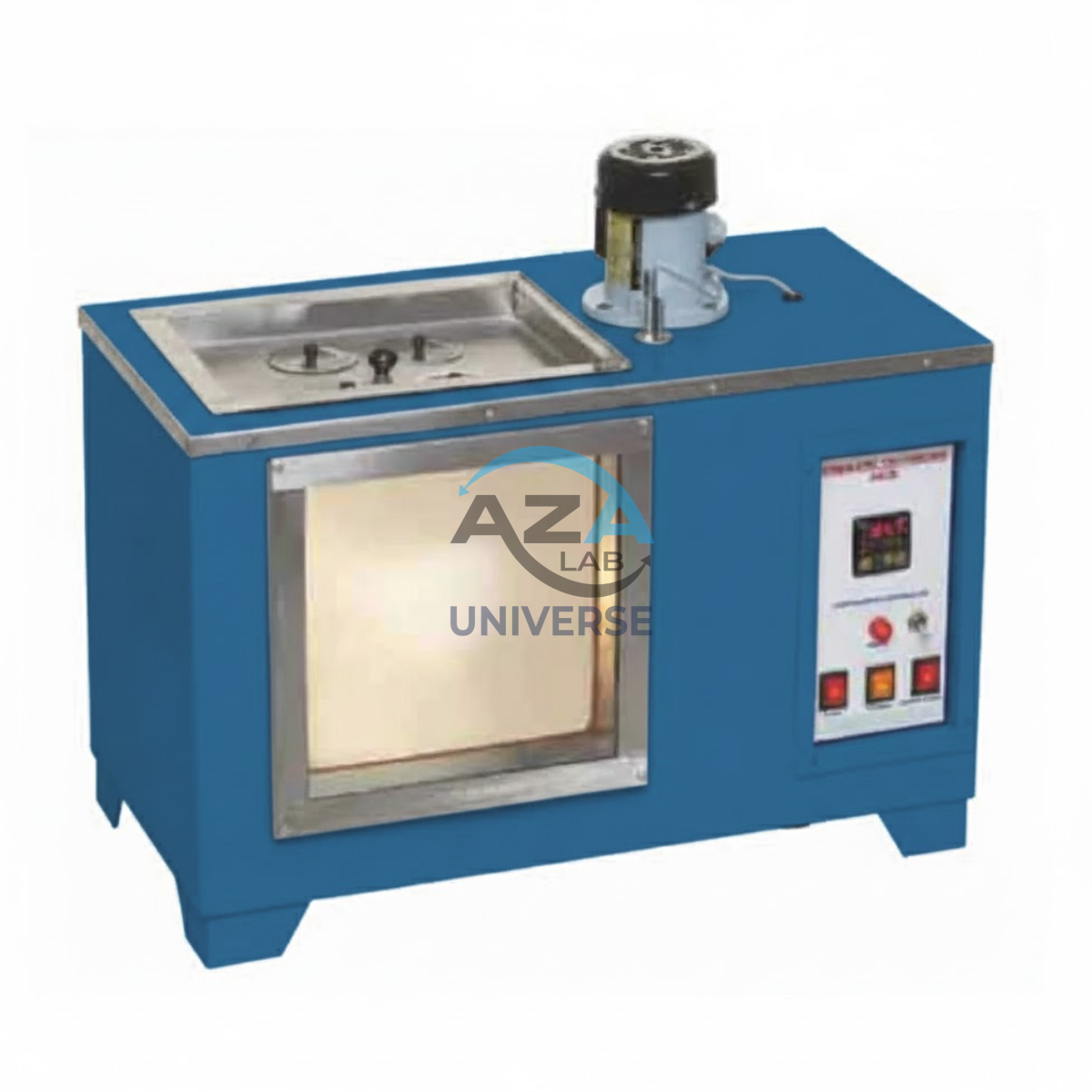

KINEMATIC VISCOMETER BATH AZA0948
The AZA0948 Kinematic Viscometer Bath from AZALAB is a precision-controlled laboratory bath designed to provide a stable and uniform temperature environment for determining the kinematic viscosity of liquids using calibrated glass capillary viscometers. Accurate viscosity measurement is critical for quality control and specification compliance in bitumen, asphalt, petroleum products, lubricants, and industrial fluids.
Kinematic viscosity, expressed in centistokes (cSt) or mm²/s, is highly sensitive to temperature variations. The AZA0948 addresses this requirement through precise PID-based temperature control, uniform circulation, and high-visibility construction, ensuring repeatable and standards-compliant test results.
Description
Purpose & Function
The AZA0948 maintains a constant and uniform bath temperature during viscosity testing as required by international standards. Glass capillary viscometers containing the test sample are immersed in the bath until thermal equilibrium is achieved. The efflux time of the liquid under gravity is measured and multiplied by the viscometer constant to determine kinematic viscosity.
Standards Compliance
- ASTM D445 – Kinematic viscosity of transparent and opaque liquids
- IS 1206 (Part 3) – Kinematic viscosity of bituminous materials
- ISO 3104
- IP 71
Widely accepted for VG Bitumen grading as per IS 73 and MoRTH specifications.
Key Features
- High-Precision Temperature Control: Microprocessor-based PID controller ensures temperature stability of ±0.1°C or better
- Uniform Temperature Distribution: Motorized stirrer / circulation system eliminates thermal gradients
- Double-Walled Construction: SS inner tank with insulated outer cabinet for thermal efficiency
- High Visibility: Toughened glass windows on two sides for clear observation of viscometers
- Multi-Viscometer Capacity: Supports simultaneous testing of multiple capillary viscometers
- Chemical Resistance: Stainless steel inner tank resists corrosion from oils and bituminous materials
- Laboratory-Grade Build: Designed for continuous use in QC and R&D laboratories
Applications
- Bitumen and asphalt binder testing (VG grading, cut-back bitumen)
- Petroleum products and lubricating oils
- Fuel and hydraulic oil quality control
- Industrial fluid characterization
- Research, academic, and material development laboratories
Technical Specifications
| Parameter | Description |
|---|---|
| Model | AZA0948 |
| Test Method | Kinematic viscosity using glass capillary viscometers |
| Temperature Range | Ambient +5°C to 100°C / 120°C (higher ranges up to 150–200°C optional) |
| Temperature Stability | ±0.1°C or better |
| Controller | PID digital temperature controller |
| Display Resolution | 0.1°C |
| Stirring | Motorized stirrer / circulation system |
| Inner Tank | Stainless Steel (SS 304) |
| Outer Cabinet | Powder-coated GI / mild steel |
| Insulation | Glass wool / PUF insulation |
| Viewing Windows | Toughened glass (two sides) |
| Viscometer Capacity | 2, 4, 6 or 8 viscometers (model dependent) |
| Power Supply | 230 V AC, 50 Hz, Single Phase |
Supplied Accessories
- Universal viscometer holders
- Suction bulb
- Drain valve (model dependent)
Optional Accessories
- Glass capillary viscometers (Cannon-Fenske, Ubbelohde, etc.)
- Calibrated ASTM thermometers
- Digital stopwatch
- Viscosity reference oils
- Cooling coil for below-ambient operation
- High-temperature oil bath configuration
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the AZA0948?
It provides a stable temperature bath for kinematic viscosity testing using glass capillary viscometers.
Q2: Why is precise temperature control essential?
Viscosity varies significantly with temperature. Even small fluctuations can lead to inaccurate results.
Q3: Is it suitable for bitumen viscosity testing?
Yes. It fully supports IS 1206 (Part 3) and ASTM D445, commonly used for VG bitumen testing.
Q4: Are viscometers included?
Viscometers are typically supplied separately, as selection depends on viscosity range.
Q5: Can multiple samples be tested simultaneously?
Yes. The bath is designed to hold multiple viscometers depending on the selected capacity.
Summary of Advantages
- Accurate and stable temperature control for viscosity testing
- High visibility and ease of operation
- Supports multiple international standards
- Suitable for bitumen, petroleum, and industrial fluids
- Robust AZALAB build quality for long-term laboratory use
AZA0948 – Precision Temperature Control for Reliable Kinematic Viscosity Measurement
Additional information
| Model Number |
AZA 0948 |
|---|---|
| Resolution |
$0.1^\\circ\\text{C}$. |
| Inner Tank Material |
Stainless Steel (SS 304 grade). |
| Outer Cabinet Material |
Powder Coated GI (Galvanized Iron) sheet. |
| Insulation |
High-density glass wool or PUF. |
Related products
AUTOMATIC MARSHALL STABILITY TEST MACHINE AZA0954
The AZA0954 Automatic Marshall Stability Test Machine from AZALAB is a cornerstone instrument for modern civil engineering, highway material, and asphalt testing laboratories. Designed for fully automated determination of Marshall Stability and Marshall Flow, the AZA0954 plays a critical role in asphalt mix design, quality control, and performance evaluation of bituminous pavements.
Compared to conventional manual Marshall testers, the AZA0954 represents a significant technological advancement, offering superior accuracy, repeatability, operational efficiency, and digital data management. It is ideally suited for laboratories handling high sample volumes, regulatory testing, and advanced pavement research.

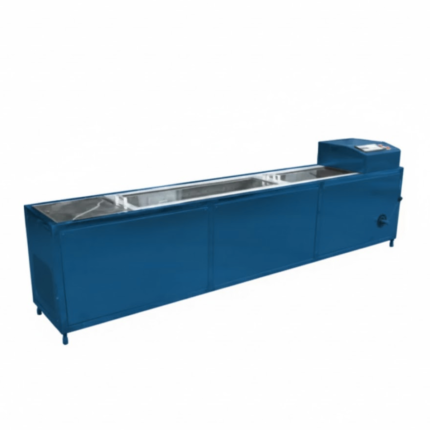

DUCTILITY TESTING APPARATUS AZA0956
The AZA0956 Ductility Testing Apparatus from AZALAB is a precision-engineered laboratory instrument designed to determine the ductility of bituminous materials, including paving grade bitumen, asphalt binders, and similar viscoelastic materials. Ductility is defined as the ability of a bituminous material to undergo tensile deformation before rupture and is a critical parameter for evaluating binder performance in flexible pavements.
In road construction, ductility testing plays a vital role in assessing how well bitumen will perform under temperature variations, repeated traffic loading, and long-term aging. A binder with adequate ductility is less prone to cracking and brittle failure, thereby contributing to durable, flexible, and high-performing pavements. The AZA0956 accurately measures the elongation distance (in centimeters) that a standard bitumen specimen can be stretched at a specified temperature and rate of pull before breaking.
ELASTIC RECOVERY MOULD AZA0958
The AZA0958 Elastic Recovery Mould is a precision-engineered testing accessory used in bitumen ductility and elastic recovery tests, particularly for evaluating polymer-modified bitumen (PMB) and elastomer-modified binders. It plays a critical role in determining the elastic behavior of bituminous binders after elongation, which directly influences pavement performance under traffic loads and temperature variations.
Elastic recovery is a key parameter for modern road construction materials, especially where enhanced flexibility, crack resistance, and rutting resistance are required. The AZA0958 mould ensures the formation of standardized, dimensionally accurate specimens, enabling reliable and repeatable elastic recovery measurements in accordance with international standards.
FILTERLESS CENTIFUGE EXTRACTOR AZA0947
REFRIGERATED DUCTILITY TEST AZA0957
The AZA0957 Refrigerated Ductility Testing Apparatus from AZALAB is a specialized laboratory instrument designed to determine the ductility of asphalt binders and bituminous materials at low temperatures. This test is critically important for evaluating the performance of asphalt pavements in cold and variable climatic conditions, where thermal contraction can lead to cracking and premature pavement failure.
Ductility, defined as the distance a bituminous binder can be stretched under tensile stress before rupture, is a key indicator of binder flexibility. At low temperatures, asphalt binders become increasingly stiff and brittle. The AZA0957 enables engineers and material technologists to accurately assess a binder’s resistance to thermal cracking, ensuring the selection of materials suitable for cold climates and long-term pavement durability.

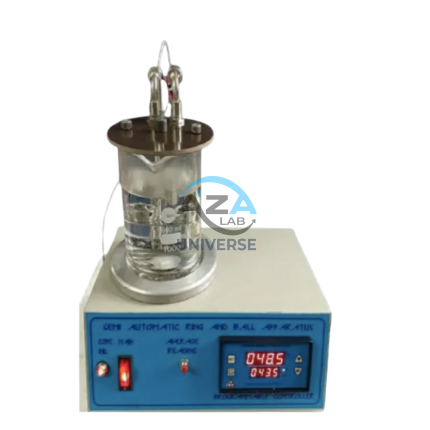

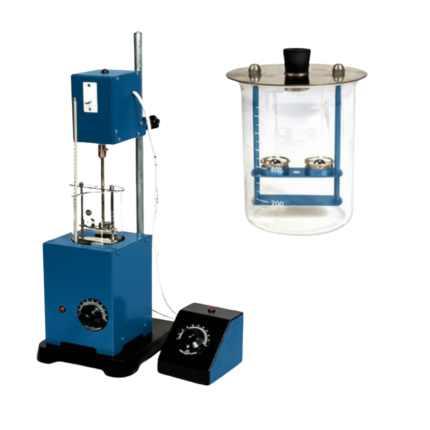

RING AND BALL APPARATUS (ELECTRICAL) AZA0933
The AZA0933 Ring & Ball Apparatus (Electrical) from Azalab is a precision laboratory instrument designed for the accurate and repeatable determination of the softening point of bitumen, asphalt binders, and other bituminous materials. This test is fundamental for evaluating the temperature susceptibility and high-temperature performance of asphalt binders, which directly influences pavement resistance to rutting and deformation.
By utilizing electrically controlled heating instead of open flame, the AZA0933 ensures consistent heating rates, improved safety, and superior test repeatability, making it an essential instrument for highway laboratories, civil engineering departments, and research institutions.

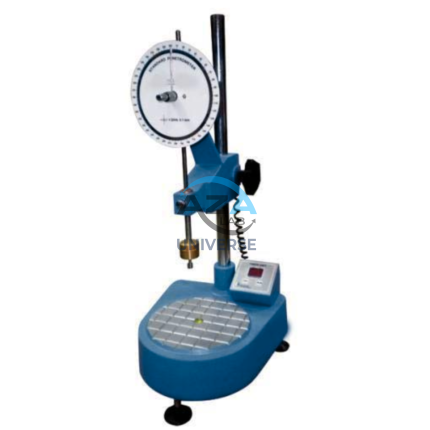

SEMI-AUTOMATIC PENETROMETER AZA0940
The AZA0940 Semi-Automatic Penetrometer from Azalab is a high-precision laboratory instrument designed for the accurate determination of the consistency of bituminous materials, including bitumen, asphalt, and other semi-solid products such as greases and waxes. Engineered to bridge the gap between manual and fully digital systems, the AZA0940 combines robust mechanical construction with digital timing and automated needle release, delivering excellent accuracy, repeatability, and ease of operation.
This instrument is widely used in civil engineering laboratories, highway authorities, asphalt plants, research institutions, and quality control laboratories, where dependable penetration testing in compliance with ASTM D5, EN 1426, and AASHTO T49 is required.

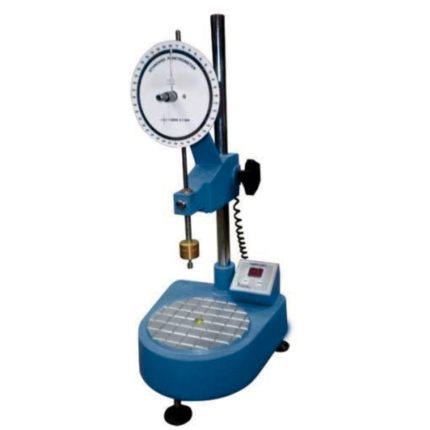

STANDARD PENETROMETER AZA0938
