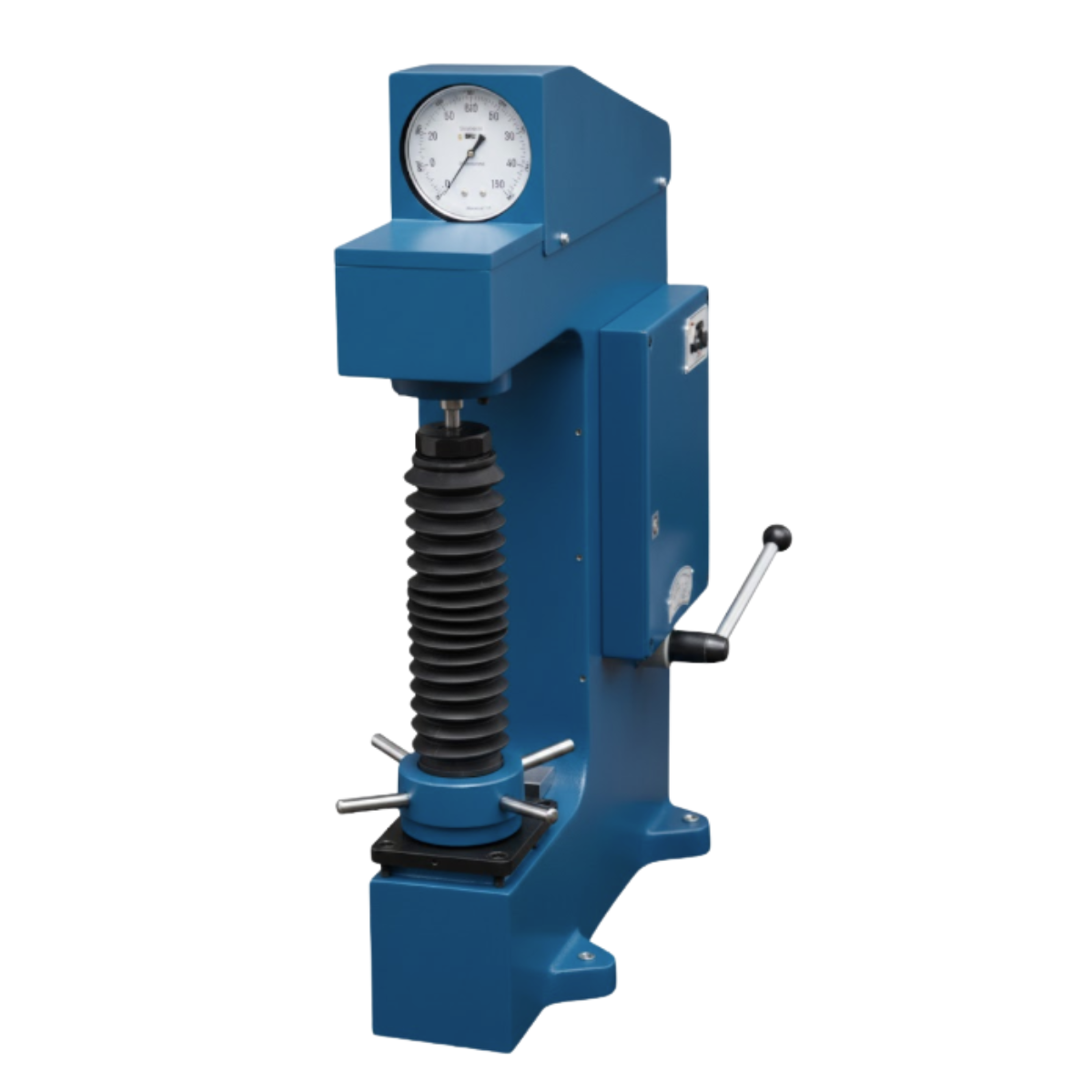

ROCKWELL HARDNESS TESTER AZA1011
The AZA1011 Rockwell Hardness Tester by Azalab is a robust, fast, and highly accurate benchtop hardness testing machine designed for measuring the hardness of metals and alloys. Built in accordance with IS, BS, ASTM, ISO, and DIN standards, this machine delivers direct, rapid, and repeatable hardness readings for production floors, workshops, laboratories, and research institutions.
Since 1966, Azalab hardness testers have been trusted for their simple operation, rugged construction, and high reliability, making AZA1011 ideal for both routine inspection and advanced material testing.
Testing Capabilities
The AZA1011 performs:
- Rockwell Hardness Testing (HRA, HRB, HRC and other scales)
- Brinell Hardness Testing (on specific variants)
It is suitable for:
- Flat, round, tubular, and irregular metal samples
- Hard and soft metals
- Steel, cast iron, aluminum, brass, copper, and hardened alloys
Description
Principle of Operation
The Rockwell method works by:
-
Applying a minor load (10 kgf) to seat the indenter.
-
Applying a major load (60, 100, or 150 kgf).
-
Measuring the depth of permanent indentation.
-
Instantly displaying the hardness value on the dial or digital screen.
The result is displayed directly – no optical measurement required.
Key Features
-
Heavy-duty, vibration-free cast body
-
Automatic zero-setting dial gauge system
-
Manual or automatic load selection (model dependent)
-
Standard diamond cone and steel ball indenters
-
Direct-reading analog / digital display
-
Adjustable dwell time
-
Precision elevating screw for specimen positioning
-
Comes with flat and V anvils
Available Models (AZA1011 Series)
| Model | Description |
|---|---|
| AZA1011A | Manual Rockwell – automatic zero dial gauge, manual load selection |
| AZA1011B | Manual Rockwell – automatic zero dial gauge, automatic load selection |
| AZA1011C | Rockwell + Brinell – automatic load selection, Brinell 187.5 kgf with 2.5 mm ball (30F/D²) |
| AZA1011D | Same as 1011C + additional Brinell 250 kgf with 5 mm ball (10F/D ratio) for non-ferrous metals |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1011 Series |
| Tester Type | Rockwell / Rockwell + Brinell |
| Minor Load | 10 kgf |
| Major Loads | 60 kgf, 100 kgf, 150 kgf |
| Brinell Load (Model C) | 187.5 kgf with 2.5 mm ball |
| Brinell Load (Model D) | 250 kgf with 5 mm ball |
| Display | Analog Dial Gauge / Optional Digital |
| Max Specimen Height | 170 – 250 mm (approx.) |
| Throat Depth | 130 – 165 mm (approx.) |
| Power Supply | Mechanical / 230V AC (for automatic models) |
| Standards | IS 1586, ASTM E18, ISO 6508-1 |
| Country of Origin | Made in India |
Applications
-
Steel plants and metal fabrication units
-
Heat treatment workshops
-
Automotive and aerospace industries
-
Tool rooms and machine shops
-
Educational and research institutions
-
Quality control laboratories
Advantages of AZA1011
-
Extremely fast testing cycle
-
Direct and easy-to-read results
-
Long operational life
-
Simple operation with minimal training
-
Conforms to global hardness testing standards
Frequently Asked Questions (FAQ)
Q1: What does AZA1011 measure?
It measures Rockwell hardness numbers such as HRC, HRB, and HRA.
Q2: Can it perform Brinell testing?
Yes, models AZA1011C and AZA1011D support Brinell hardness testing.
Q3: Is it suitable for irregular samples?
Yes, it includes V and flat anvils for different sample shapes.
Q4: Does it meet international standards?
Yes, it conforms to IS, BS, ASTM, ISO, and DIN standards.
Q5: Is calibration supported?
Yes, calibration test blocks are supplied with the machine.
Additional information
| Model |
AZA 1011 |
|---|---|
| Tester Type |
Rockwell Hardness Tester (Benchtop) |
| Minor Load |
10 kgf. |
| Major Loads |
60 kgf, 100 kgf, 150 kgf (selectable). |
| Weight (Approx.) |
[e.g., 60-90 kg]. |
| Standards Compliance |
IS 1586, ASTM E18, ISO 6508-1. |
| Country of Origin |
Made in India. |
