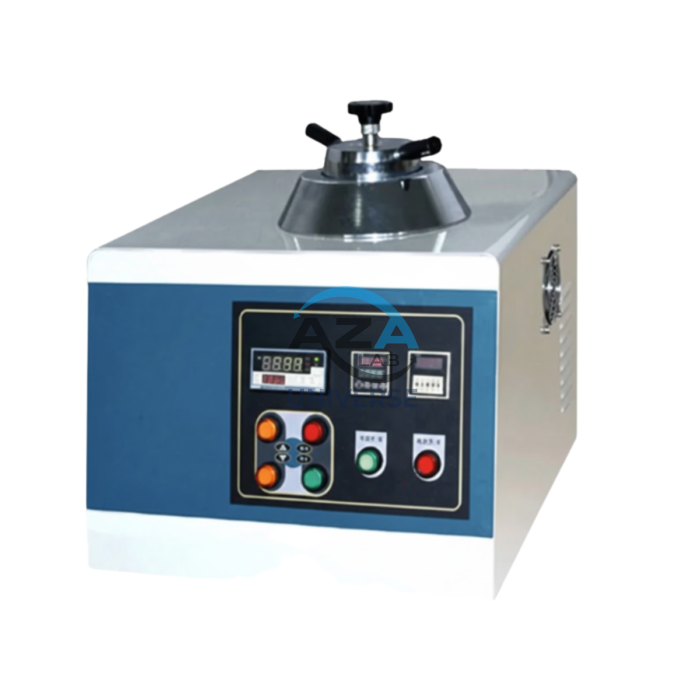

SPECIMEN MOUNTING PRESS AZA1018 - Image 1
Click to enlarge

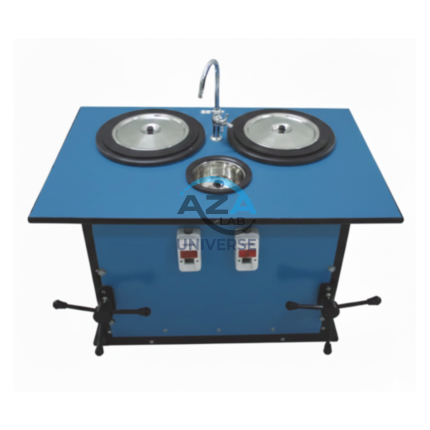

DOUBLE DISC POLISHING MACHINE AZA1017
DOUBLE DISC POLISHING MACHINE AZA1017
Back to products
CNC Lathe Machine
Rover CNC Lathe Machine (AZA 1173)

SPECIMEN MOUNTING PRESS AZA1018

The AZA1018 Specimen Mounting Press is a robust, precision-engineered hot mounting machine designed for preparing metallographic samples by encapsulating them in thermosetting resin. It delivers void-free, strong, and uniformly shaped mounts, ensuring reliable results in subsequent grinding, polishing, and microscopic examination.

Key Advantages

    • Produces defect-free, uniform mounts
    • Protects fragile and irregular specimens
    • Ensures excellent edge retention
    • Reduces handling damage
    • Improves repeatability in sample preparation
Enquiry on WhatsApp
Category:
Description

Description

Features

  • Manual hydraulic pressure system

  • Integrated electrical heating for resin curing

  • Built-in water cooling system for rapid cooling

  • Digital temperature controller (PID-based)

  • Digital cycle timer for heating and cooling

  • Heavy-duty, corrosion-resistant body

  • Interchangeable mould sets for different sample sizes

  • Safe and user-friendly operation

Applications

  • Metallurgical laboratories

  • Failure analysis labs

  • Automotive & aerospace industries

  • Research & educational institutions

  • Quality control departments

Technical Specifications

Parameter Specification
Model AZA1018
Mounting Type Hot Mounting Press
Operation Manual Hydraulic + Electrical Heating
Max Pressure 200 – 300 bar (20 – 30 MPa)
Temperature Range Up to 200°C (Operating: 150 – 180°C)
Temperature Control Digital PID Controller
Cooling System Integrated Water Cooling
Timer Digital Heating/Cooling Timer
Standard Mould Sizes 25 mm, 30 mm, 40 mm, 1”, 1.25”, 1.5”
Construction Heavy-duty, corrosion-resistant body
Power Supply 230V AC, 50/60 Hz, Single Phase
Dimensions (Approx.) 300 × 400 × 500 mm
Weight (Approx.) 30 – 40 kg

Why Choose AZA1018

  • Strong and durable industrial build

  • Precise temperature and pressure control

  • Reliable, repeatable mounting results

  • Designed to support ASTM E3 and ISO material preparation practices

AZA1018 – The foundation of accurate metallographic sample preparation.

Additional information

Additional information

Model

AZA 1018
Mounting Type

Hot Mounting.
Pressure System

Manual Hydraulic Pump.
Heating System

Electrical Heating Elements.
Construction

Heavy-duty, corrosion-resistant body.
