FATIGUE TESTING MACHINE AZA1014

The AZA1014 Fatigue Testing Machine is a high-precision system designed to evaluate a material’s resistance to cyclic and repeated loading. It helps predict service life, determine endurance limits, and prevent fatigue-related component failure in critical applications.

Key Features – AZA1014

  • Precision cyclic load application system
  • High-frequency testing capability
  • Digital closed-loop control with real-time monitoring
  • Advanced software for S-N curve generation and data analysis
  • Automatic cycle counter with failure detection
  • Interchangeable grips for axial, bending, and torsion tests
  • Heavy-duty load frame for vibration-free performance
Enquiry on WhatsApp
Category:
Description

Description

Working Principle

The AZA1014 applies repeated cyclic loads (tension, compression, bending, or torsion) to a test specimen at controlled frequency and amplitude. The system measures the number of cycles to failure and generates fatigue life data used to design safe and durable components.

Applications

  • Automotive and aerospace component testing

  • Power plant and turbine part evaluation

  • Structural and civil engineering materials

  • Biomedical implants and devices

  • Research & Development laboratories

  • Failure analysis and life prediction testing

Technical Specifications – AZA1014

Parameter Specification
Model AZA1014
Machine Type Fatigue Testing Machine
Load Capacity 5 kN to 100 kN (varies by model)
Frequency Range 1 Hz – 100 Hz (or higher)
Control Modes Load / Displacement / Strain
Load Measurement High-precision electronic load cell
Displacement Measurement LVDT / Encoder
Test Modes Axial, Bending, Torsion
Cycle Counter High-speed digital
Software Real-time plotting, S-N curves, reports
Power Supply 230V AC, Single Phase
Standards ASTM E466, ASTM E606, ISO 1143

Why Choose AZA1014?

  • Highly accurate and repeatable results

  • Strong industrial construction for long service life

  • User-friendly digital interface and software

  • Compliance with global fatigue testing standards

AZA1014 Fatigue Testing Machine

Optimized for fatigue life prediction, durability testing, and performance evaluation of critical materials and components.

Additional information

Additional information

Model

AZA 1014
Load Measurement

High-precision Electronic Load Cell.
Displacement Measurement

High-resolution encoder/LVDT.
Cycle Counter

High-speed electronic cycle counter.
Dimensions (Approx.)

Varies by capacity and frame type.
Weight (Approx.)

Varies significantly by capacity
Country of Origin

Made in India.

Related products

CHARPY IMPACT TESTER AZA1013

The AZA1013 Charpy Impact Tester is a precision laboratory instrument designed to measure the impact strength and toughness of metallic materials. It evaluates a material’s ability to absorb energy during sudden fracture, helping identify brittle or ductile behavior under dynamic loading conditions.

Key Features – AZA1013

  • Heavy-duty pendulum-type impact system
  • Rigid cast-iron/steel frame for vibration-free operation
  • Hardened steel hammer with precision knife edge
  • Standard V-notch and U-notch specimen support
  • Manual or optional automatic pendulum release
  • Built-in safety brake and protective guard
  • Low-friction bearings for accurate energy measurement
  • Analog dial or optional digital energy display
Read more
Quick view

DOUBLE DISC POLISHING MACHINE AZA1017

The AZA 1017 Double Disc Polishing Machine is a precision-engineered system designed for metallographic and materialographic surface finishing. It delivers scratch-free, mirror-like surfaces required for accurate microscopic examination. With its dual-disc configuration, it allows sequential polishing operations without changing discs, improving efficiency and workflow in laboratories.

Key Advantages

    • Produces mirror-finish, scratch-free surfaces
    • Dual polishing discs for faster, stepwise preparation
    • Consistent and reproducible polishing results
    • Reduces total specimen preparation time
    • User-friendly and low-maintenance design
Read more
Quick view

HYDRAULIC COMPUTERIZED UTM AZA1009

The AZA1009 Hydraulic Computerized UTM from Azalab is a heavy-duty, high-precision Universal Testing Machine designed for tensile, compression, bending, and shear testing of metals, concrete, composites, and structural materials. Powered by a servo-hydraulic loading system and advanced computerized control, it delivers accurate, repeatable, and reliable results for industrial, academic, and R&D applications. Engineered for high-capacity testing, the AZA1009 is ideal for steel plants, infrastructure projects, automotive and aerospace labs, and quality control departments where large forces and precise control are essential.

Key Capabilities

  • High-force hydraulic loading system for smooth and stable test execution
  • Closed-loop servo control for load, displacement, and strain rate control
  • Real-time PC-based data acquisition & graphing
  • Automatic test sequencing and reporting
  • Compatible with extensometers and strain measurement systems
Read more
Quick view

METALLURGICAL INVERTED MICROSCOPE AZA1016

The AZA 1016 Metallurgical Inverted Microscope is a high-precision optical system designed for opaque material analysis. Its inverted design allows large and heavy samples to be placed directly on the stage, making it ideal for metals, alloys, ceramics, composites, and industrial components without the need for sectioning or special mounting.

Key Advantages

  • Inverted optical system for easy sample placement
  • Ideal for large, heavy, or irregular samples
  • Stable viewing plane for uniform focusing
  • Reflected (Epi) illumination for opaque materials
  • Safe operation with reduced risk of objective damage

Read more
Quick view

ROCKWELL HARDNESS TESTER AZA1011

The AZA1011 Rockwell Hardness Tester by Azalab is a robust, fast, and highly accurate benchtop hardness testing machine designed for measuring the hardness of metals and alloys. Built in accordance with IS, BS, ASTM, ISO, and DIN standards, this machine delivers direct, rapid, and repeatable hardness readings for production floors, workshops, laboratories, and research institutions. Since 1966, Azalab hardness testers have been trusted for their simple operation, rugged construction, and high reliability, making AZA1011 ideal for both routine inspection and advanced material testing.

Testing Capabilities

The AZA1011 performs:
  • Rockwell Hardness Testing (HRA, HRB, HRC and other scales)
  • Brinell Hardness Testing (on specific variants)
It is suitable for:
  • Flat, round, tubular, and irregular metal samples
  • Hard and soft metals
  • Steel, cast iron, aluminum, brass, copper, and hardened alloys
Read more
Quick view

SPECIMEN MOUNTING PRESS AZA1018

The AZA1018 Specimen Mounting Press is a robust, precision-engineered hot mounting machine designed for preparing metallographic samples by encapsulating them in thermosetting resin. It delivers void-free, strong, and uniformly shaped mounts, ensuring reliable results in subsequent grinding, polishing, and microscopic examination.

Key Advantages

    • Produces defect-free, uniform mounts
    • Protects fragile and irregular specimens
    • Ensures excellent edge retention
    • Reduces handling damage
    • Improves repeatability in sample preparation
Read more
Quick view

TENSILE TESTING MACHINE AZA1015

The AZA1015 Tensile Testing Machine is a precision Universal Testing Machine (UTM) designed for accurate measurement of mechanical properties of materials. It is ideal for testing metals, plastics, rubber, composites, and other solid materials under tensile load.

Key Features – AZA1015

    • High-precision electronic load cell
    • Servo-motor driven electromechanical system
    • Digital / PC-controlled operation
    • Variable crosshead speed for different materials
    • Real-time stress–strain graph display
    • Optional extensometer for accurate strain measurement
    • Heavy-duty load frame for stable, repeatable results
Read more
Quick view

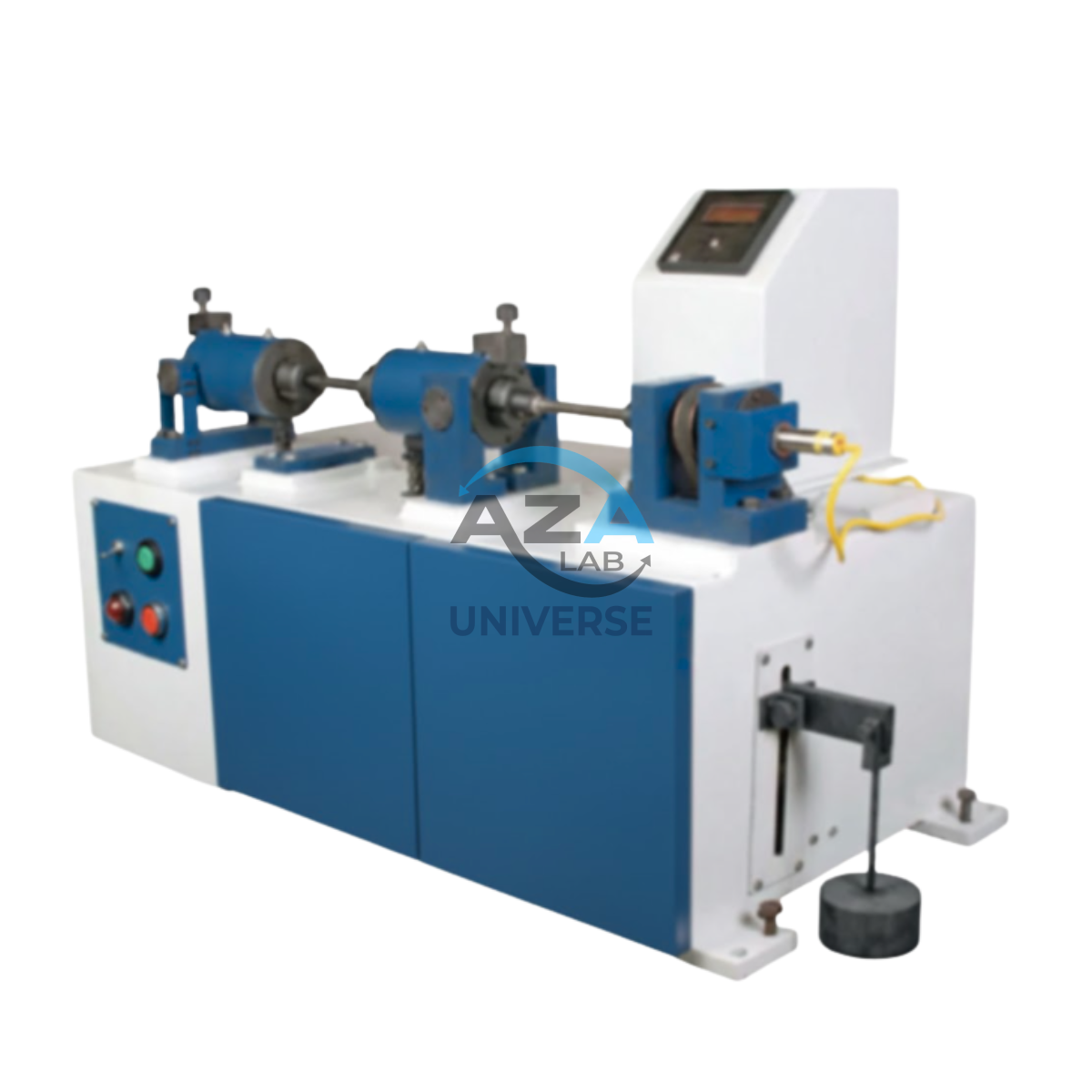

TORSION TESTING MACHINE AZA1010
