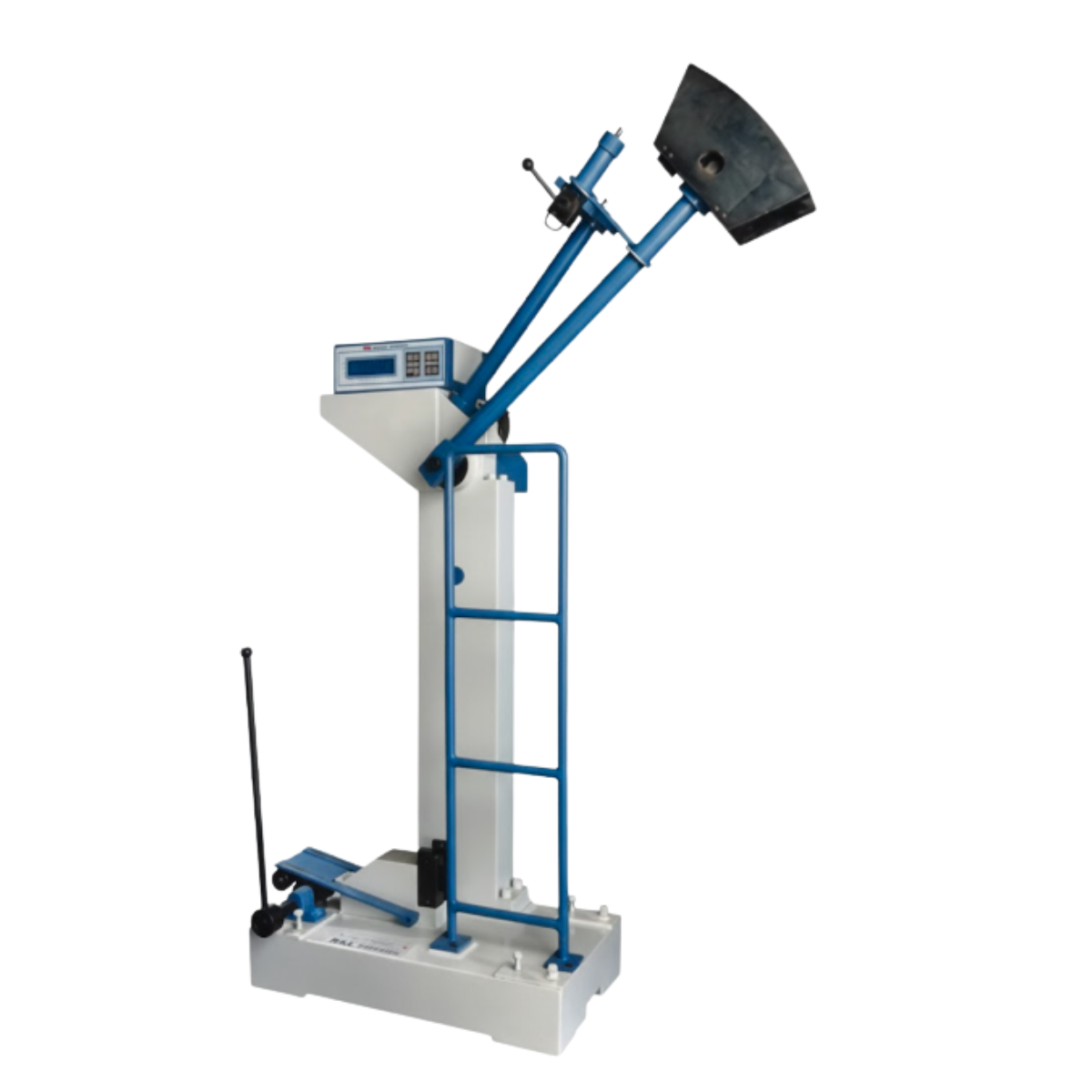

CHARPY IMPACT TESTER AZA1013 - Image 1

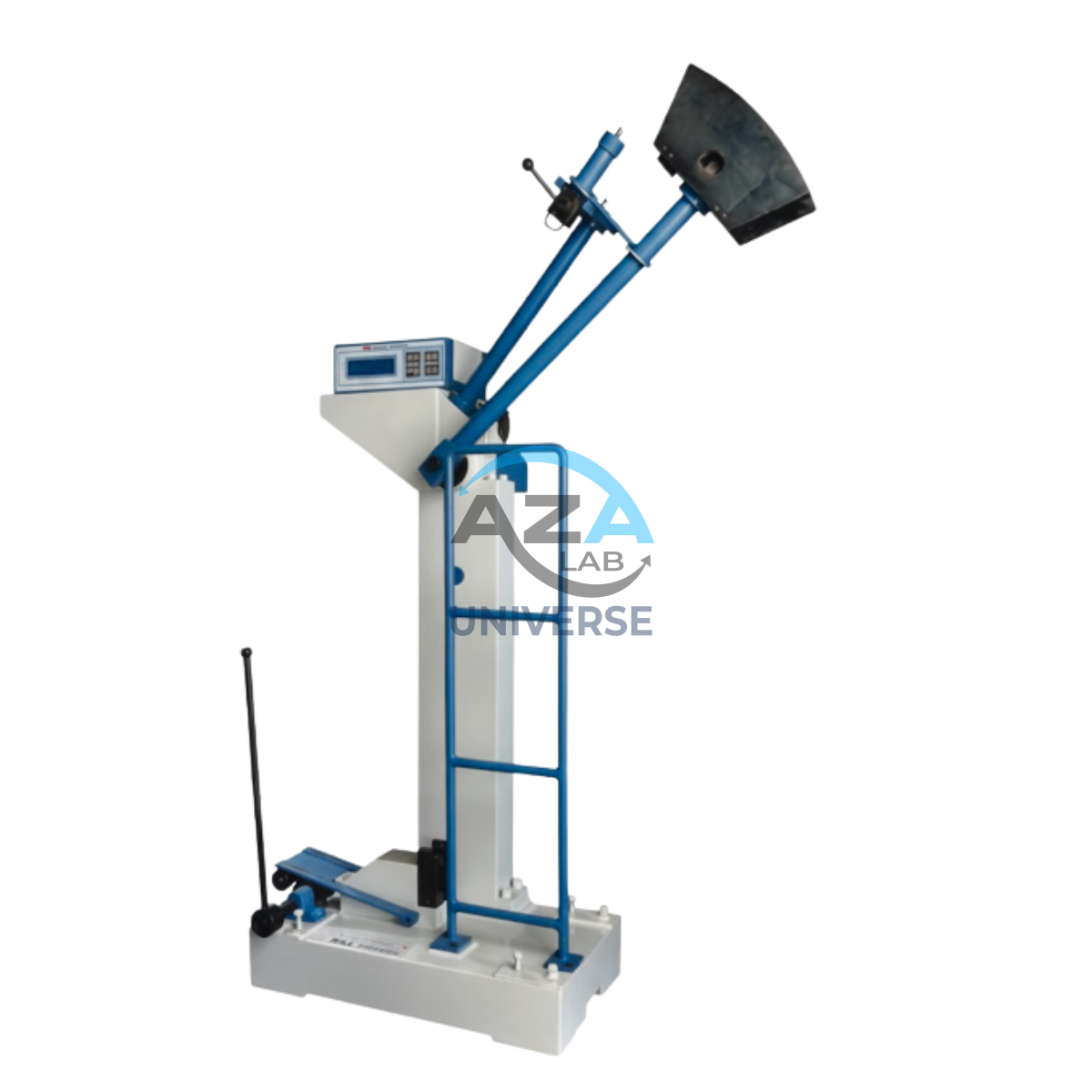

CHARPY IMPACT TESTER AZA1013 - Image 2
Click to enlarge
CHARPY IMPACT TESTER AZA1013
CHARPY IMPACT TESTER AZA1013 - Image 2
BRINELL HARDNESS TESTER AZA1012
BRINELL HARDNESS TESTER AZA1012
Back to products
FATIGUE TESTING MACHINE AZA1014
FATIGUE TESTING MACHINE AZA1014

CHARPY IMPACT TESTER AZA1013

The AZA1013 Charpy Impact Tester is a precision laboratory instrument designed to measure the impact strength and toughness of metallic materials. It evaluates a material’s ability to absorb energy during sudden fracture, helping identify brittle or ductile behavior under dynamic loading conditions.

Key Features – AZA1013

  • Heavy-duty pendulum-type impact system
  • Rigid cast-iron/steel frame for vibration-free operation
  • Hardened steel hammer with precision knife edge
  • Standard V-notch and U-notch specimen support
  • Manual or optional automatic pendulum release
  • Built-in safety brake and protective guard
  • Low-friction bearings for accurate energy measurement
  • Analog dial or optional digital energy display
Enquiry on WhatsApp
Category:
Description

Description

Working Principle

AZA1013 works on the Charpy pendulum impact principle where a notched test specimen is struck by a swinging pendulum. The energy absorbed during fracture is measured by comparing the pendulum’s height before and after impact. Higher absorbed energy = tougher material.

Applications

  • Metallurgical and material testing laboratories

  • Steel and alloy manufacturing units

  • Automotive and railway components testing

  • Structural and pipeline materials testing

  • Research institutes and engineering colleges

Technical Specifications – AZA1013

Parameter Specification
Model AZA1013
Type Pendulum Type Charpy Impact Tester
Energy Capacity Up to 300 Joules (metal testing)
Striking Velocity Approx. 5.2 m/s
Readout System Analog Dial / Digital (Optional)
Hammer Hardened steel with knife edge
Anvils Hardened steel standard anvils
Release Mechanism Manual / Optional Automatic
Safety Protective guard + braking system
Power Supply Not required (230V AC for digital model)
Standards IS 1757, ASTM E23, ISO 148-1

Why Choose AZA1013?

  • Accurate and repeatable impact energy measurement

  • Long-lasting industrial-grade construction

  • Safe and easy to operate

  • Conforms to Indian and international standards

AZA1013 Charpy Impact Tester

Reliable toughness testing for metals and alloys
Ideal for quality control, research, and production laboratories.

Additional information

Additional information

Model

AZA 1013
Tester Type

Pendulum Type Charpy Impact Testing Machine
Principle

Measures absorbed energy during specimen fracture.
Anvils

Hardened steel anvils conforming to standard dimensions.
Braking System

Efficient braking mechanism for safety.
Safety

Protective safety guard/enclosure.
